LED Retrofit CLASSIC B

ST CLAS B 25 FR 2.5 W/2700 K E14

Download data sheet
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Lamps with innovative LED "filament" technology
  • Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
  • No UV and near-IR radiation in the light beam
  • Instant 100 % light, no warm-up time
  • Lower thermal output (compared with the standard reference product)
  • Can be easily fitted instead of ordinary light bulbs
  • Lower energy consumption than incandescent or halogen lamps
Areas of application
  • Perfect for decorative installations
  • Domestic applications
  • General illumination
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Professional LED lamps for line voltage
  • Not dimmable
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
  • Lifetime up to 15,000 h
  • Lamp made of glass
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Electrical data
Nominal wattage 2.5 W
Construction wattage 2.50 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 25 W
Nominal current 19 mA
Type of current AC
Inrush current 6.8 A
Operating frequency 50…60 Hz
Mains frequency 50…60 Hz
Max. lamp number on MCB B10 A 263
Max. lamp number on MCB B16 A 421
Power factor λ > 0.50
Photometrical data
Luminous flux 250 lm
Nominal useful luminous flux 90° 250 lm
Luminous efficacy 100 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra ≥80
Light color 827
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Light technical data
Beam angle 300 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s
Dimensions & Weight
Overall length 100.00 mm
Diameter 35.00 mm
Maximum diameter 35 mm
Product weight 16.00 g
Temperatures & operating conditions
Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 59 °C
Lifespan
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90
Additional product data
Base (standard designation) E14
Mercury content 0.0 mg
Mercury-free Yes
Design / version Frosted
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Capabilities
Dimmable No
Certificates & Standards
Energy efficiency class F 1)
Energy consumption 3.00 kWh/1000h
Type of protection IP20
Standards CE
Photobiological safety group acc. to EN62778 RG0
1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)
Country-specific categorizations
ILCOS DRBB/F-3-230-E14-35/97,5
Order reference LEDSCLB252,5W/8
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) E14
Correlated colour temperature type SINGLE_VALUE
Length 100.00 mm
Height 35.00 mm
Width 35.00 mm
EPREL ID 1402958,523086
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075143494 Folding box
2		 36 mm x 71 mm x 145 mm 46.00 g 0.37 dm³
4058075436664 Folding box
1		 36 mm x 49 mm x 145 mm 28.00 g 0.26 dm³
4058075604605 Shipping box
6		 129 mm x 111 mm x 120 mm 223.00 g 1.72 dm³
4058075605466 Shipping box
6		 131 mm x 85 mm x 126 mm 166.00 g 1.40 dm³
4058075143500 Shipping box
10		 199 mm x 81 mm x 118 mm 276.00 g 1.90 dm³
Declarations of conformity
LED lamps CLA,B,G,P
PDF (223.84 KB)
PRODUCT DATASHEET
STCLASB25FR2.5W2700KE1 4en
PDF (171.39 KB)
PRODUCT DATASHEET
STCLASB25FR2.5W2700KE1 4en
PDF (171.26 KB)
Product image: white background, diagonal
CLB GL FR E14
TIF (14.11 MB)
Product image: white background, upright
CLB GL FR E14
TIF (14.11 MB)
Product line drawing with letters
CLB GL FR E14 ml
SVG (9.8 KB)

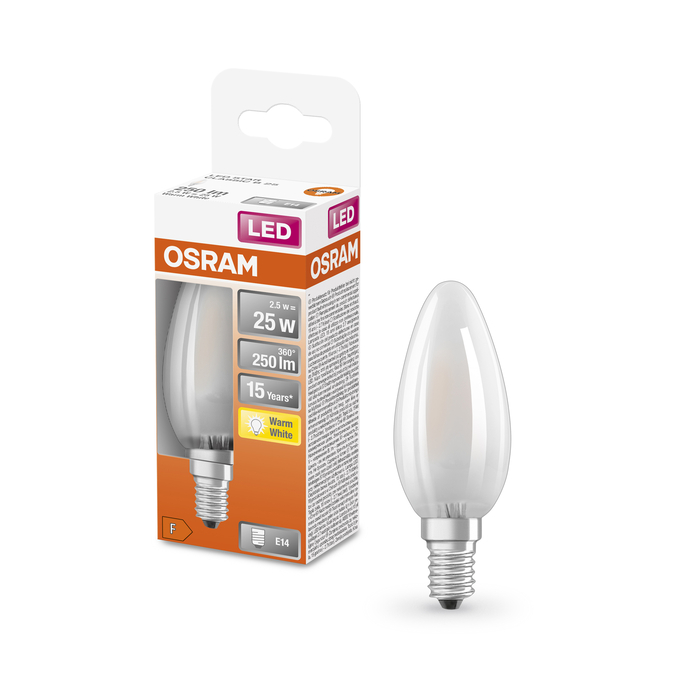

Combo Shot = Product Beauty Shot + Packaging Image
LEDSCLB25 2,5W-827 230VGLFR E14 FS1 OSRAM
JPG (1.04 MB)

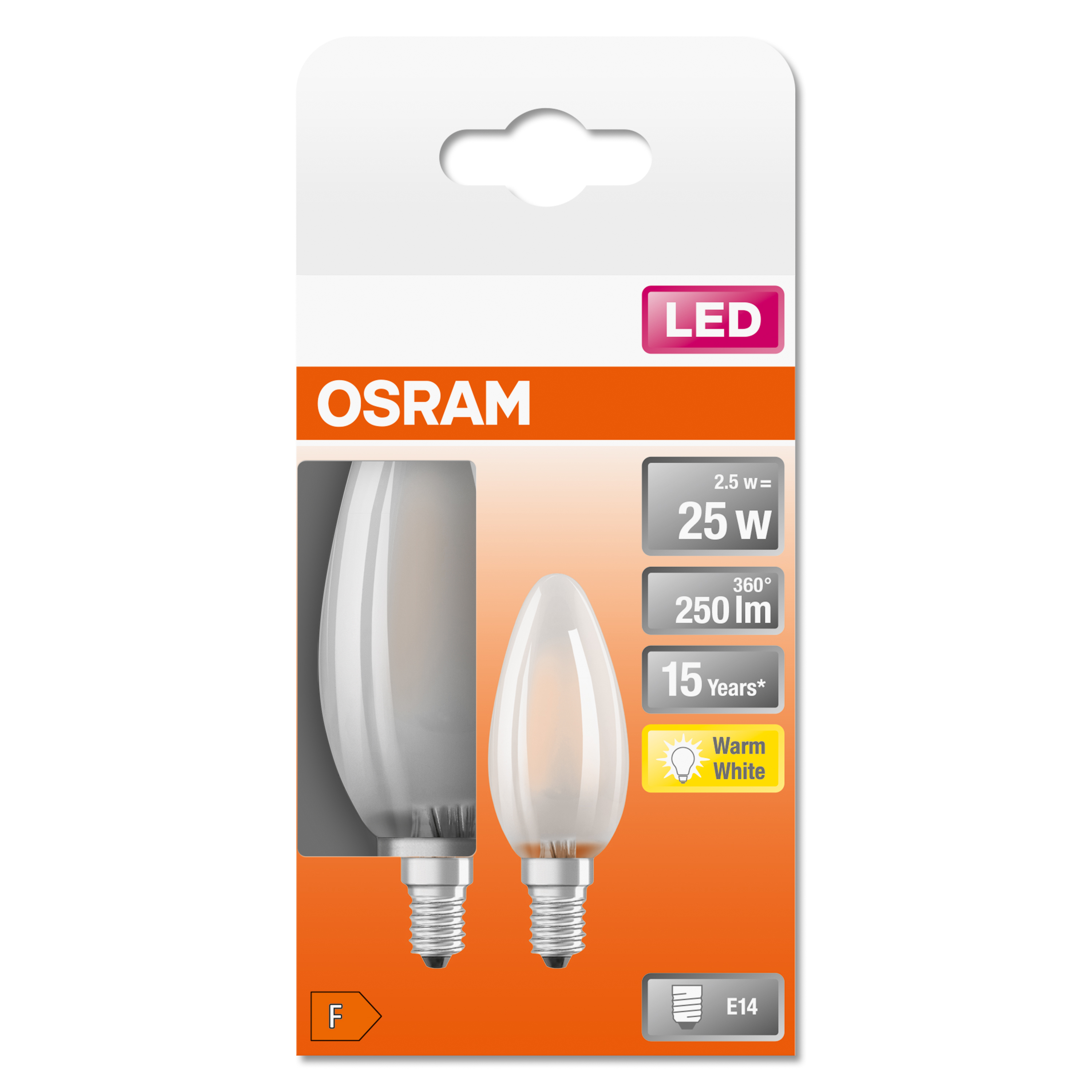

Packaging image, frontal
LED ST CLB 25 2.8W 827 GL FR E14 MiCh Front
TIF (1.51 MB)

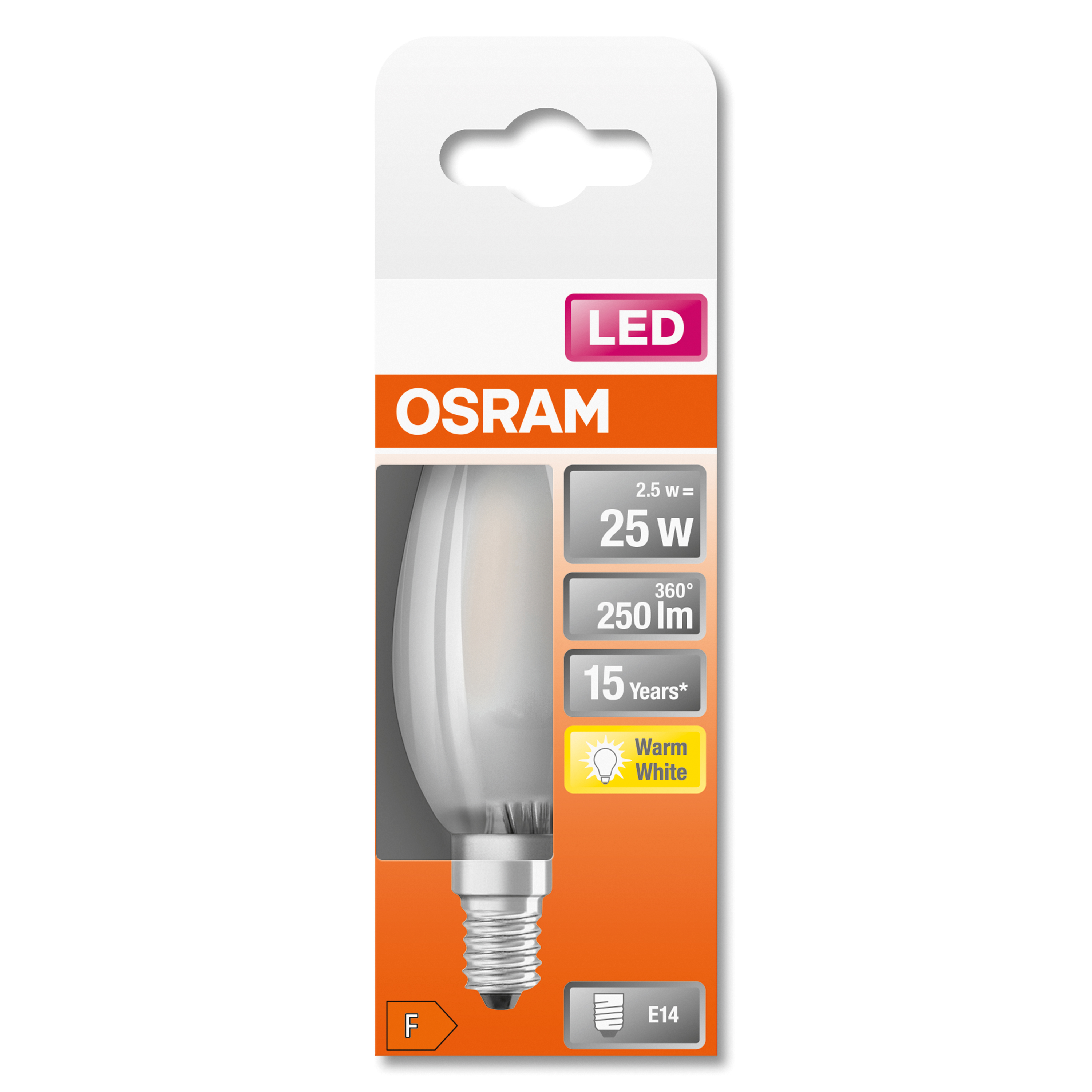

Packaging image, frontal
LED ST CLB 25 2.5W 827 FR E14 MiCh
TIF (1.67 MB)

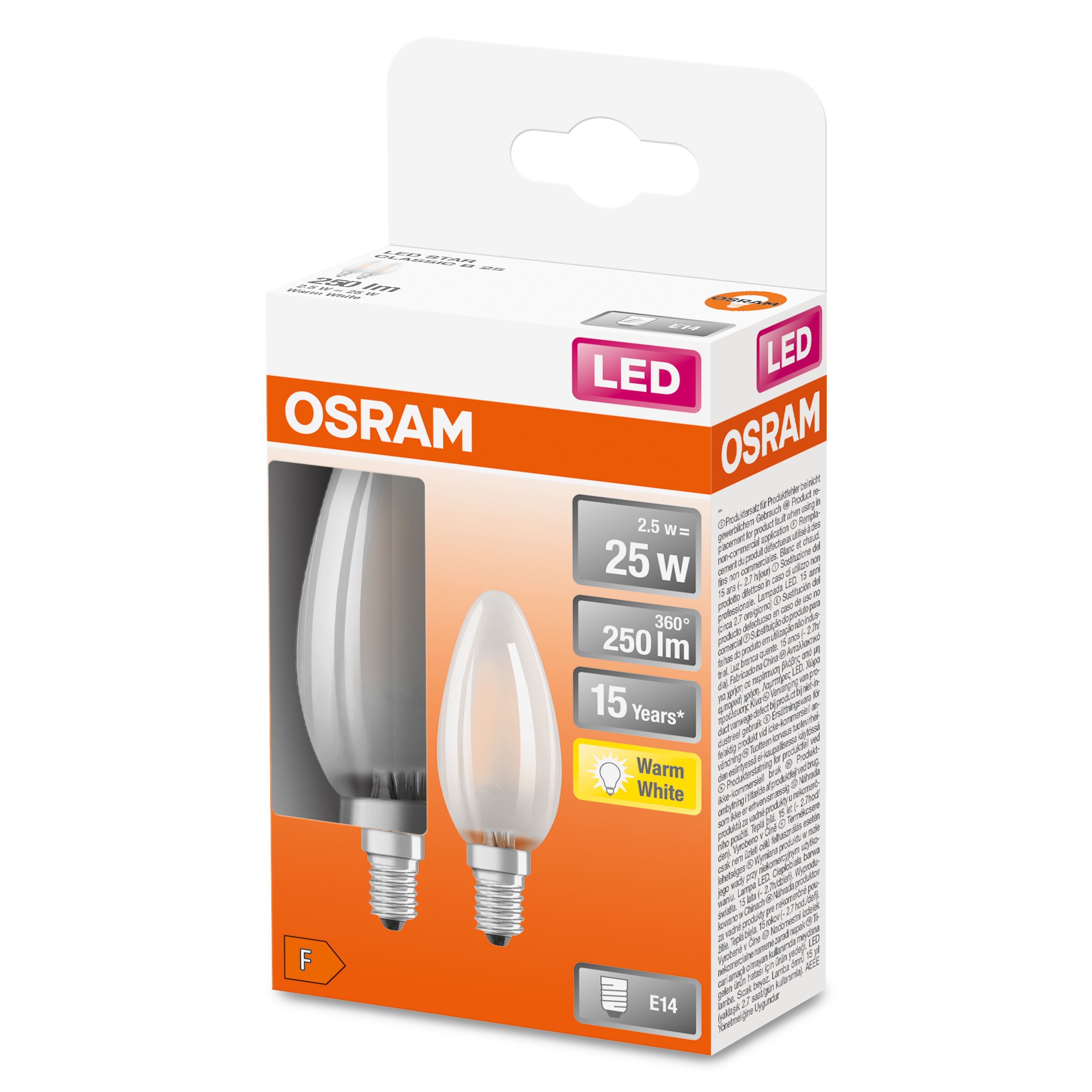

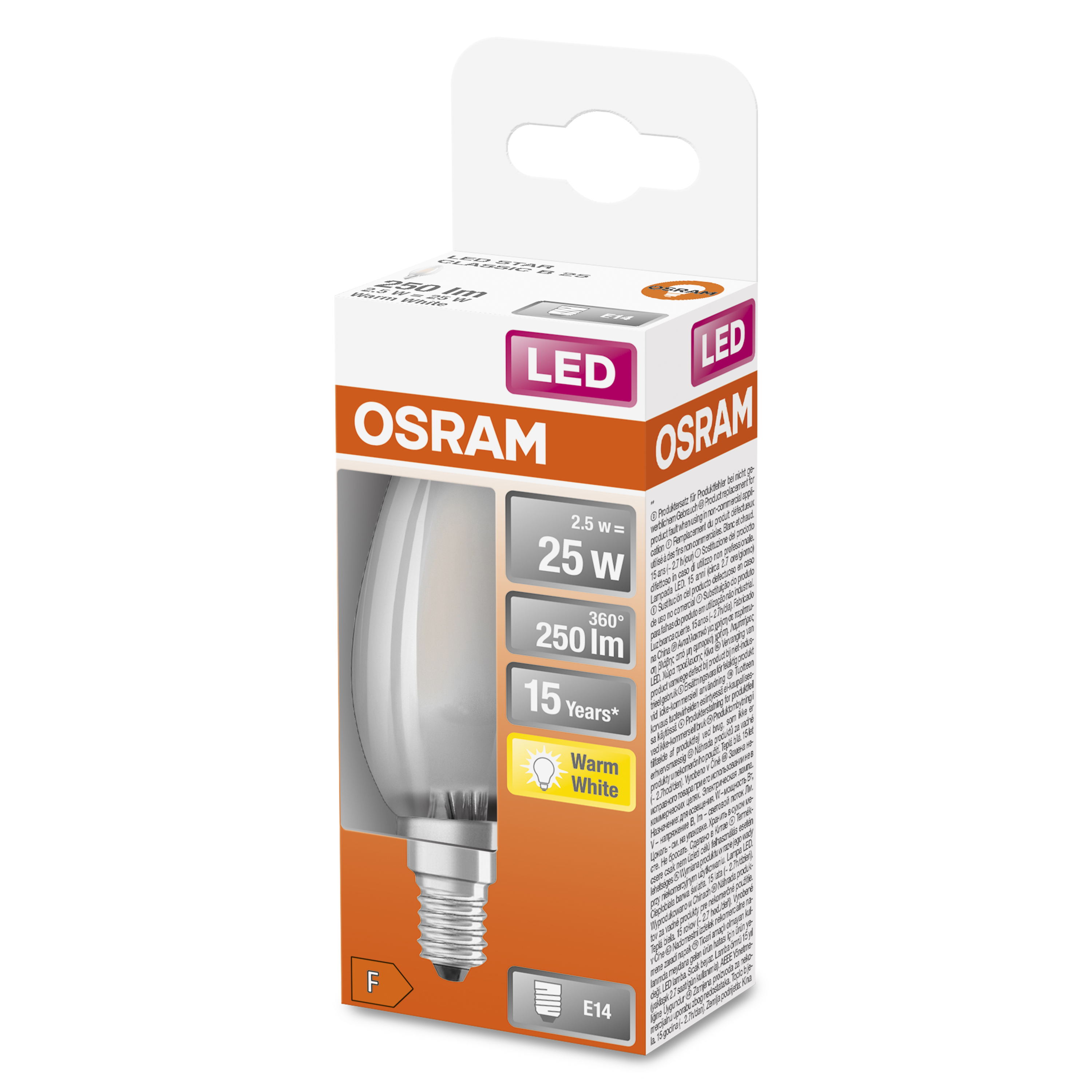

Packaging image, spacial
