LED Retrofit CLASSIC P
RF CLAS P 25 CL 2.5 W/2700 K B22d
GTIN: 0
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Lower energy consumption than incandescent or halogen lamps
- Lamps with innovative LED "filament" technology
- No UV and near-IR radiation in the light beam
- Instant 100 % light, no warm-up time
- Can be easily fitted instead of ordinary light bulbs
- Lower thermal output (compared with the standard reference product)
- Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
Areas of application
- Perfect for decorative installations
- Domestic applications
- General illumination
- Outdoor use in suitable outdoor luminaires only
Product features
- Professional LED lamps for line voltage
- Not dimmable
- Beam angle: up to 300°
- Lifetime up to 15,000 h
- Lamp made of glass
- Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
Electrical data
| Nominal wattage | 2.5 W |
| Construction wattage | 2.50 W |
| Nominal voltage | 220…240 V |
| Claimed equiv. conventional lamp power | 25 W |
| Nominal current | 19 mA |
| Type of current | AC |
| Inrush current | 1.2 A |
| Operating frequency | 50…60 Hz |
| Mains frequency | 50…60 Hz |
| Max. lamp number on MCB B10 A | 263 |
| Max. lamp number on MCB B16 A | 421 |
| Power factor λ | > 0.50 |
Photometrical data
| Luminous flux | 250 lm |
| Nominal useful luminous flux 90° | 250 lm |
| Luminous efficacy | 100 lm/W |
| Lumen main.fact.at end of nom.life time | 0.70 |
| Light color (designation) | Warm White |
| Color temperature | 2700 K |
| Color rendering index Ra | ≥80 |
| Light color | 827 |
| Standard deviation of color matching | ≤6 sdcm |
Light technical data
| Beam angle | 300 ° |
| Warm-up time (60 %) | ‹ 0.50 s |
| Starting time | < 0.5 s |
Dimensions & Weight
| Overall length | 76.00 mm |
| Diameter | 45.00 mm |
| Maximum diameter | 45 mm |
| Product weight | 20.00 g |
Temperatures & operating conditions
| Ambient temperature range | -20…+40 °C |
| Maximum temperature at tc test point | 50 °C |
Lifespan
| Number of switching cycles | 100000 |
| Lumen maintenance at end of service lifetime | 0.70 |
| Rated lamp survival factor at 6,000 h | ≥ 0.90 |
Additional product data
| Base (standard designation) | B22d |
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
| Design / version | Clear |
| Product remark | All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value |
Capabilities
| Dimmable | No |
Certificates & Standards
| Energy efficiency class | F 1) |
| Energy consumption | 3.00 kWh/1000h |
| Type of protection | IP20 |
| Standards | CE |
| Photobiological safety group acc. to EN62778 | RG0 |
1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)
Country-specific categorizations
| ILCOS | DRBP/C-2,1/827-220/240-B22D-45 |
| Order reference | LEDSCLP252,5W/8 |
Energy labelling regulation data acc EU 2019/2015
| Light source cap-type (or other electric interface) | B22d |
| Correlated colour temperature type | SINGLE_VALUE |
| Length | 76.00 mm |
| Height | 45.00 mm |
| Width | 45.00 mm |
| EPREL ID | 1402965,523062 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Additional info can be provided per individual request |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075450592 | Folding box 1 |
46 mm x 49 mm x 130 mm | 32.00 g | 0.29 dm³ |
| 4058075605121 | Shipping box 6 |
159 mm x 111 mm x 106 mm | 282.00 g | 1.87 dm³ |
Declarations of conformity
LED lamps CLA,B,G,P
LED lamps CLA,B,G,P
PRODUCT DATASHEET
LED STAR CL P FIL 25 non-dim 2,5W/827 B22d
LED STAR CL P FIL 25 non-dim 2,5W/827 B22d
PRODUCT DATASHEET
STCLASP25CL2.5W2700KB2 2den
STCLASP25CL2.5W2700KB2 2den
Product image: white background, diagonal
597746_RFCLP25 2 W/827 B22D clear
597746_RFCLP25 2 W/827 B22D clear
Product image: white background, upright
597759_RFCLP25 2 W/827 B22D clear
597759_RFCLP25 2 W/827 B22D clear
Product line drawing with letters
600985_RFCLP25 2 W/827 B22D clear
600985_RFCLP25 2 W/827 B22D clear
Product line drawing with numbers
LED CLASSIC B FILAMENT CLEAR B22d
LED CLASSIC B FILAMENT CLEAR B22d
Product line drawing, front, no dimensions
600992_RFCLP25 2 W/827 B22D clear
600992_RFCLP25 2 W/827 B22D clear

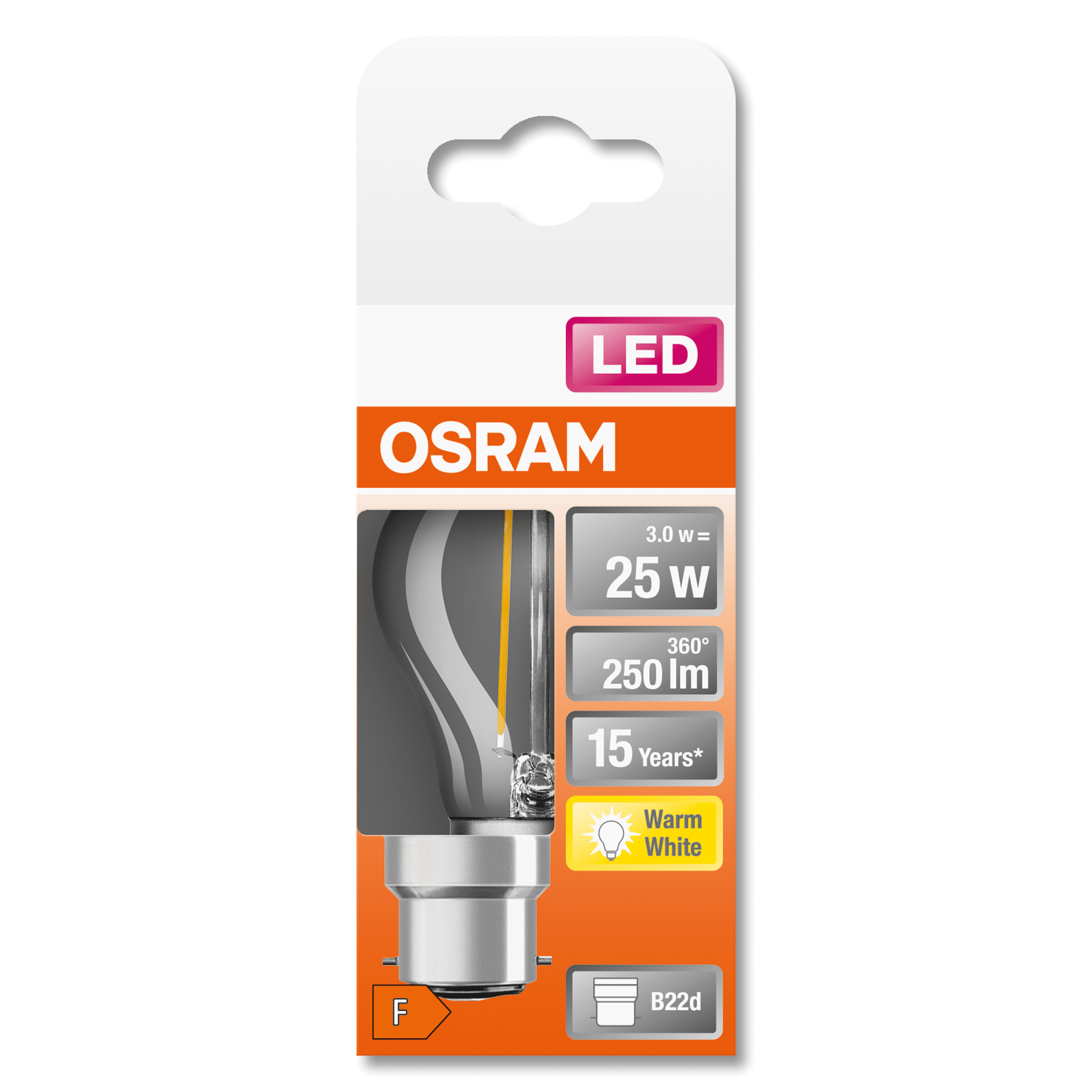

Packaging image, frontal
LED ST CLP 25 2.5W 827 FIL B22d MiCh
LED ST CLP 25 2.5W 827 FIL B22d MiCh

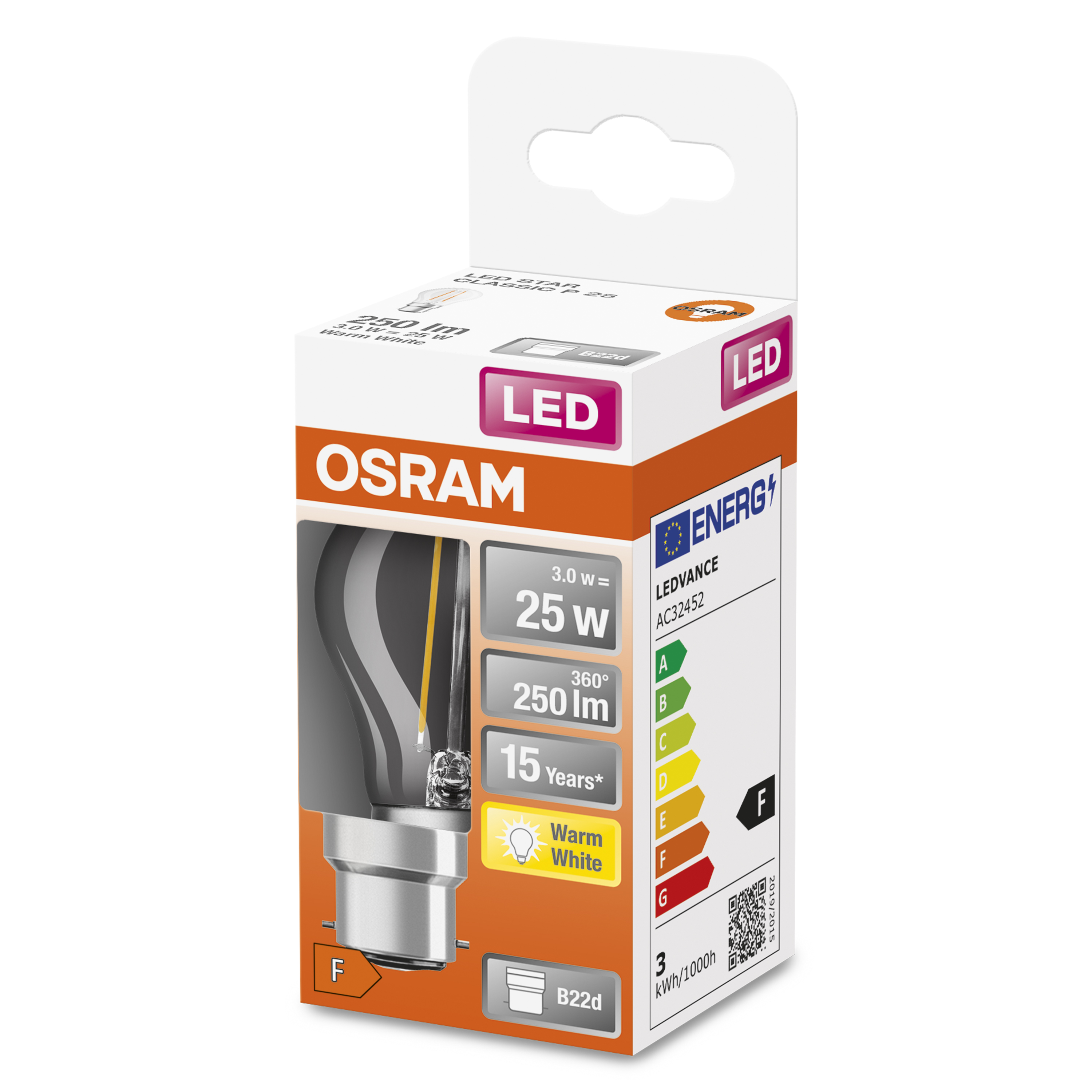

Packaging image, spacial
