LED Retrofit CLASSIC A
RF CLAS A 40 CL 4 W/2700 K E27 FIL
GTIN: 4052899936393
Blister / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Lamps with innovative LED "filament" technology
- Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
- Lower energy consumption than incandescent or halogen lamps
- No UV and near-IR radiation in the light beam
- Instant 100 % light, no warm-up time
Areas of application
- Perfect for decorative installations
- Domestic applications
- General illumination
- Outdoor use in suitable outdoor luminaires only
Product features
- Professional LED lamps for line voltage
- Not dimmable
- Lifetime up to 15,000 h
- Beam angle: up to 300°
- Lamp made of glass
- Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
Electrical data
| Nominal wattage | 4 W |
| Construction wattage | 4.00 W |
| Nominal voltage | 220…240 V |
| Claimed equiv. conventional lamp power | 40 W |
| Nominal current | 32 mA |
| Type of current | AC |
| Inrush current | 7.25 A |
| Operating frequency | 50…60 Hz |
| Mains frequency | 50…60 Hz |
| Max. lamp number on MCB B10 A | 156 |
| Max. lamp number on MCB B16 A | 250 |
| Power factor λ | > 0.40 |
Photometrical data
| Luminous flux | 470 lm |
| Nominal useful luminous flux 90° | 470 lm |
| Luminous efficacy | 117 lm/W |
| Lumen main.fact.at end of nom.life time | 0.70 |
| Light color (designation) | Warm White |
| Color temperature | 2700 K |
| Color rendering index Ra | ≥80 |
| Light color | 827 |
| Standard deviation of color matching | ≤6 sdcm |
| Rated LLMF at 6,000 h | 0.80 |
Light technical data
| Beam angle | 300 ° |
| Warm-up time (60 %) | ‹ 0.50 s |
| Starting time | < 0.5 s |
Dimensions & Weight
| Overall length | 105.00 mm |
| Diameter | 60.00 mm |
| Maximum diameter | 60 mm |
| Product weight | 31.00 g |
Temperatures & operating conditions
| Ambient temperature range | -20…+40 °C |
| Maximum temperature at tc test point | 55 °C |
Lifespan
| Number of switching cycles | 100000 |
| Lumen maintenance at end of service lifetime | 0.70 |
| Rated lamp survival factor at 6,000 h | ≥ 0.90 |
Additional product data
| Base (standard designation) | E27 |
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
| Design / version | Clear |
| Product remark | All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value |
Capabilities
| Dimmable | No |
Certificates & Standards
| Energy efficiency class | E 1) |
| Energy consumption | 4.00 kWh/1000h |
| Type of protection | IP20 |
| Standards | CE, EAC |
| Photobiological safety group acc. to EN62778 | RG0 |
1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)
Country-specific categorizations
| ILCOS | DRAA/C-4/827-220-240-E27-60 |
| Order reference | LEDSCLA40 4W/82 |
Energy labelling regulation data acc EU 2019/2015
| Light source cap-type (or other electric interface) | E27 |
| Correlated colour temperature type | SINGLE_VALUE |
| Length | 105.00 mm |
| Height | 60.00 mm |
| Width | 60.00 mm |
| EPREL ID | 1403174 |
| Model number | AC24345 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Additional info can be provided per individual request |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4052899936393 | Blister 1 |
61 mm x 140 mm x 120 mm | 45.00 g | 1.02 dm³ |
| 4052899936461 | Shipping box 6 |
381 mm x 153 mm x 132 mm | 440.00 g | 7.69 dm³ |
| 4052899936539 | 0 |
Declarations of conformity
EC Declaration of Conformity LED Classic A,B,P Lamps
EC Declaration of Conformity LED Classic A,B,P Lamps
PRODUCT DATASHEET
LED STAR CL A FIL 40 non-dim 4W/827 E27
LED STAR CL A FIL 40 non-dim 4W/827 E27
Product image: white background, diagonal
542076_LED STAR CLASSIC A40 clear WW E27
542076_LED STAR CLASSIC A40 clear WW E27
Product image: white background, upright
542087_LED STAR CLASSIC A40 clear WW E27
542087_LED STAR CLASSIC A40 clear WW E27
Product line drawing with letters
CLA FIL60 E27 ml
CLA FIL60 E27 ml

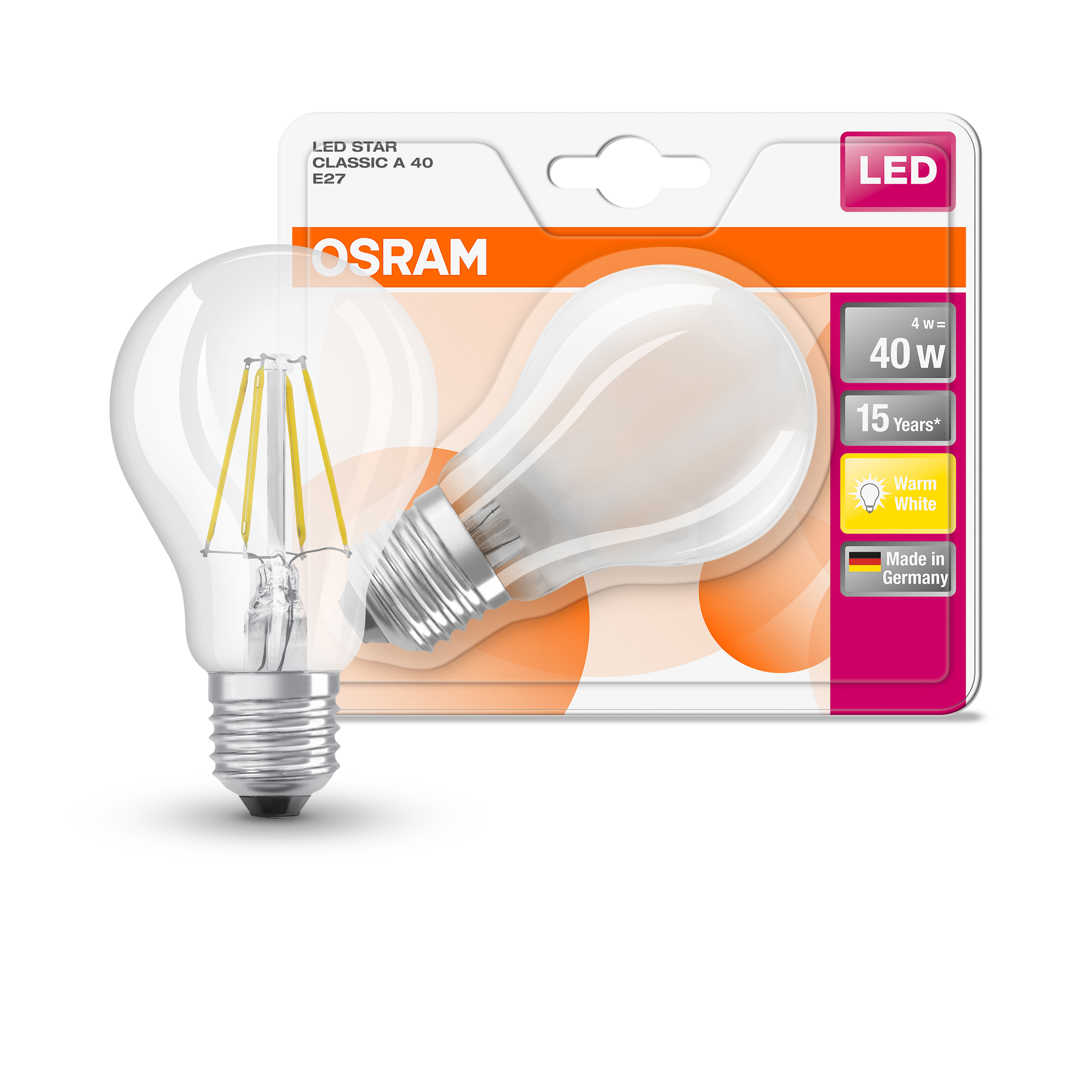

Combo Shot = Product Beauty Shot + Packaging Image
