LED Retrofit CLASSIC A DIM

SST CLAS A 40 FR 5 W/4000 K E27

GTIN: 4058075132658 Blister / 1 Show all packages
Download data sheet
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Lamps with innovative LED "filament" technology
  • Lower energy consumption than incandescent or halogen lamps
  • No UV and near-IR radiation in the light beam
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
  • Lower thermal output (compared with the standard reference product)
  • Design, dimensions, luminous flux comparable to a halogen lamp
Areas of application
  • Perfect for decorative installations
  • Domestic applications
  • General illumination
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Professional LED lamps for line voltage
  • Dimmable (with many common dimmers, see also www.ledvance.com/dim)
  • Beam angle: up to 360°
  • Lifetime up to 15,000 h
  • Lamp made of glass
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Electrical data
Nominal wattage 5 W
Construction wattage 5.00 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 40 W
Nominal current 25 mA
Type of current AC
Inrush current 2.8 A
Operating frequency 50…60 Hz
Mains frequency 50…60 Hz
Max. lamp number on MCB B10 A 460
Max. lamp number on MCB B16 A 736
Power factor λ > 0.70
Photometrical data
Luminous flux 470 lm
Nominal useful luminous flux 90° 470 lm
Luminous efficacy 94 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Cool White
Color temperature 4000 K
Color rendering index Ra ≥80
Light color 840
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Light technical data
Beam angle 320 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s
Dimensions & Weight
Overall length 105.00 mm
Diameter 60.00 mm
Maximum diameter 60 mm
Product weight 32.00 g
Temperatures & operating conditions
Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 50 °C
Lifespan
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90
Additional product data
Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value, LED lamps contain several electronic components. Under unfavourable conditions these can lead to acoustic noise. In case of resonance even low noise can cause audible effect. Possible factors influencing this are the installation, the design of the lamp holder and the luminaire (acoustic resonance effect) as well as the dimmer or the transformer (harmonics or electronic resonance)
Capabilities
Dimmable Yes
Certificates & Standards
Energy efficiency class F 1)
Energy consumption 5.00 kWh/1000h
Type of protection IP20
Standards CE
Photobiological safety group acc. to EN62778 RG0
1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)
Country-specific categorizations
Order reference LEDSCLA40D5W/84
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) E27
Correlated colour temperature type SINGLE_VALUE
Length 105.00 mm
Height 60.00 mm
Width 60.00 mm
EPREL ID 1403334
Model number AC24242
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075132658 Blister
1		 61 mm x 140 mm x 120 mm 46.00 g 1.02 dm³
4058075132665 Shipping box
6		 381 mm x 153 mm x 132 mm 420.00 g 7.69 dm³
Declarations of conformity
9C1 3522381 EC declaration_CLABP lamp
PDF (620.15 KB)
PRODUCT DATASHEET
LED SUPERSTAR CL A GL FR 40 dim 5W/840 E27
PDF (223.7 KB)
Product image: white background, diagonal
LED CLA GL FR E27
JPG (1.13 MB)
Product image: white background, upright
LED CLA GL FR E27
JPG (1.06 MB)
Product line drawing with letters
LED CLA GL FR E27
SVG (7.17 KB)
Product line drawing with numbers
LED CLA GL FR E27
SVG (8.79 KB)
Product line drawing, front, no dimensions
LED CLA GL FR E27
SVG (4.26 KB)

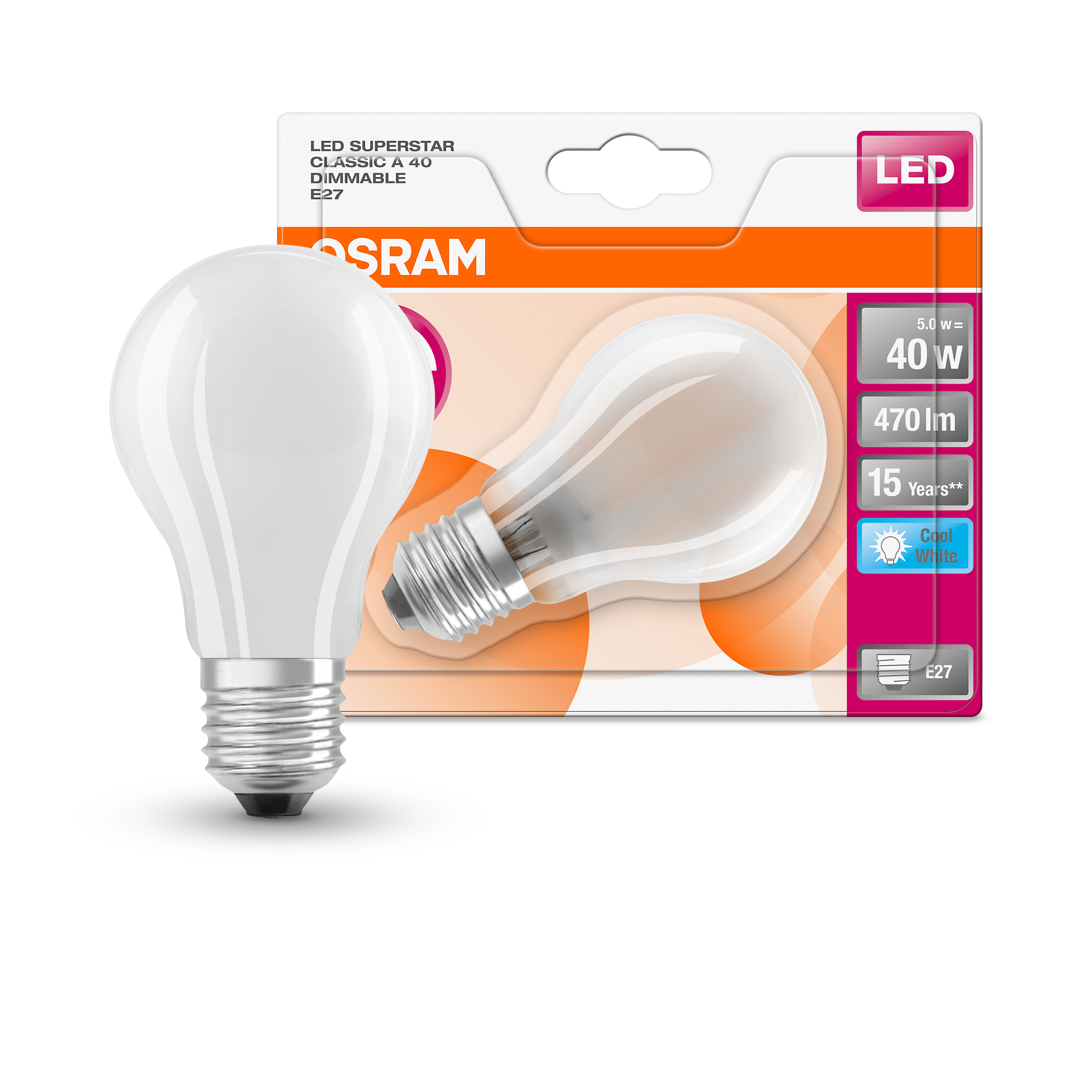

Combo Shot = Product Beauty Shot + Packaging Image
