PARATHOM CLASSIC B
P CLAS B 40 5 W/2700 K B22d
GTIN: 4058075061613
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Low energy consumption
- Easy replacement of classic lamps thanks to compact design
- Instant 100 % light, no warm-up time
Areas of application
- Domestic applications
- General illumination
- Chandeliers
- Outdoor use in outdoor luminaires only (minimum IP65)
Product features
- Professional LED lamps for line voltage
- Not dimmable
- Lifetime up to 15,000 h
- Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
References / Links
- For further products and actual information concerning LED lamps see www.ledvance.com/ledlamps
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 5 W |
| Construction wattage | 5.00 W |
| Nominal voltage | 220…240 V |
| Claimed equiv. conventional lamp power | 40 W |
| Nominal current | 40 mA |
| Type of current | AC |
| Operating frequency | 50…60 Hz |
| Mains frequency | 50…60 Hz |
| Power factor λ | > 0.50 |
Photometrical data
| Luminous flux | 470 lm |
| Nominal useful luminous flux 90° | 470 lm |
| Luminous efficacy | 94 lm/W |
| Lumen main.fact.at end of nom.life time | 0.70 |
| Light color (designation) | Warm White |
| Color temperature | 2700 K |
| Color rendering index Ra | ≥80 |
| Light color | 827 |
| Standard deviation of color matching | ≤6 sdcm |
Light technical data
| Beam angle | 200 ° |
| Warm-up time (60 %) | ‹ 0.50 s |
| Starting time | < 0.5 s |
Dimensions & Weight
| Overall length | 106.00 mm |
| Diameter | 37.00 mm |
| Maximum diameter | 37 mm |
| Product weight | 29.00 g |
Temperatures & operating conditions
| Ambient temperature range | -20…+40 °C |
Lifespan
| Number of switching cycles | 100000 |
| Lumen maintenance at end of service lifetime | 0.70 |
| Rated lamp survival factor at 6,000 h | ≥ 0.90 |
Additional product data
| Base (standard designation) | B22d |
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
| Design / version | Frosted |
| Product remark | All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value, In development, data preliminary |
Capabilities
| Dimmable | No |
Certificates & Standards
| Energy efficiency class | F 1) |
| Energy consumption | 5.00 kWh/1000h |
| Type of protection | IP20 |
| Standards | CE |
1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)
Country-specific categorizations
| Order reference | LEDPCLB40 5W/82 |
Energy labelling regulation data acc EU 2019/2015
| Light source cap-type (or other electric interface) | B22d |
| Length | 106.00 mm |
| Height | 37.00 mm |
| Width | 37.00 mm |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075061613 | Folding box 1 |
39 mm x 39 mm x 109 mm | 44.50 g | 0.17 dm³ |
| 4058075061620 | Shipping box 10 |
205 mm x 87 mm x 123 mm | 436.00 g | 2.19 dm³ |
PRODUCT DATASHEET
4058075061613 ZMP_3008777 P CLAS B 40 5 W 2700 K B22d.pdf
4058075061613 ZMP_3008777 P CLAS B 40 5 W 2700 K B22d.pdf
Product image: white background, diagonal with OSRAM logo
655093_Classic B 40 frosted non-dim B22d
655093_Classic B 40 frosted non-dim B22d
Product image: white background, diagonal
723259_LED CLB 40 5,7W/827 B22d FR
723259_LED CLB 40 5,7W/827 B22d FR
Product image: white background, upright, OSRAM logo
655072_Classic B 40 frosted non-dim B22d
655072_Classic B 40 frosted non-dim B22d
Product image: white background, upright
723265_LED CLB 40 5,7W/827 B22d FR
723265_LED CLB 40 5,7W/827 B22d FR
Product line drawing with letters
666451_Classic B 40 frosted non-dim B22d
666451_Classic B 40 frosted non-dim B22d
Product line drawing, front, no dimensions
666475_Classic B 40 frosted non-dim B22d
666475_Classic B 40 frosted non-dim B22d
IES file (IES)
AC08382_CLB40 5W 220-240 FR B22D
AC08382_CLB40 5W 220-240 FR B22D
LDT file (Eulumdat)
AC08382_CLB40 5W 220-240 FR B22D
AC08382_CLB40 5W 220-240 FR B22D

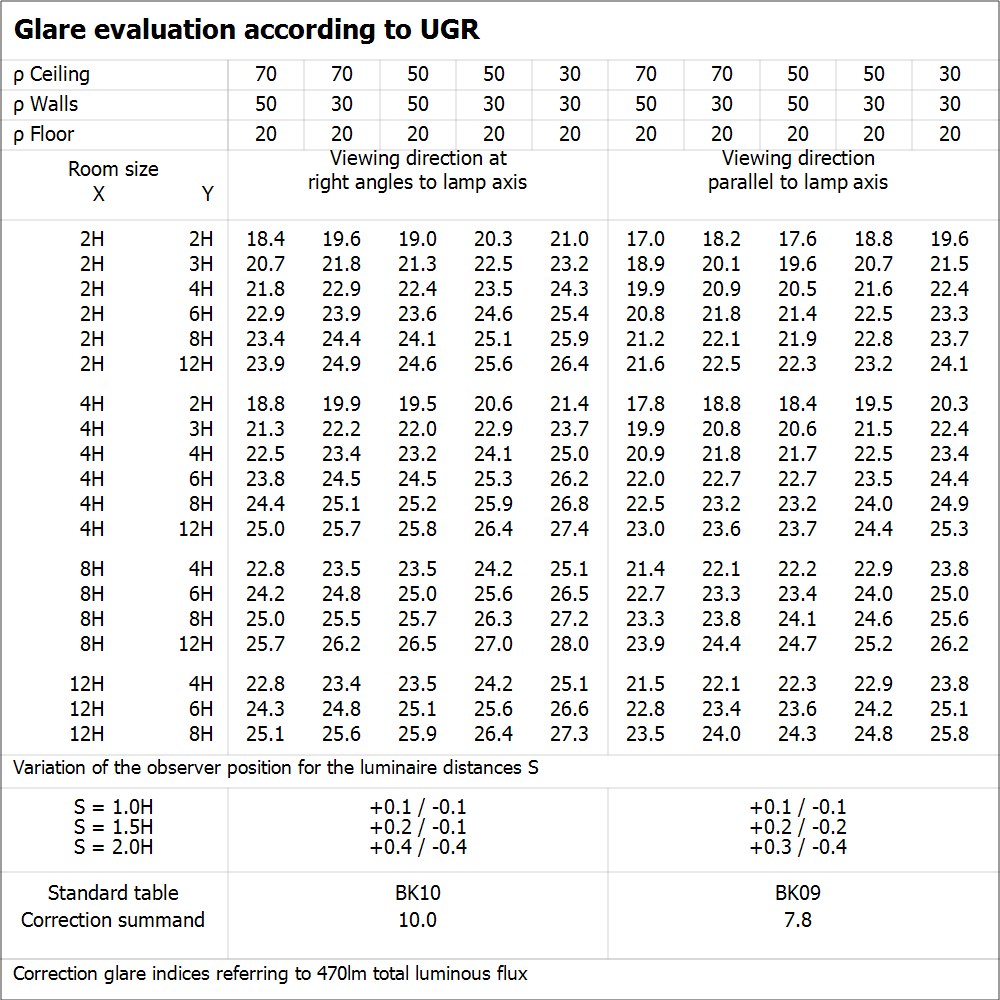

UGR file (UGR table)
LEDPCLB40 5W 827 230VFR B22D FS1 OSRAM
LEDPCLB40 5W 827 230VFR B22D FS1 OSRAM
Light distribution curve type polar
LEDPCLB40 5W 827 230VFR B22D FS1 OSRAM
LEDPCLB40 5W 827 230VFR B22D FS1 OSRAM
| EAN | SEG number | ELDAS number |
|---|---|---|
| 4058075061613 | 8293351 | 941154970 |
