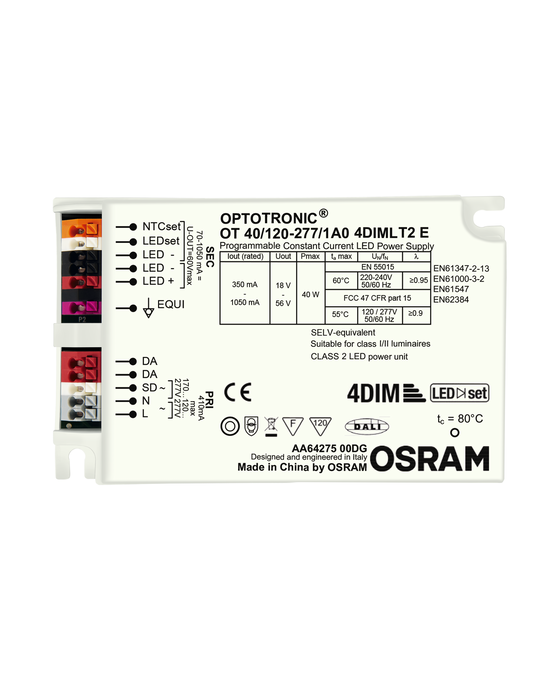

OT 40/120…277/1A0 4DIMLT2 E

OT 4DIM IP20

GTIN: 4052899925182 Unpacked / 1 Show all packages

Download data sheet

Our warranty conditions

PRODUCT DETAILS

Product benefits

4DIM functionality in one device (StepDIM, AstroDIM, MainsDIM, DALI)
Very high efficiency
High surge protection: up to 10 kV (1 pulse) / 8 kV, in protection class I or II
Low luminous efficacy tolerance through low output current tolerance of ± 3 %
Great flexibility due to wide operating temperature range of -40…55 °C or 60 °C
Protection through double isolation between mains input and LED output

Areas of application

Street and urban lighting
Industry
Suitable for outdoor applications in luminaires with IP > 54
Suitable for use in outdoor luminaires of protection class I and II

Product features

Available with different wattage: 40 W, 60 W, 90 W, 165 W
Input voltage: 120…277 V (40 W), 220…240 V (60 W, 90 W, 165 W)
Current output range: 70…1,050 mA
Flexible current setting with one additional wire (LEDset2)
AstroDIM for autonomous dimming with five independent levels (astro, time mode)
Allows for energy saving in twilight phases
MainsDIM function for dimming via reduction of line voltage amplitude
Isolated DALI interface for bidirectional telemanagement systems
Standby power consumption: < 0.5 W
Constant Lumen Output (CLO)
Overtemperature protection via external NTC

Equipment / Accessories

DALI magic hardware for configuring 4DIM ECGs necessary
Programmable via Tuner4TRONIC software

Electrical data

Nominal wattage	40.00 W
Nominal output power	40 W ¹⁾
Nominal voltage	120…277 V
Nominal output voltage	15…56 V
Input voltage AC	108…305 V ²⁾
U-OUT (working voltage)	60 V
Nominal current	0.2 A
Nominal output current	70…1050 mA
Inrush current	45 A
Output current tolerance	±3 % ³⁾
Output ripple current (100 Hz)	15 %
Mains frequency	50/60 Hz
Total harmonic distortion	10 % ⁴⁾
Power factor λ	0.95 ⁵⁾
ECG efficiency	88.5 % ⁶⁾
Device power loss	6.5 W ⁷⁾
Max. ECG no. on circuit breaker 10 A (B)	11 ⁸⁾
Max. ECG no. on circuit breaker 16 A (B)	17 ⁸⁾
Max. ECG no. on circuit breaker 25 A (B)	28 ⁸⁾
Surge capability (L/N-Ground)	10 kV ⁹⁾
Surge capability (L-N)	6 kV ¹⁰⁾
Galvanic isolation	SELV
Power loss in stand-by mode	< 0.5 W

¹⁾ Partial load 7…40 W / Not dimmed
²⁾ Permitted voltage range
³⁾ Within nominal output current range
⁴⁾ Max. output power at 230 V_AC
⁵⁾ Minimum/Full load at 230 V/Half load at 230 V
⁶⁾ At full load and 230 V
⁷⁾ Maximum
⁸⁾ Type B
⁹⁾ Single pulse 10kV / 12 Ohm (1.2/50 μs)
¹⁰⁾ @ 2 Ohm, acc. to EN61547

Dimensions & Weight

Length	123.00 mm
Mounting hole spacing, length	111,0 mm
Width	79.00 mm
Height	33.00 mm
Cable cross-section, input side	0.2…1.5 mm² ¹⁾
Cable cross-section, output side	0.2…1.5 mm² ²⁾
Wire preparation length, input side	8.5…9.5 mm
Wire preparation length, output side	8.5…9.5 mm
Product weight	260.00 g

¹⁾ Flexible / Solid leads / Equipotential pole only 0.2…1.5 mm²
²⁾ Flexible / Solid leads

Colors & materials

Casing material	Metal
Body material	Metal

Temperatures & operating conditions

Ambient temperature range	-40…+60 °C
Maximum temperature at tc test point	80 °C ¹⁾
Max.housing temperature in case of fault	120 °C
Permitted rel. humidity during operation	5…85 % ²⁾

¹⁾ Maximum at the Tc-point
²⁾ Non condensing, absolute humidity: 36g/m³

Lifespan

ECG lifetime

85000 h ¹⁾

¹⁾ At T_case = 70°C at T_c point / 10% failure rate

Capabilities

Dimmable	Yes
Dimming interface	4DIM, DALI, StepDIM, AstroDIM, MainsDIM
Dimming range	10…100 % ¹⁾
Overheating protection	Automatic reversible
Overload protection	Automatic reversible
Short-circuit protection	Automatic reversible
No-load proof	Yes
Max. cable length to lamp/LED module	2,0 m
Suitable for fixtures with prot. class	I, II
Type of connection, output side	Push terminal

¹⁾ For 700mA nominal output current

Certificates & Standards

Approval marks – approval	CE, ENEC 10, UR, VDE, VDE-EMC, CQC
Standards	Acc. to EN 61347-1, Acc. to EN 61347-2-13, Acc. to EN 62384, Acc. to EN 55015:2006 + A1:2007 + A2:2009, Acc. to EN 61547, Acc. to FCC 47 part 15 class B, Acc. to IEC 61000-3-2, Acc. to IEC 61000-3-3, Acc. to IEC 62386-101, Acc. to IEC 62386-102, Acc. to IEC 62386-207, UL-8750
Protection class	II
Type of protection	IP20

LOGISTICAL DATA

Temperature range at storage

-25…80 °C

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals	0 mg
Quantity of rare earths	0 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage	Lead (7439-92-1)
