LED ECO STREETLIGHT

LED ECO STREETLIGHT 30 W 4000 K HE

GTIN: 4058075279094 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Slim housing
  • Aesthetic and functional product design
  • Homogeneous luminance distribution and minimized glare thanks to optical lense
  • Easy installation thanks to pre-wired with mains cable
  • High quality aluminum housing
Areas of application
  • City roads, industrial roads, parking lots
  • Residential sector
  • Gardens
Product features
  • Surge protection: up to 10 kV (L-N)
  • Lifetime up to 50,000 h
  • Type of protection: IP66
  • Impact resistance: IK08
Electrical data
Nominal wattage 30.00 W
Nominal voltage 100…240 V
Mains frequency 50…60 Hz
Power factor λ > 0.90
Protection class I
Operating mode Mains voltage
Photometrical data
Luminous flux 3600 lm
Luminous efficacy 120 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra > 80
Standard deviation of color matching 5 sdcm
Beam angle 75 ° x 135 °
Dimensions & Weight
Length 325.00 mm
Height 77.00 mm
Width 121.00 mm
Product weight 961.00 g
Cable length 500 mm
Materials & Colors
Product color Gray
Housing color Gray
Body material Aluminum
Cover material Polycarbonate (PC)
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -30…+50 °C
Temperature range at storage -40…+70 °C
Type of connection Cable, 3-pole
Type of protection IP66
Protection class IK (shock resistance) IK08
Dimmable No
Mounting type Suspended
Mounting location Pole
Application environment Outdoor
Replaceable light source No
Lifespan
Lifespan L70/B50 at 25 °C 50000 h 1)
Number of switching cycles 100000
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
Replaceable light source (EPREL) Not replaceable
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075279094 Folding box
1		 366 mm x 94 mm x 168 mm 903.00 g 5.78 dm³
4058075279100 Shipping box
10		 495 mm x 380 mm x 355 mm 10228.00 g 66.78 dm³

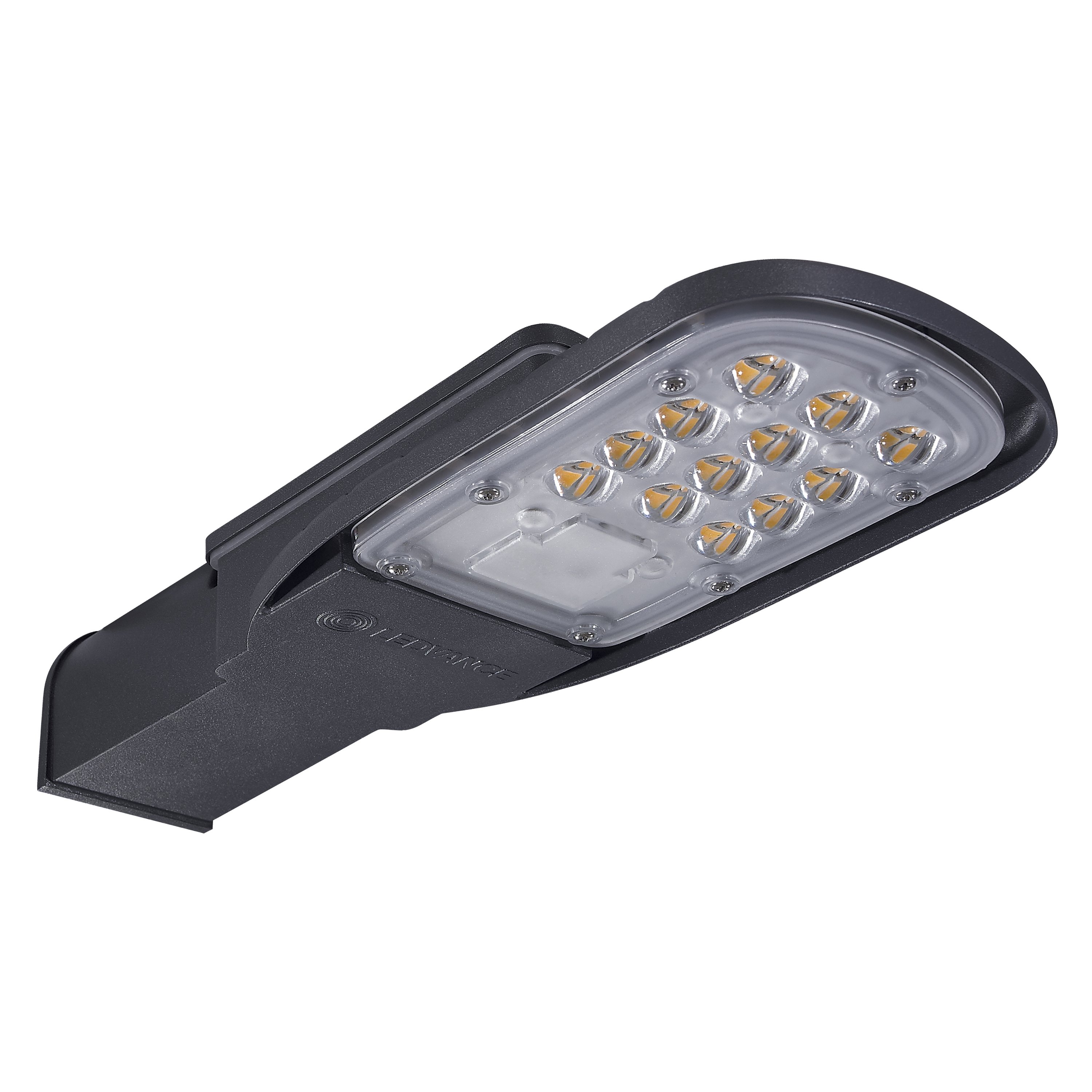

Product image: white background, diagonal
ECO ARE S 30W
JPG (1.98 MB)
Product line drawing with numbers
LDECO STREET S 30W
SVG (725.1 KB)
IES file (IES)
LDECO STREET S HE 30W 840
IES (19.55 KB)
