LES SUPERIOR SMART+PRO PANEL 1 CHANNEL

LDSUP SMART+PRO PL0606 33W830B

GTIN: 4099854414282 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Suitable luminaire for SMART+PRO BLE Mesh light management system with low power, highly scalable and stable ecosystem
  • Low flicker light thanks to special electronic control gear
  • External driver for extended flexibility and easy installation
  • 1 output current channel
  • Long lifetime up to 50,000 h
Product features
  • Available for grid sizes of 600 x 600 mm
  • LEDVANCE SMART+PRO app required for commissioning of the SMART+PRO system only (available for Android and iOS)
Electrical data
Nominal wattage 33.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 700 mA
Power factor λ > 0.80
Protection class II
Photometrical data
Luminous flux 3500 lm
Luminous efficacy 106 lm/W
Color temperature 3000 K
Color rendering index Ra > 80
Beam angle 120 °
Dimensions & Weight
Length 595.00 mm
Height 27.00 mm
Width 595.00 mm
Product weight 1437.00 g
Materials & Colors
Product color White
Housing color White
Body material Aluminum
Application & Mounting
Ambient temperature range -20…+45 °C
Dimmable Yes
Type of dimming Bluetooth
Mounting type Recessed|Suspended
Replaceable light source No
Lifespan
Lifespan L70/B50 at 25 °C 50000 h 1)
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
Replaceable light source (EPREL) Not replaceable
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854414282 Folding box
1		 605 mm x 37 mm x 653 mm 1812.00 g 14.62 dm³
4099854414299 Shipping box
6		 652 mm x 237 mm x 707 mm 12154.00 g 109.25 dm³

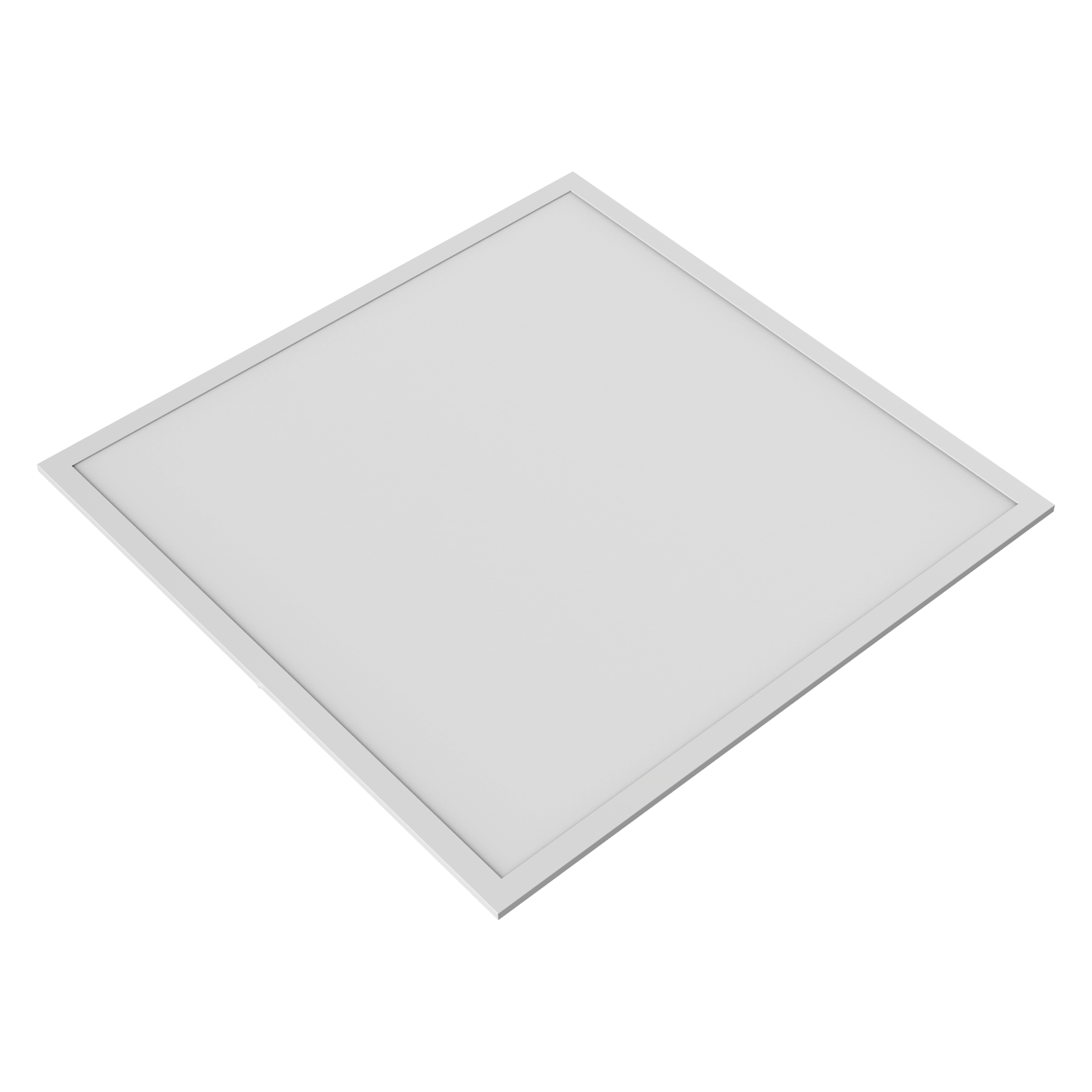

Product image: white background, diagonal
LDSUP SMART PRO PL0606
JPG (967.56 KB)
Product line drawing with numbers
LDSUP SMART PRO PL0606
PNG (9.37 KB)
