LED PERFORMANCE SURFACE MOUNT DOWNLIGHT

LED Performance Surface Mount Downlight 16 W 24 ° 3000 K Black

GTIN: 4058075333550 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • High power COB LED provides high lumen output in compact housing
  • Low flicker light thanks to special electronic control gear
  • Good color rendering for the best product presentation
Areas of application
  • Shops, supermarkets
  • Public areas
  • Corridors
Product features
  • Available in two housing colors
  • Available with color temperature: 3,000 K, 4,000 K
  • Color rendering index Ra: > 90
  • Power factor: > 0.9
  • Initial color consistency: < 5 SDCM
  • Lifetime (L70/B50): up to 30,000 h
  • Type of protection: IP20
  • CCC marked, CB test certificate
Electrical data
Nominal wattage 16.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Power factor λ 0.90
Total harmonic distortion < 20 %
Protection class II
Operating mode External LED driver
Photometrical data
Luminous flux 1200 lm
Luminous efficacy 75 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra 90
Standard deviation of color matching ≤5 sdcm
Beam angle 24 °
Dimensions & Weight
Diameter 134.00 mm
Height 123.00 mm
Product weight 712.00 g
Cable length 110 mm
Materials & Colors
Product color Black
Housing color Black
Body material Aluminum
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+40 °C
Temperature range at storage -20…+70 °C
Type of connection Cable, 2-pole
Type of protection IP20
Dimmable No
Mounting type Surface
Mounting location Ceiling
Application environment Indoor
Replaceable light source No
Lifespan
Lifespan L70/B50 at 25 °C 30000 h 1)
Number of switching cycles 30000
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
Replaceable light source (EPREL) Not replaceable
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075333550 Folding box
1		 140 mm x 140 mm x 128 mm 794.00 g 2.51 dm³
4058075333567 Shipping box
12		 440 mm x 300 mm x 275 mm 10308.00 g 36.30 dm³

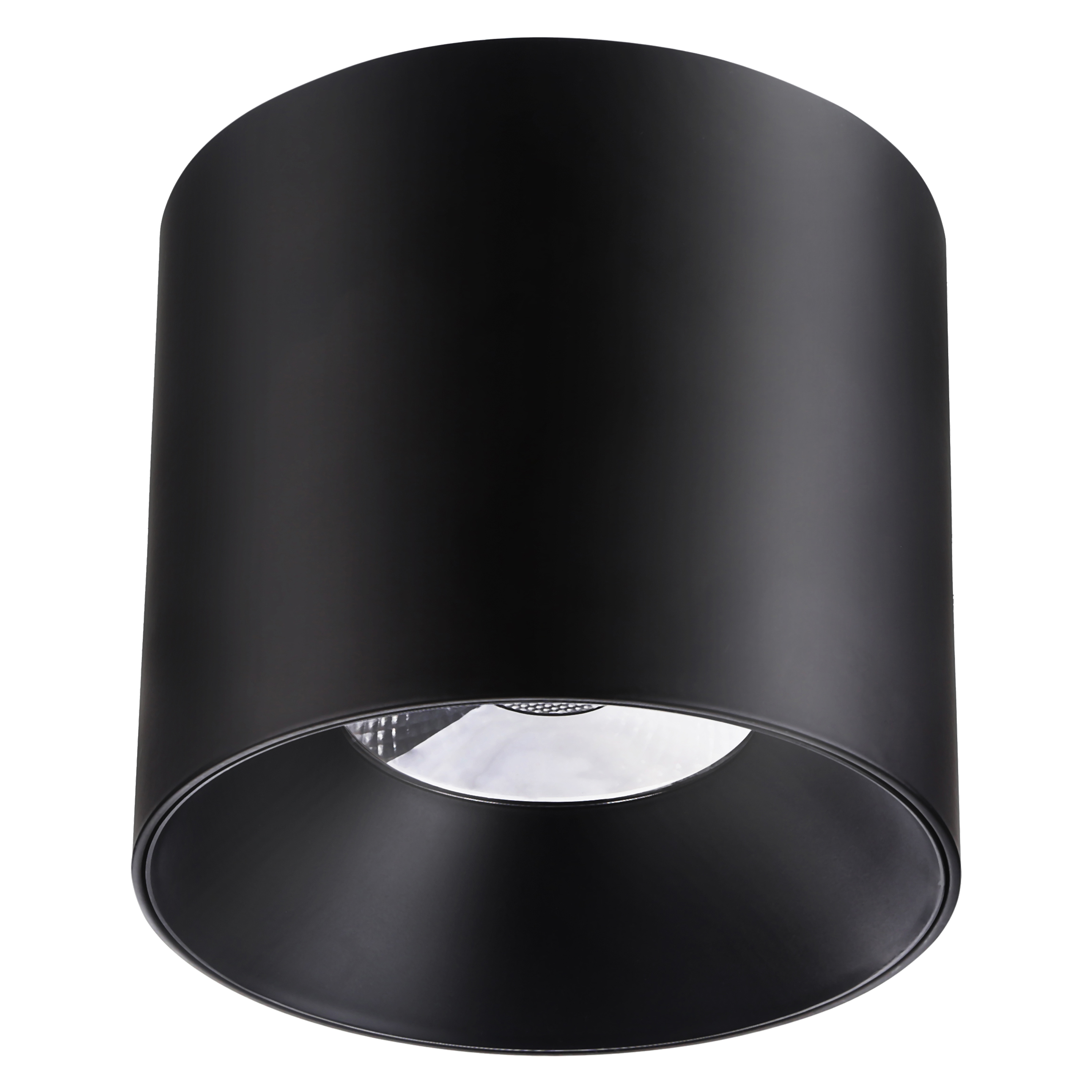

Product image: white background, upright
LDPFM surface downlight black
JPG (1.77 MB)
Product line drawing with numbers
SURFACE DOWNLIGHT 16/20W
SVG (95.28 KB)
IES file (IES)
LDPFM SURF DL 16W/930 24D
IES (5.22 KB)
