LED VALUE SLIM DOWNLIGHT TRI CCT

LED Value Slim Downlight 60 15W TRI8 SQ

GTIN: 4099854116094 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Versatile range of sizes and tri-color options to meet various application needs
  • Elegant design
  • External dip switch allows for easy color selection and streamlined stock management
  • Energy savings thanks to system efficacy of up to 90 lm/W
  • Die-cast aluminum housing ensures reliable operation
  • Low maintenance costs thanks to long lifetime
Areas of application
  • Corridors
  • Entrance areas
  • Foyers
  • Elevators
  • Retail outlets
Product features
  • Color temperature: 3,000 K, 4,000 K, 6,500 K
  • Available in 4-inch, 6-inch, and 8-inch sizes, with recessed round and square shapes
  • Available with wattage: 9 W, 12 W, 15 W and 18 W
  • Color rendering index Ra: > 80
  • Power factor: > 0.5
  • Safety compliance certificates: CB, RoHS 2.0
Electrical data
Nominal wattage 15.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 115.000 mA
Inrush current 13 A
Inrush current time Th50 400 µs
Power factor λ > 0.5
Protection class II
Photometrical data
Luminous flux 1050 … 1200 lm
Luminous efficacy 73 lm/W / 85 lm/W / 78 lm/W
Color temperature 3000…6500 K
Light color (designation) Warm White, Cool White, Daylight
Color rendering index Ra > 80
Standard deviation of color matching ≤6 sdcm
Photobiological safety group acc. to EN62778 RG0
Beam angle 120 °
Dimensions & Weight
Length 170.00 mm
Height 23.00 mm
Width 170.00 mm
Product weight 271.00 g
Materials & Colors
Product color White
Housing color White
Body material Aluminum
Cover material Polymethylmethacrylate (PMMA)
Light emitting surface material Polystyrene
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -10…+50 °C
Temperature range at storage -20…+80 °C
Type of protection IP20
Dimmable No
Mounting type Recessed
Mounting location Ceiling
Application environment Indoor
Mounting diameter 155 mm
Mounting depth 30 mm
With light source Yes
Replaceable light source No
Lifespan
Lifespan L70/B50 at 25 °C 30000 h 1)
Number of switching cycles 25000
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
Standards CB, RoHS
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Replaceable light source (EPREL) Not replaceable
Additional product data
Number of illuminants Not relevant
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854116094 Folding box
1		 212 mm x 47 mm x 177 mm 348.00 g 1.76 dm³
4099854116100 Shipping box
20		 478 mm x 223 mm x 376 mm 7520.00 g 40.08 dm³
User instruction / safety instructions
LDVAL SLIMDL TRI COLOR
PDF (3.32 MB)

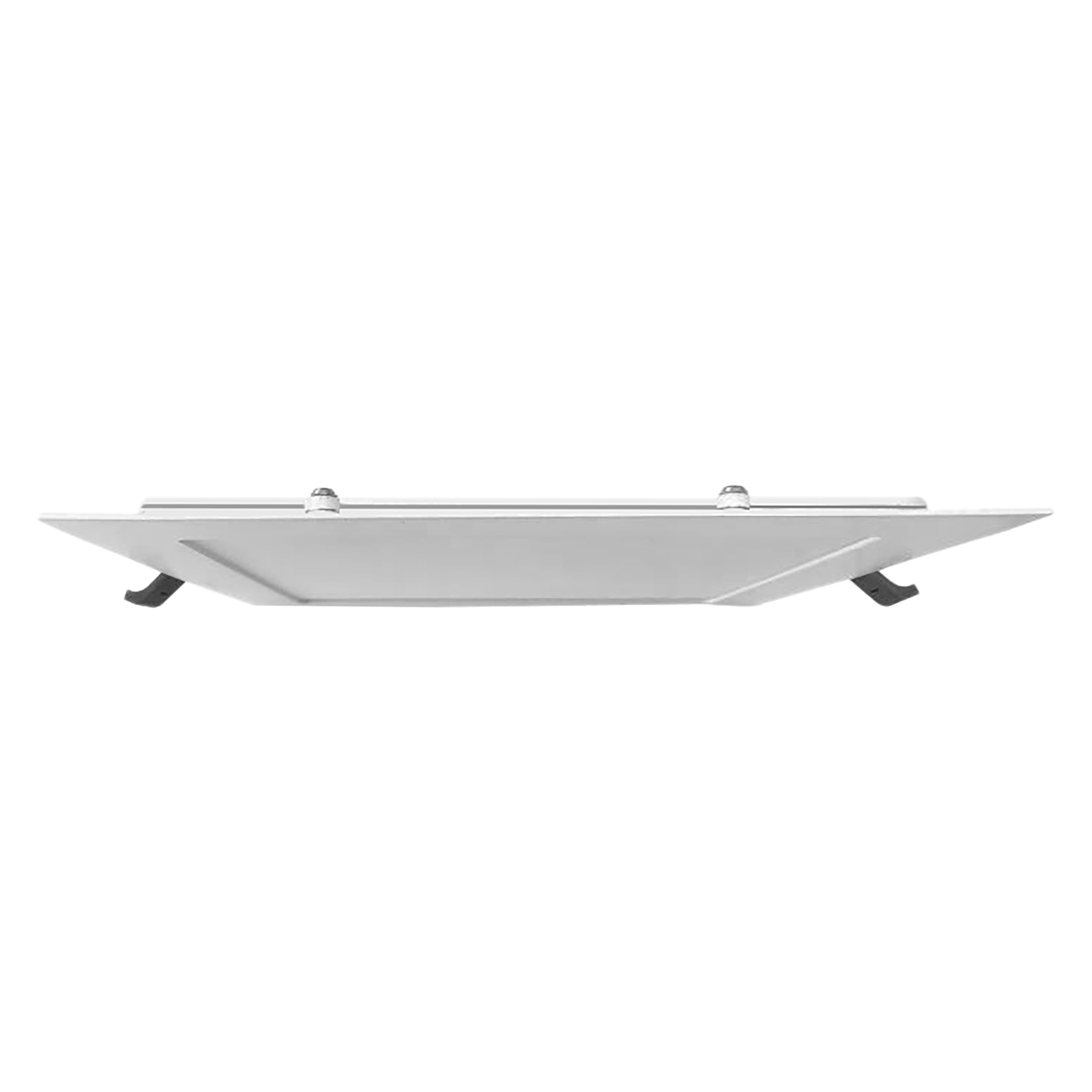

Product image: white background, upright
LDVAL SlimDL TRI SQ
JPG (707.38 KB)

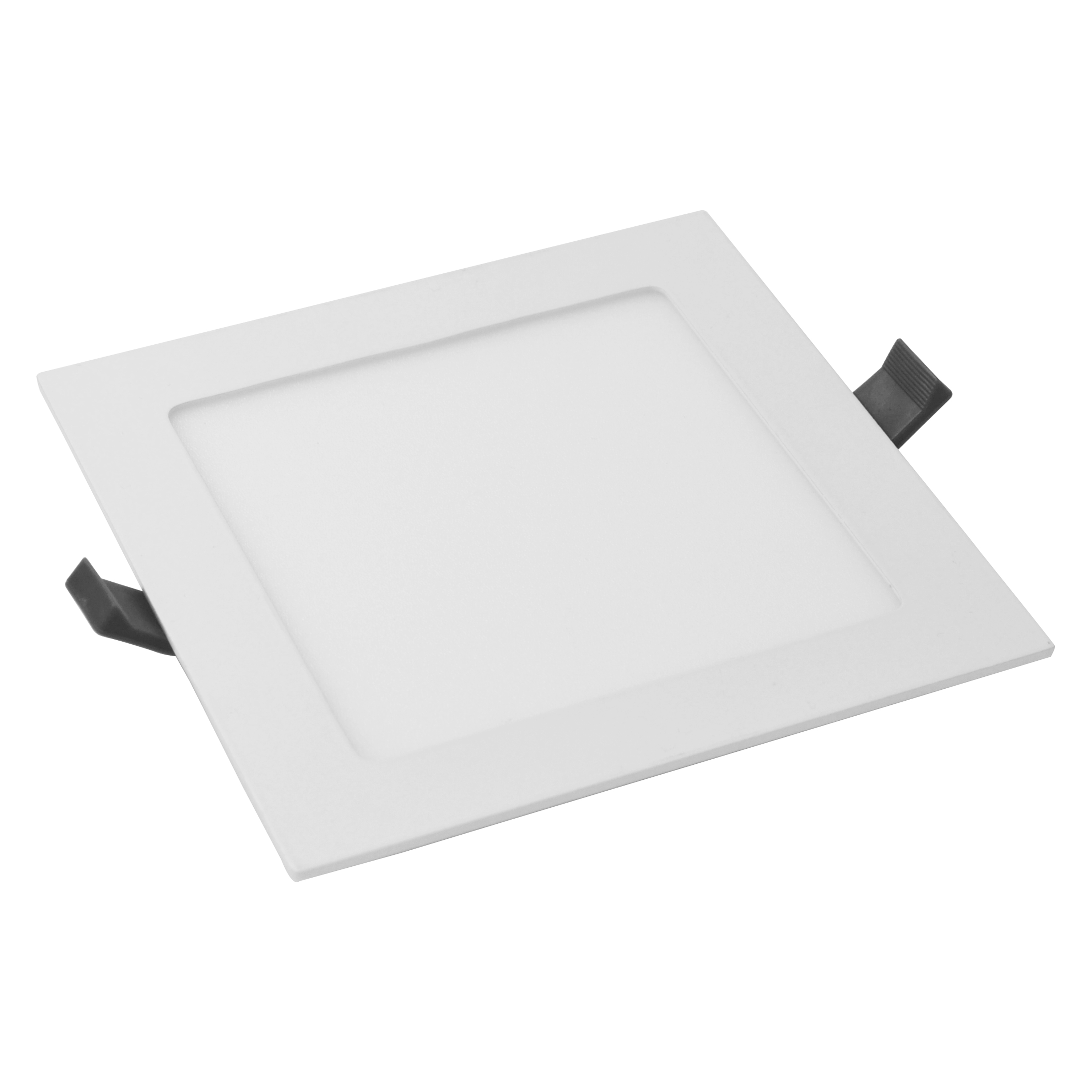

Product image: white background, spacial
LDVAL SlimDL TRI SQ
JPG (1.16 MB)

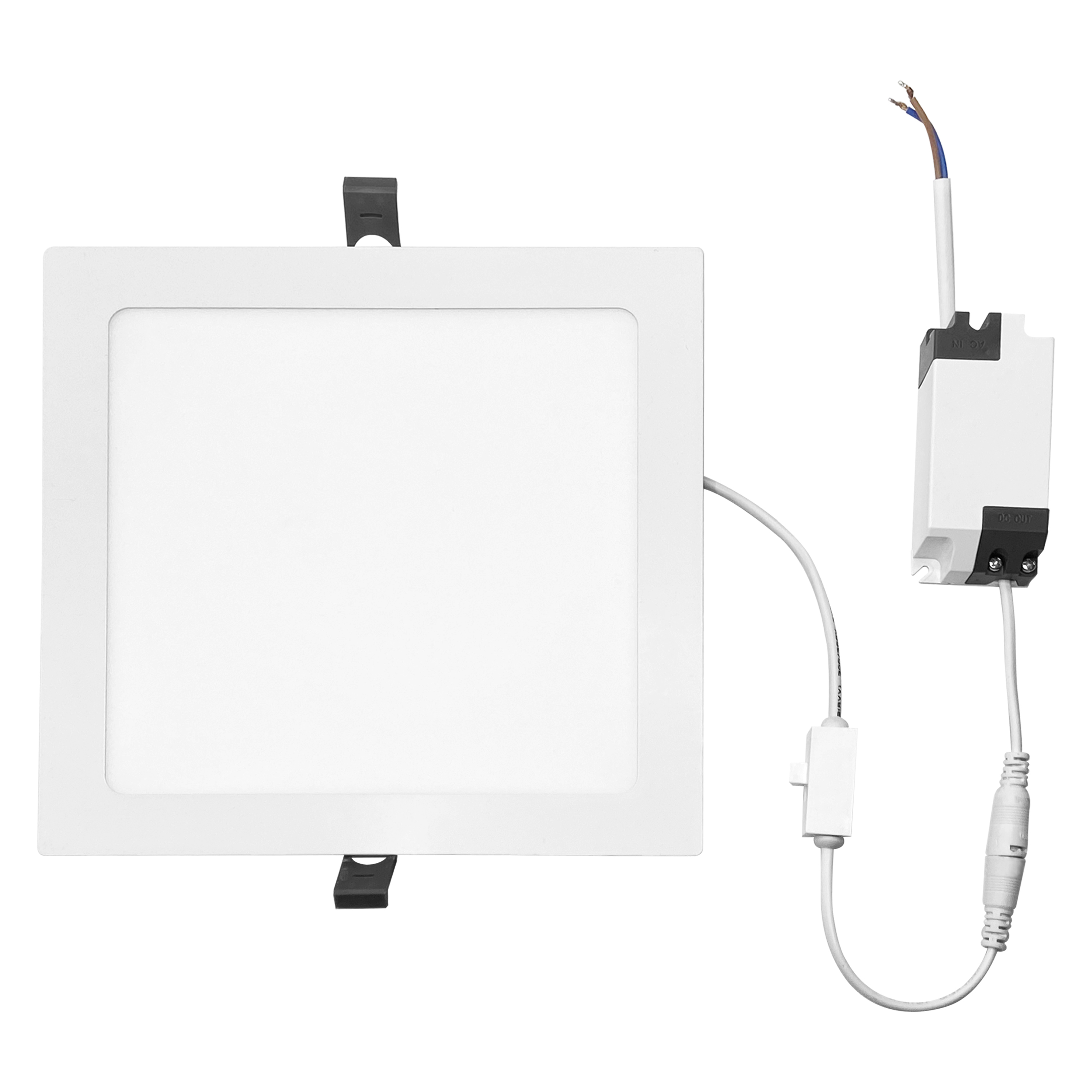

Product image: white background, with accessory, alternative image
LDVAL SlimDL TRI SQ
JPG (1.38 MB)

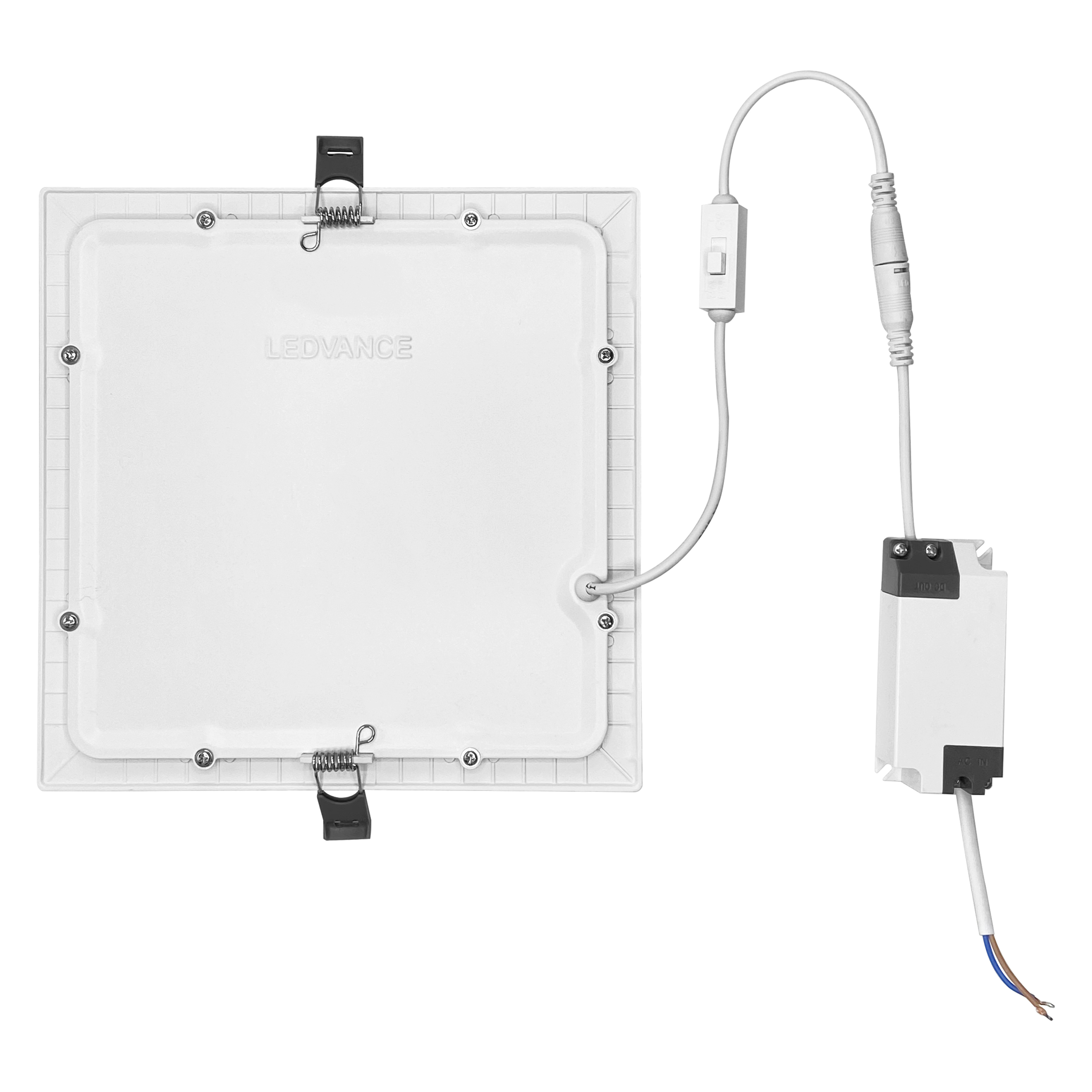

Product image: white background, with accessory, alternative image
LDVAL SlimDL TRI SQ
JPG (1.45 MB)

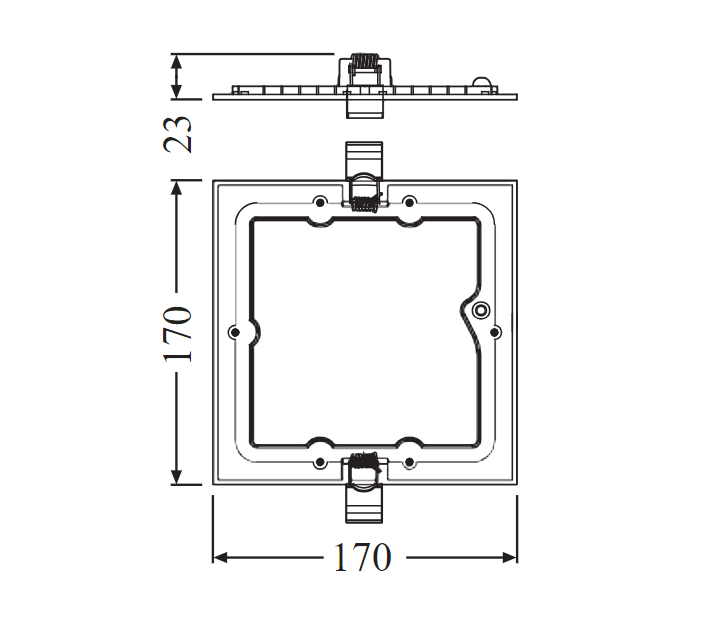

Product line drawing with numbers
LDVAL SlimDL TRI SQ 60
PNG (31.55 KB)
IES file (IES)
LDVAL SlimDL 60 SQ 15W TRI8 20X1 EN LEDV
IES (8.71 KB)
