LED VALUE COB DOWNLIGHT
LED VALUE COB Downlight 40 W 3000 K
GTIN: 4058075514843
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Stylish design
- Die-cast aluminum housing for improved heat dissipation
- Energy savings thanks to system efficacy of up to 100 lm/W
- External driver design makes the product quality more reliable
- Less than 51 mm product height make it easy to fit in tight ceiling spaces
- Low maintenance costs thanks to long lifetime
- High efficient COB LED ensure system liability
Areas of application
- Offices
- Shopping malls
- Retail and small shops
- Hospitality
Product features
- Available in whole product family 3”, 4”, 6” and 8”
- Available with wattage in whole product family: 7 W, 10 W, 20 W, 30 W and 40 W
- 110-240 V make it more flexible in different countries
- Available with color temperature in whole product family: 3,000K, 4,000K, 6,500K
- Color rendering index Ra: > 80
- Color consistency: SDCM＜6
- Certificate: CB
Electrical data
| Nominal wattage | 40.00 W |
| Nominal voltage | 110…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 34.000 mA |
| Power factor λ | > 0.5 |
| Protection class | II |
| Operating mode | External LED driver |
Photometrical data
| Luminous flux | 4000 lm |
| Luminous efficacy | 100 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm white |
| Color rendering index Ra | 80 |
| Standard deviation of color matching | ≤6 sdcm |
| Beam angle | 110 ° |
Dimensions & Weight
| Length | 225.00 mm |
| Height | 54.00 mm |
| Width | 225.00 mm |
| Product weight | 604.00 g |
| Cable length | 200 mm |
Materials & Colors
| Body material | Aluminum |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Cable, 2-pole |
| Type of protection | IP20 |
| Dimmable | No |
| Mounting type | Recessed |
| Mounting location | Ceiling |
| Application environment | Indoor |
| Mounting diameter | 200,0 mm |
| Mounting depth | 100 mm |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075514843 | Folding box 1 |
232 mm x 67 mm x 234 mm | 692.00 g | 3.64 dm³ |
| 4058075514850 | Shipping box 12 |
487 mm x 417 mm x 260 mm | 9266.00 g | 52.80 dm³ |

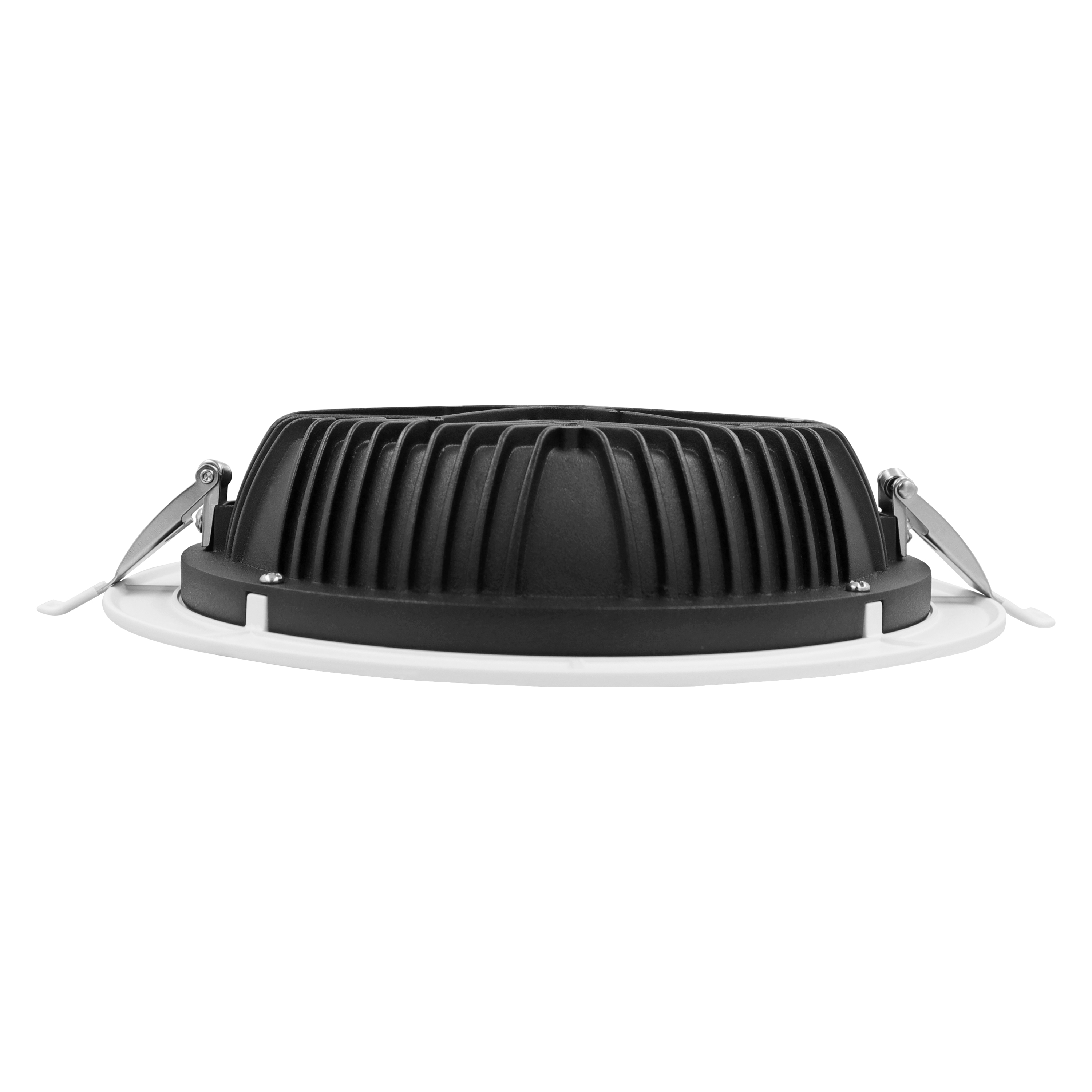

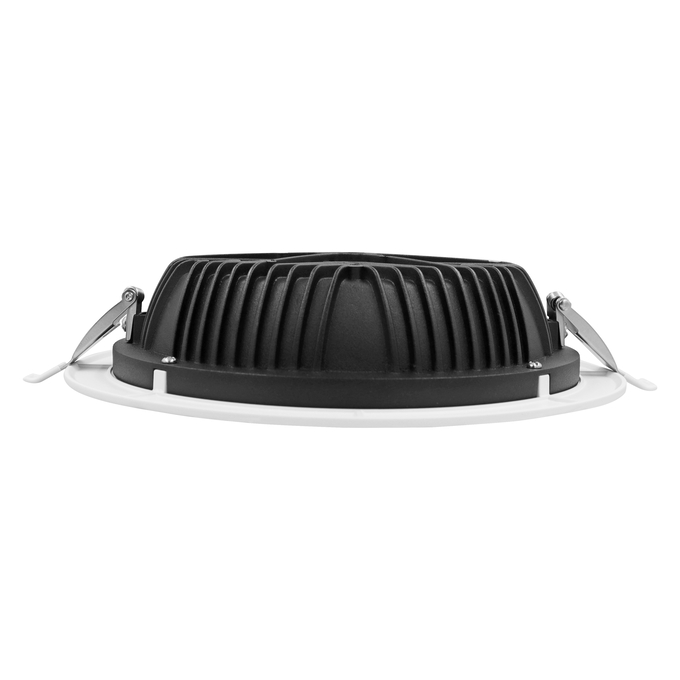

Product image: white background, horizontal
LED VALUE COB DOWNLIGHT
LED VALUE COB DOWNLIGHT

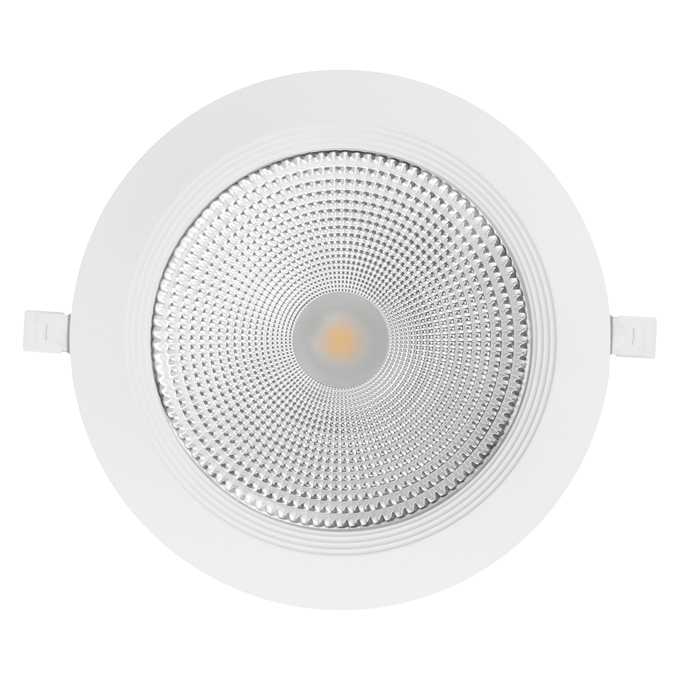

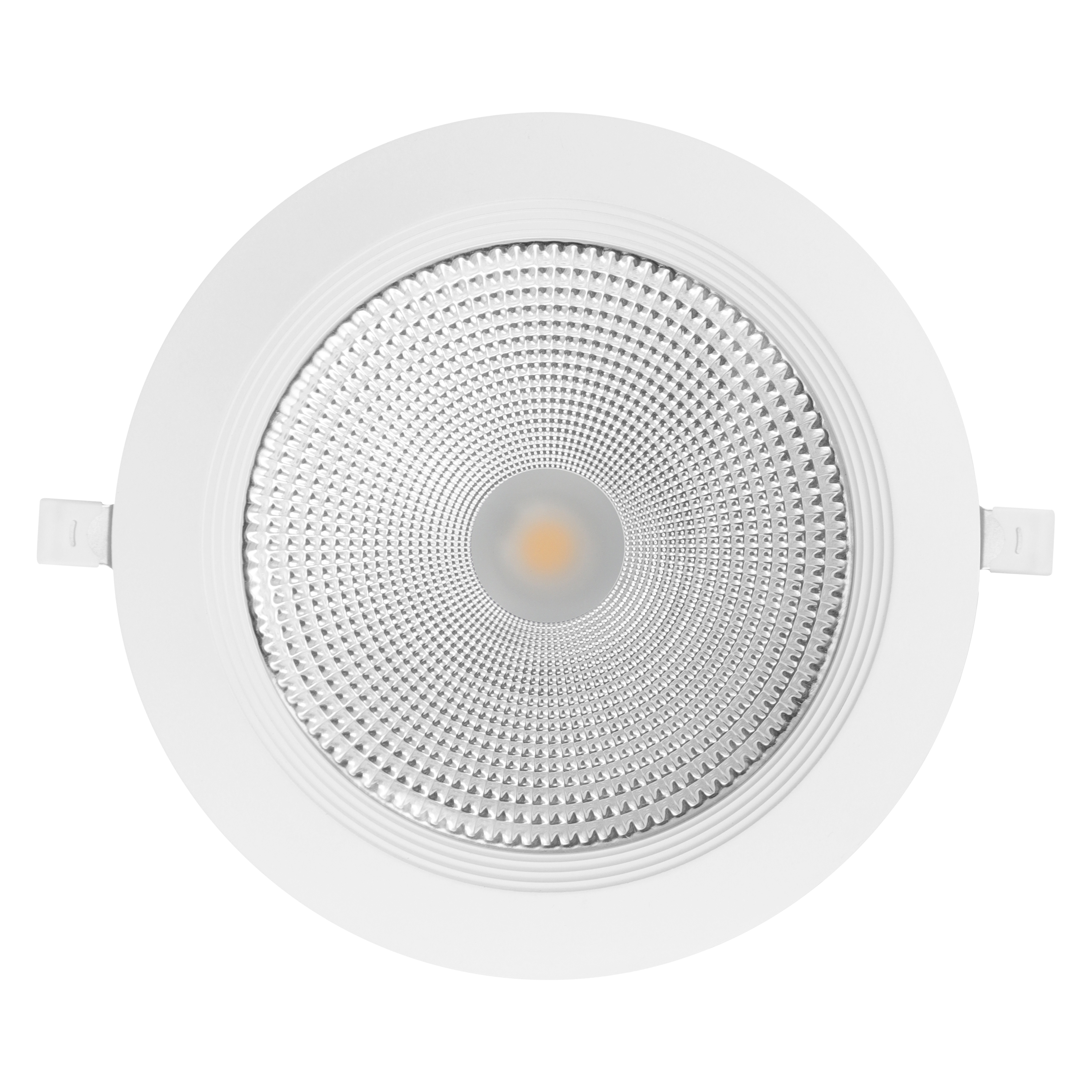

Product image: white background, upright
LED VALUE COB DOWNLIGHT
LED VALUE COB DOWNLIGHT

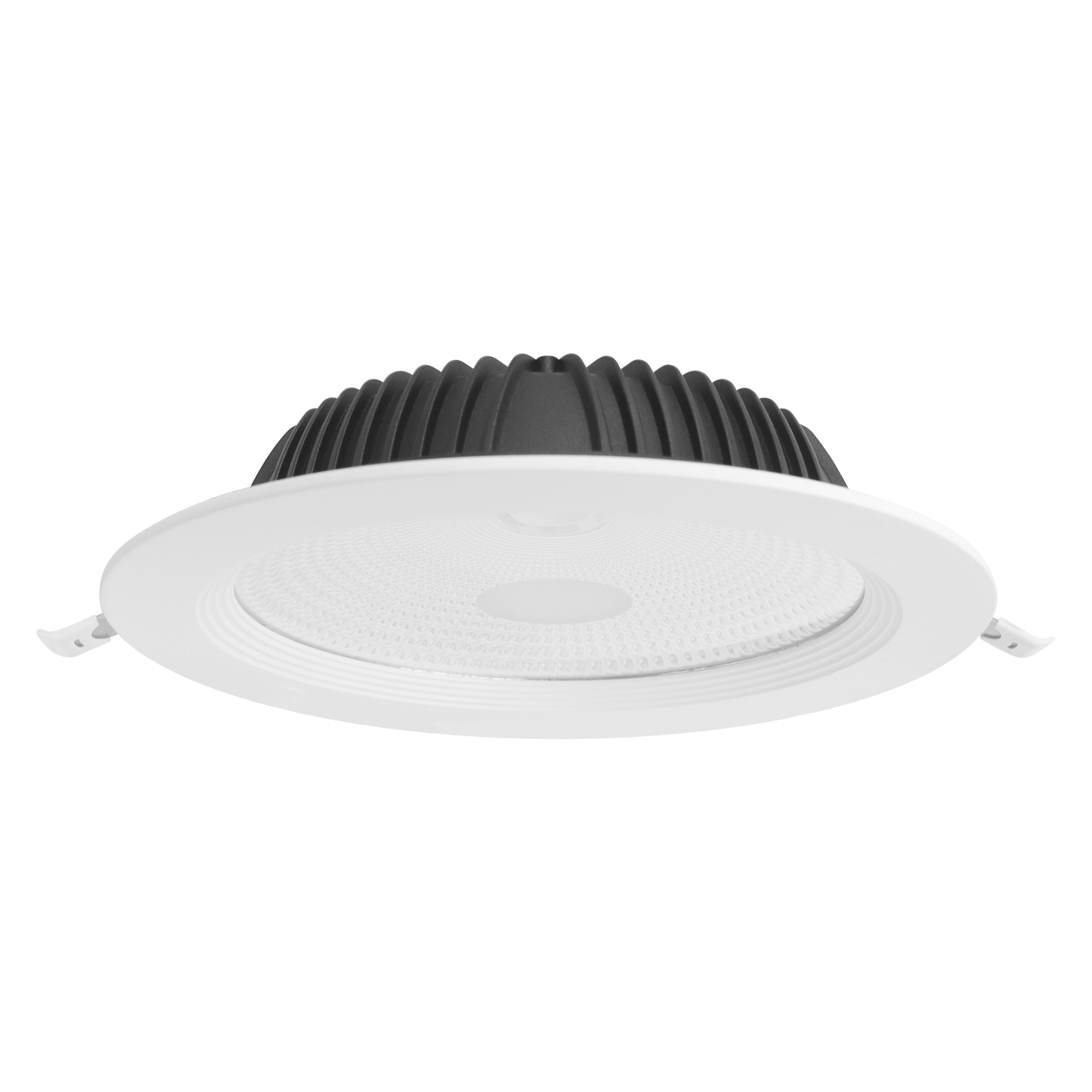

Product image: white background, spacial
