LED VALUE COB DOWNLIGHT

LED VALUE COB Downlight 20 W 4000 K

GTIN: 4058075514744 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Stylish design
  • Die-cast aluminum housing for improved heat dissipation
  • Energy savings thanks to system efficacy of up to 100 lm/W
  • External driver design makes the product quality more reliable
  • Less than 51 mm product height make it easy to fit in tight ceiling spaces
  • Low maintenance costs thanks to long lifetime
  • High efficient COB LED ensure system liability
Areas of application
  • Offices
  • Shopping malls
  • Retail and small shops
  • Hospitality
Product features
  • Available in whole product family 3”, 4”, 6” and 8”
  • Available with wattage in whole product family: 7 W, 10 W, 20 W, 30 W and 40 W
  • 110-240 V make it more flexible in different countries
  • Available with color temperature in whole product family: 3,000K, 4,000K, 6,500K
  • Color rendering index Ra: > 80
  • Color consistency: SDCM＜6
  • Certificate: CB
Electrical data
Nominal wattage 20.00 W
Nominal voltage 110…240 V
Mains frequency 50…60 Hz
Nominal current 34.000 mA
Power factor λ > 0.5
Protection class II
Operating mode External LED driver
Photometrical data
Luminous flux 2000 lm
Luminous efficacy 100 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Standard deviation of color matching ≤6 sdcm
Beam angle 110 °
Dimensions & Weight
Length 165.00 mm
Height 45.00 mm
Width 165.00 mm
Product weight 336.00 g
Cable length 200 mm
Materials & Colors
Body material Aluminum
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of connection Cable, 2-pole
Type of protection IP20
Dimmable No
Mounting type Recessed
Mounting location Ceiling
Application environment Indoor
Mounting diameter 140,0 mm
Mounting depth 100 mm
Replaceable light source No
Lifespan
Lifespan L70/B50 at 25 °C 30000 h 1)
Number of switching cycles 100000
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075514744 Folding box
1		 172 mm x 62 mm x 174 mm 390.00 g 1.86 dm³
4058075514751 Shipping box
20		 367 mm x 327 mm x 370 mm 8562.00 g 44.40 dm³

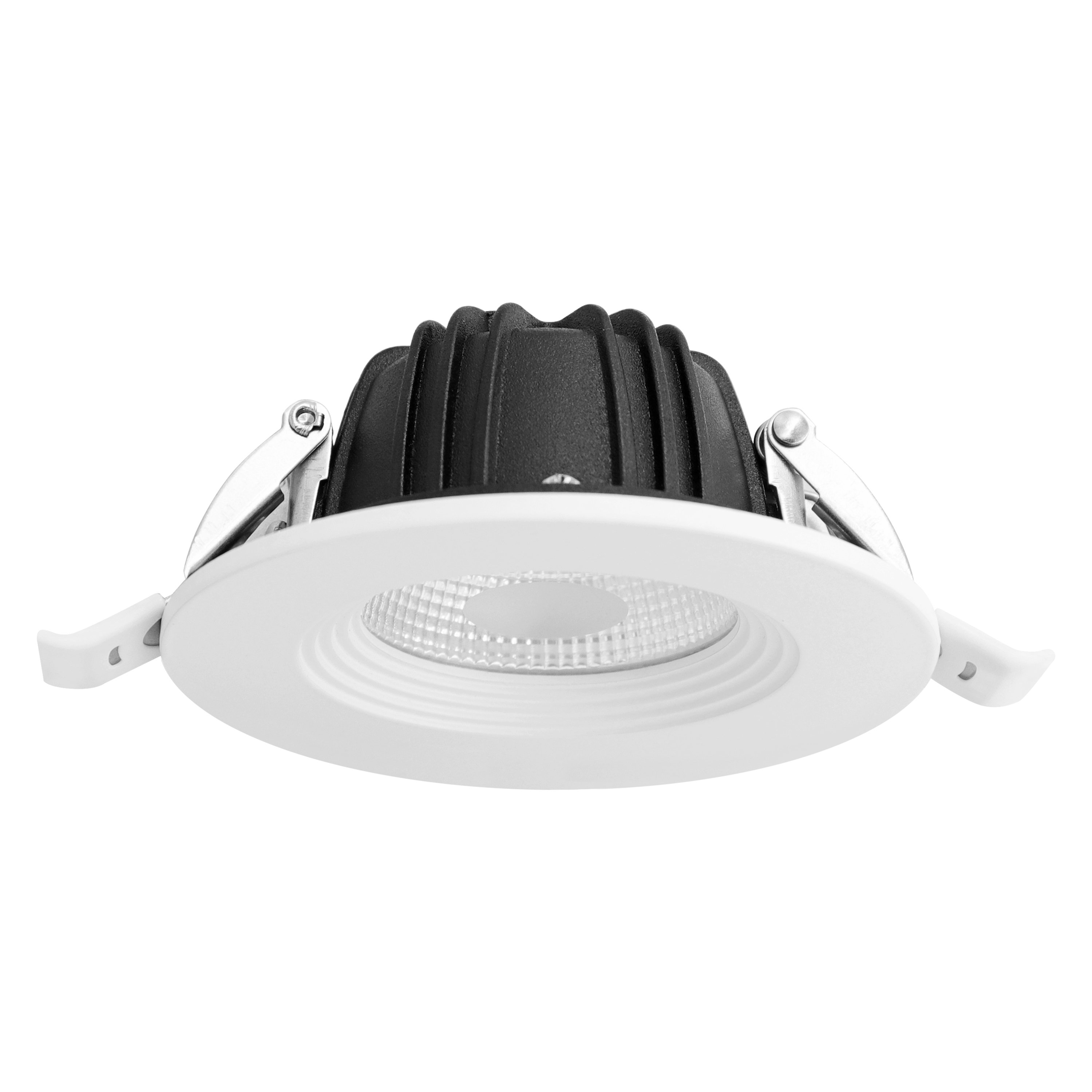

Product image: white background, spacial
LED VALUE COB DOWNLIGHT
JPG (1.27 MB)
Product line drawing with numbers
LDVAL DL COB 140 20W
SVG (76.16 KB)
IES file (IES)
LDVAL DL COB 140 20W 840
IES (26.54 KB)
