SubstiTUBE Eco

ST8E-EM 9 W/4000 K 600 mm

GTIN: 4058075429444 Sleeve / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • No bending thanks to glass technology
  • Quick, simple and safe replacement without rewiring
  • Very high resistance to switching loads
  • Also suitable for operation at low temperatures
Areas of application
  • General illumination within ambient temperatures from -20…+45 °C
  • Corridors, stairways, parking garages
  • Train stations
  • Underground stations
  • Supermarkets and department stores
  • Industry
  • Warehouses
  • Hospitality
Product features
  • T8 LED tube made of glass with G13 base
  • High color consistency: < 6 SDCM
  • Lifetime up to 15,000 h
  • Mercury-free lamps
  • Color rendering index Ra: ≥ 80
Electrical data
Nominal wattage 9 W
Nominal voltage 220…240 V
Type of current AC
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Power factor λ > 0.50
Photometrical data
Luminous flux 900 lm
Luminous efficacy 100 lm/W
Light color (designation) Cold White
Color temperature 4000 K
Color rendering index Ra ≥80
Light color 840
Standard deviation of color matching ≤6 sdcm
Light technical data
Beam angle › 180.00 °
Starting time < 0.5 s
Dimensions & Weight
Overall length 604.00 mm
Diameter 28.00 mm
Product weight 95.00 g
Temperatures & operating conditions
Ambient temperature range -20…+45 °C
Maximum temperature at tc test point < 75 °C
Additional product data
Base (standard designation) G13
Mercury content 0.0 mg
Capabilities
Dimmable No
Certificates & Standards
Type of protection IP20
Country-specific categorizations
Order reference ST8E-0.6M 9W/84
LOGISTICAL DATA
Temperature range at storage -20…+80 °C
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) G13
Length 604.00 mm
Height 28.00 mm
Width 28.00 mm
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075429444 Sleeve
1		 655 mm x 28 mm x 28 mm 129.00 g 0.51 dm³
4058075429451 Shipping box
25		 700 mm x 168 mm x 170 mm 3730.00 g 19.99 dm³
4099854238123 Shipping box
25		 700 mm x 168 mm x 170 mm 3081.00 g 19.99 dm³
Product image: white background, diagonal with OSRAM logo
LED ST8V G7 FR G13
TIF (1.7 MB)
Product line drawing, front, no dimensions
LED STAR+ T8 1.2M G13
SVG (3.73 KB)

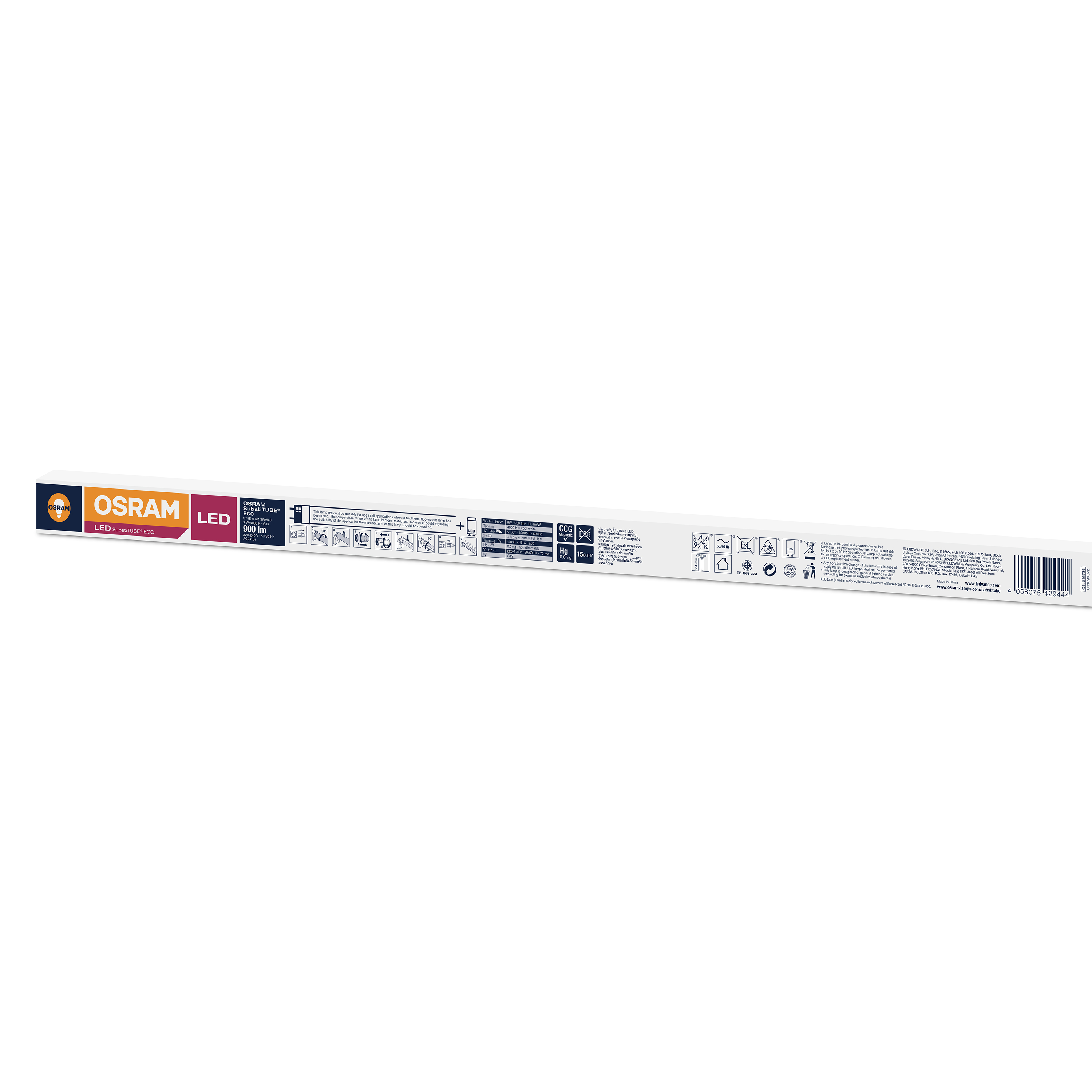

Packaging image, spacial
OSRAM LED T8 TUBE 2FT 9W CW
JPG (990.21 KB)
