SUBSTITUBE ECO T8
SUBSTITUBE ECO DE T8 WITH SAFETY GUARD PIN 10 W/3000 K 600 MM
GTIN: 4099854236679
Sleeve / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- High luminous flux for sophisticated lighting tasks
- Easy installation
- High luminous efficacy compared with standard lamps
Areas of application
- Train stations
- Offices
- Underground stations
- Supermarkets and department stores
- Parking lots, warehouses, production areas, stairways
Product features
- T8 LED tube made of glass with G13 base
- Double-end input design
- Mercury-free lamps
- Type of protection: IP20
Electrical data
| Nominal wattage | 10 W |
| Nominal voltage | 220…240 V |
| Nominal current | 70 mA |
| Operating frequency | 50/60 Hz |
| Mains frequency | 50/60 Hz |
Photometrical data
| Luminous flux | 945 lm |
| Luminous efficacy | 94 lm/W |
| Light color (designation) | Warm White |
| Color temperature | 3000 K |
| Color rendering index Ra | 80 |
| Light color | 830 |
| Standard deviation of color matching | ≤6 sdcm |
Light technical data
| Starting time | < 0.5 s |
Dimensions & Weight
| Overall length | 600.00 mm |
| Diameter | 28.00 mm |
| Product weight | 96.00 g |
Temperatures & operating conditions
| Ambient temperature range | -20…+45 °C |
| Maximum temperature at tc test point | <75 °C |
Lifespan
| Number of switching cycles | 50000 |
Additional product data
| Base (standard designation) | G13 |
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
| Design / version | Frosted |
Capabilities
| Dimmable | No |
Certificates & Standards
| Type of protection | IP20 |
| Standards | ROHS, EMC |
Country-specific categorizations
| Order reference | ST8E-0.6M 10W/8 |
LOGISTICAL DATA
| Temperature range at storage | -20…+80 °C |
Energy labelling regulation data acc EU 2019/2015
| Light source cap-type (or other electric interface) | G13 |
| Length | 600.00 mm |
| Height | 28.00 mm |
| Width | 28.00 mm |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854236679 | Sleeve 1 |
610 mm x 28 mm x 28 mm | 127.00 g | 0.48 dm³ |
| 4099854236686 | Shipping box 25 |
660 mm x 167 mm x 185 mm | 4156.00 g | 20.39 dm³ |

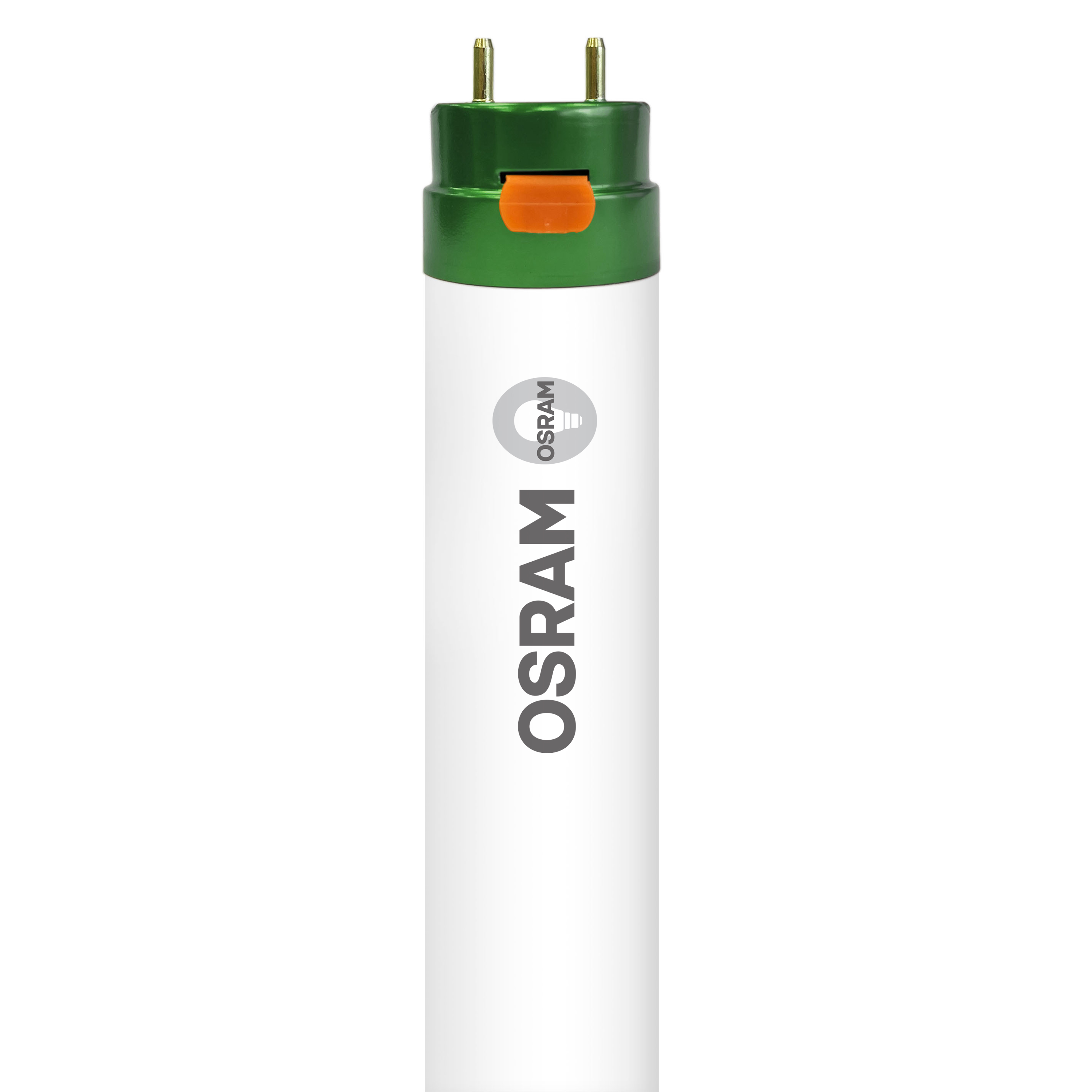

Product image: white background, diagonal with OSRAM logo
ST8E 0.6M 1.2M Green end cap
ST8E 0.6M 1.2M Green end cap

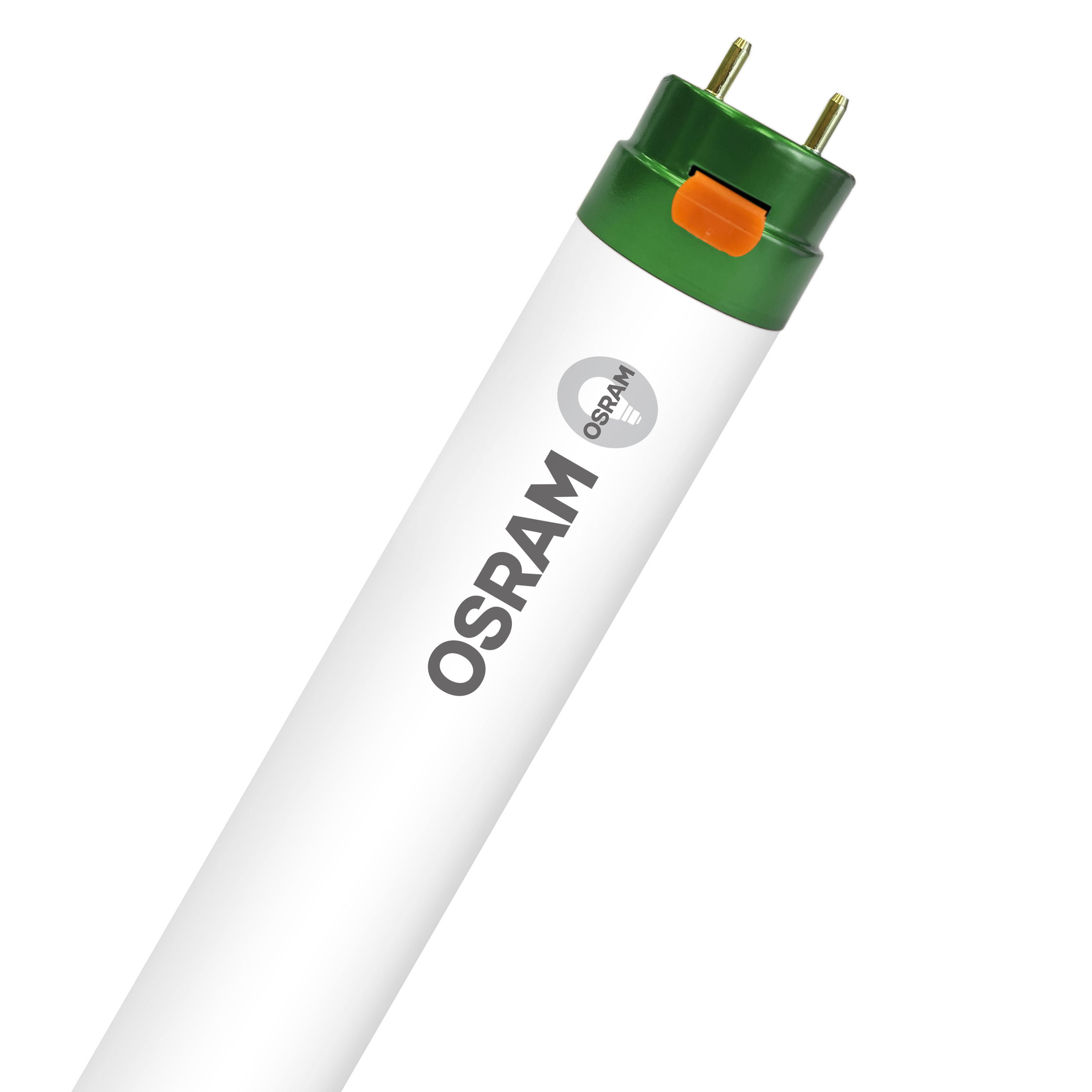

Product image: white background, diagonal with OSRAM logo
ST8E 0.6M 1.2M Green end cap
ST8E 0.6M 1.2M Green end cap

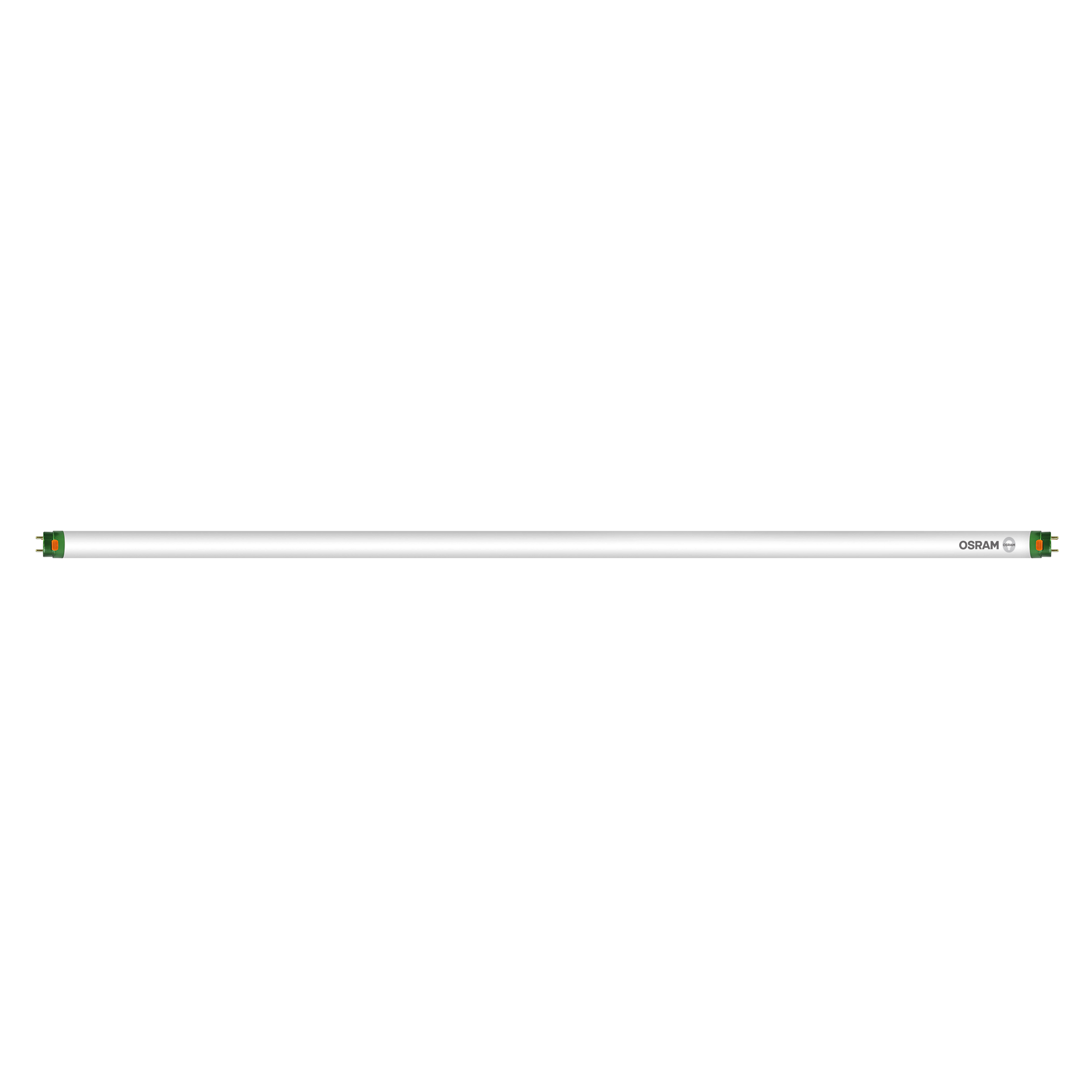

Product image: white background, horizontal, OSRAM logo
