SURFACE CIRCULAR FRAME

SF CIRCULAR 500 FRAME WT

GTIN: 4058075834187 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions
Fast Light Calculation Tool
The fast way to plan lighting projects

PRODUCT DETAILS

Product benefits
  • Design extension for a more decorative appearance
  • Allows direct light as well as accentuated light to the ceiling
  • Easy and quick installation
Areas of application
  • Extension for SURFACE CIRCULAR 500
Product features
  • Available in black / gold (like RAL790-5 / RAL260-M) and white (like RAL110-1) color
  • Metal sheet frame
Equipment / Accessories
  • Replacement cover optionally available
References / Links
Photometrical data
Beam angle 120 °
Dimensions & Weight
Diameter 560 mm
Height 105.00 mm
Product weight 2400.00 g
Materials & Colors
Product color White
Body material Steel
Application & Mounting
Mounting type Surface
Mounting location Ceiling
Replaceable light source No
Certificates & Standards
Ball shot safe No
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075834187 Folding box
1		 112 mm x 567 mm x 560 mm 2125.00 g 35.56 dm³
4058075834194 Shipping box
5		 585 mm x 585 mm x 605 mm 12515.00 g 207.05 dm³

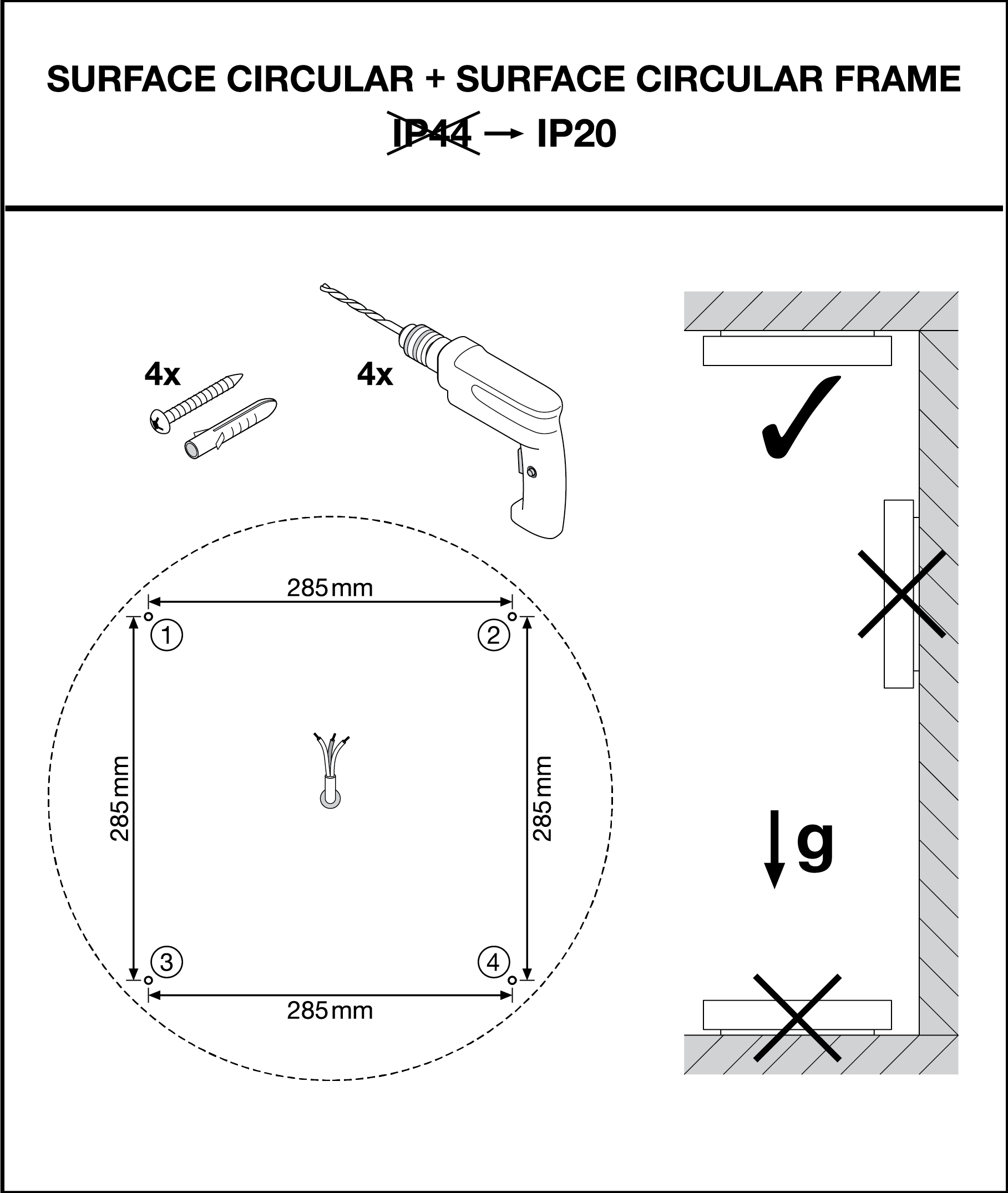

User instruction / safety instructions
UI SF CIRC FRAME
PDF (3.76 MB)
Legal information
Informationstext 18 Abs 4 ElektroG
PDF (435.15 KB)
Declarations of conformity
SF CIRCULAR
PDF (237.43 KB)

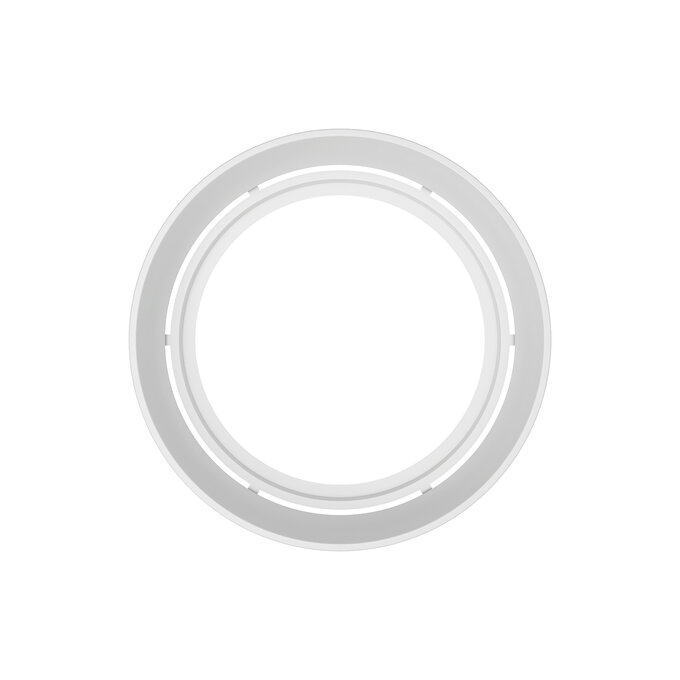

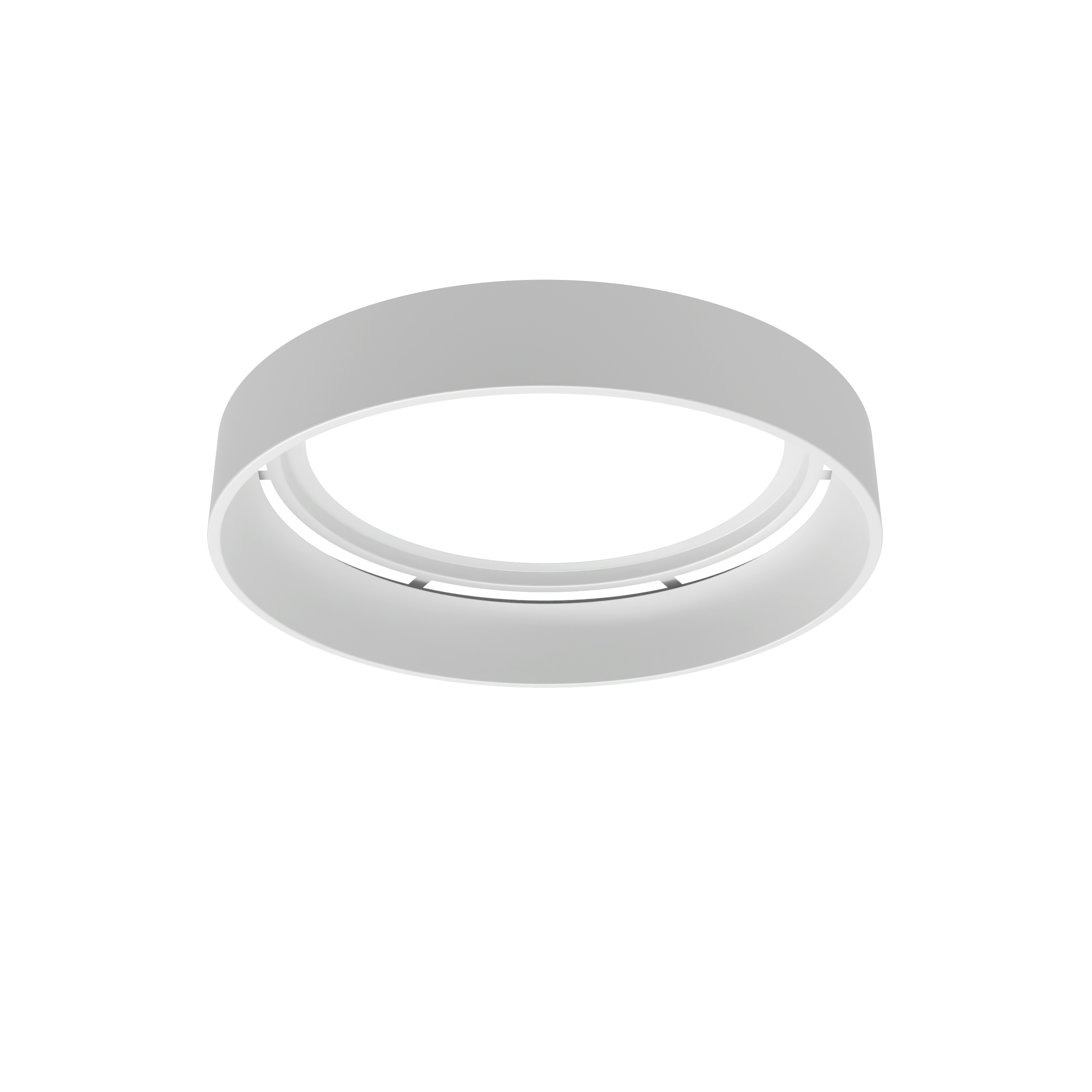

Product image: white background, upright
SF CIRCULAR 500 FRAME WT
JPG (871.04 KB)

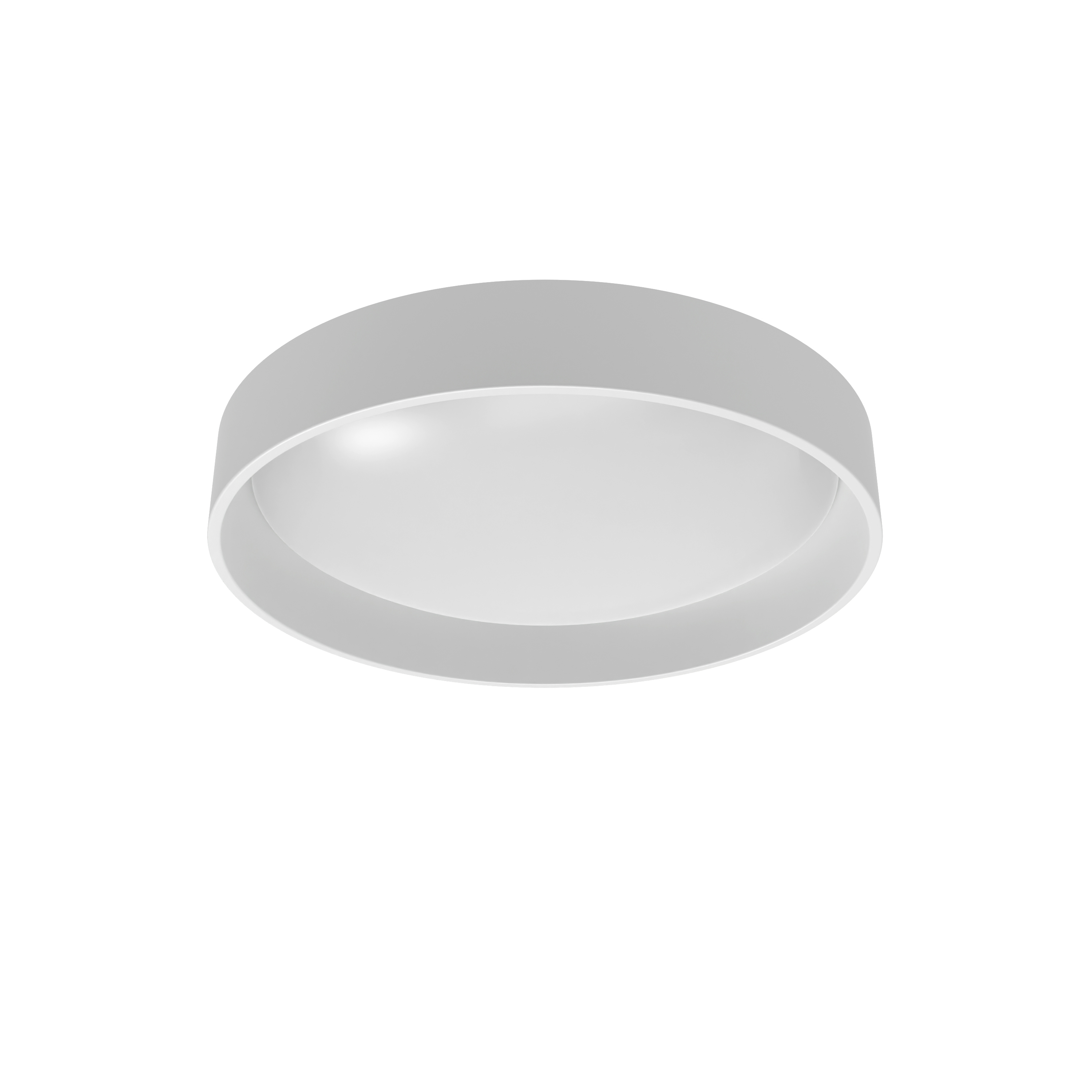

Product image: white background, with accessory, alternative image
SF CIRCULAR 500 FRAME WT
JPG (1.11 MB)

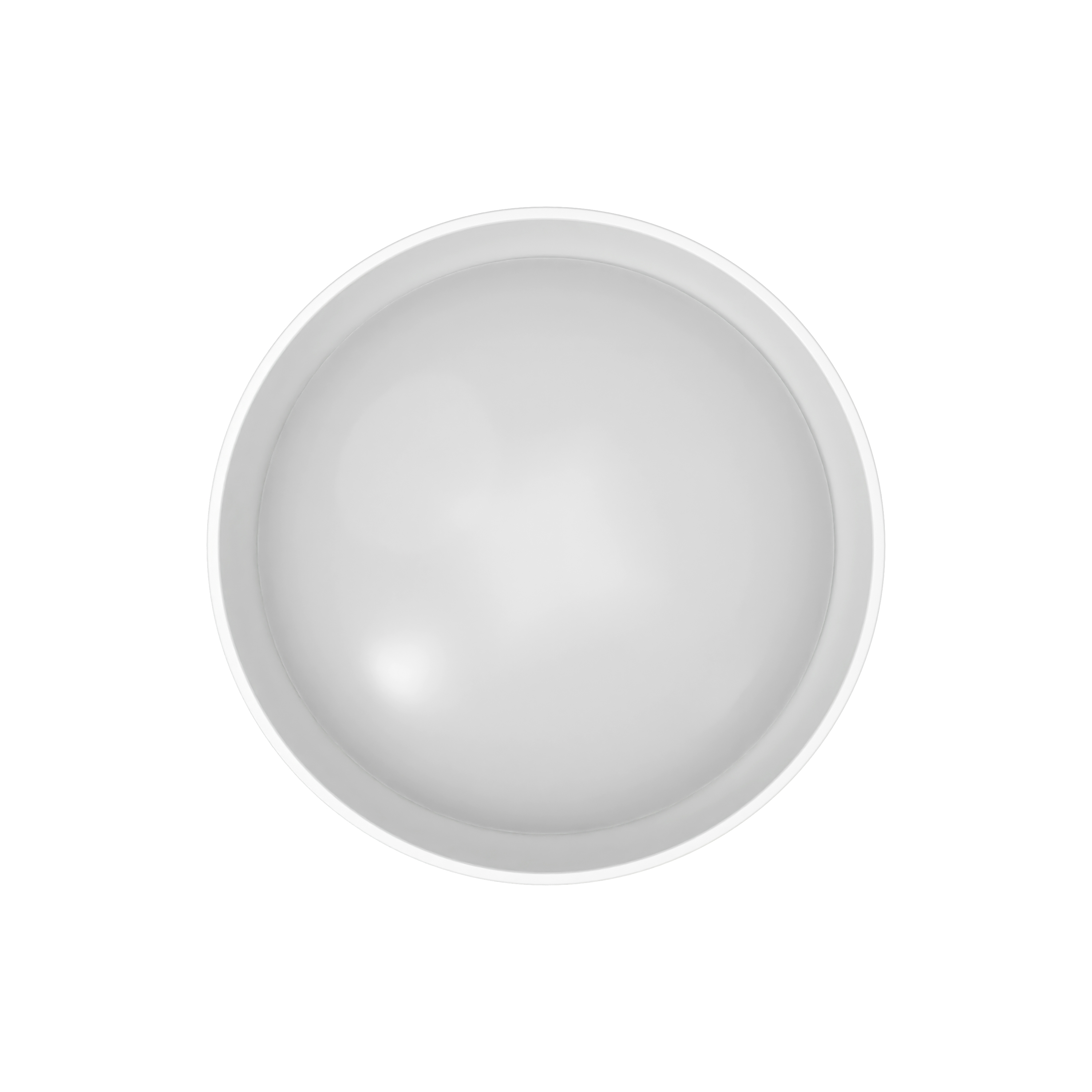

Product image: white background, with accessory, alternative image
SF CIRCULAR 500 FRAME WT
JPG (915.43 KB)

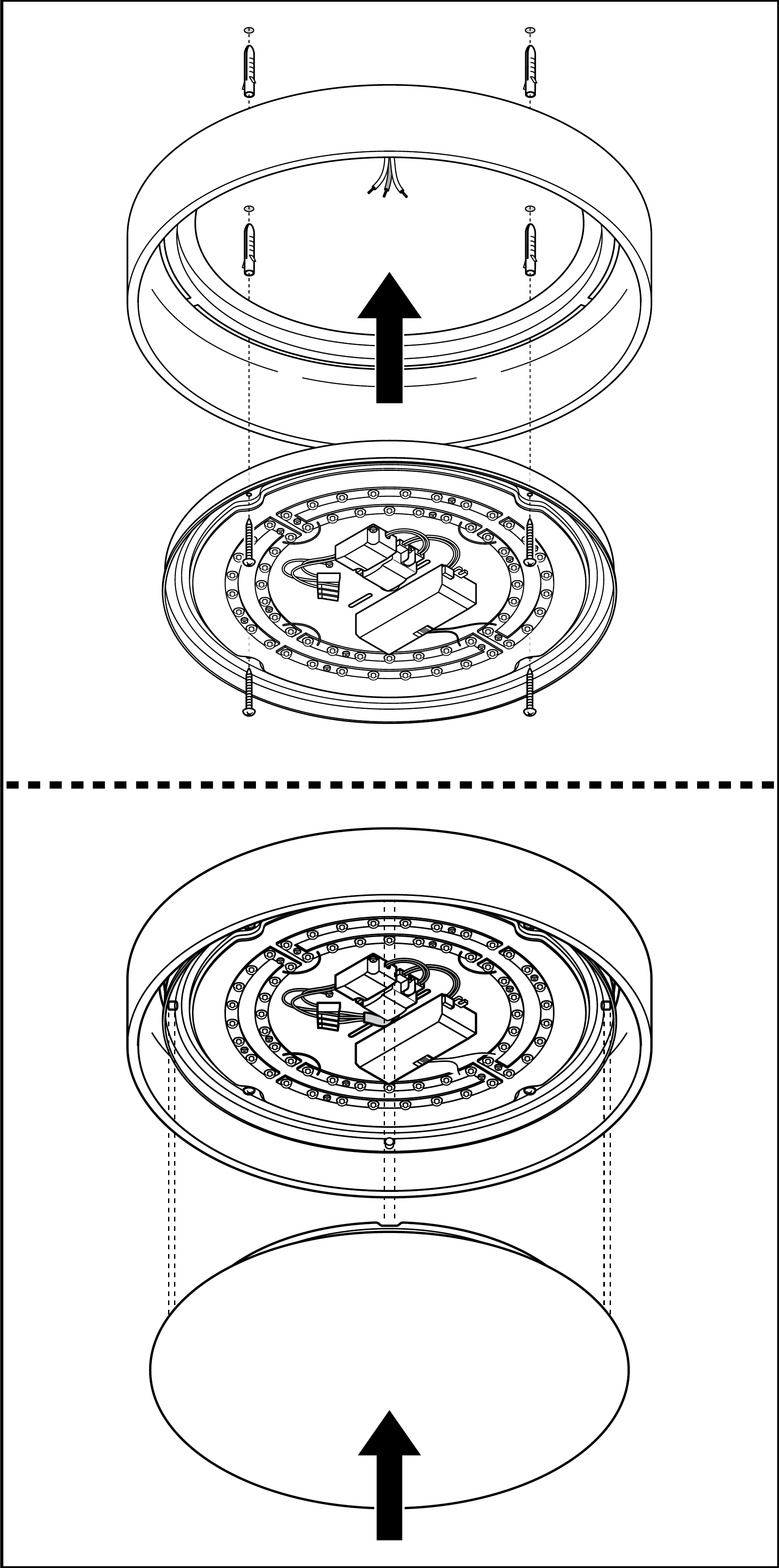

Product line drawing with letters
SF CIRCULAR 500 FRAME
SVG (10.19 KB)
Product line drawing with numbers
SF CIRCULAR 500 FRAME
SVG (12.85 KB)
Product line drawing - technical
SF CIRCULAR 500 FRAME
SVG (5.61 KB)

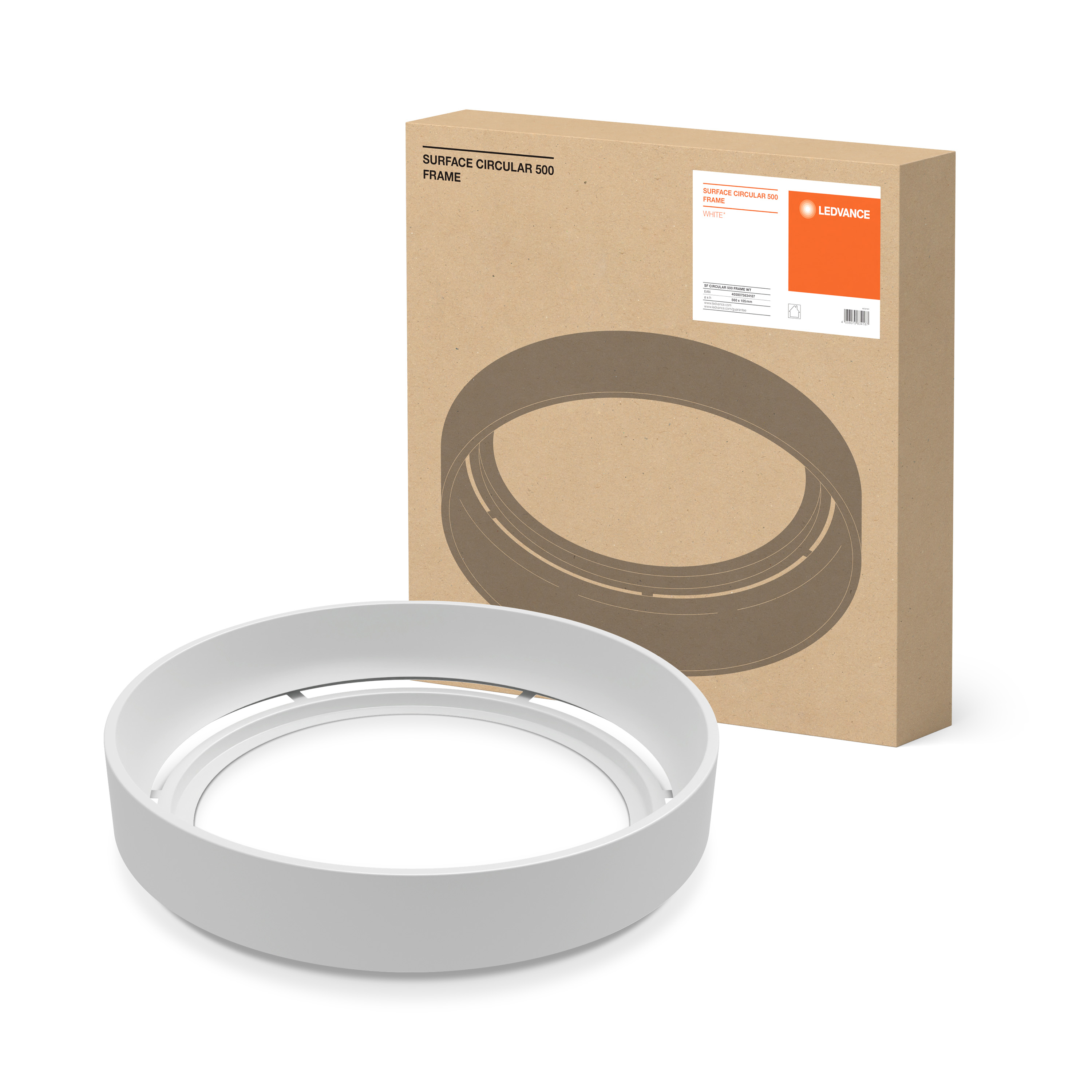

Combo Shot = Product Beauty Shot + Packaging Image
SURFACE CIRCULAR 500 FRAME WT
JPG (825.51 KB)

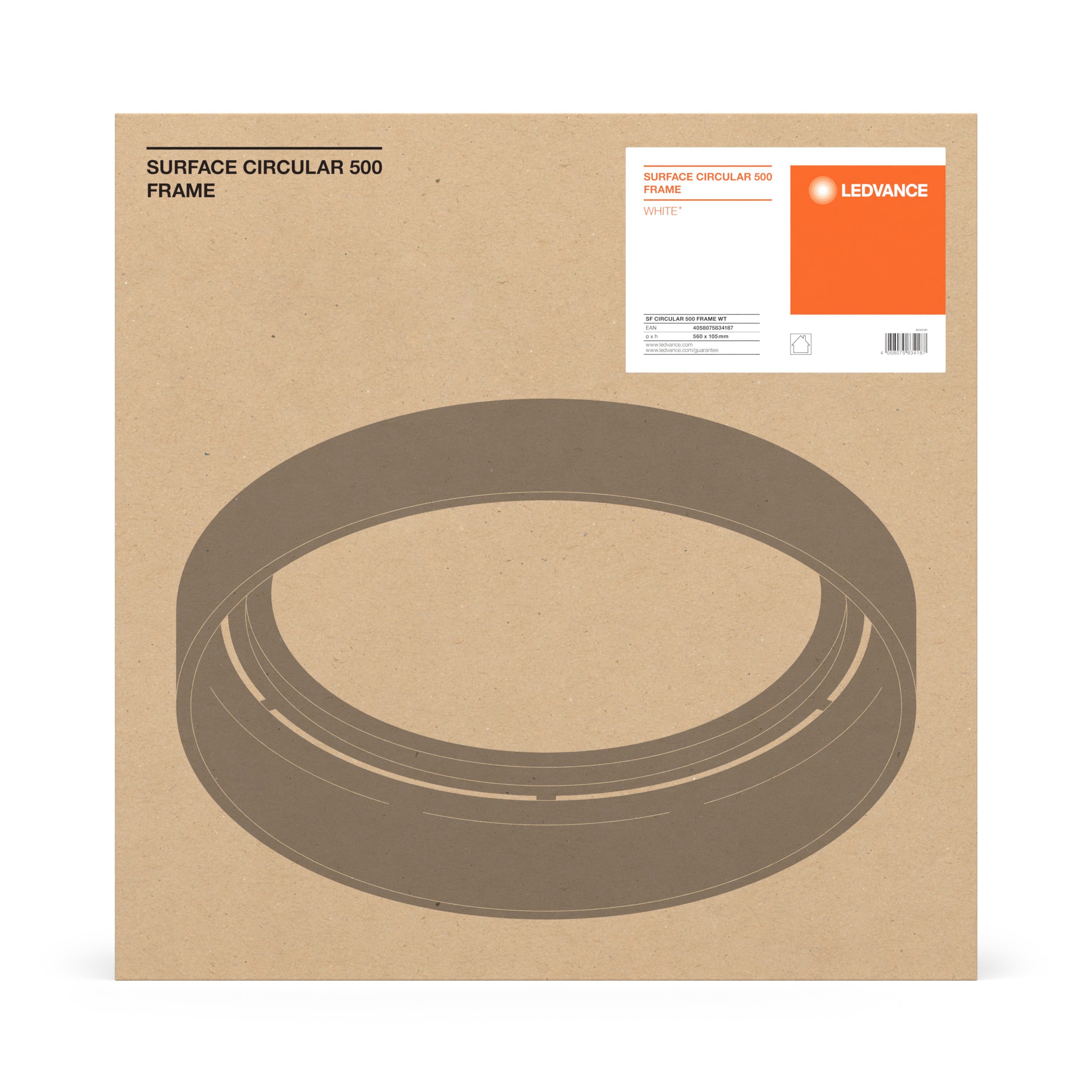

Packaging image, frontal
SURFACE CIRCULAR 500 FRAME WT
JPG (1.23 MB)

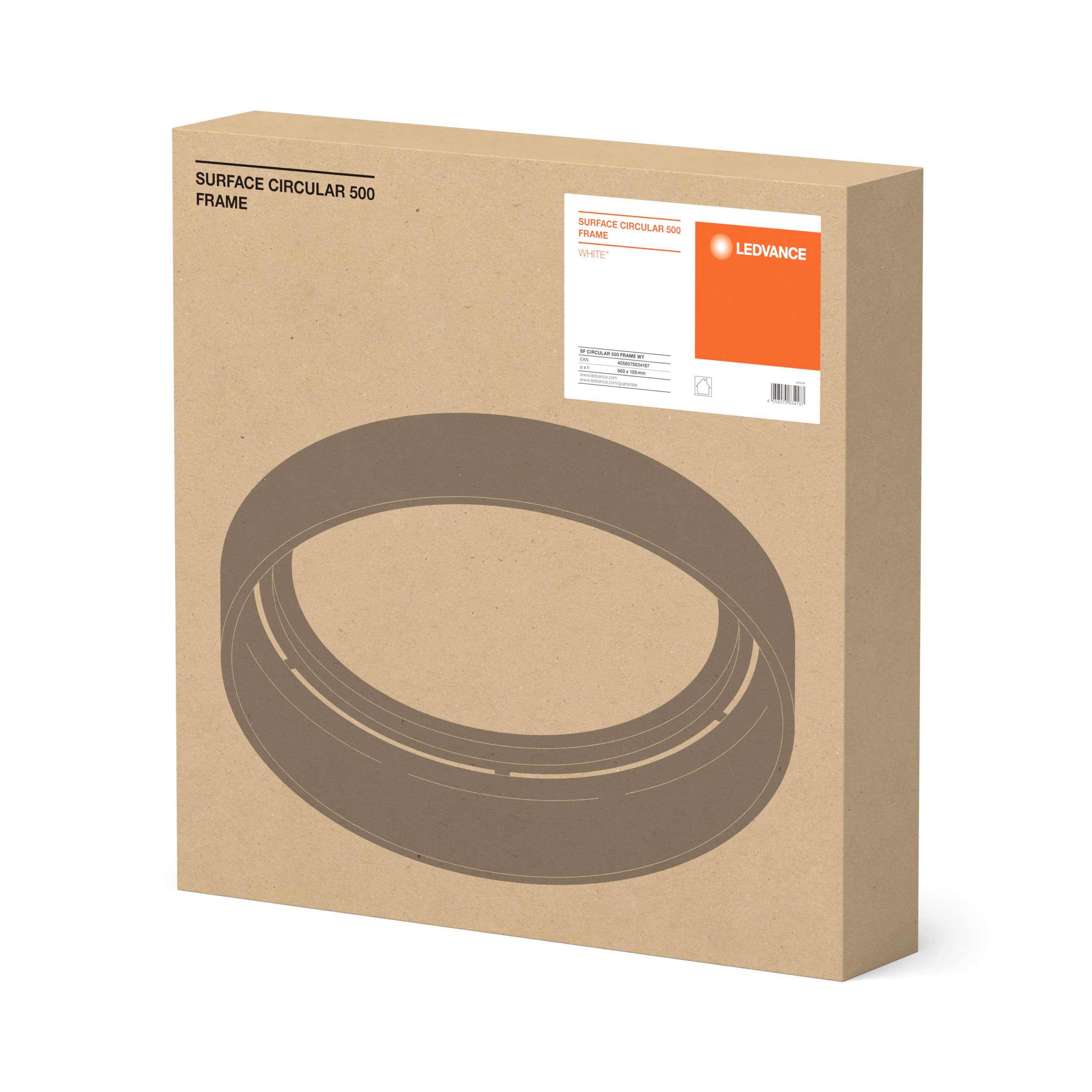

Packaging image, spacial
SURFACE CIRCULAR 500 FRAME WT
JPG (1.06 MB)
Catalog info 1
SF CIRCULAR 500 FRAME
PNG (144.24 KB)
Catalog info 2
SF CIRCULAR 500 FRAME
PNG (548.77 KB)
IES file (IES)
SF C 500 19W WHITE FRAME 1500lm
IES (3.25 KB)
IES file (IES)
SF C 500 19W WHITE FRAME 1400lm
IES (3.25 KB)
IES file (IES)
SF C 500 30W WHITE FRAME 2350lm
IES (3.25 KB)
IES file (IES)
SF C 500 42W WHITE FRAME 3300lm
IES (3.25 KB)
IES file (IES)
SF C 500 6W WHITE FRAME 500lm DALI EM
IES (3.25 KB)
LDT file (Eulumdat)
SF C 500 19W WHITE FRAME 1500lm
LDT (2.91 KB)
LDT file (Eulumdat)
SF C 500 19W WHITE FRAME 1400lm
LDT (2.9 KB)
LDT file (Eulumdat)
SF C 500 30W WHITE FRAME 2350lm
LDT (2.9 KB)
LDT file (Eulumdat)
SF C 500 42W WHITE FRAME 3300lm
LDT (2.9 KB)
LDT file (Eulumdat)
SF C 500 6W WHITE FRAME 500lm DALI EM
LDT (2.91 KB)
UGR file (UGR table)
SF C 500 19W WHITE FRAME 1500lm
PNG (56.12 KB)

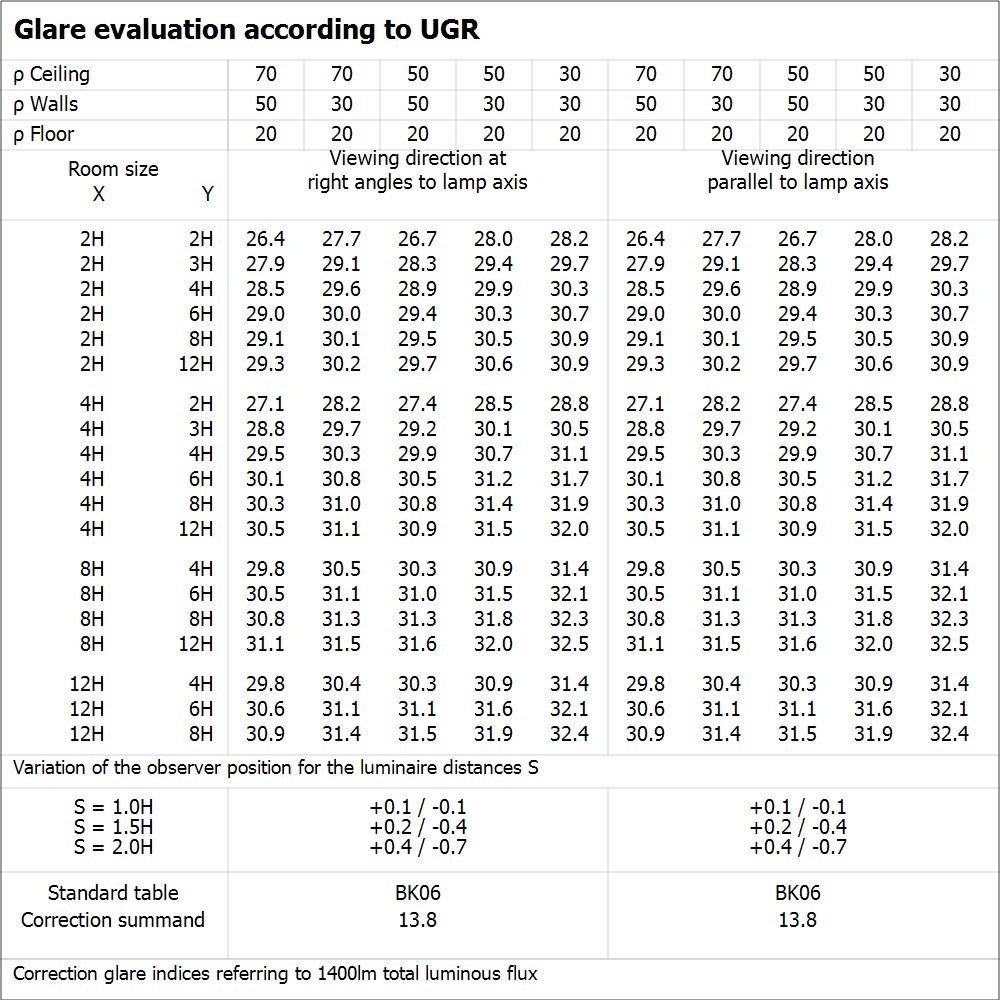

UGR file (UGR table)
SF C 500 19W WHITE FRAME 1400lm
PNG (56.61 KB)

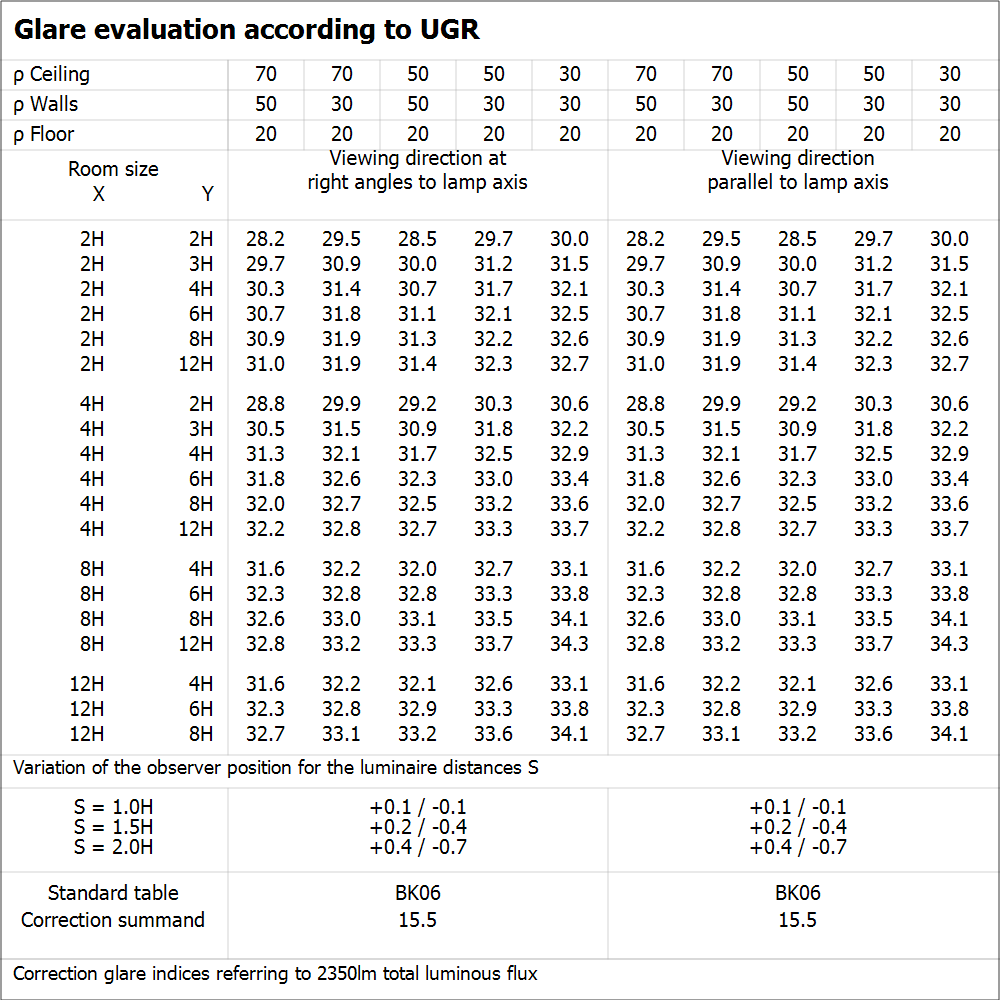

UGR file (UGR table)
SF C 500 30W WHITE FRAME 2350lm
PNG (56.91 KB)

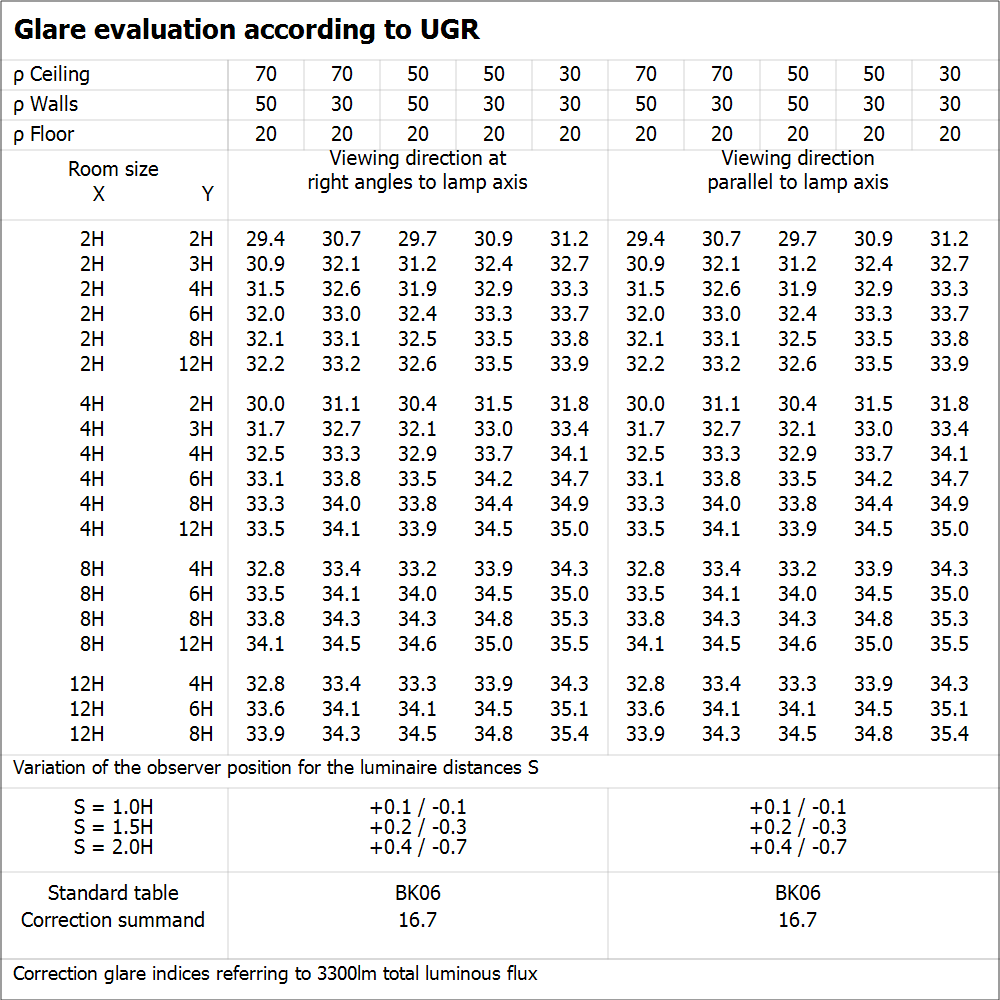

UGR file (UGR table)
SF C 500 42W WHITE FRAME 3300lm
PNG (56.42 KB)

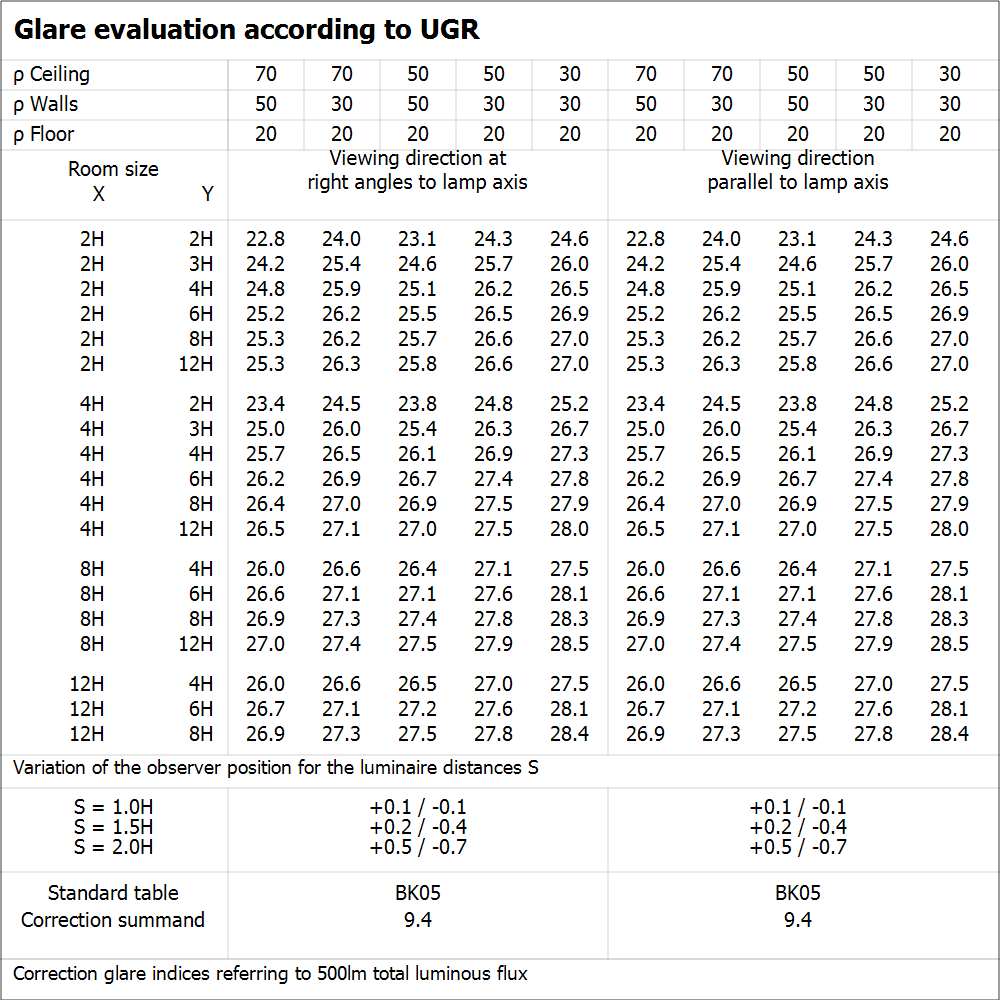

UGR file (UGR table)
SF C 500 6W WHITE FRAME 500lm DALI EM
PNG (56.12 KB)
Light distribution curve type cone
SF C 500 19W WHITE FRAME 1500lm
SVG (11.41 KB)
Light distribution curve type cone
SF C 500 19W WHITE FRAME 1400lm
SVG (11.42 KB)
Light distribution curve type cone
SF C 500 30W WHITE FRAME 2350lm
SVG (11.42 KB)
Light distribution curve type cone
SF C 500 42W WHITE FRAME 3300lm
SVG (11.42 KB)
Light distribution curve type cone
SF C 500 6W WHITE FRAME 500lm DALI EM
SVG (11.41 KB)
Light distribution curve type polar
SF C 500 19W WHITE FRAME 1500lm
SVG (17.97 KB)
Light distribution curve type polar
SF C 500 19W WHITE FRAME 1400lm
SVG (18.17 KB)
Light distribution curve type polar
SF C 500 30W WHITE FRAME 2350lm
SVG (18.17 KB)
Light distribution curve type polar
SF C 500 42W WHITE FRAME 3300lm
SVG (18.17 KB)
Light distribution curve type polar
SF C 500 6W WHITE FRAME 500lm DALI EM
SVG (17.97 KB)
Tender documents
SURFACE CIRCULAR FRAME 500 FRAME WT-EN
TXT (571 B)
Application pictures
Surface Circular with frame in the office lights on
JPG (3.6 MB)
Application pictures
Surface Circular with frame in the office lights off
JPG (3.35 MB)
Application pictures Getty
Surface Circular with frame in a hospital
JPG (5.79 MB)
Application pictures Getty
Surface Circular with frame in a hospital
JPG (5.14 MB)
EAN SEG number STK number EFO number ELDAS number
4058075834187 7510806 4152027 3361427 941006110
