PRODUCT DETAILS

Product benefits
  • Enable increased concentration and efficiency
  • Improve overall activity level and daytime alertness
  • Improve sleeping rhythm and –intensity
  • Improve optic convenience
  • Enables an improved level of clean-air-safety by killing residential germs and bad odors
  • Homogenous light distribution
  • Easy and quick installation
Areas of application
  • Indoor applications
  • Kitchens, living rooms, children's rooms or home offices
Product features
  • Adjustable color temperature via Tunable White: 2,200…5,000 K
  • Controllable via LEDVANCE SMART+ App (with minimum Android 8.0 or iOS 14.0)
  • Controllable via voice control available: Google Assistant or Amazon Alexa
  • Dimmable
  • Innovative Fullspectrum SunLike LEDs with CRI95
  • SunLike LEDs with reduced Blue Light in LED Spectrum
  • Innovative luminaire coating-technology fighting household germs and odors
  • Automated biorhythm feature
Equipment / Accessories
  • Control via app or voice control requires compatible Smart home system
  • For control via LEDVANCE SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
  • Complete mounting and connecting accessories included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
References / Links
  • Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Electrical data
Nominal wattage 12.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 52.000 mA
Inrush current 2.1 A
Power factor λ > 0.70
Protection class II
Operating mode Mains voltage
Photometrical data
Luminous flux 600 lm
Total luminous flux of contained light sources 800 lm
Luminous efficacy 60 lm/W
Color temperature 2200…5000 K
Reference control setting of contained light source (Kelvin) 2700 K
Light color (designation) Tunable White
Color rendering index Ra > 95
Standard deviation of color matching ≤6 sdcm
Flickering metric (Pst LM) ≤ 1 %
Photobiological safety group acc. to EN62778 RG0
Photobiological safety group acc. to EN62471 RG0
Beam angle 110 °
Dimensions & Weight
Length 309.00 mm
Height 106.00 mm
Width 200.00 mm
Product weight 770.00 g
Materials & Colors
Product color White
Housing color White
Body material Steel
Cover material Polycarbonate (PC)
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of connection Terminal
Type of protection IP20
Dimmable Yes
Type of dimming WiFi
Mounting type Surface
Mounting location Wall
Application environment Indoor
With light source Yes
Lifespan
Lifespan L70/B50 at 25 °C 30000 h
Number of switching cycles 10000
Emergency lighting
Integrated test switch No
Certificates & Standards
Standards CE, UKCA
Luminaire with limited surface temperature, "D sign" No
Replaceable light source (EPREL) Not replaceable
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075575936 Folding box
1
82 mm x 132 mm x 354 mm 873.00 g 3.83 dm³
4058075575943 Shipping box
8
349 mm x 285 mm x 380 mm 7429.00 g 37.80 dm³
User instruction / safety instructions
SUN@HOME ORBIS CROSS
Legal information
SUN@HOME
Declarations of conformity
SUN HOME ORBIS CROSS TW

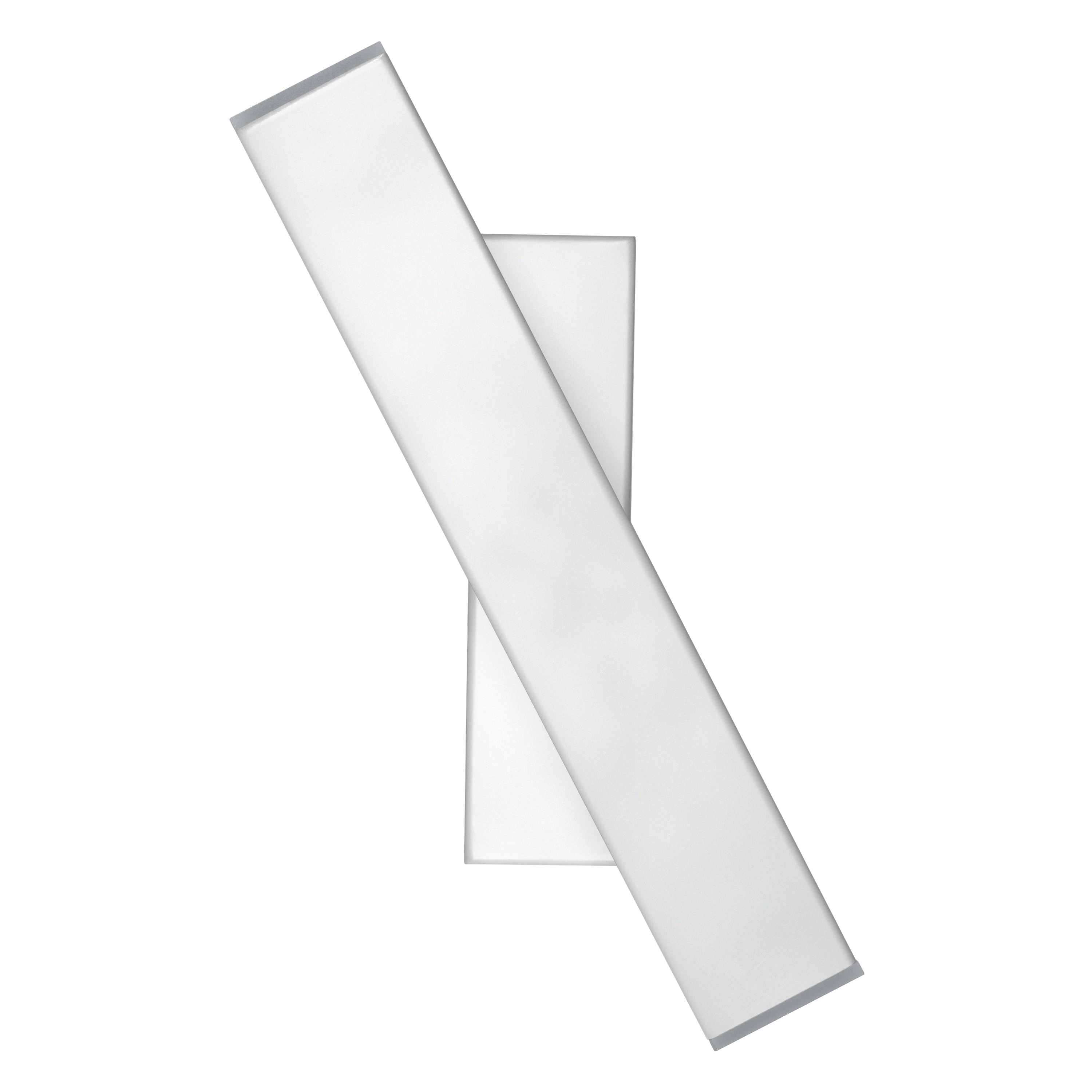

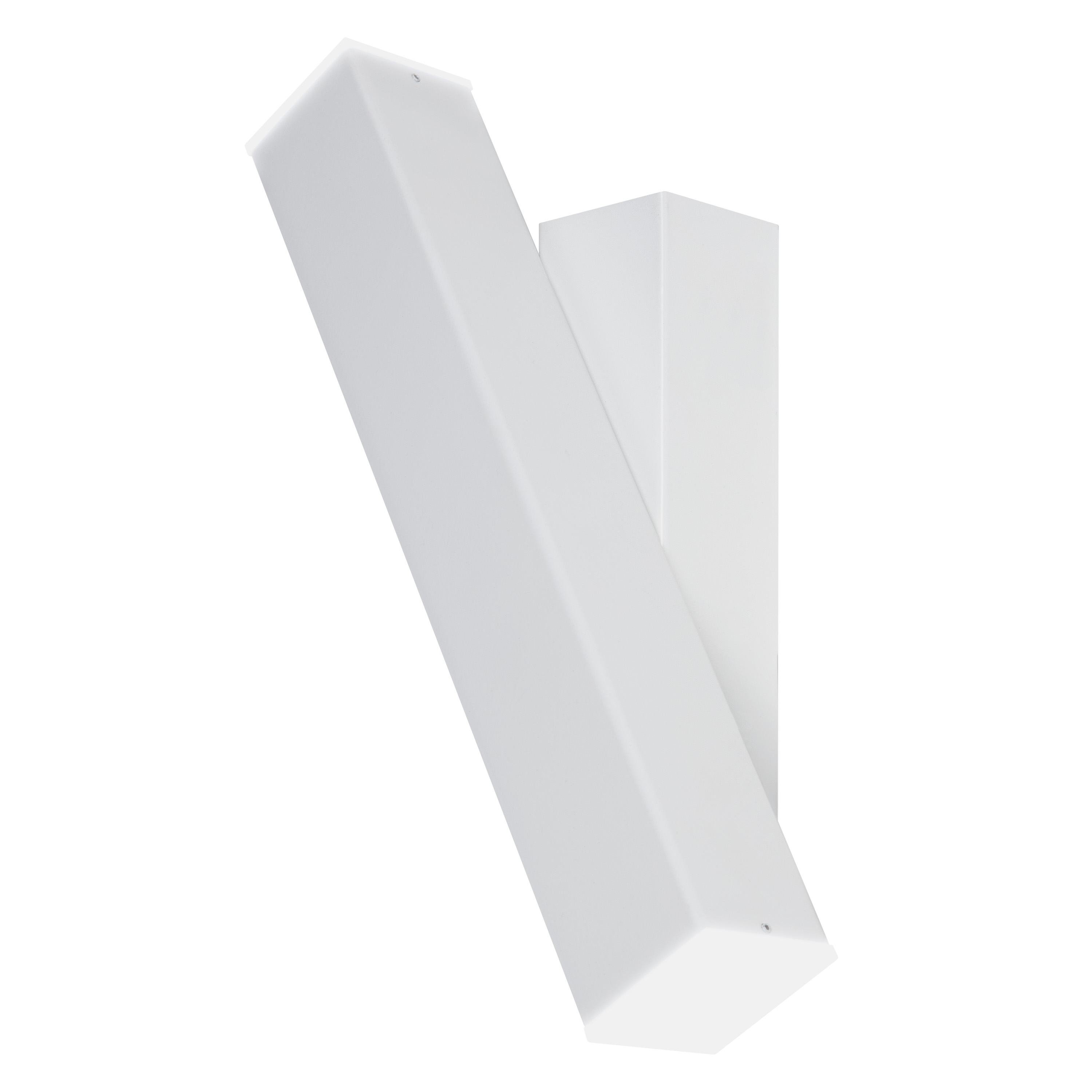

Product image: white background, upright
HCL SMART Wall UpDown TW

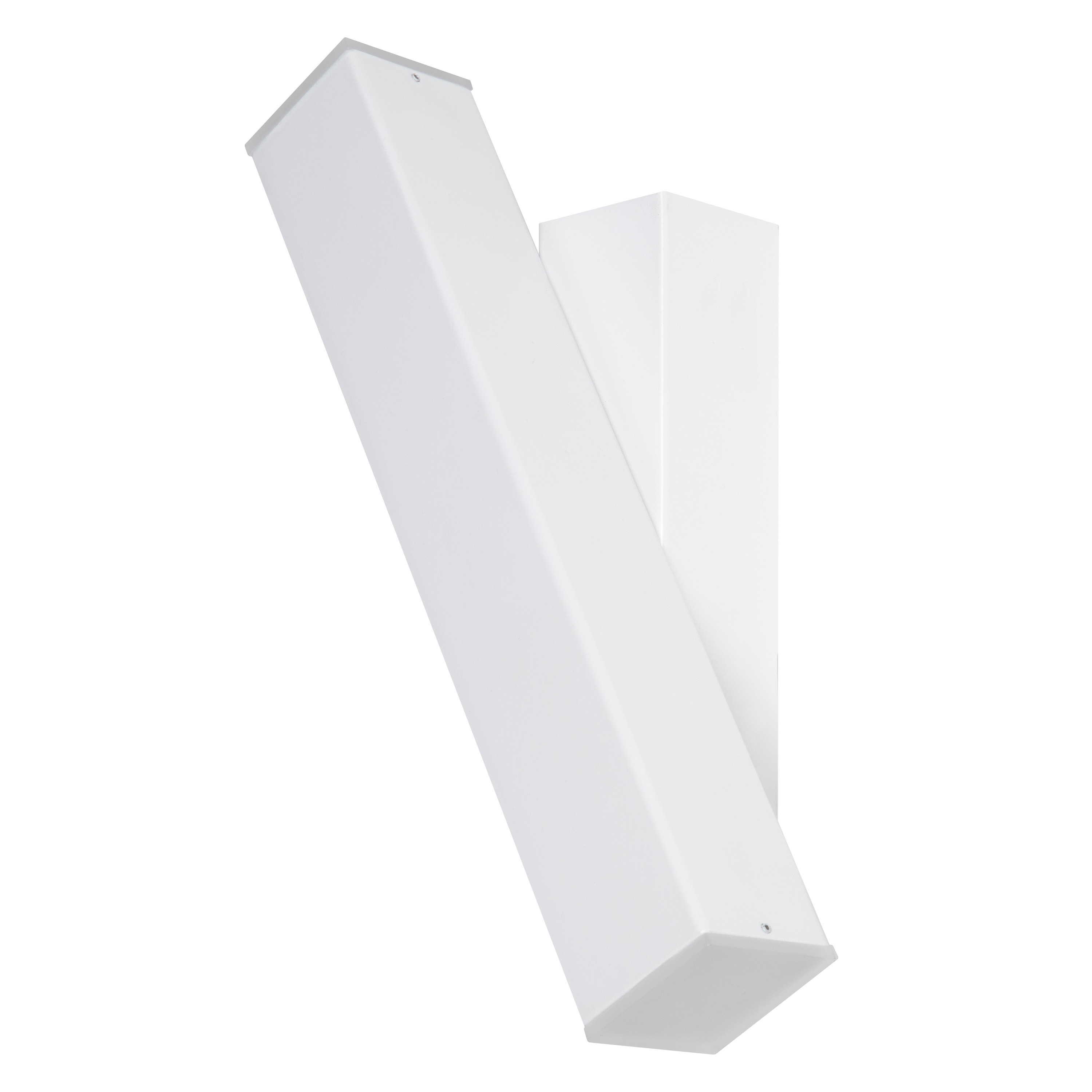

Product image: white background, upright, alternative image
HCL SMART Wall UpDown TW
Product image: white background, upright, switched on
HCL SMART Wall UpDown TW
Product line drawing with letters
HCL SMART Wall UpDown TW
Product line drawing with numbers
HCL SMART Wall UpDown TW
Product line drawing, front, no dimensions
HCL SMART Wall UpDown TW

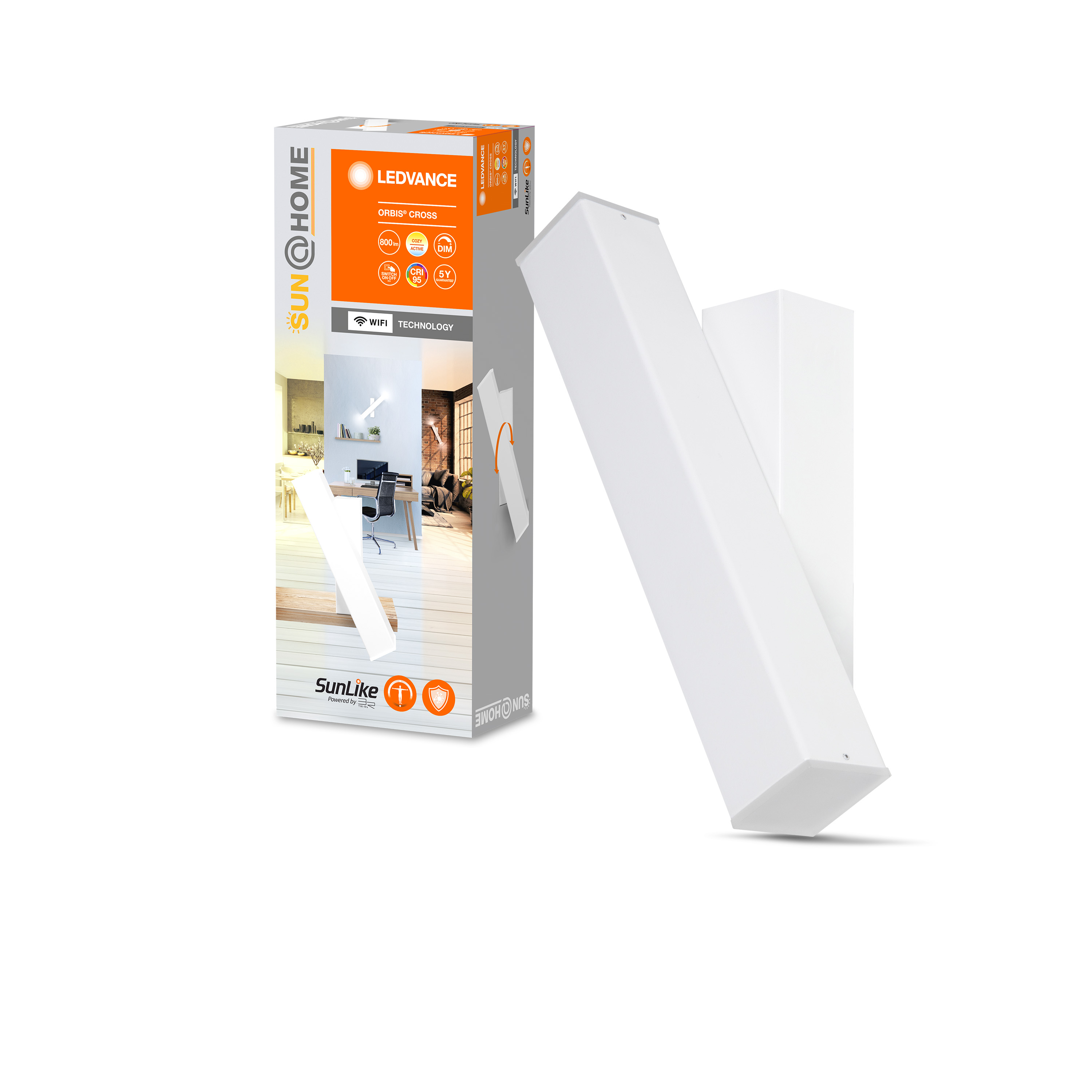

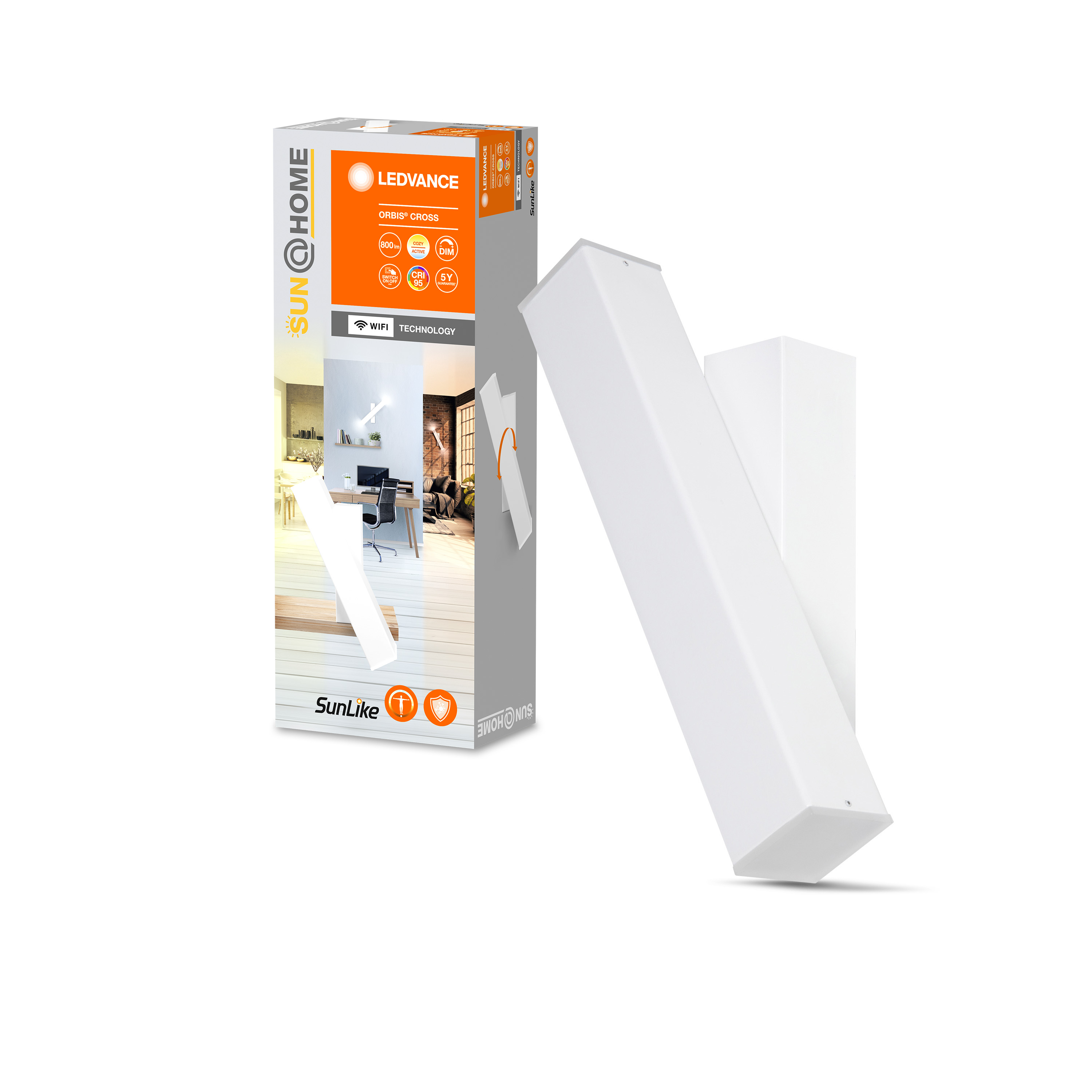

Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI ORBIS CROSS TW MiPRC

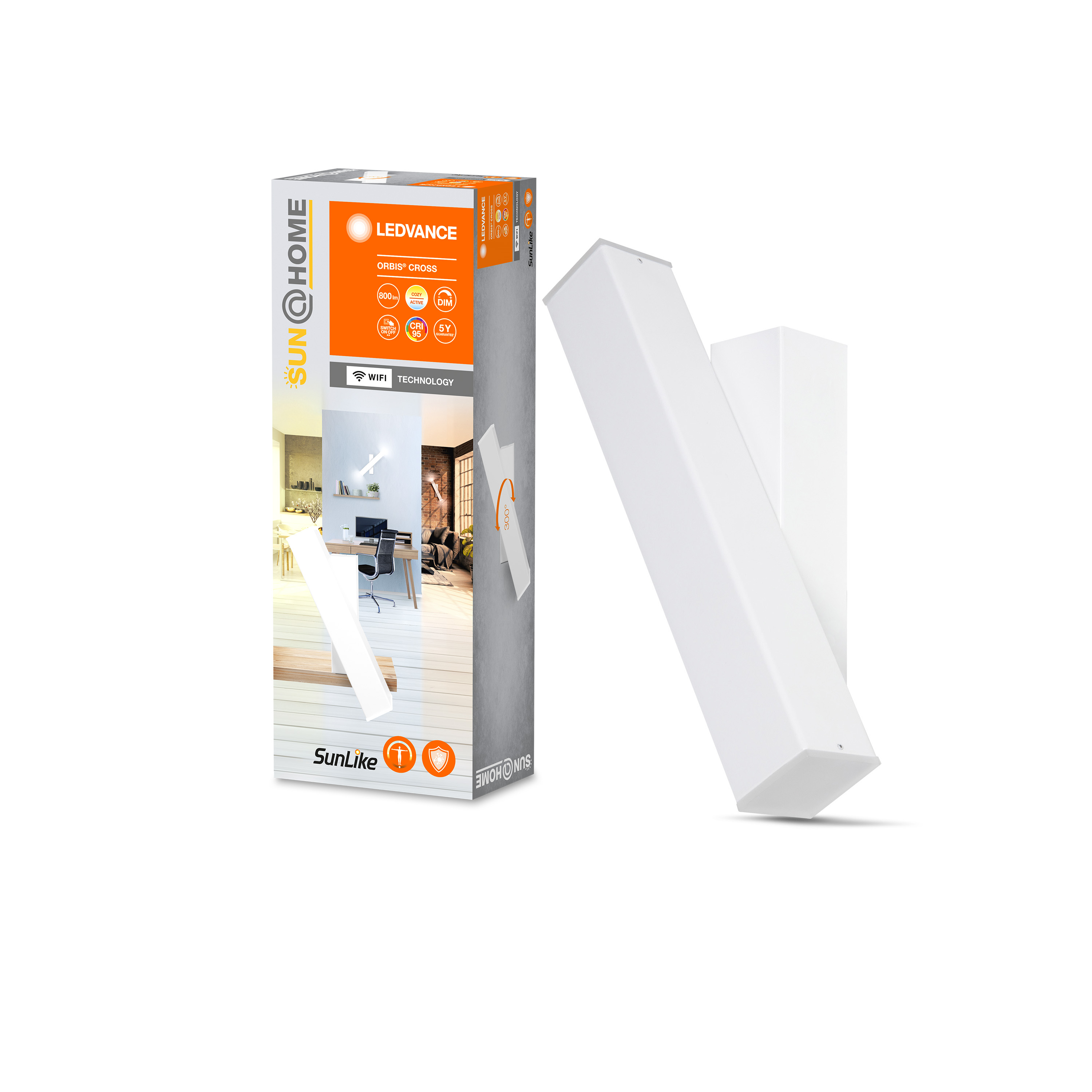

Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI ORBIS CROSS TW MiPRC
Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI ORBIS CROSS TW MiPRC

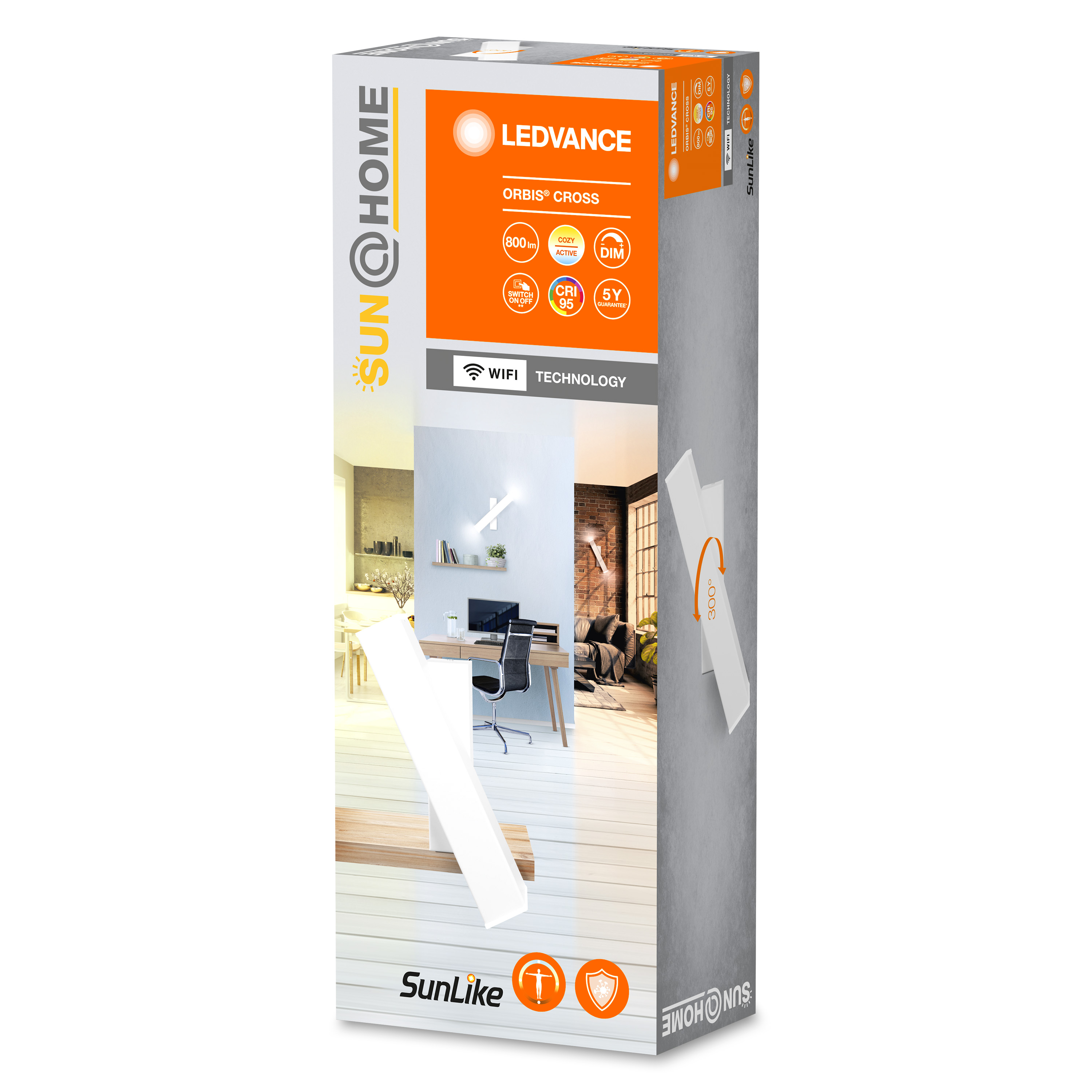

Packaging image, frontal
SH FC WIFI ORBIS CROSS TW MiPRC
Packaging image, spacial
SH FC WIFI ORBIS CROSS TW MiPRC
BIM Step 3D
Sun@Home orbis
Application pictures

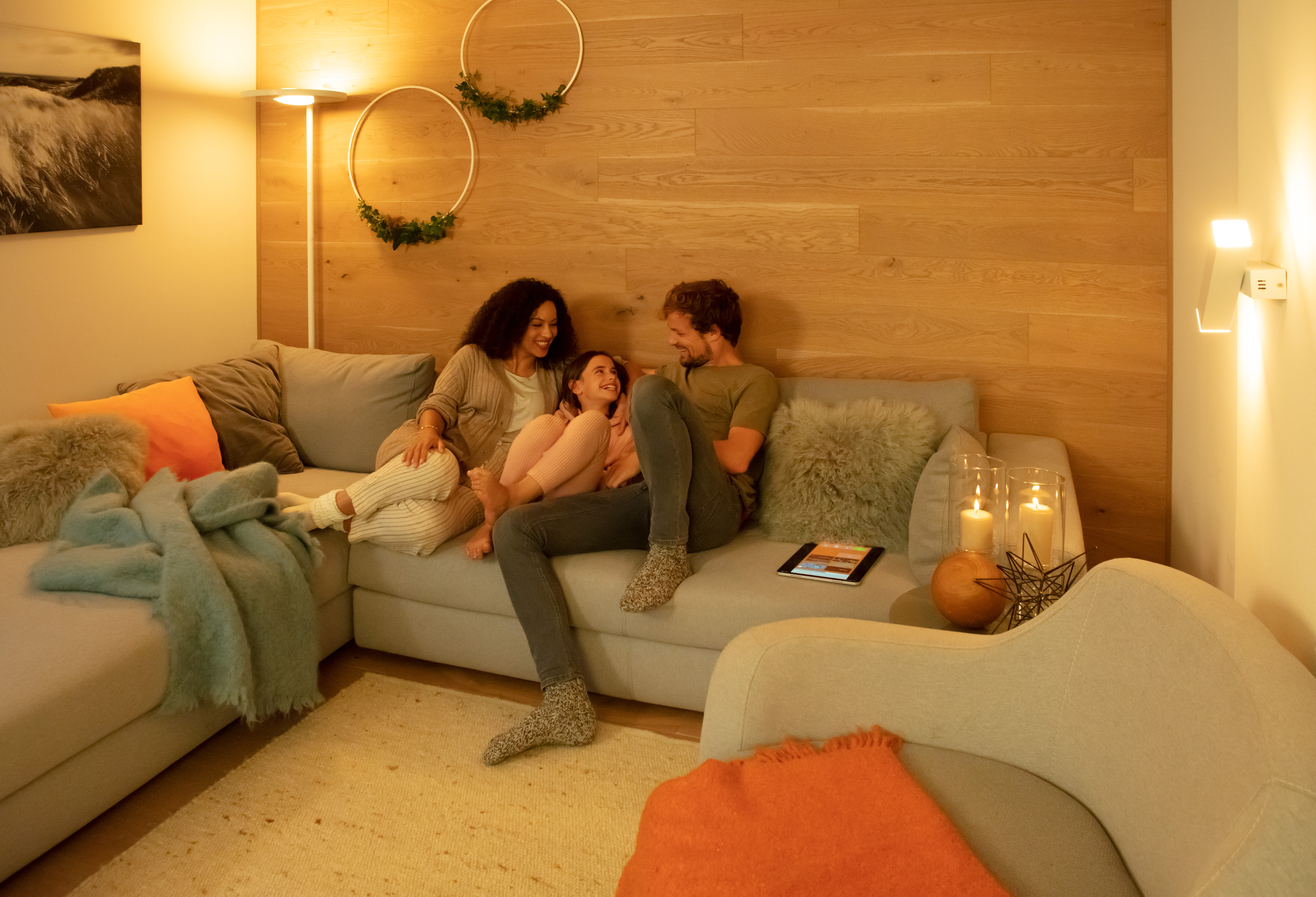

Sun at Home Familiy Couch 2700K
Application pictures
Sun at Home Familiy Couch App 3500K
Application pictures

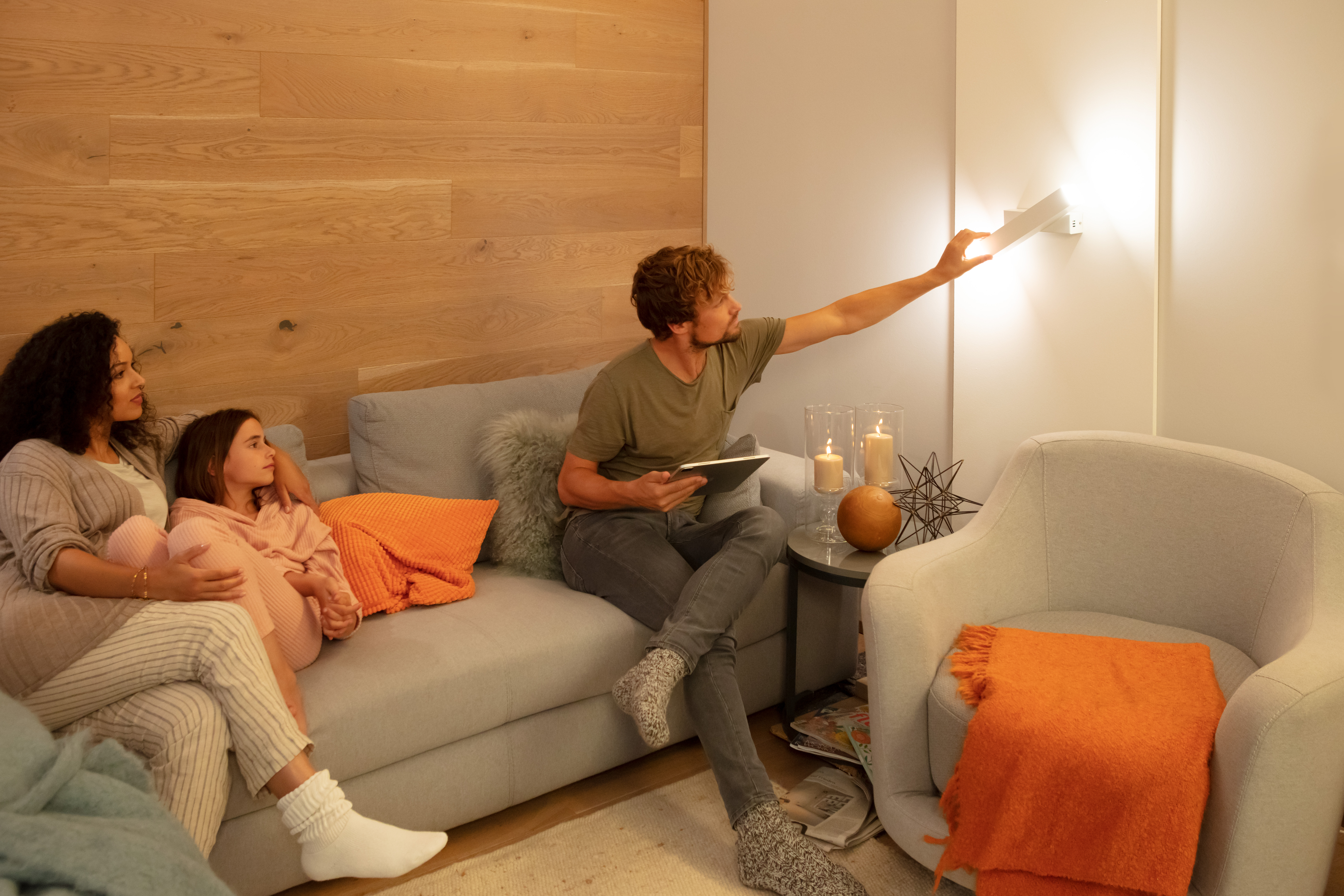

Sun at Home Familiy Couch Orbis Wall 4000K
Application pictures
SUN@HOME SMART Indoor HCL Packaging Front
Application pictures
SUN@HOME SMART Indoor Orbis Cross on packaging front
Application pictures

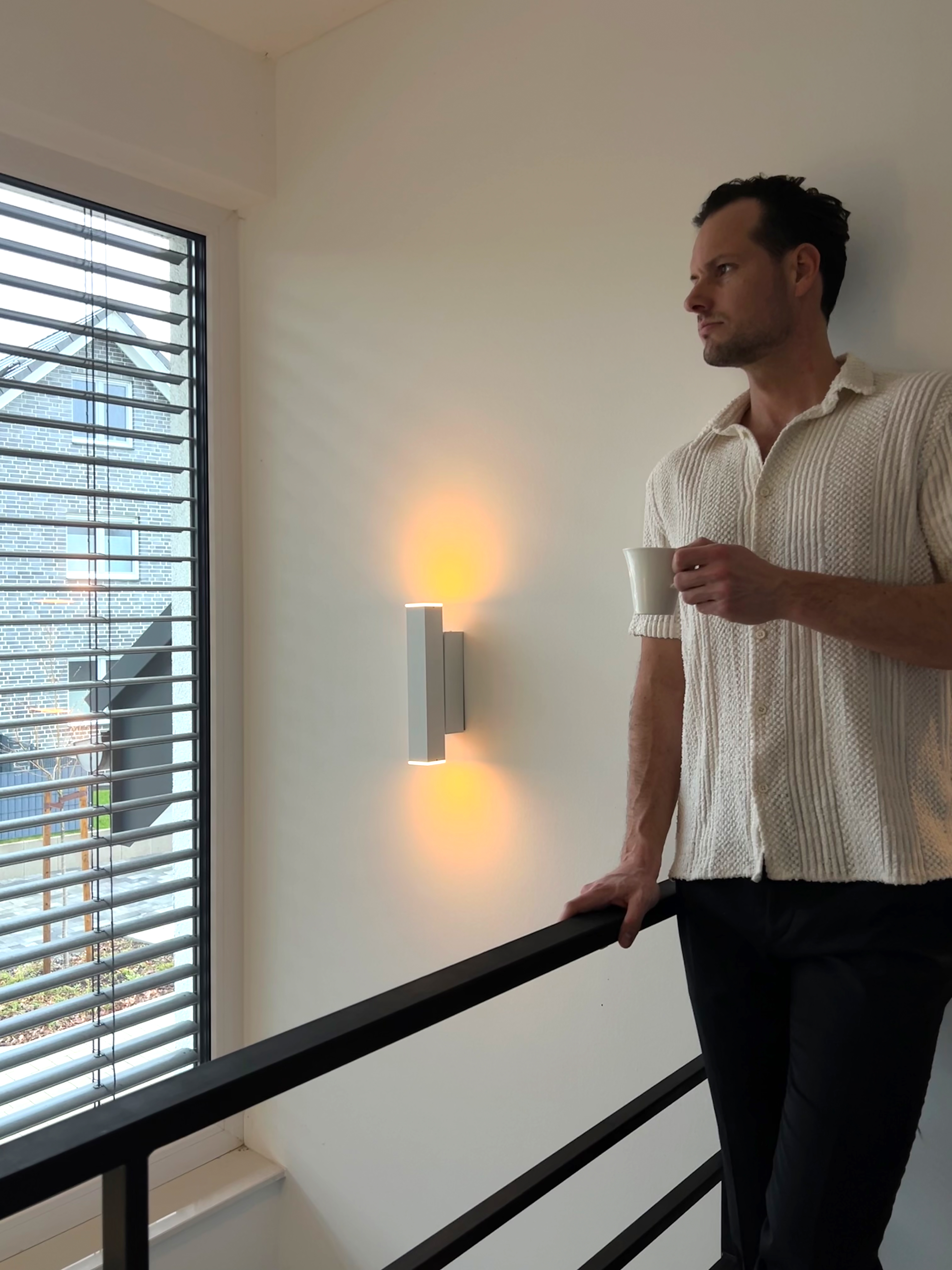

Man holding Coffee Mug standing on Gallery
Application pictures

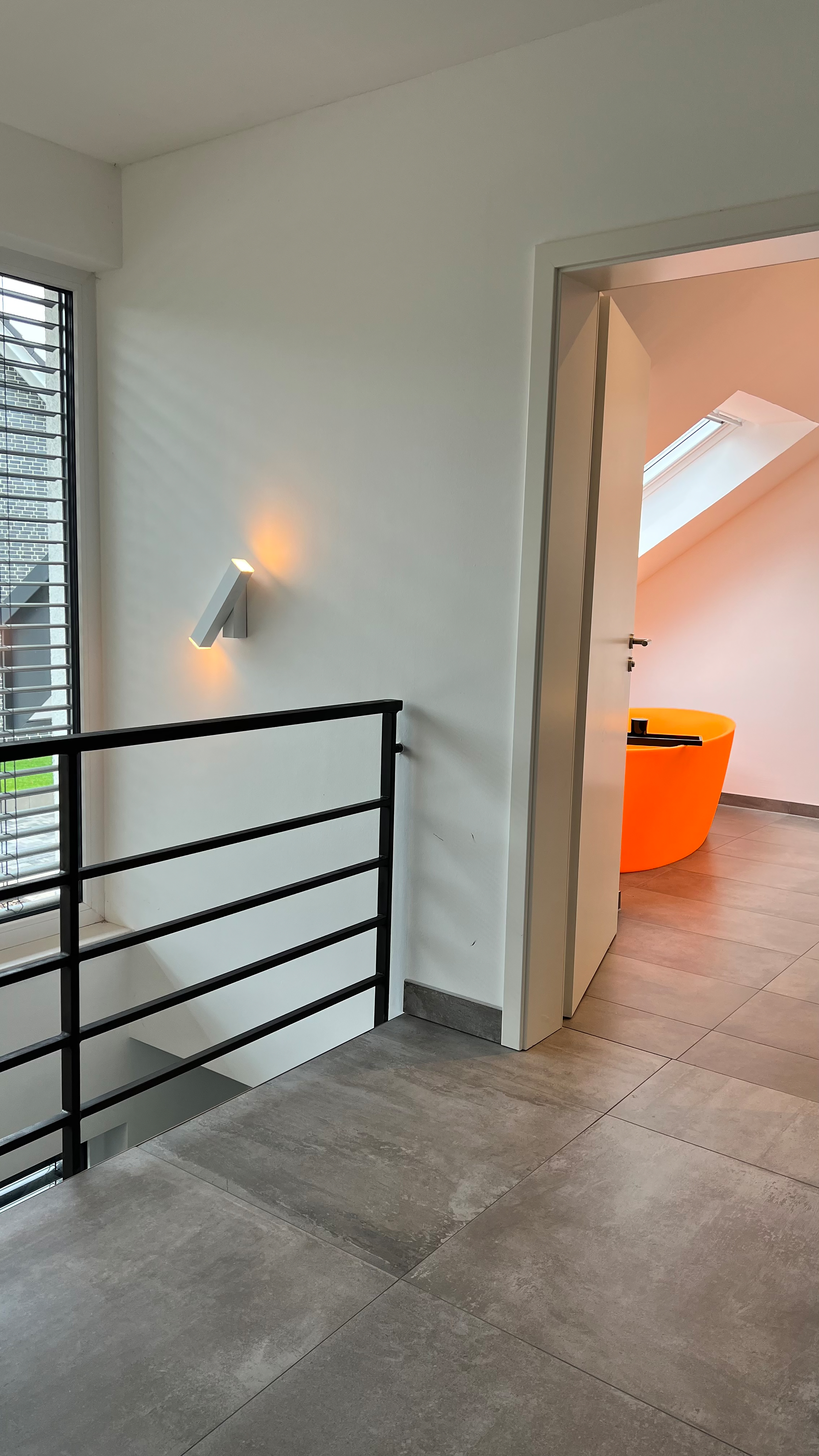

Modern Hallway leading into Bathroom
Application pictures Getty

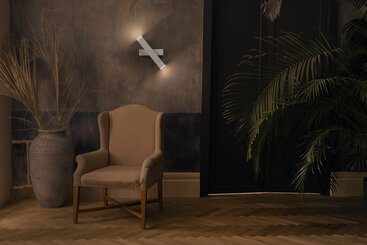

SMART INDOOR WIFI HCL ORBIS CROSS TW 2200K
Application pictures Getty
SMART INDOOR WIFI HCL ORBIS CROSS TW 3000K
Application pictures Getty
SMART INDOOR WIFI HCL ORBIS CROSS TW 5000K
EAN EFO number ELDAS number
4058075575936 3004898 941265010
