Smart+ Orbis Cylindro
SMART+ Wifi Orbis Wall Cylindro 200X127mm Black TW
GTIN: 4058075574212
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Easy and quick installation
Areas of application
- Indoor applications
- Kitchens, living rooms, children's rooms or home offices
Product features
- Controllable via LEDVANCE SMART+ App (with minimum Android 8.0 or iOS 14.0)
- Controllable via voice control available: Google Assistant or Amazon Alexa
- Adjustable color temperature via Tunable White: 3,000…6,500 K
- Dimmable
- Network protocol: WiFi
Equipment / Accessories
- Mounting bracket included
- Mounting screws and dowels included
- Control via app or voice control requires compatible Smart home system
- For control via LEDVANCE SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
References / Links
- Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Electrical data
| Nominal wattage | 12.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 55.000 mA |
| Inrush current | 3.67 A |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | II |
| Operating mode | External LED driver |
Photometrical data
| Luminous flux | 700 lm |
| Total luminous flux of contained light sources | 1200 lm |
| Luminous efficacy | 68 lm/W |
| Color temperature | 3000…6500 K |
| Reference control setting of contained light source (Kelvin) | 3000 K 1) |
| Light color (designation) | Tunable White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | < 6 sdcm |
| Photobiological safety group acc. to EN62778 | RG0 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 360 ° |
1) Performing a reset will restore the default values set by the manufacturer
Dimensions & Weight
| Length | 127.00 mm |
| Height | 200.00 mm |
| Width | 95.00 mm |
| Product weight | 560.00 g |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| Body material | Aluminum |
| Cover material | Polycarbonate (PC) |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Screw terminal |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | Yes |
| Type of dimming | WiFi |
| Mounting type | Surface |
| Mounting location | Wall |
| Application environment | Indoor |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h |
| Number of switching cycles | 15000 |
Emergency lighting
| Integrated test switch | No |
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075574212 | Folding box 1 |
136 mm x 100 mm x 240 mm | 656.00 g | 3.26 dm³ |
| 4058075574229 | Shipping box 4 |
290 mm x 216 mm x 260 mm | 3129.00 g | 16.29 dm³ |
User instruction / safety instructions
SMART WIFI ORBISW CROSS CYLDRO TWIST
SMART WIFI ORBISW CROSS CYLDRO TWIST
Legal information
Legal insert Residential luminaires
Legal insert Residential luminaires
Declarations of conformity
EC declaration_Wall lamp
EC declaration_Wall lamp

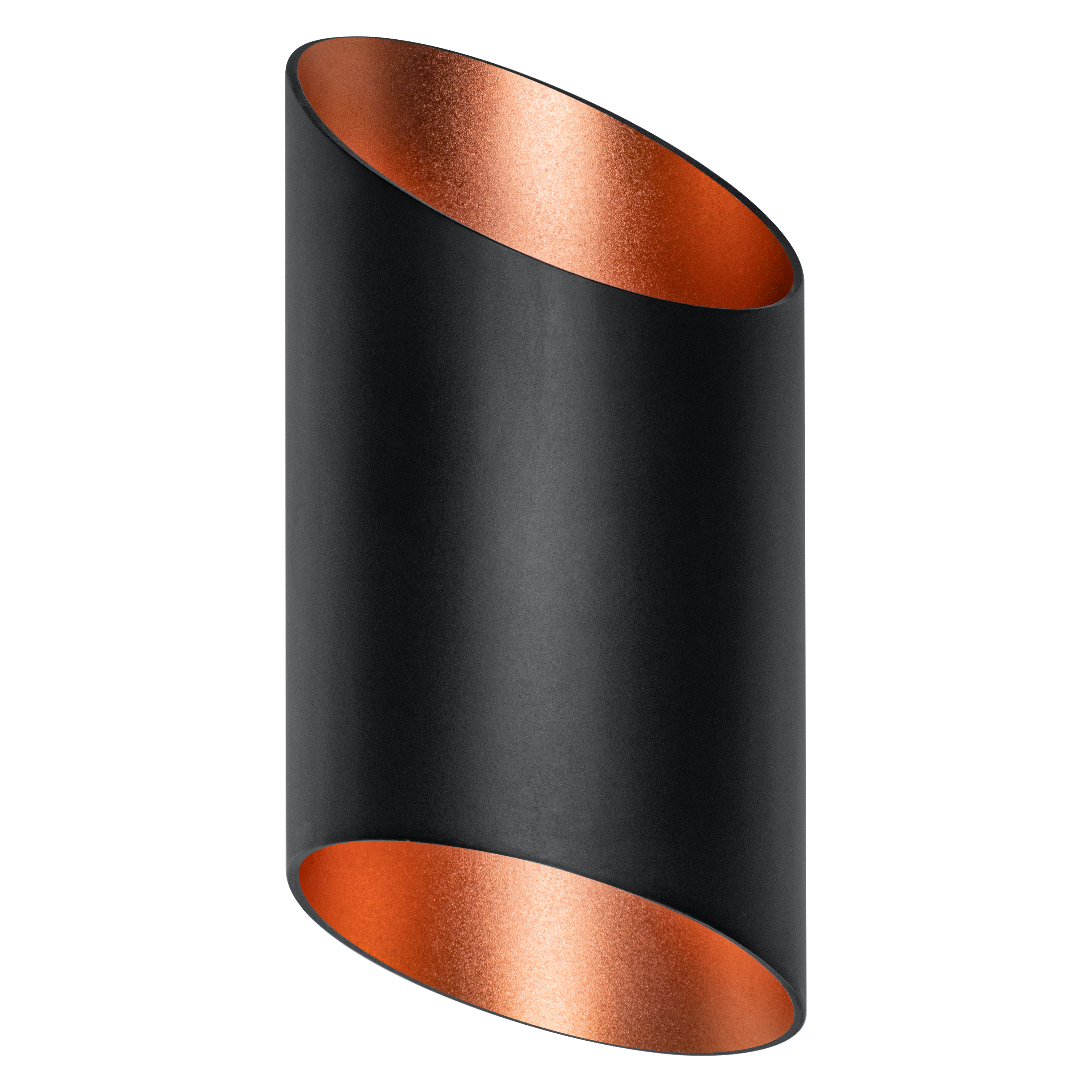

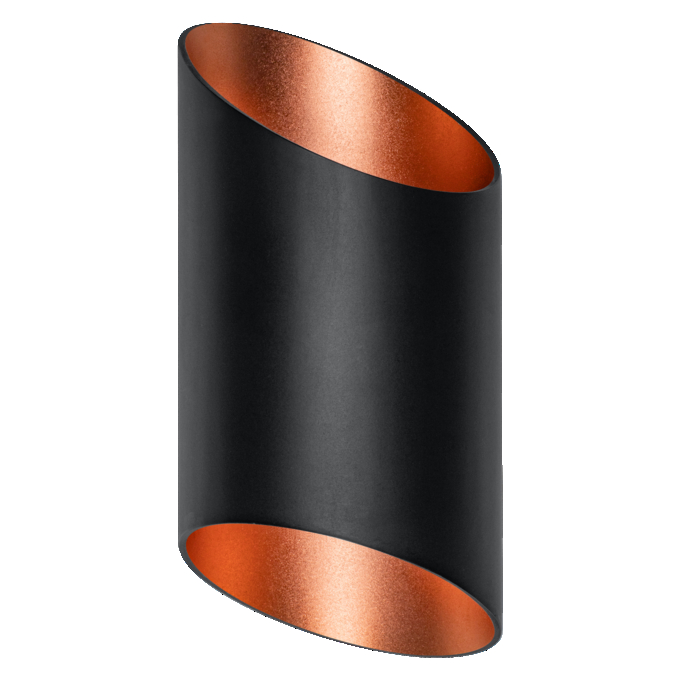

Product image: white background, upright
SMART WIFI ORBISW CYLINDRO200X120TWBK
SMART WIFI ORBISW CYLINDRO200X120TWBK

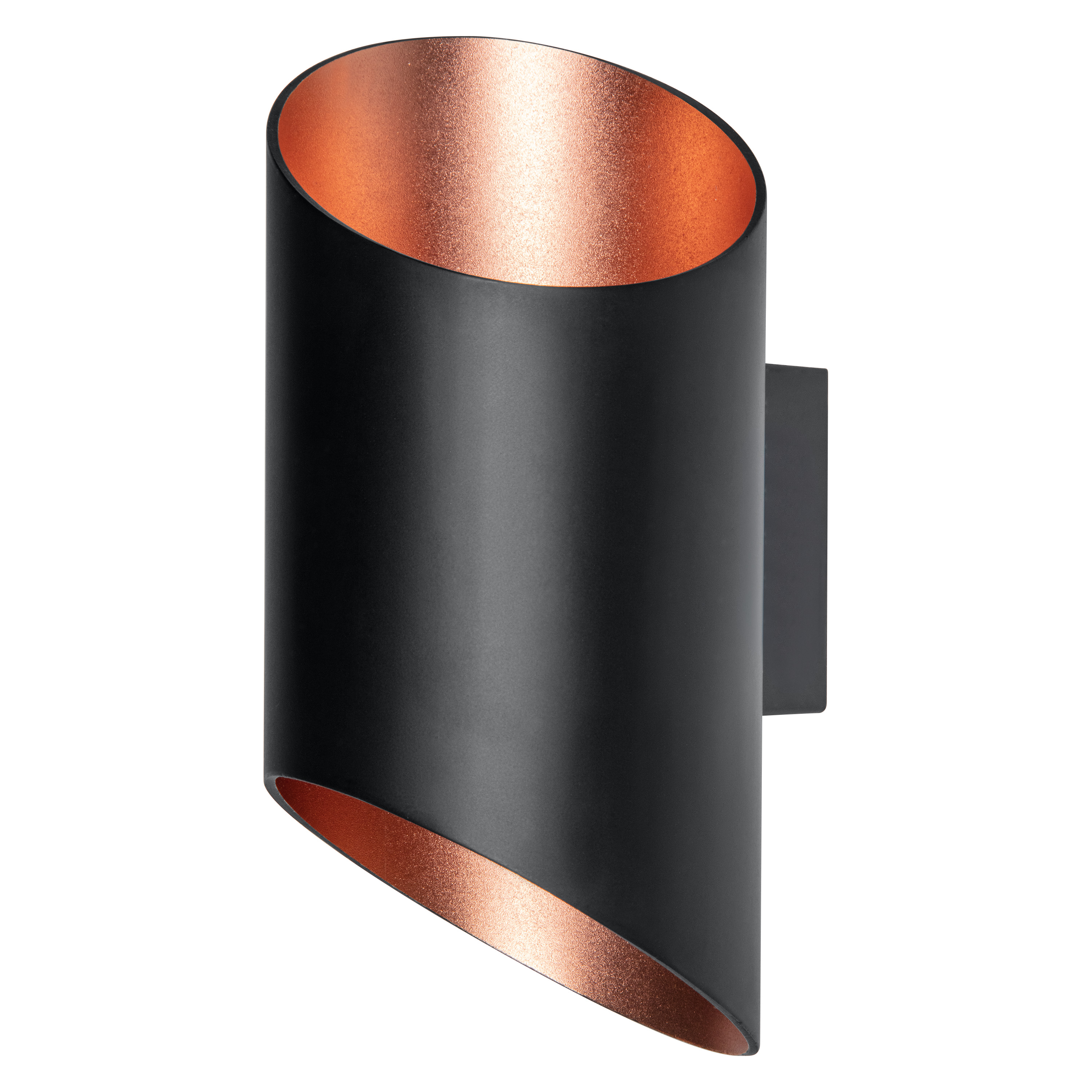

Product image: white background, upright, alternative image
SMART WIFI ORBISW CYLINDRO200X120TWBK
SMART WIFI ORBISW CYLINDRO200X120TWBK
Product infographic (application image with text and graphic)
Wand-Deckenleuchten E-Com Grafik 1200x1200px 2023 EN
Wand-Deckenleuchten E-Com Grafik 1200x1200px 2023 EN
Product line drawing with letters
SMART WIFI ORBISW CYLDRO
SMART WIFI ORBISW CYLDRO
Product line drawing with numbers
SMART WIFI ORBISW CYLDRO
SMART WIFI ORBISW CYLDRO
Product line drawing, front, no dimensions
SMART WIFI ORBISW CYLDRO
SMART WIFI ORBISW CYLDRO

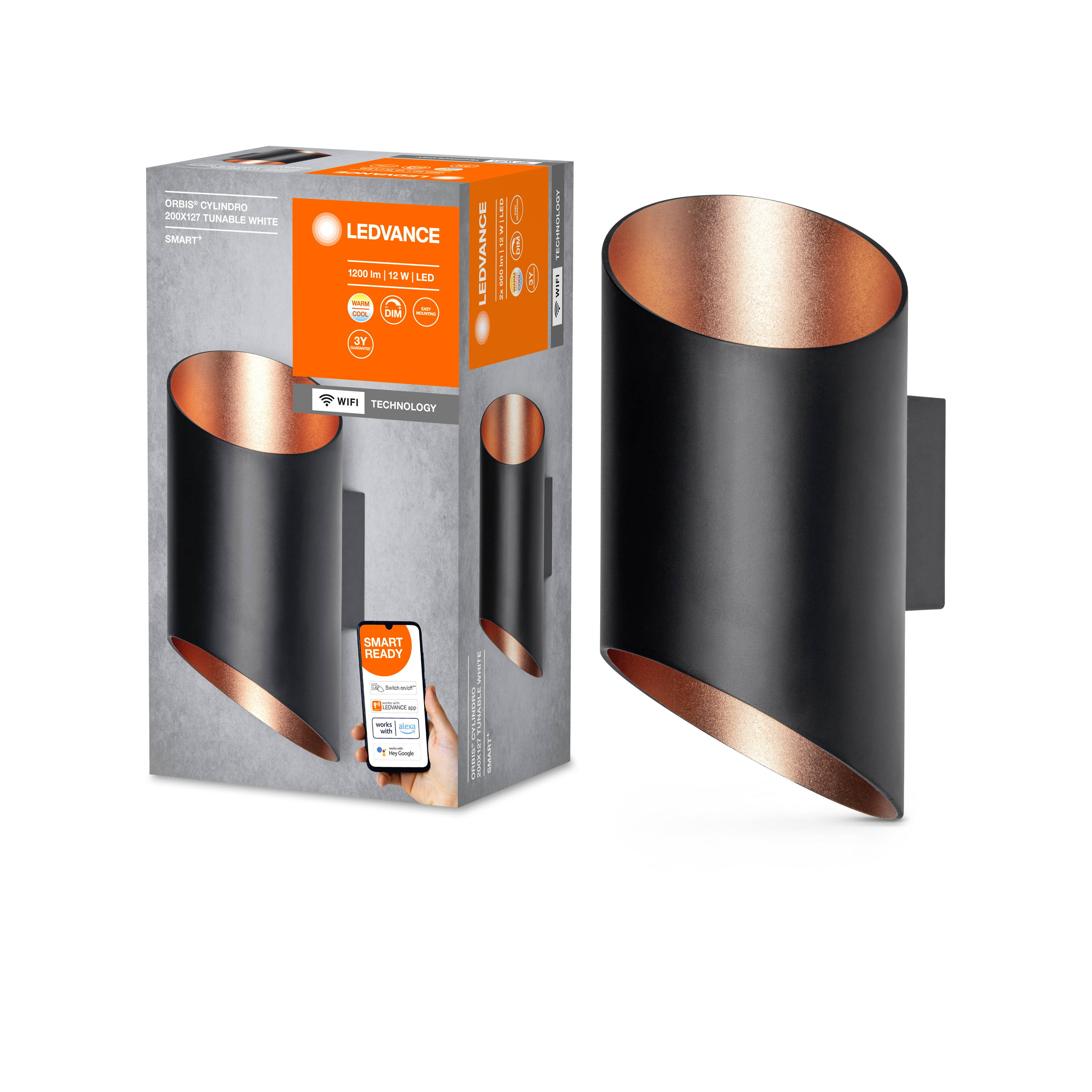

Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI CYLINDRO 200 TW BK MiPRC
SH FC WIFI CYLINDRO 200 TW BK MiPRC

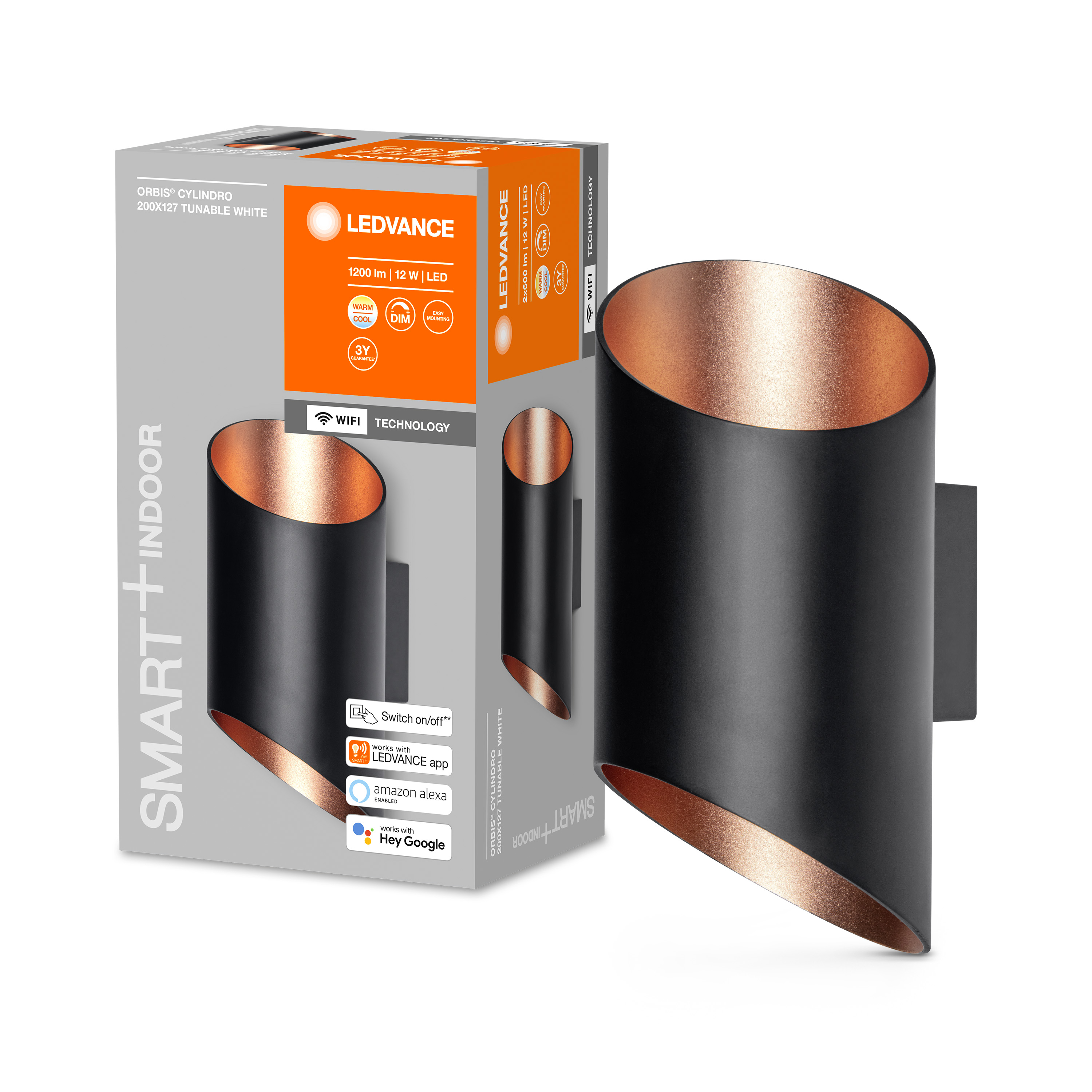

Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI CYLINDRO 200 TW BK MiPRC
SH FC WIFI CYLINDRO 200 TW BK MiPRC

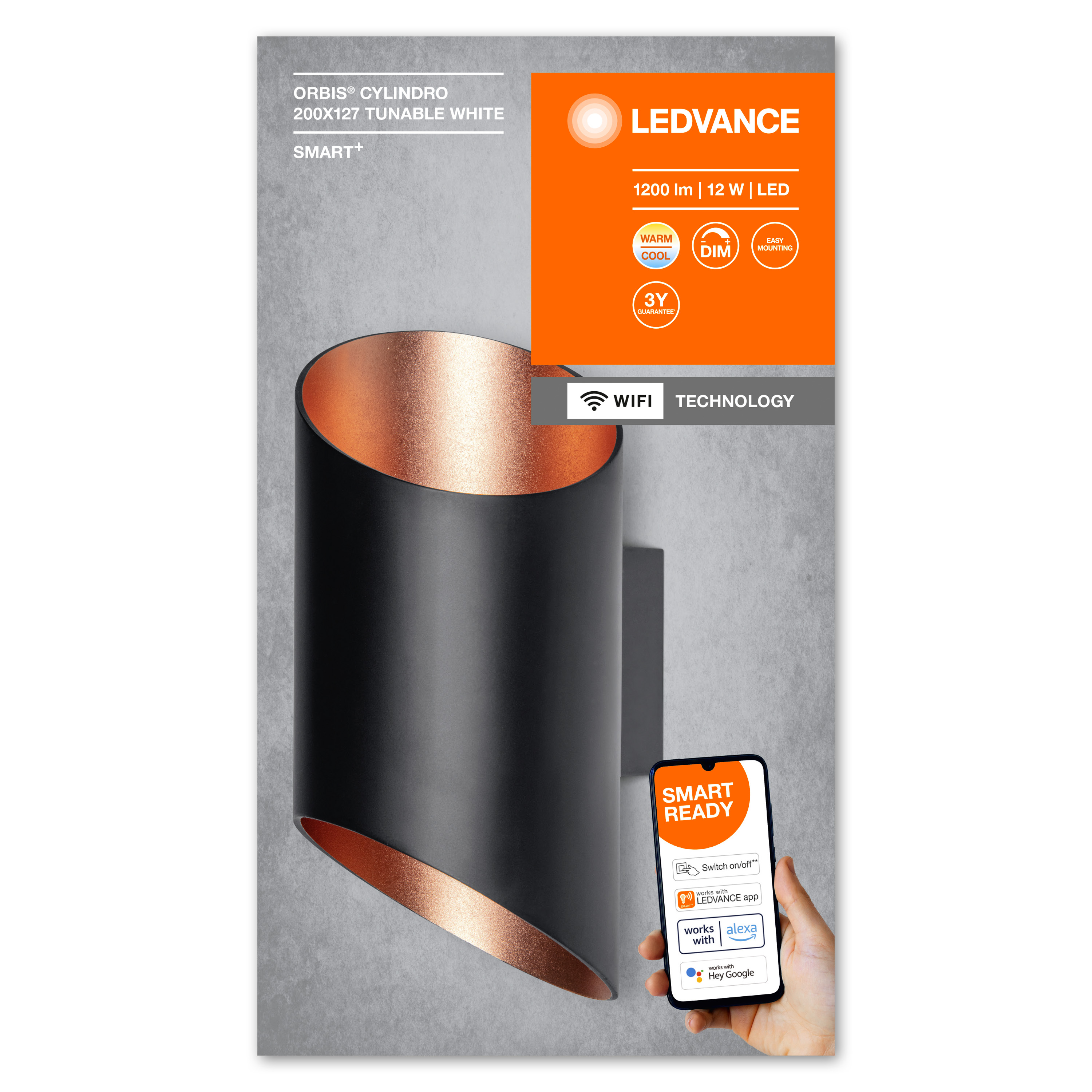

Packaging image, frontal
SH FC WIFI CYLINDRO 200 TW BK MiPRC
SH FC WIFI CYLINDRO 200 TW BK MiPRC

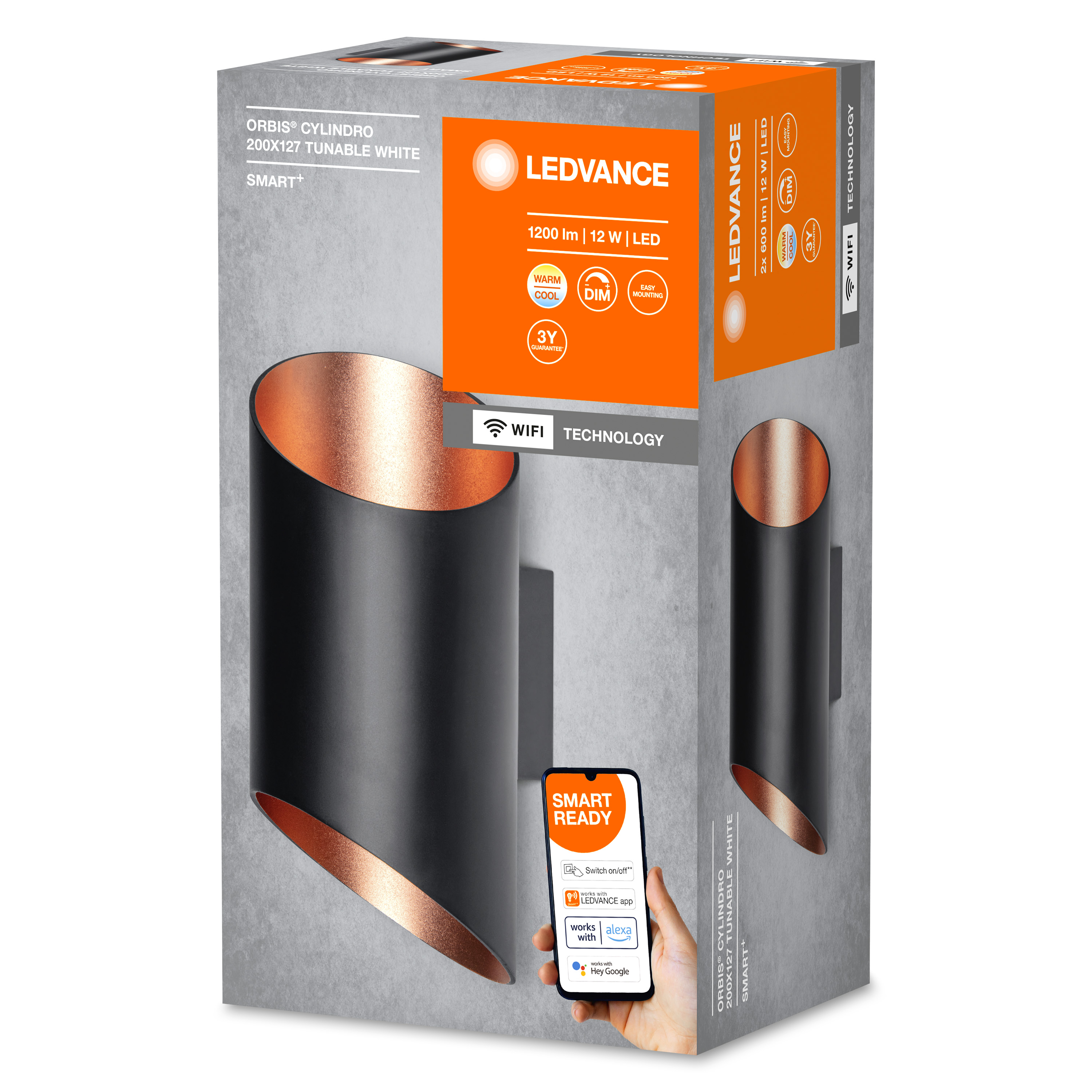

Packaging image, spacial
SH FC WIFI CYLINDRO 200 TW BK MiPRC
SH FC WIFI CYLINDRO 200 TW BK MiPRC
Application pictures
SMART INDOOR WIFI ORBIS CYLINDRO BK COOL LIGHT
SMART INDOOR WIFI ORBIS CYLINDRO BK COOL LIGHT

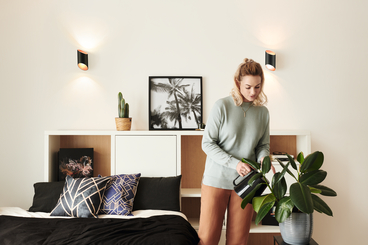

Application pictures
SMART INDOOR WIFI ORBIS CYLINDRO BK WARM LIGHT
SMART INDOOR WIFI ORBIS CYLINDRO BK WARM LIGHT

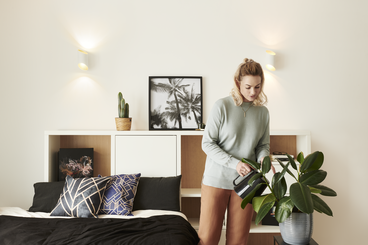

Application pictures
Smart WIFI Wall Orbis Cylindro white w model ww
Smart WIFI Wall Orbis Cylindro white w model ww
Application pictures
Smart WIFI Wall Orbis Cylindro white w model cw
Smart WIFI Wall Orbis Cylindro white w model cw

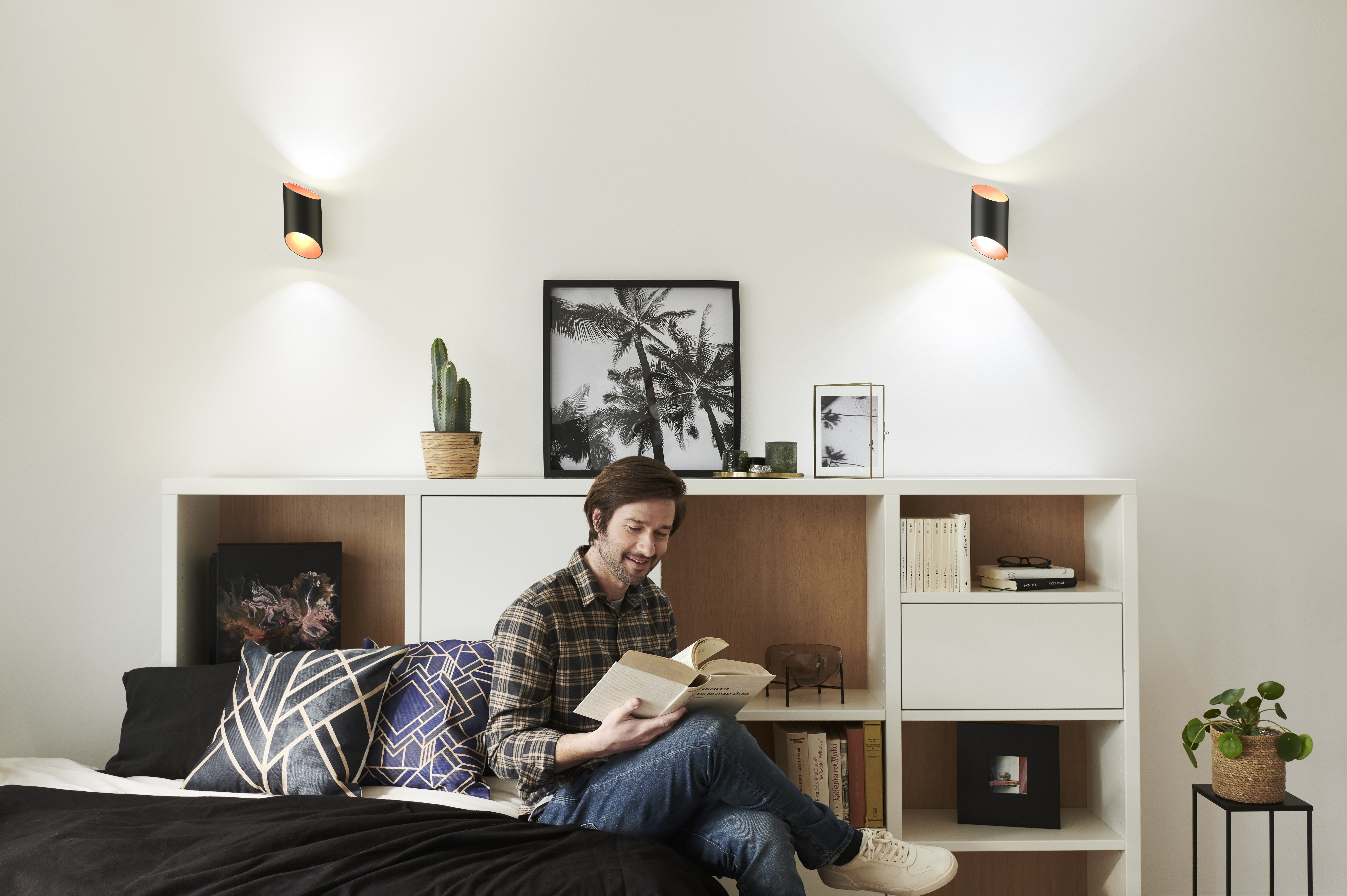

Application pictures
Smart WIFI Wall Orbis Cylindro black w model cw
Smart WIFI Wall Orbis Cylindro black w model cw
| EAN | ELDAS number |
|---|---|
| 4058075574212 | 941264940 |
