Smart+ Orbis Swan

SMART+ Wifi Orbis Wall Swan 200x200mm TW

GTIN: 4058075574052 Folding box / 1 Show all packages
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Easy and quick installation
  • Can be painted
Areas of application
  • Indoor applications
  • Kitchens, living rooms, children's rooms or home offices
Product features
  • Controllable via LEDVANCE SMART+ App (with minimum Android 8.0 or iOS 14.0)
  • Controllable via voice control available: Google Assistant or Amazon Alexa
  • Adjustable color temperature via Tunable White: 3,000…6,500 K
  • Dimmable
  • Network protocol: WiFi
Equipment / Accessories
  • Mounting bracket included
  • Mounting screws and dowels included
  • Control via app or voice control requires compatible Smart home system
  • For control via LEDVANCE SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
References / Links
  • Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Electrical data
Nominal wattage 23.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 96.000 mA
Inrush current 5.02 A
Power factor λ > 0.90
Total harmonic distortion < 20 %
Protection class II
Operating mode External LED driver
Photometrical data
Luminous flux 1300 lm
Total luminous flux of contained light sources 2400 lm
Luminous efficacy 60 lm/W
Color temperature 3000…6500 K
Reference control setting of contained light source (Kelvin) 3000 K 1)
Light color (designation) Tunable White
Color rendering index Ra > 80
Standard deviation of color matching < 6 sdcm
Photobiological safety group acc. to EN62778 RG0
Photobiological safety group acc. to EN62471 RG0
Beam angle 360 °
1) Performing a reset will restore the default values set by the manufacturer
Dimensions & Weight
Length 200.00 mm
Height 200.00 mm
Width 110.00 mm
Product weight 2030.00 g
Materials & Colors
Product color White
Housing color White
Body material Plaster
Cover material Polycarbonate (PC)
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of connection Screw terminal
Type of protection IP20
Protection class IK (shock resistance) IK03
Dimmable Yes
Type of dimming WiFi
Mounting type Surface
Mounting location Wall
Application environment Indoor
With light source Yes
Lifespan
Lifespan L70/B50 at 25 °C 30000 h
Number of switching cycles 15000
Emergency lighting
Integrated test switch No
Certificates & Standards
Standards CE, UKCA
Luminaire with limited surface temperature, "D sign" No
Replaceable light source (EPREL) Not replaceable
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075574052 Folding box
1
260 mm x 172 mm x 260 mm 2248.00 g 11.63 dm³
4058075574069 Shipping box
4
362 mm x 278 mm x 538 mm 9844.00 g 54.14 dm³
User instruction / safety instructions
SMART WIFI ORBISW SWAN
Legal information
Legal insert Residential luminaires
Declarations of conformity
EC declaration_Wall lamp

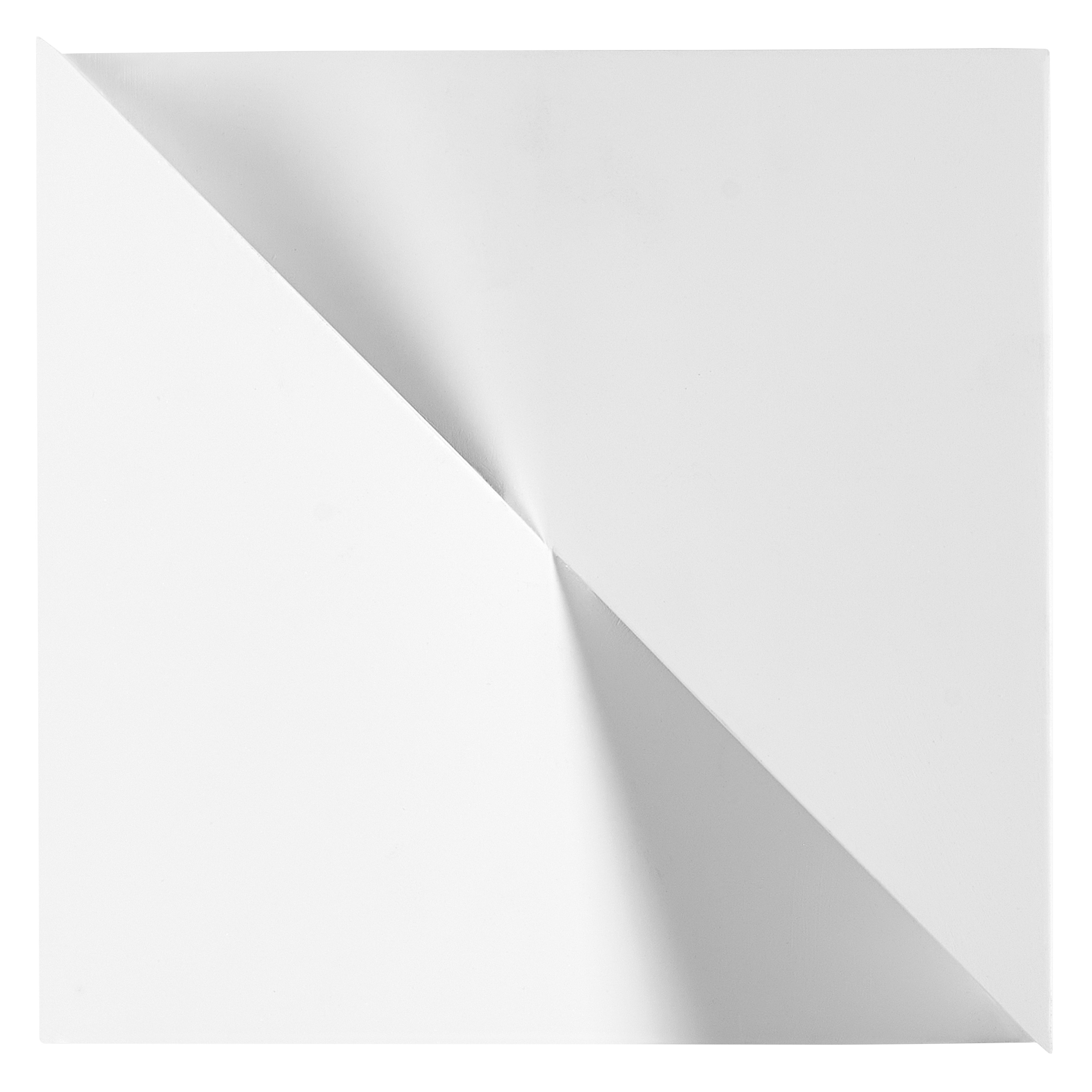

Product image: white background, upright
SMART WIFI ORBISW SWAN 200X200TW WT

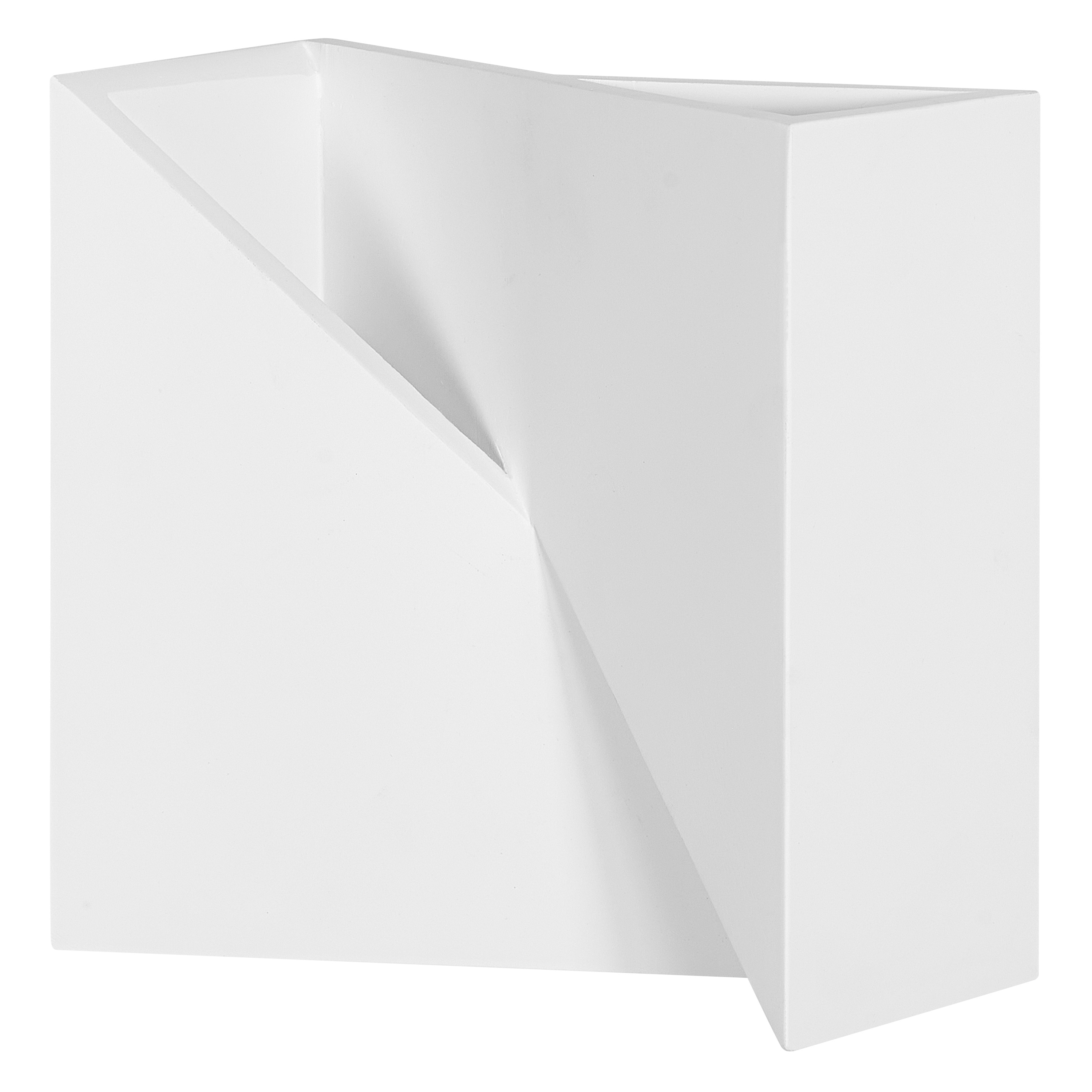

Product image: white background, upright, alternative image
SMART WIFI ORBISW SWAN 200X200TW WT
Product infographic (application image with text and graphic)
Wand-Deckenleuchten E-Com Grafik 1200x1200px 2023 EN
Product line drawing with letters
SMART WIFI ORBISW SWAN
Product line drawing with numbers
SMART WIFI ORBISW SWAN
Product line drawing, front, no dimensions
SMART WIFI ORBISW SWAN

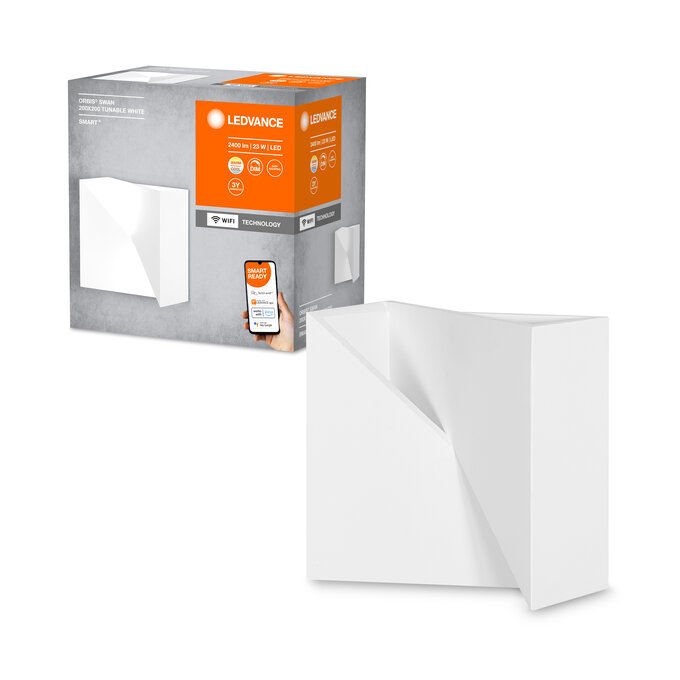

Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI SWAN 200X200 TW WT MiPRC

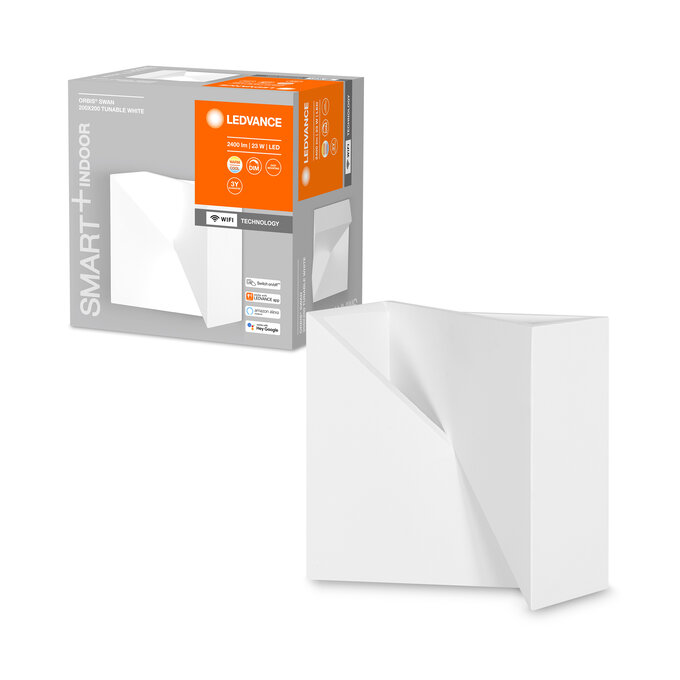

Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI SWAN 200X200 TW WT MiPRC
Packaging image, frontal
SH FC WIFI SWAN 200X200 TW WT MiPRC
Packaging image, spacial
SH FC WIFI SWAN 200X200 TW WT MiPRC
Application pictures
Smart WIFI Wall Orbis Swan square w model cw
Application pictures
Smart WIFI Wall Orbis Swan square w o model ww
EAN ELDAS number
4058075574052 941264890
