Sun@Home Workspace Ceiling Suspended
Sun@Home Workspace Ceiling Suspended
GTIN: 4099854109621
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Enable increased concentration and efficiency
- Improve overall activity level and daytime alertness
- Improve sleeping rhythm and –intensity
- Improve optic convenience
- Enables an improved level of clean-air-safety by killing residential germs and bad odors
- Homogenous light distribution
- Easy and quick installation
- High quality metal housing
- Secondary light source on top for indirect light
Areas of application
- Indoor applications
- Kitchens, living rooms, children's rooms or home offices
Product features
- Adjustable color temperature via Tunable White: 2,200…5,000 K
- Controllable via LEDVANCE SMART+ App (with minimum Android 8.0 or iOS 14.0)
- Controllable via voice control available: Google Assistant or Amazon Alexa
- Dimmable
- Innovative Fullspectrum SunLike LEDs with CRI95
- SunLike LEDs with reduced Blue Light in LED Spectrum
- Innovative luminaire coating-technology fighting household germs and odors
- Automated biorhythm feature
Equipment / Accessories
- Control via app or voice control requires compatible Smart home system
- For control via LEDVANCE SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
References / Links
- Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Electrical data
| Nominal wattage | 50.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 230.000 mA |
| Inrush current | 19.2 A |
| Max. number of luminaires per miniature circuit breaker B16 | 69 |
| Max. number of luminaires per miniature circuit breaker C16 | 69 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | I |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 4200 lm |
| Total luminous flux of contained light sources | 4400 lm |
| Luminous efficacy | 82 lm/W |
| Color temperature | 2200…5000 K |
| Reference control setting of contained light source (Kelvin) | 2700 K |
| Light color (designation) | Tunable White |
| Color rendering index Ra | > 95 |
| Standard deviation of color matching | < 6 sdcm |
| Luminous intensity | 1670 cd |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | <0,4 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 75 ° |
Dimensions & Weight
| Length | 1206.00 mm |
| Height | 62.80 mm |
| Width | 75.40 mm |
| Product weight | 2420.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Aluminum |
| Cover material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Type of connection | Terminal, 3-Pole (L, N, PE) |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | Yes |
| Mounting type | Suspended |
| Mounting location | Ceiling |
| Application environment | Indoor |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 36000 h |
| Number of switching cycles | 50000 |
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Product remark | Reset settings to default by switching the product on for three seconds and off for three seconds and repeating this five times. |
| Number of illuminants | empty |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854109621 | Folding box 1 |
114 mm x 1,318 mm x 129 mm | 2820.00 g | 19.38 dm³ |
| 4099854109638 | Shipping box 4 |
1,362 mm x 237 mm x 215 mm | 12504.00 g | 69.40 dm³ |
User instruction / safety instructions
SUNATHOME WORKSPACE CLG SUSP TW WT
SUNATHOME WORKSPACE CLG SUSP TW WT
User instruction / safety instructions
SUNATHOME WORKSPACE CLG SUSP TW WT
SUNATHOME WORKSPACE CLG SUSP TW WT
Legal information
Legal insert SUNATHOME WORKSPACE
Legal insert SUNATHOME WORKSPACE
Declarations of conformity
SUNATHOME WORKSPACE
SUNATHOME WORKSPACE

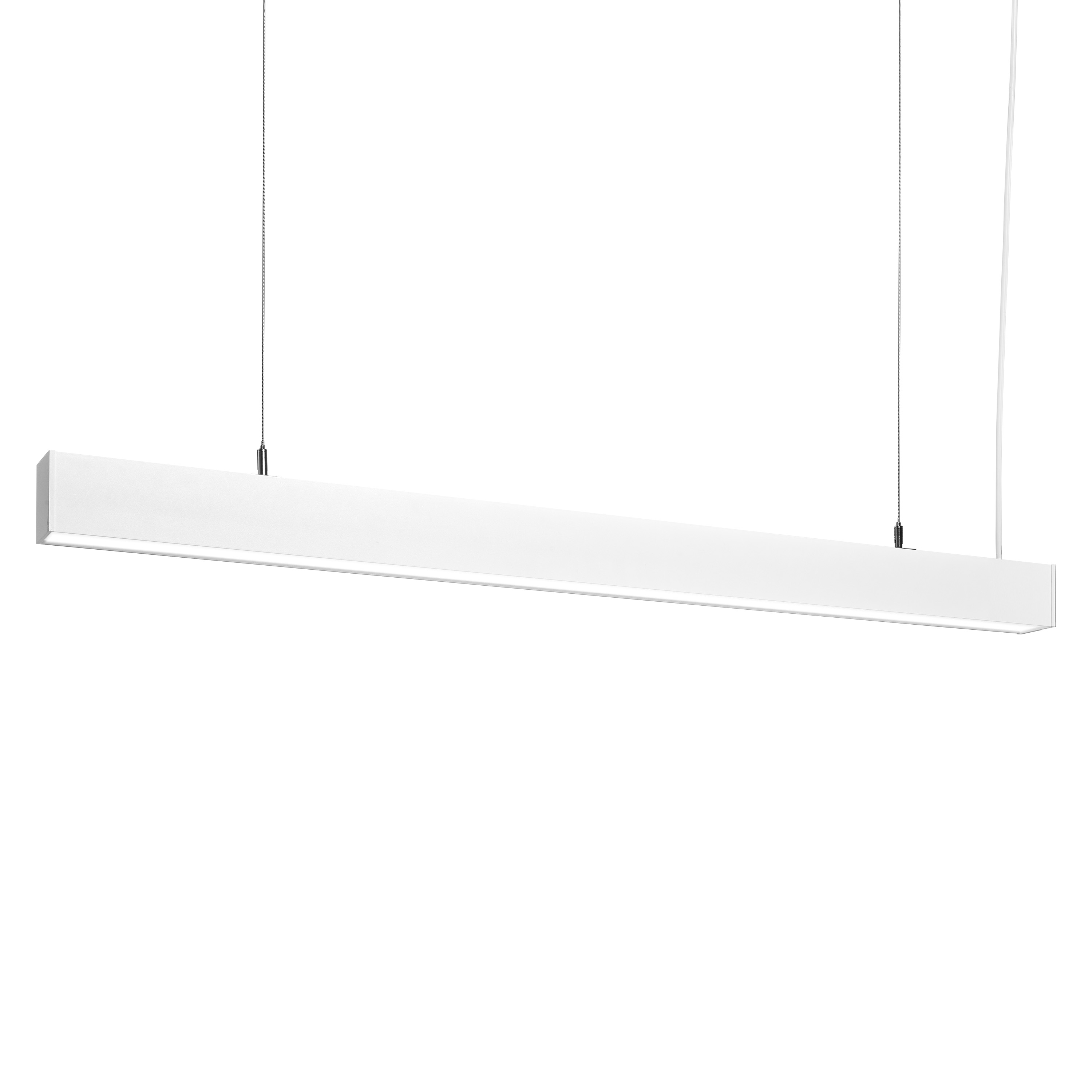

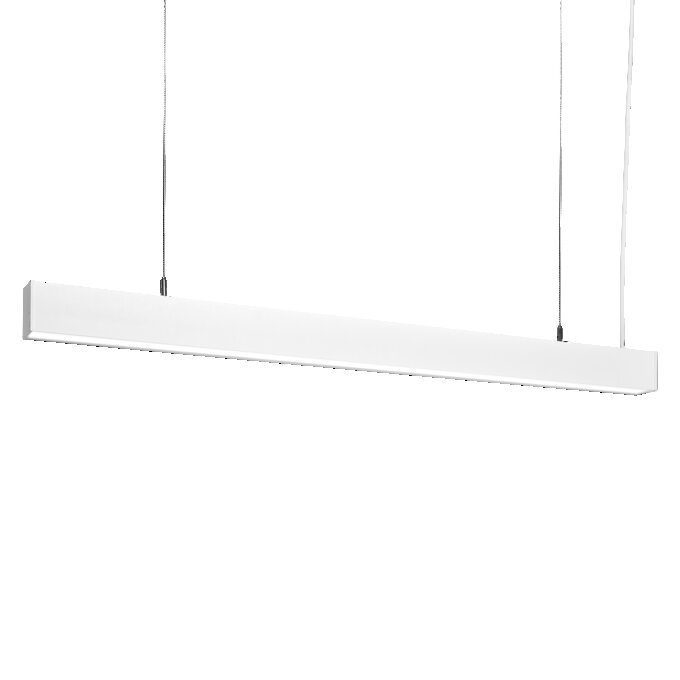

Product image: white background, upright
SUNATHOME WORKSPACE CLG SUSP TW WT
SUNATHOME WORKSPACE CLG SUSP TW WT

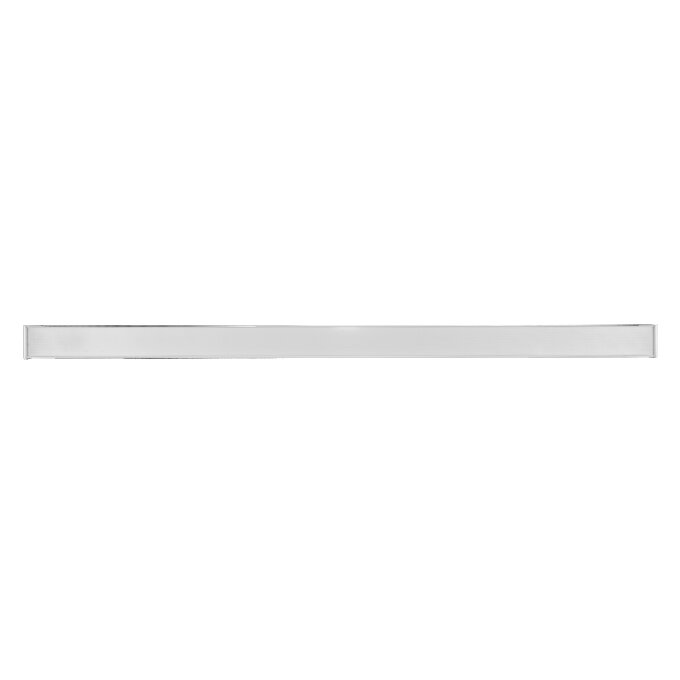

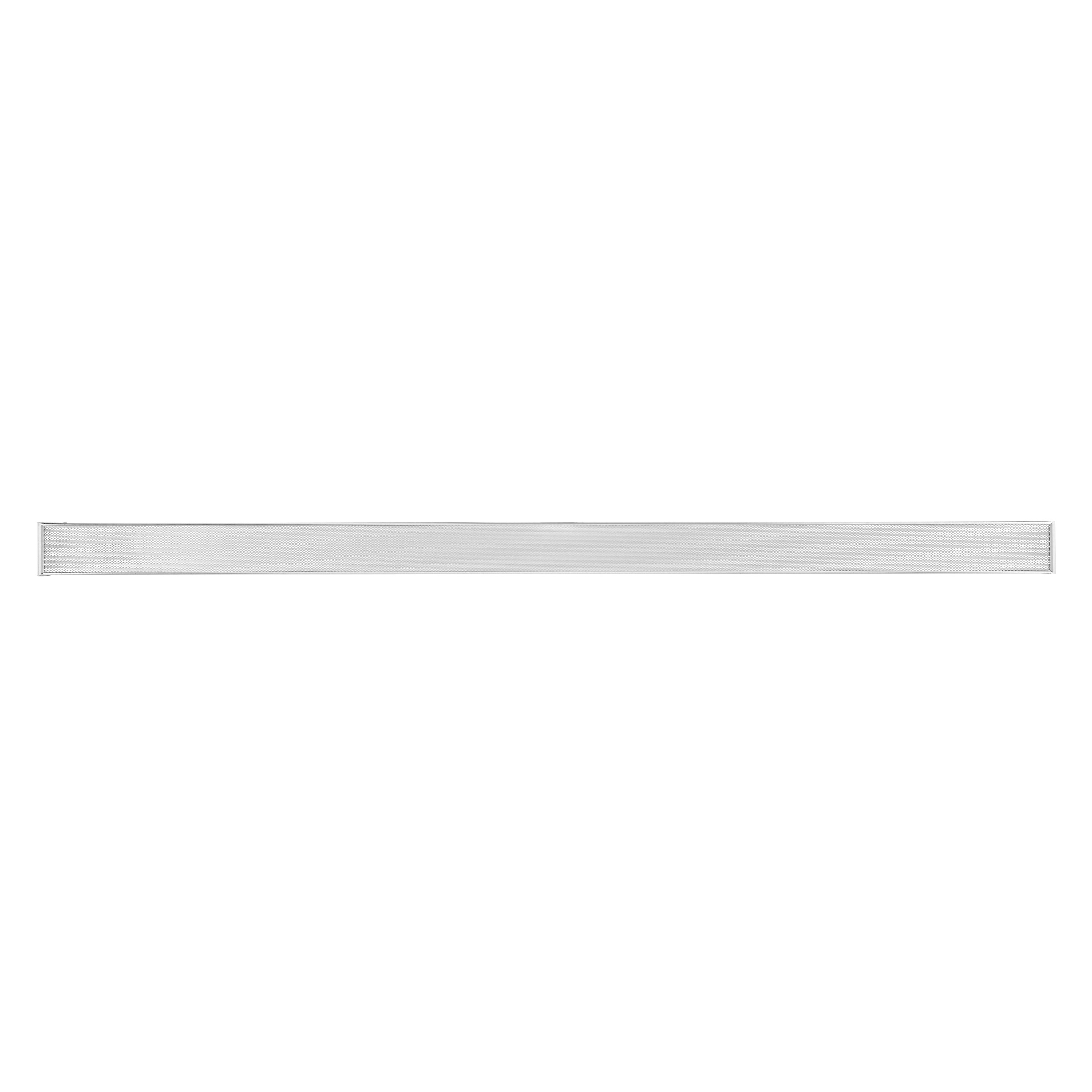

Product image: white background, upright, alternative image
SUNATHOME WORKSPACE CLG SUSP TW WT
SUNATHOME WORKSPACE CLG SUSP TW WT

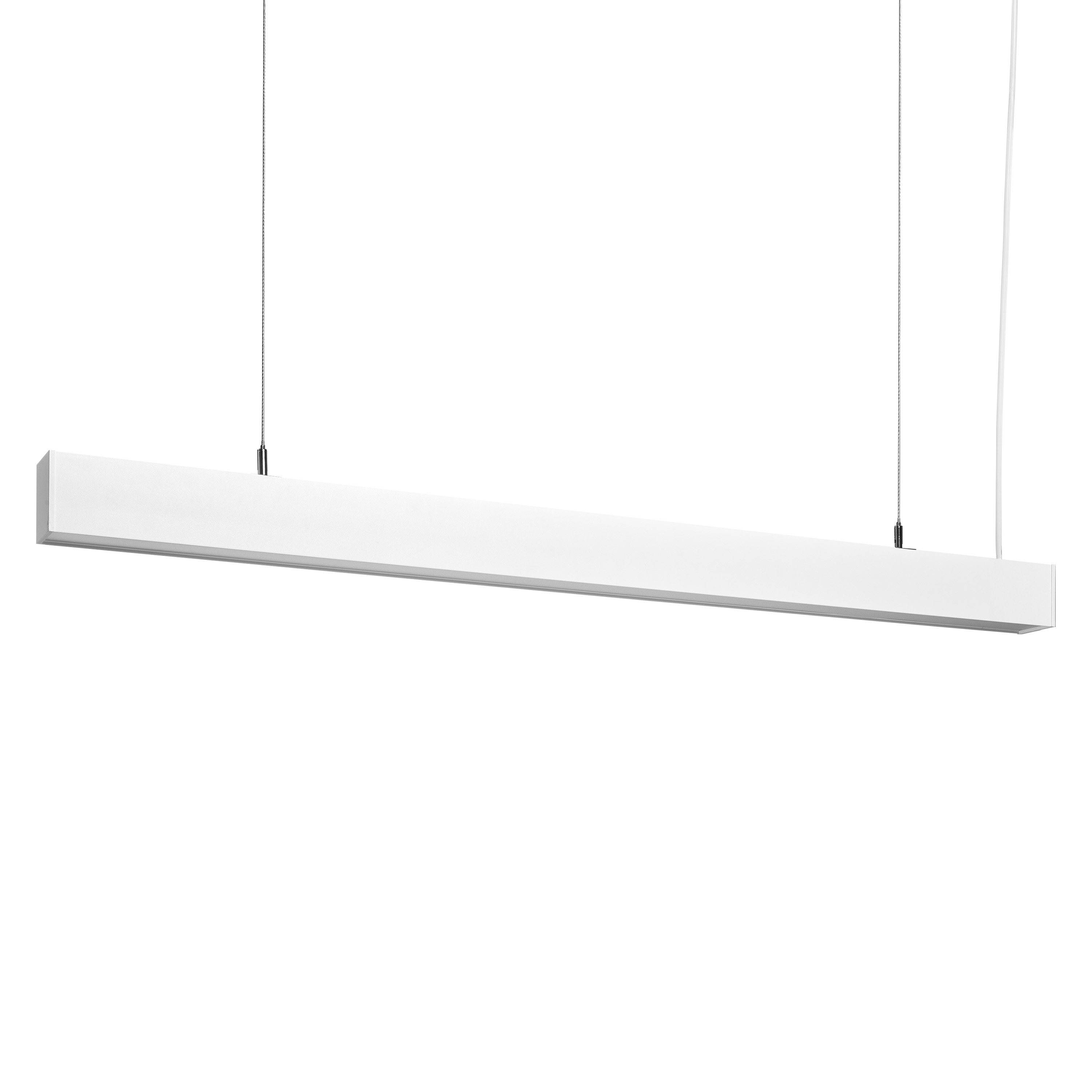

Product image: white background, upright, switched on
SUNATHOME WORKSPACE CLG SUSP TW WT
SUNATHOME WORKSPACE CLG SUSP TW WT
Product line drawing with letters
SUNATHOME WORKSPACE CLG SUSP TW WT
SUNATHOME WORKSPACE CLG SUSP TW WT
Product line drawing with numbers
SUNATHOME WORKSPACE CLG SUSP TW WT
SUNATHOME WORKSPACE CLG SUSP TW WT
Product line drawing, front, no dimensions
SUNATHOME WORKSPACE CLG SUSP TW WT
SUNATHOME WORKSPACE CLG SUSP TW WT

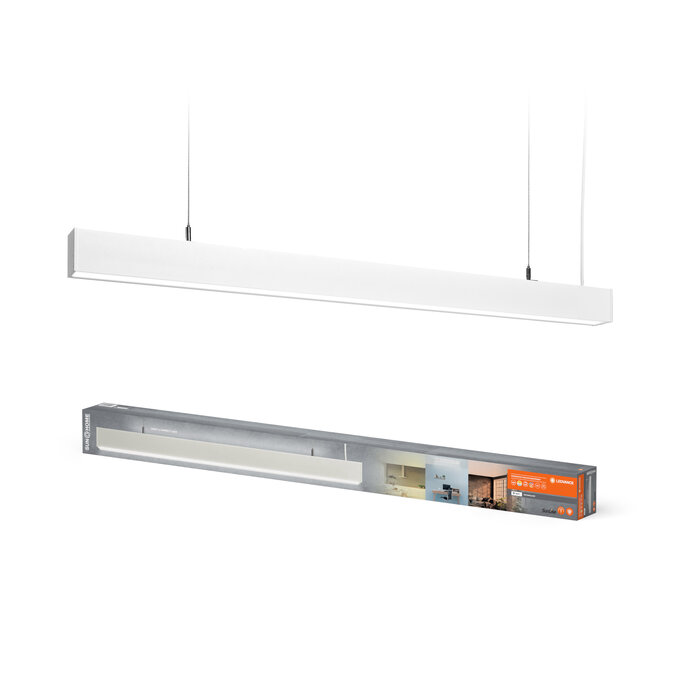

Combo Shot = Product Beauty Shot + Packaging Image
SH FC WF SUN WS CLG SUSP TW WT
SH FC WF SUN WS CLG SUSP TW WT

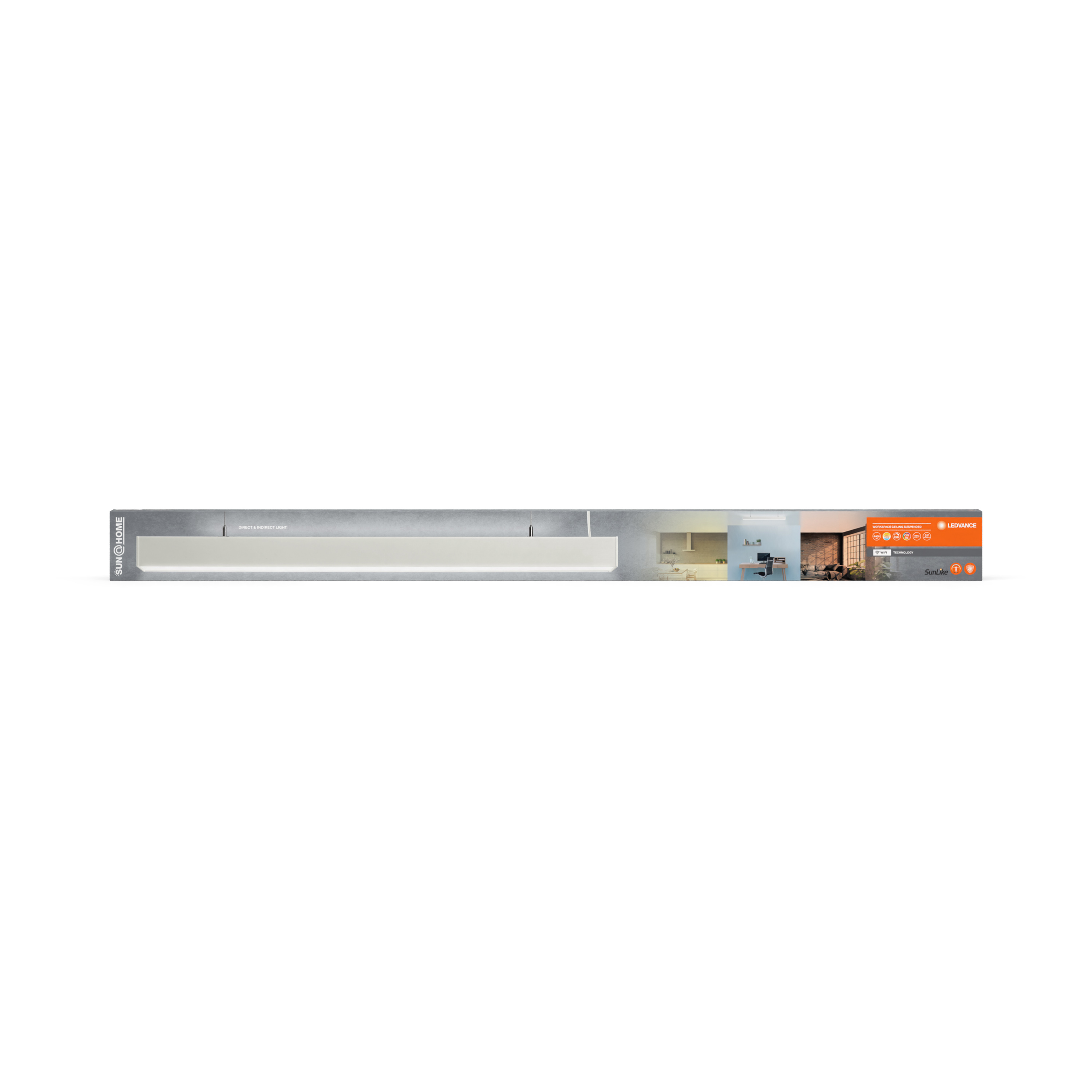

Packaging image, frontal
SH FC WF SUN WS CLG SUSP TW WT
SH FC WF SUN WS CLG SUSP TW WT
Packaging image, spacial
SH FC WF SUN WS CLG SUSP TW WT
SH FC WF SUN WS CLG SUSP TW WT
Application pictures Getty
SUNATHOME Workspace Ceiling Suspended TW White 5000k
SUNATHOME Workspace Ceiling Suspended TW White 5000k
Application pictures Getty
SUNATHOME Workspace Ceiling Suspended TW White 3000k
SUNATHOME Workspace Ceiling Suspended TW White 3000k

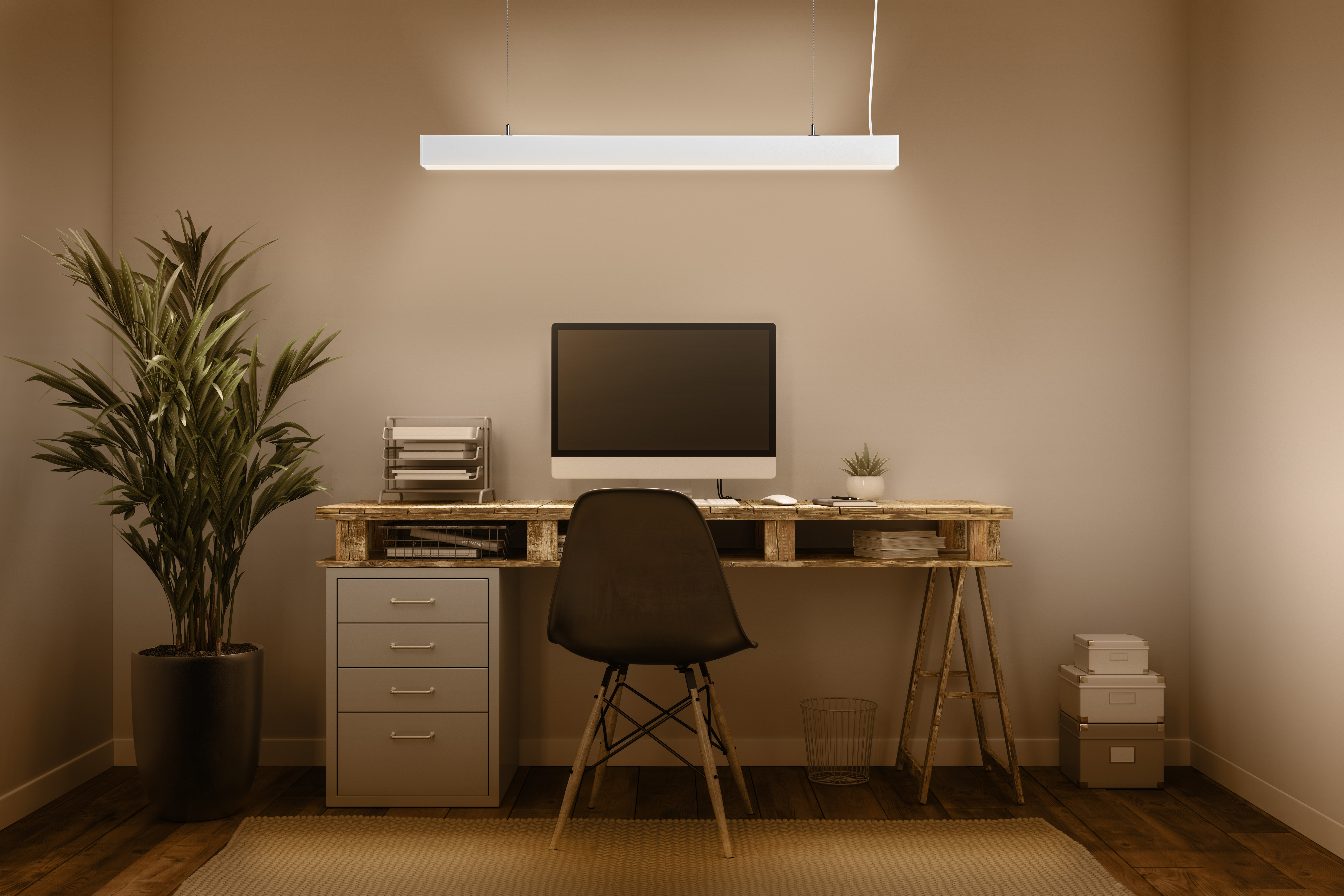

Application pictures Getty
