SMART+ WIFI WALL WASHER LUMINAIRE
Smart+ Wifi Floor UpDown RGB TW
GTIN: 4099854096518
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Easy and quick installation
- Uses multi color and cold or warm white light for most flexible lighting scenes
Areas of application
- Living areas
- Indirect lighting
- Gaming corners
- Home Entertainment areas
Product features
- Dimmable
- RGB color control, approx. 16 million color options adjustable
- Indirect illumination
- Color temperature and RGB control via switch on the product
- Network protocol: WiFi
- Controllable via SMART+ App (with minimum Android 8.0 or iOS 14.0)
Equipment / Accessories
- Complete mounting and connecting accessories included
- For control via SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
Safety advice
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
References / Links
- Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Electrical data
| Nominal wattage | 24.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 150.000 mA |
| Inrush current | 27.84 A |
| Inrush current time Th50 | 148 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 31 |
| Max. number of luminaires per miniature circuit breaker C10 | 38 |
| Max. number of luminaires per miniature circuit breaker C16 | 61 |
| Power factor λ | > 0.70 |
| Total harmonic distortion | < 65 % |
| Protection class | II |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 850 lm |
| Total luminous flux of contained light sources | 1750 lm |
| Luminous efficacy | 35 lm/W |
| Color temperature | 2700 … 5000 K |
| Reference control setting of contained light source (Kelvin) | 2700 K 1) |
| Light color (designation) | Red, Green, Blue, Tunable White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | < 6 sdcm |
| Flickering metric (Pst LM) | 1 |
| Stroboscope effect metric (SVM) | 0,4 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 110 ° |
| UGR | < 30 |
1) Performing a reset will restore the default values set by the manufacturer
Dimensions & Weight
| Diameter | 251.00 mm |
| Height | 1780.00 mm |
| Product weight | 4800.00 g |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| Body material | Metal |
| Cover material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -10…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Plug, EU |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK05 |
| Dimmable | Yes |
| Mounting type | Standing |
| Application environment | Indoor |
| Adjustable | Yes |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 50000 h |
| Number of switching cycles | 25000 |
Certificates & Standards
| Standards | CE |
Additional product data
| Product remark | Reset settings to default by switching the product on for three seconds and off for three seconds and repeating this five times. |
| Number of illuminants | empty |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854096518 | Folding box 1 |
117 mm x 388 mm x 310 mm | 5023.00 g | 14.07 dm³ |
| 4099854096525 | Shipping box 2 |
405 mm x 327 mm x 255 mm | 10667.00 g | 33.77 dm³ |
User instruction / safety instructions
UI SMART FLOOR UPDOWN RGB TUNABLE WHITE
UI SMART FLOOR UPDOWN RGB TUNABLE WHITE
Legal information
Legal Insert
Legal Insert
Declarations of conformity
CE Declaration Smart Wifi Convert and Floor Updown
CE Declaration Smart Wifi Convert and Floor Updown

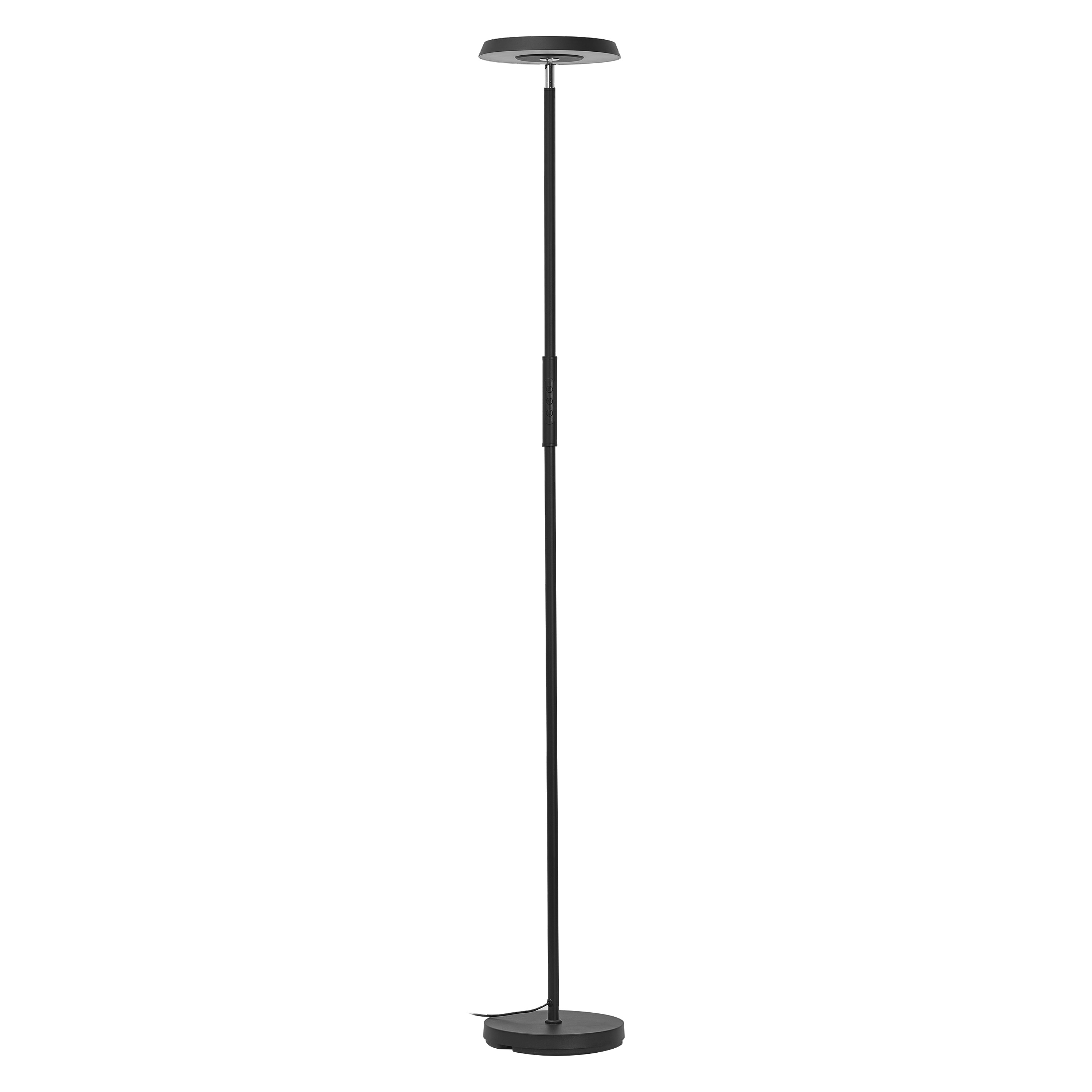

Product image: white background, upright
SMART WIFI FLOOR UPDOWN RGB TW BK
SMART WIFI FLOOR UPDOWN RGB TW BK
Product image: white background, upright, alternative image
SMART WIFI FLOOR UPDOWN RGB TW BK
SMART WIFI FLOOR UPDOWN RGB TW BK

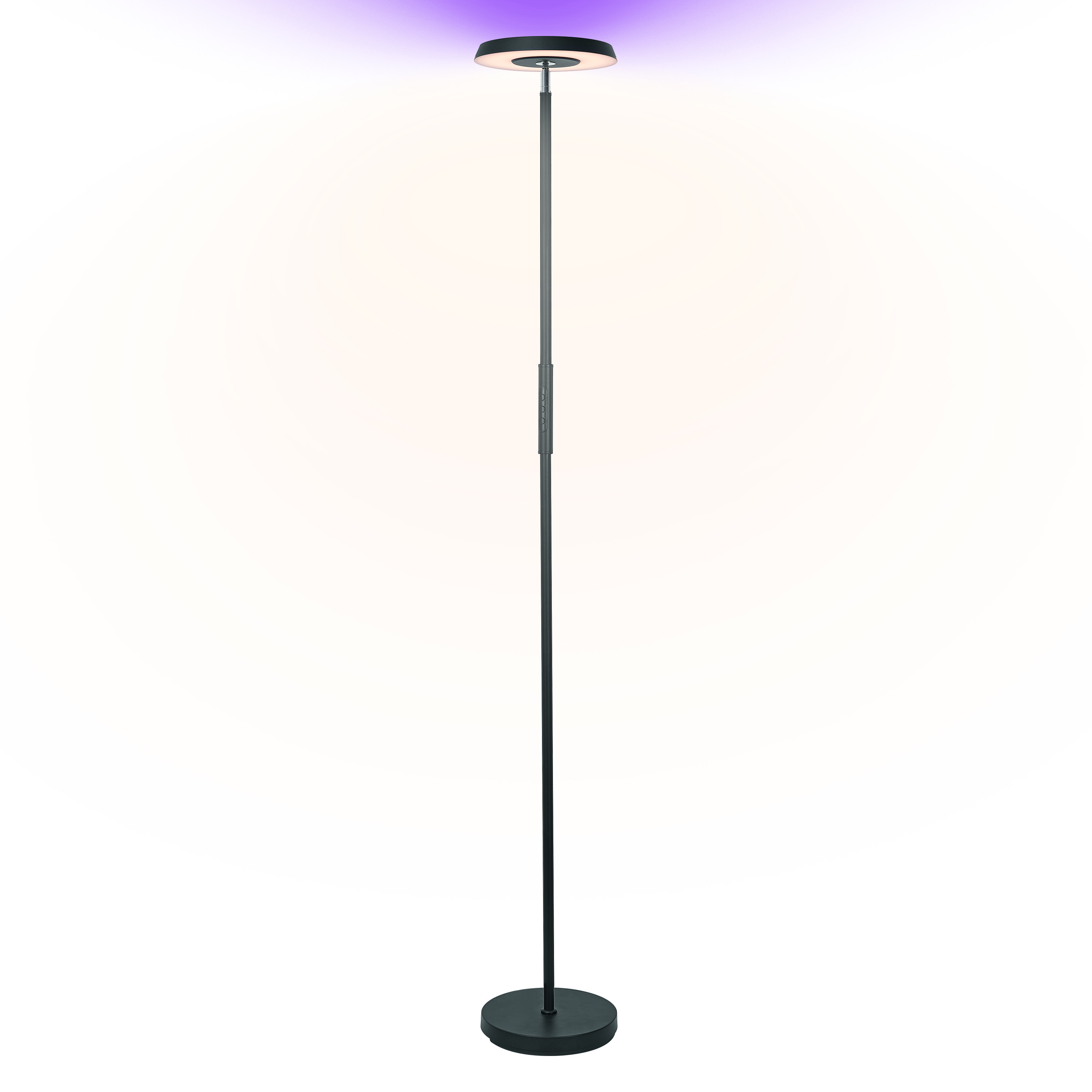

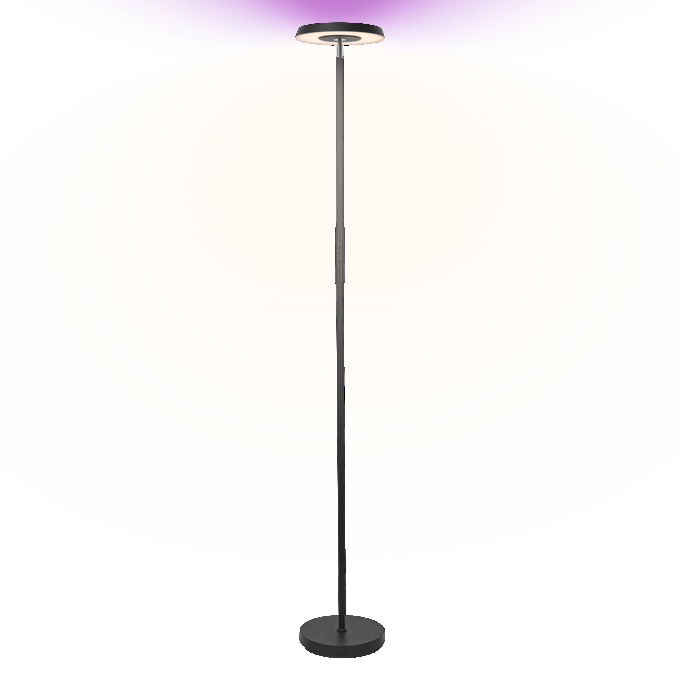

Product image: white background, upright, switched on
SMART WIFI FLOOR UPDOWN RGB TW BK
SMART WIFI FLOOR UPDOWN RGB TW BK
Product infographic (application image with text and graphic)
Entertainment E-Com_Grafik 1200x1200px 2023 EN
Entertainment E-Com_Grafik 1200x1200px 2023 EN
Product infographic (application image with text and graphic)
Entertainment E-Com Grafik 1200x1200px 2024 EN
Entertainment E-Com Grafik 1200x1200px 2024 EN
Product line drawing with letters
SMART WIFI FLOOR UPDOWN RGB TW BK
SMART WIFI FLOOR UPDOWN RGB TW BK
Product line drawing with numbers
SMART WIFI FLOOR UPDOWN RGB TW BK
SMART WIFI FLOOR UPDOWN RGB TW BK
Product line drawing, front, no dimensions
SMART WIFI FLOOR UPDOWN RGB TW BK
SMART WIFI FLOOR UPDOWN RGB TW BK

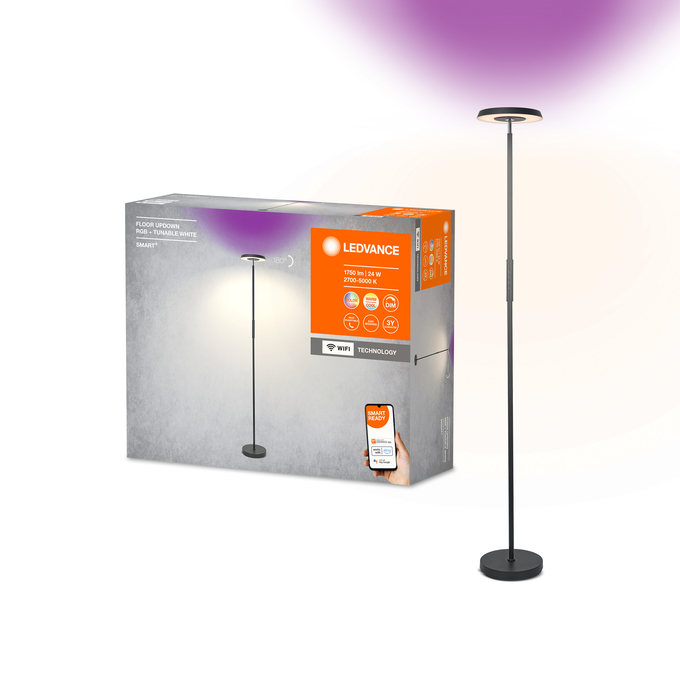

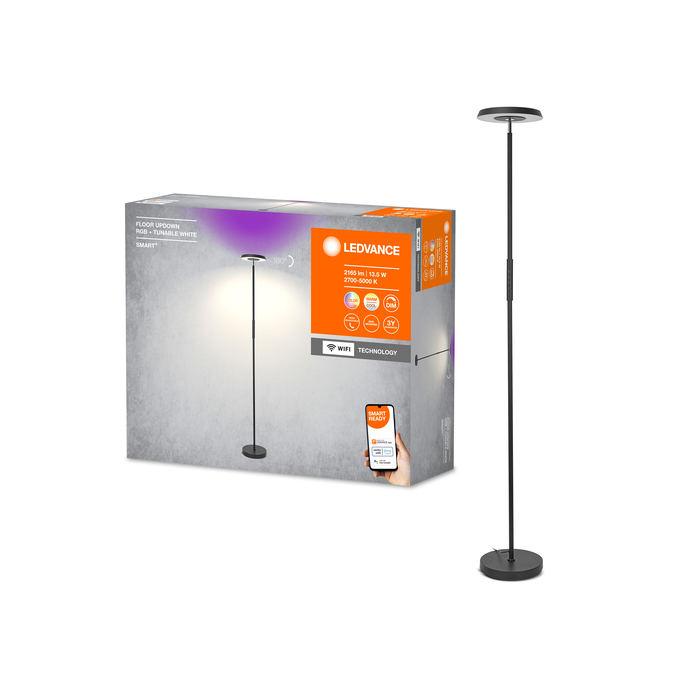

Combo Shot = Product Beauty Shot + Packaging Image
