PLANON™ Frameless
Planon Frameless 1200x300mm 40W 3000K
GTIN: 4058075470576
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Homogenous light distribution
- Easy and quick installation
Areas of application
- Indoor applications
- Decorative domestic lighting
- Wall and ceiling surface mounting
Product features
- Ceiling luminaire with advanced LED technology
- Available in square and rectangular form
- Color temperature: 3,000 K
- Aluminum housing, frosted PMMA diffuser
Equipment / Accessories
- Complete mounting and connecting accessories included
- Driver included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Electrical data
| Nominal wattage | 40.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 167.000 mA |
| Power factor λ | > 0.90 |
| Protection class | II |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 3300 lm |
| Total luminous flux of contained light sources | 4400 lm |
| Luminous efficacy | 75 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | 80 |
| Standard deviation of color matching | ≤6 sdcm |
| Photobiological safety group acc. to EN62778 | RG1 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 110 ° |
Dimensions & Weight
| Length | 1200.00 mm |
| Height | 62.00 mm |
| Width | 300.00 mm |
| Product weight | 4400.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Aluminum |
| Cover material | Polymethylmethacrylate (PMMA) |
| Light emitting surface material | PMMA |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Screwless terminal |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Ceiling |
| Application environment | Indoor |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 25000 h 1) |
| Number of switching cycles | 15000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Emergency lighting
| Type of emergency light operation | Non-maintained |
| Luminous flux in maintained operation mode | - |
| Luminous flux in emergency operation mode | - |
Certificates & Standards
| Standards | CE, EAC, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075470576 | Folding box 1 |
95 mm x 1,237 mm x 335 mm | 4869.00 g | 39.37 dm³ |
| 4058075470583 | Shipping box 3 |
1,250 mm x 302 mm x 367 mm | 16256.00 g | 138.54 dm³ |
User instruction / safety instructions
PLANON FRAMELESS
PLANON FRAMELESS
Declarations of conformity
PLANON FRAMELESS
PLANON FRAMELESS
Product datasheet -> old version of product
4058075470576 PLANON Frameless On Off 1200x300 40 W 3000 K en old
4058075470576 PLANON Frameless On Off 1200x300 40 W 3000 K en old

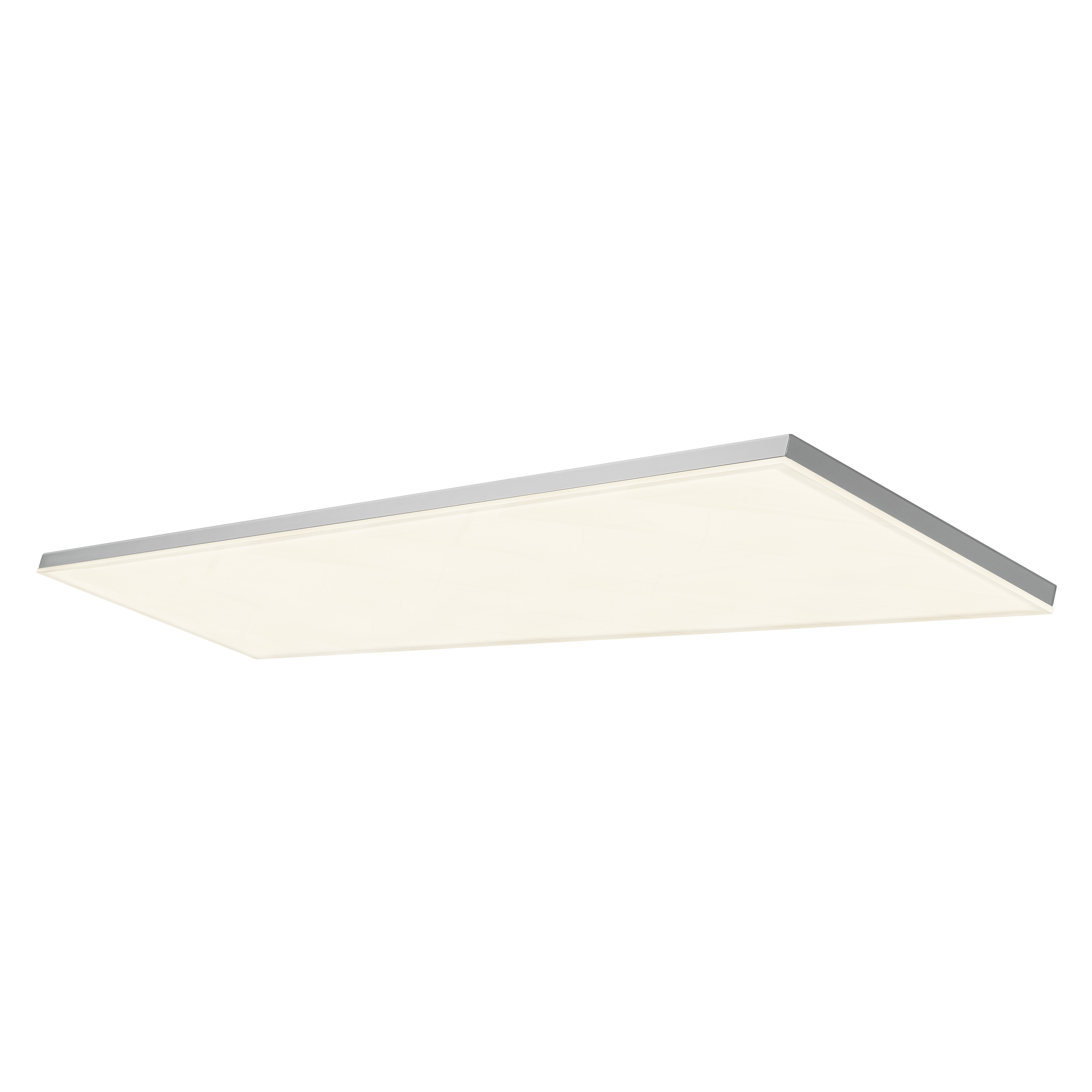

Product image: white background, upright
PLANON FRAMELESS 1200X300 40W 830
PLANON FRAMELESS 1200X300 40W 830

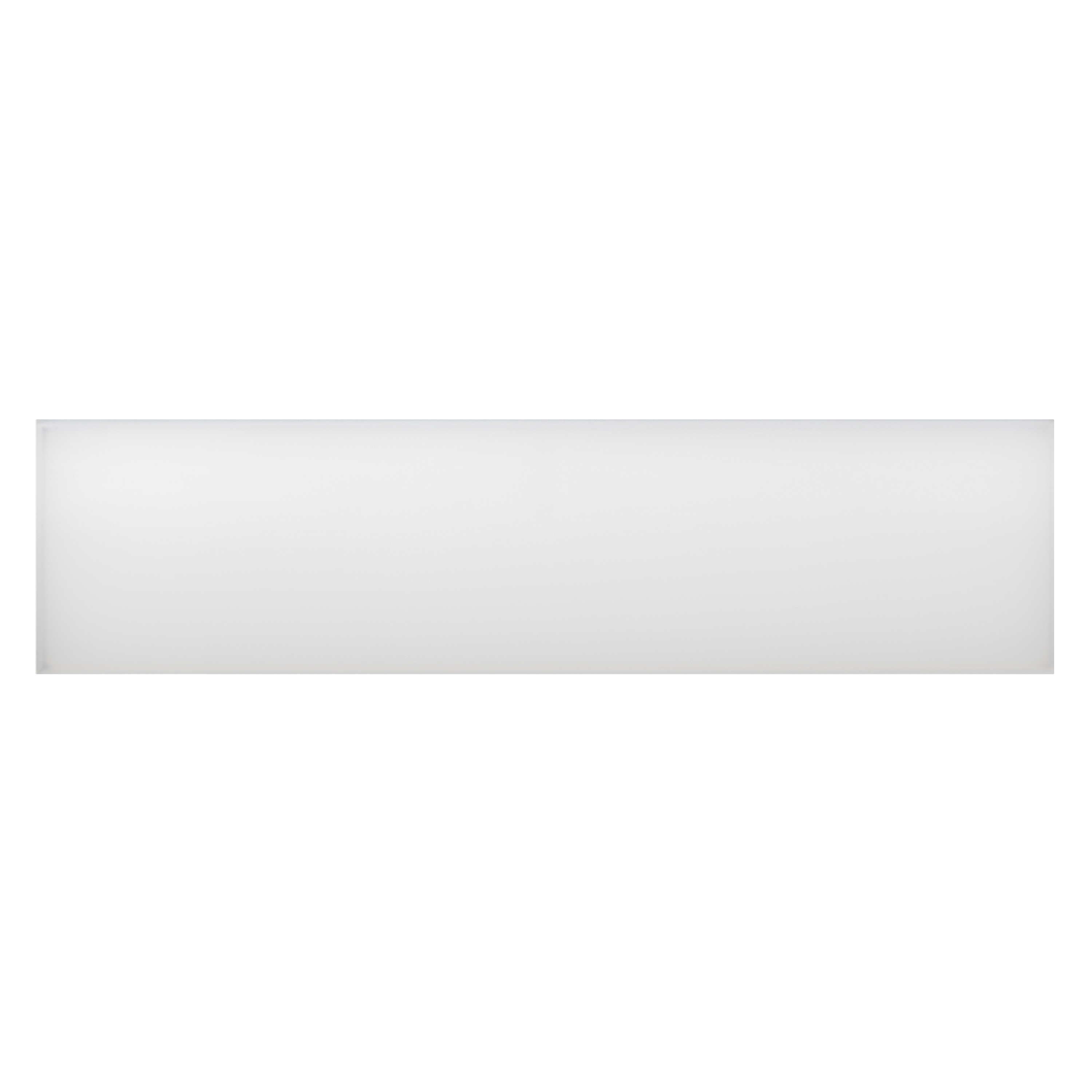

Product image: white background, upright, alternative image
PLANON FRAMELESS 1200X300 40W 830
PLANON FRAMELESS 1200X300 40W 830
Product image: white background, upright, switched on
PLANON FRAMELESS 1200X300 40W 830
PLANON FRAMELESS 1200X300 40W 830
Product line drawing with letters
PLANON FRAMELESS 1200X300 40W 830
PLANON FRAMELESS 1200X300 40W 830
Product line drawing with numbers
PLANON FRAMELESS 1200X300 40W 830
PLANON FRAMELESS 1200X300 40W 830
Product line drawing, front, no dimensions
PLANON FRAMELESS 1200X300 40W 830
PLANON FRAMELESS 1200X300 40W 830

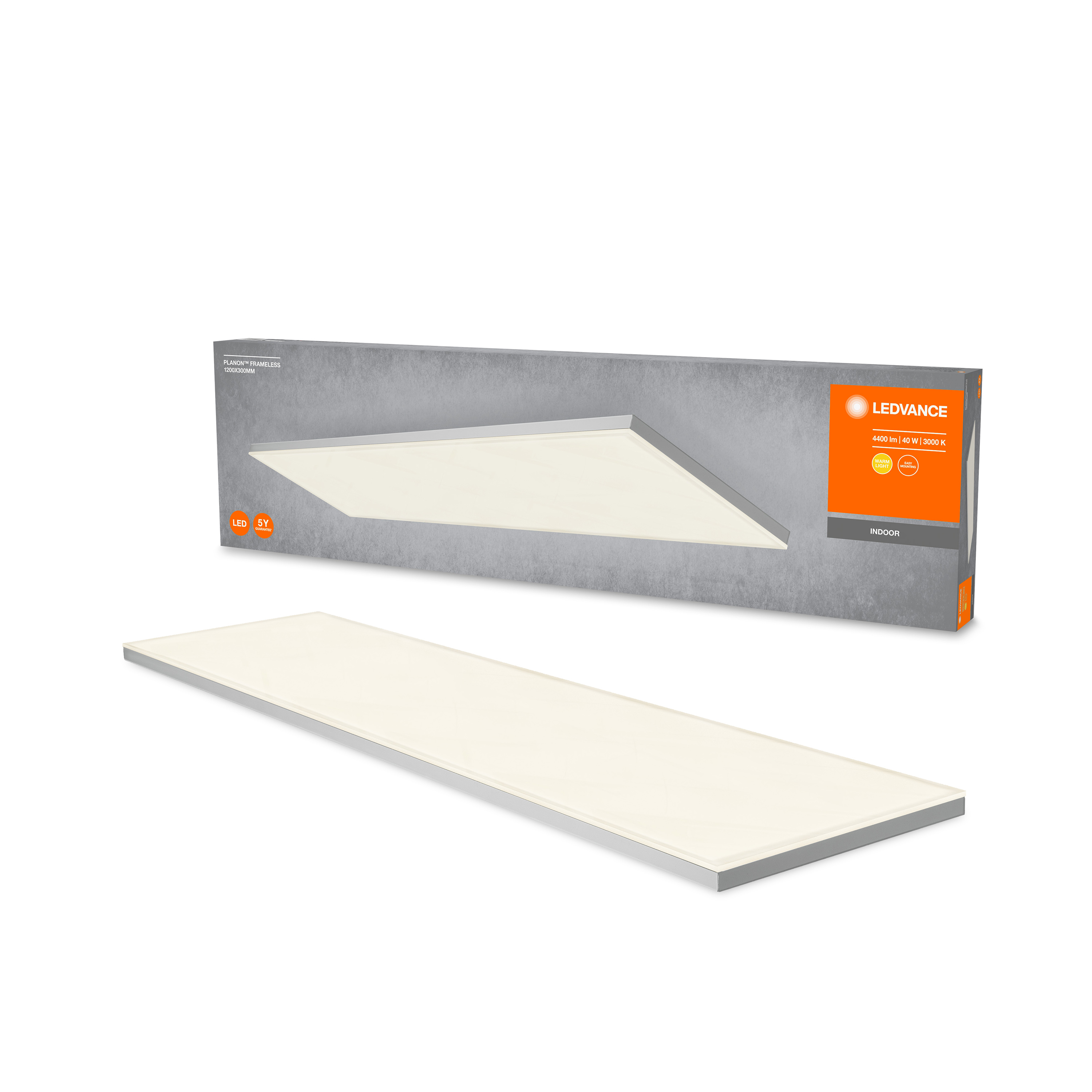

Combo Shot = Product Beauty Shot + Packaging Image
