Decor Concrete Nest
Decor Concrete Nest Table 1XG9 Grey
GTIN: 4058075841208
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- High-quality look and feel
- High flexibility in the choice of the light source
- Sustainable solution thanks to exchangeable light sources
- Easy mounting
Areas of application
- Indoor applications
- Corridors, entrance areas, stairwells, living rooms, basements
Product features
- Housing material: metal, glass and concrete
- Textile cable
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Electrical data
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Protection class | II |
| Operating mode | Mains voltage |
Dimensions & Weight
| Length | 325.00 mm |
| Height | 135.00 mm |
| Width | 240.00 mm |
| Product weight | 1800.00 g |
| Cable length | 1800 mm |
Materials & Colors
| Product color | Gray |
| Housing color | Gray |
| Body material | Concrete |
| Cover material | Glass |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Plug type C (EU) |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | No |
| Mounting type | Standing |
| Application environment | Indoor |
| Adjustable | No |
| With light source | No |
| Replaceable light source | No |
| Holder designation | G9 |
Certificates & Standards
| Standards | CE |
Additional product data
| Product remark | Maximum bulb wattage: 5 W LED |
| Number of illuminants | 1 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075841208 | Folding box 1 |
144 mm x 302 mm x 503 mm | 2173.00 g | 21.87 dm³ |
| 4058075841215 | Shipping box 2 |
520 mm x 318 mm x 313 mm | 5165.00 g | 51.76 dm³ |
User instruction / safety instructions
DECOR CLAY/CONCRETE/PLASTER NEST TABLE G9
DECOR CLAY/CONCRETE/PLASTER NEST TABLE G9
Declarations of conformity
DECOR LUM
DECOR LUM

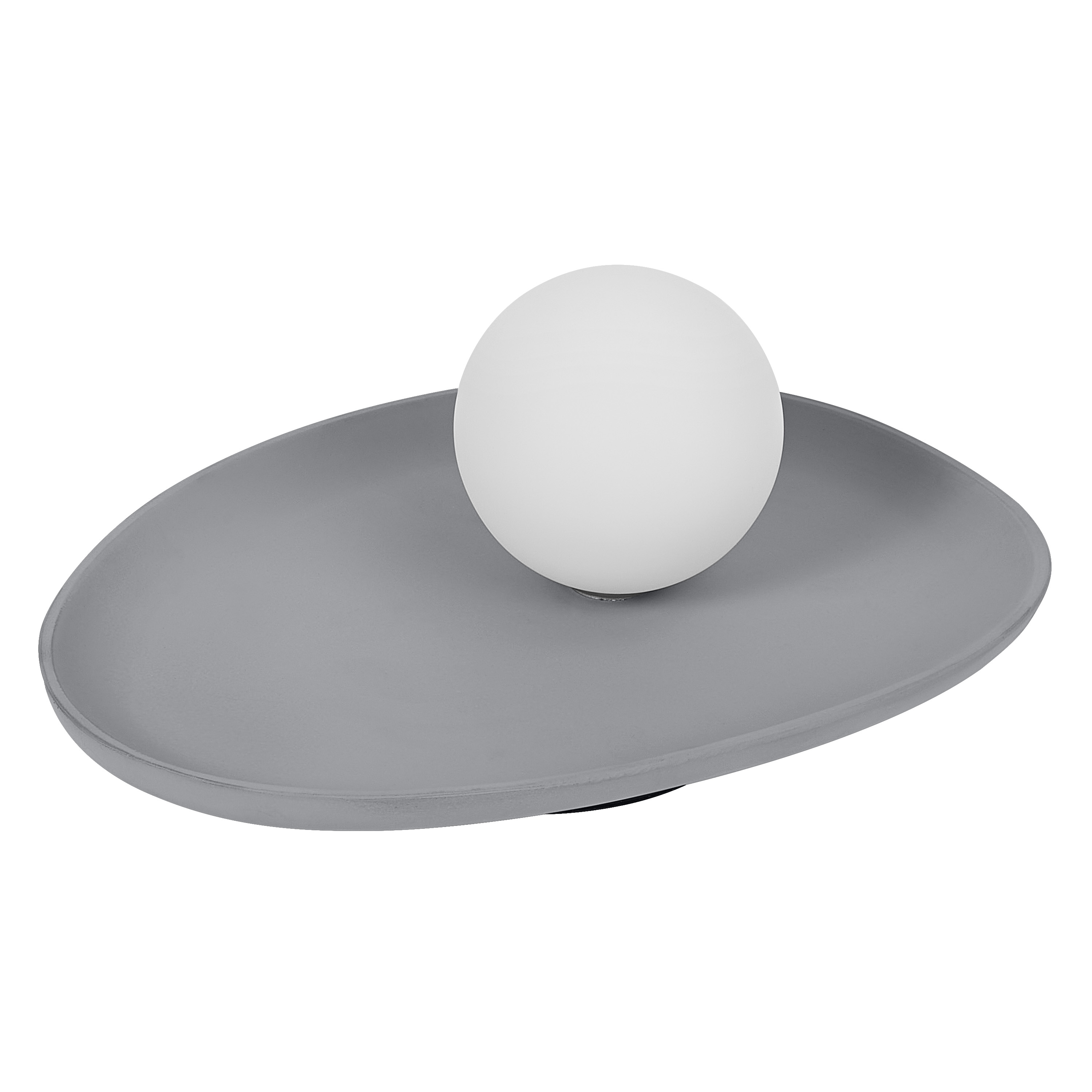

Product image: white background, upright
DECOR CONCRETE NEST TABLE 1XG9 GR
DECOR CONCRETE NEST TABLE 1XG9 GR

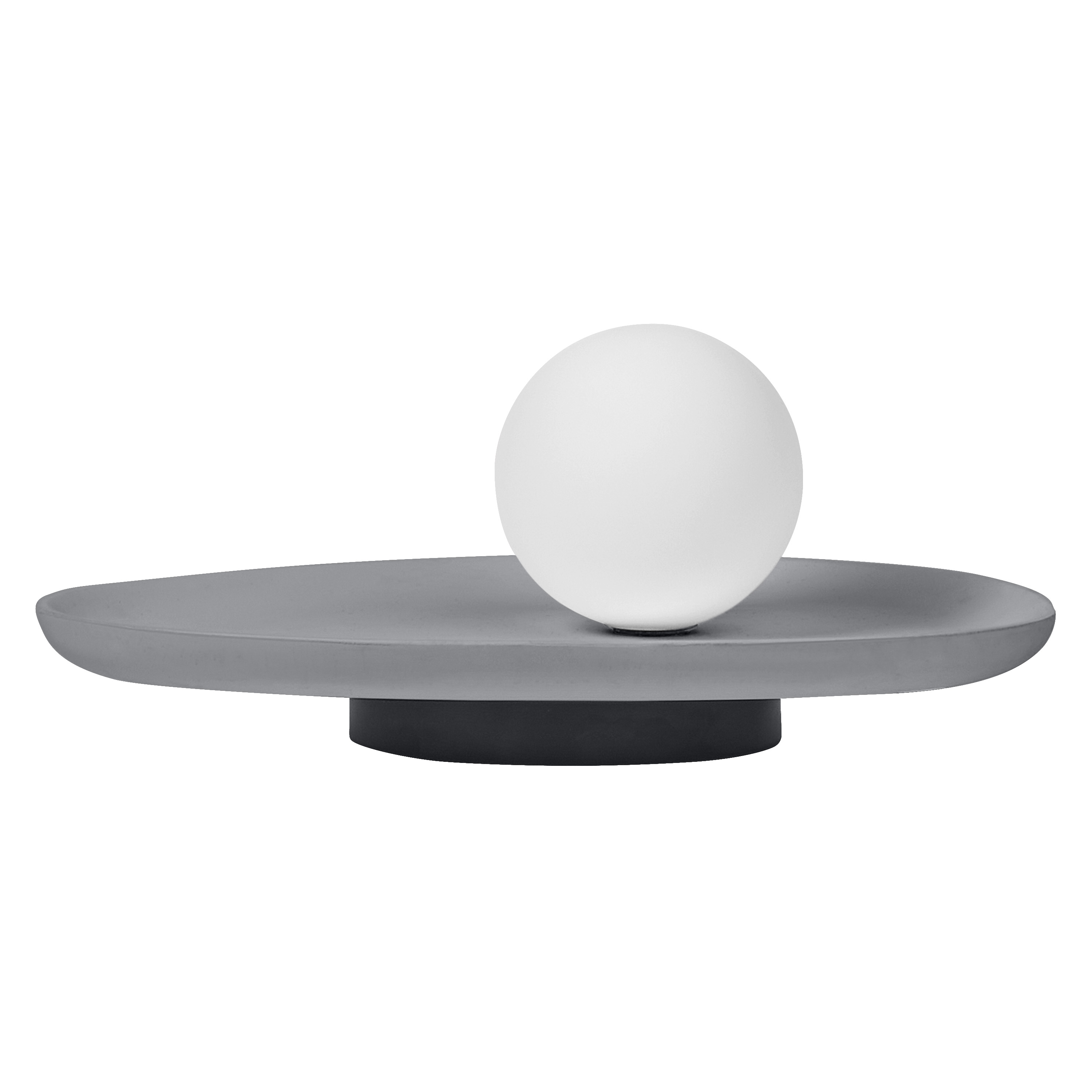

Product image: white background, upright, alternative image
DECOR CONCRETE NEST TABLE 1XG9 GR
DECOR CONCRETE NEST TABLE 1XG9 GR

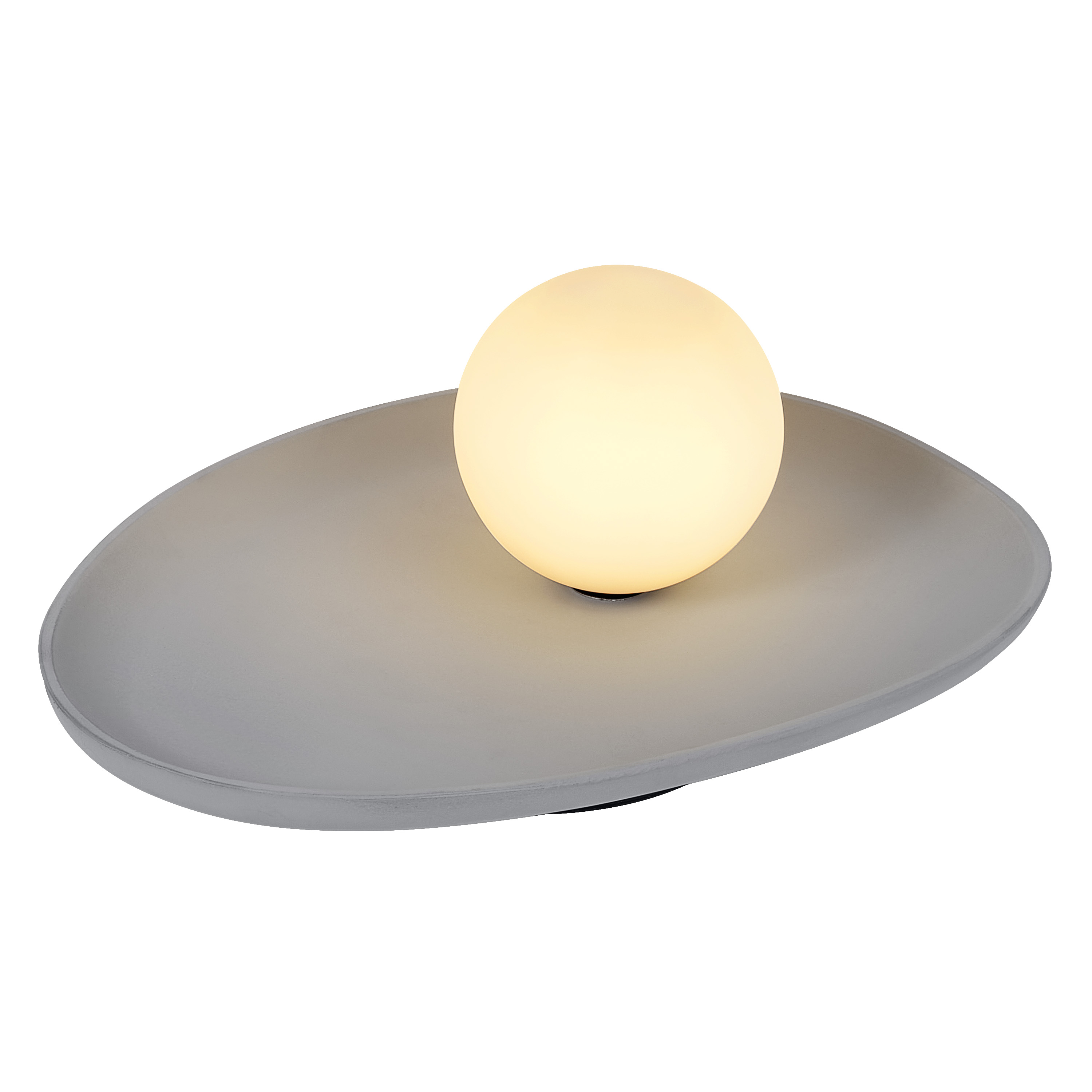

Product image: white background, upright, switched on
DECOR CONCRETE NEST TABLE 1XG9 GR
DECOR CONCRETE NEST TABLE 1XG9 GR
Product line drawing with letters
DECOR CLAY NEST TABLE 1XG9 BR
DECOR CLAY NEST TABLE 1XG9 BR
Product line drawing with numbers
DECOR CLAY NEST TABLE 1XG9 BR
DECOR CLAY NEST TABLE 1XG9 BR
Product line drawing - technical
DECOR CLAY NEST TABLE 1XG9 BR
DECOR CLAY NEST TABLE 1XG9 BR

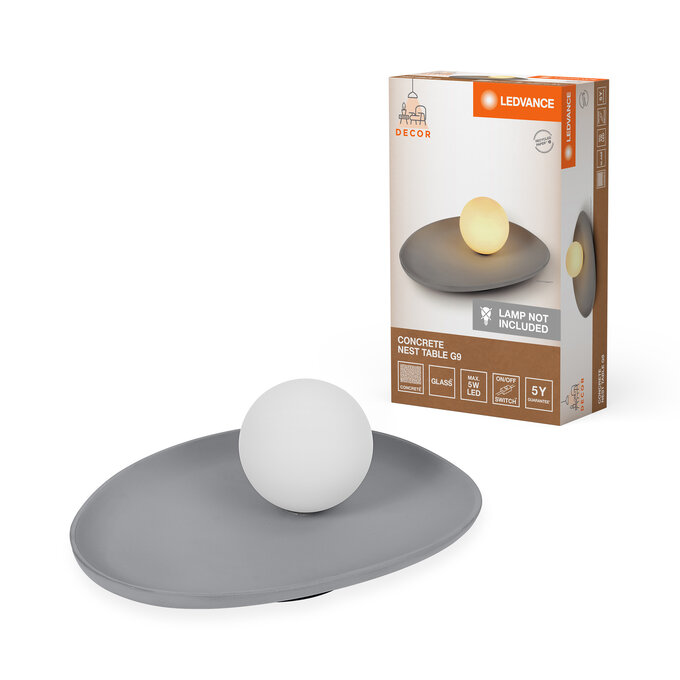

Combo Shot = Product Beauty Shot + Packaging Image
LUM DECOR CONCRETE NEST TABLE 1xG9 GR
LUM DECOR CONCRETE NEST TABLE 1xG9 GR
Packaging image, frontal
LUM DECOR CONCRETE NEST TABLE 1xG9 GR
LUM DECOR CONCRETE NEST TABLE 1xG9 GR
Packaging image, spacial
LUM DECOR CONCRETE NEST TABLE 1xG9 GR
LUM DECOR CONCRETE NEST TABLE 1xG9 GR
Product image with graphic and measurements
DECORLUM
DECORLUM
Application pictures

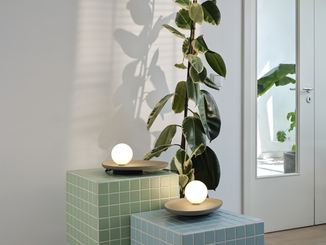

DECOR CONCRETE NEST TABLE 1XG9 GR Ambient
DECOR CONCRETE NEST TABLE 1XG9 GR Ambient
Application pictures
DECOR CONCRETE NEST TABLE 1XG9 GR Closeup 1
DECOR CONCRETE NEST TABLE 1XG9 GR Closeup 1
Application pictures
DECOR CONCRETE NEST TABLE 1XG9 GR Closeup 2
DECOR CONCRETE NEST TABLE 1XG9 GR Closeup 2
Application pictures

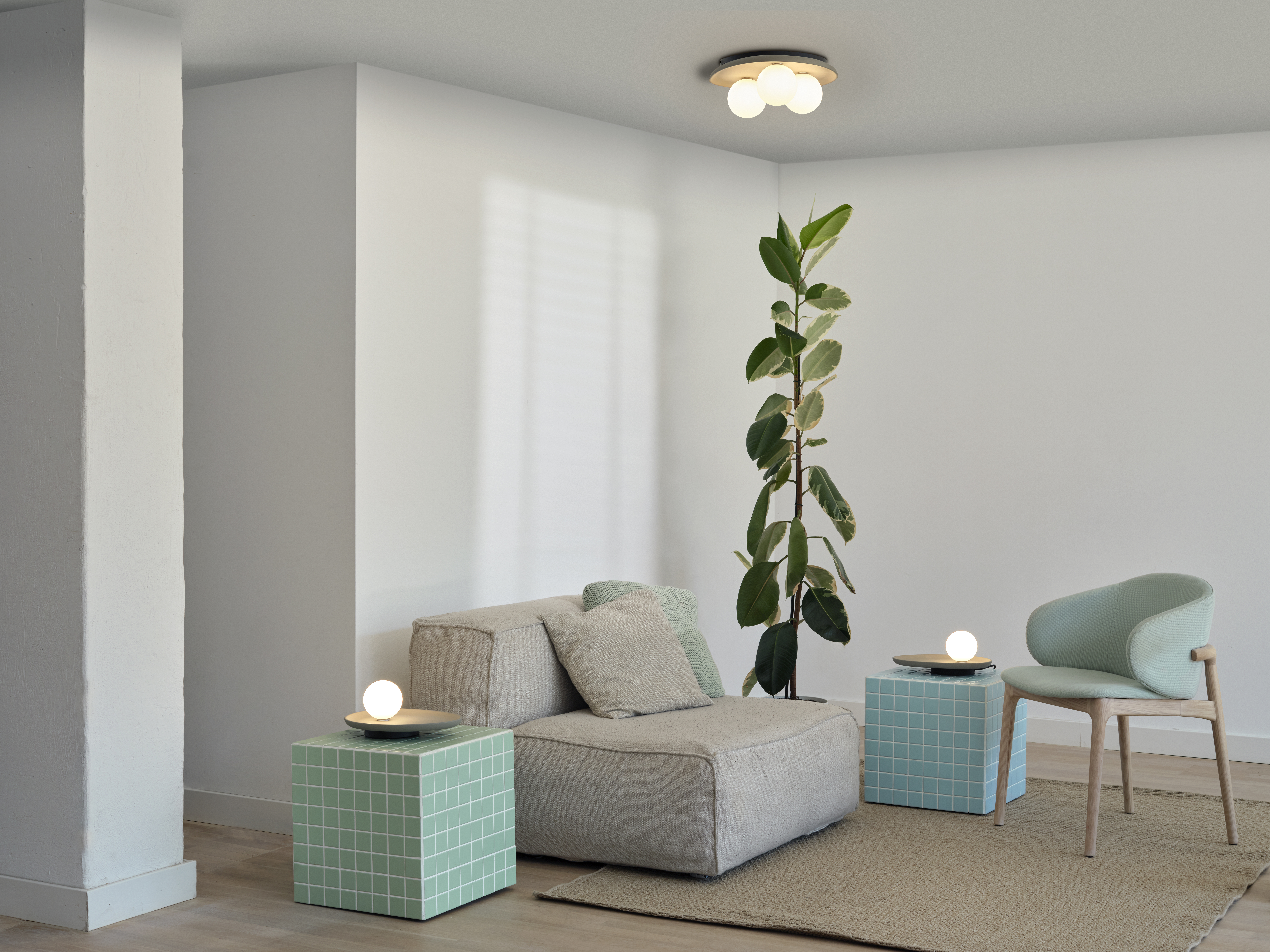

DECOR CONCRETE NEST Family
DECOR CONCRETE NEST Family
Application pictures

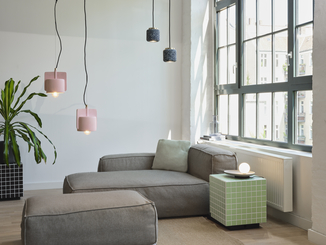

DECOR HARD TRAILS Concept
