Decor Drums
Decor Drums Pendant 3XGU10 2XLED Black
GTIN: 4058075838581
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- High-quality look and feel
- High-quality housing with a matt black surface
- Minimalistic style fits to every room
- Different types of luminaires with the same design language maintain a consistent style at home
- Inline-switch for table and floor luminaire
- Sustainable solution thanks to exchangeable light sources
- Easy mounting
Areas of application
- Indoor applications
- Corridors, entrance areas, stairwells, living rooms, basements
Product features
- Housing material: aluminum
- Textile cable
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Electrical data
| Nominal wattage | 7.50 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 60.000 mA |
| Inrush current | 0.06 A |
| Inrush current time Th50 | 70 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 110 |
| Max. number of luminaires per miniature circuit breaker C10 | 88 |
| Max. number of luminaires per miniature circuit breaker C16 | 141 |
| Power factor λ | > 0.5 |
| Total harmonic distortion | 64 % |
| Protection class | II |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 460 lm |
| Total luminous flux of contained light sources | 680 lm |
| Luminous efficacy | 61 lm/W |
| Color temperature | 3000 K |
| Reference control setting of contained light source (Kelvin) | 3000 K |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | 6 sdcm |
| Flickering metric (Pst LM) | < 1 |
| Stroboscope effect metric (SVM) | < 0.4 |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 26 ° |
Dimensions & Weight
| Length | 825.00 mm |
| Height | 1240.00 mm |
| Width | 56.00 mm |
| Product weight | 1685.00 g |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| Body material | Steel |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Terminal, 2-Pole (L, N) |
| Type of protection | IP20 |
| Dimmable | No |
| Mounting type | Suspended |
| With light source | Yes |
| Replaceable light source | No |
| Holder designation | GU10 |
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
Additional product data
| Product remark | Maximum bulb wattage: 5 W LED |
| Number of illuminants | 2 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075838581 | Folding box 1 |
112 mm x 137 mm x 873 mm | 1980.00 g | 13.40 dm³ |
| 4058075838598 | Shipping box 4 |
890 mm x 245 mm x 300 mm | 8881.00 g | 65.42 dm³ |
User instruction / safety instructions
Legal information
DECOR DRUMS/CIRCLE
DECOR DRUMS/CIRCLE
Declarations of conformity
DECOR LUM
DECOR LUM

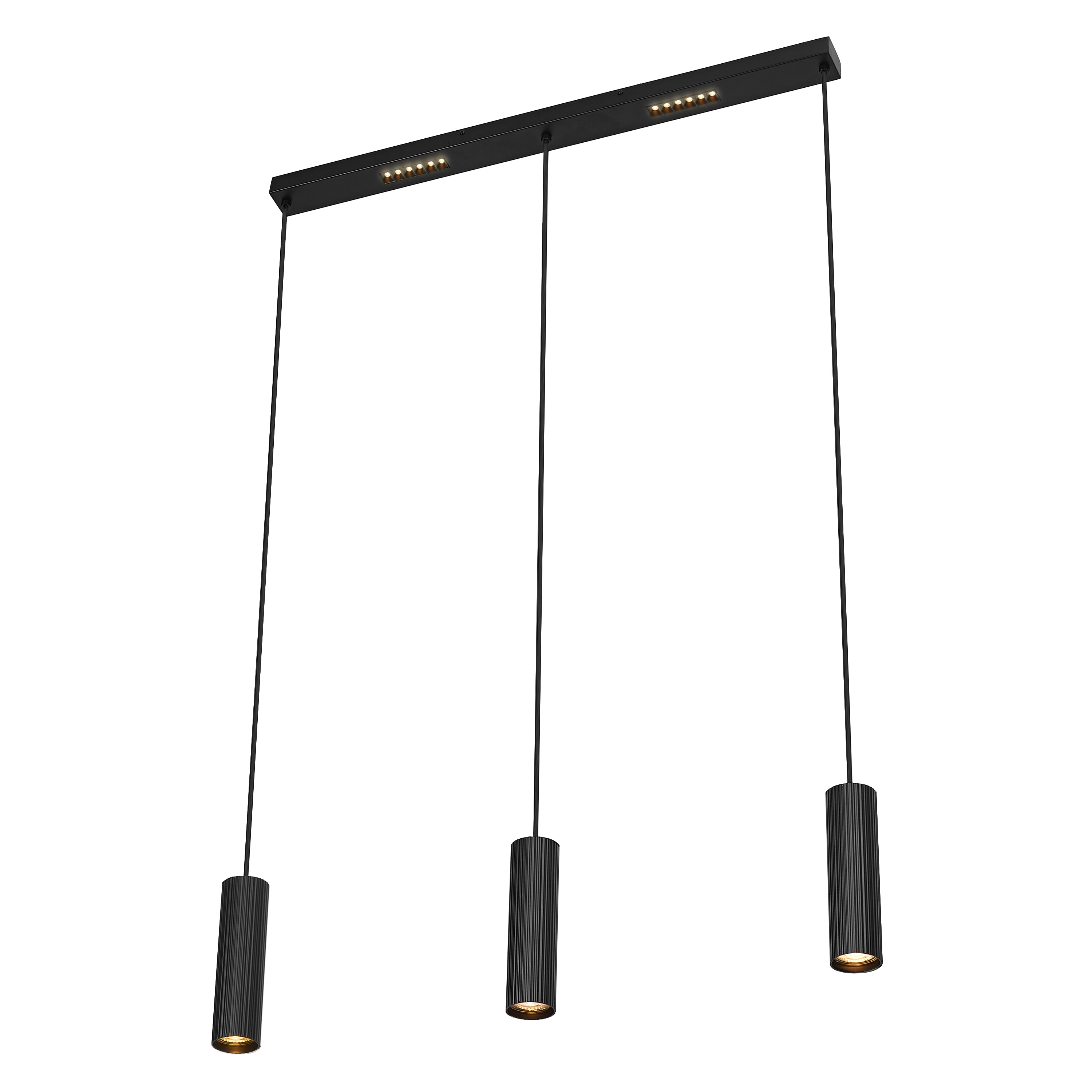

Product image: white background, diagonal, switched on
DECOR DRUMS PENDANT 3XGU10 2XLED BK
DECOR DRUMS PENDANT 3XGU10 2XLED BK

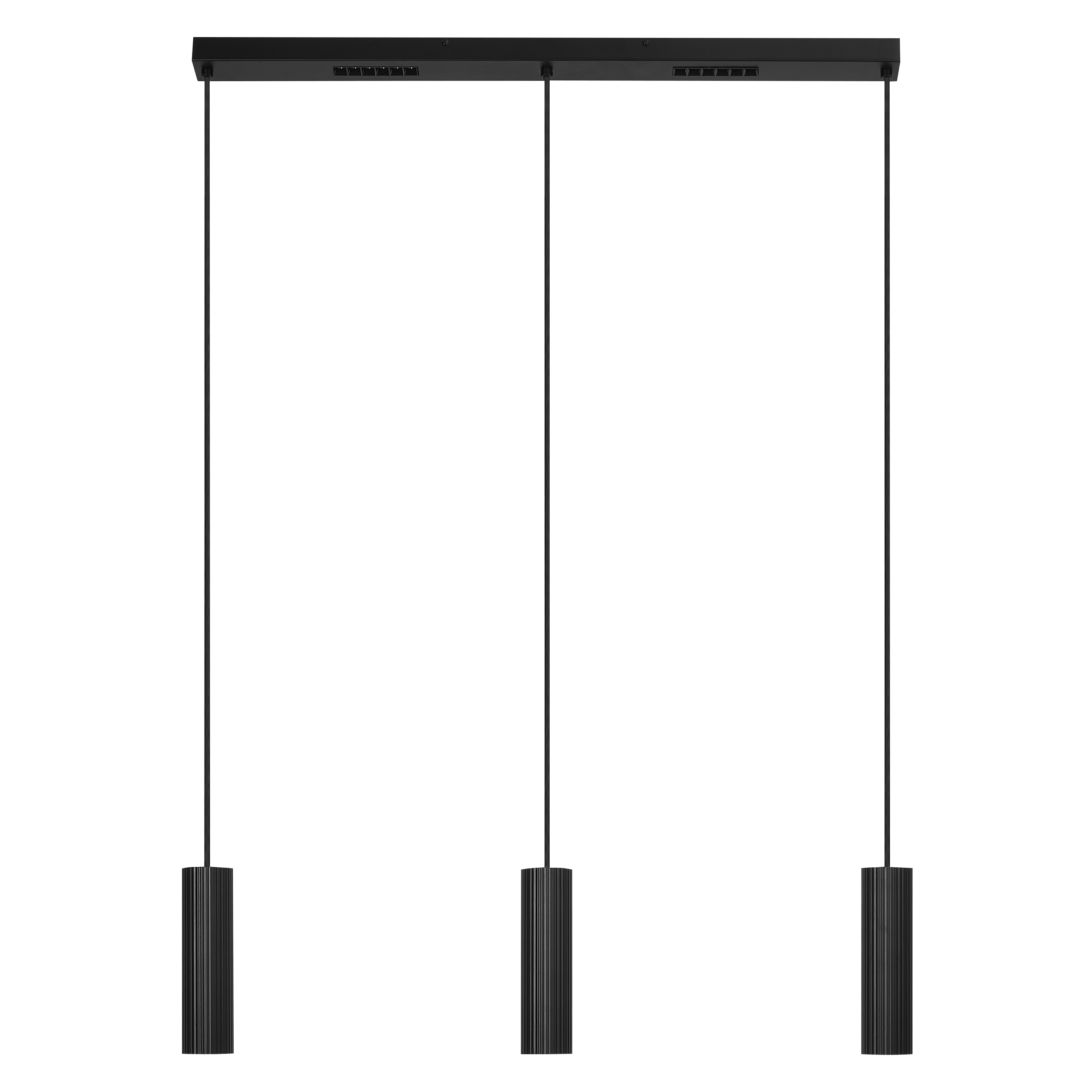

Product image: white background, upright
DECOR DRUMS PENDANT 3XGU10 2XLED BK
DECOR DRUMS PENDANT 3XGU10 2XLED BK

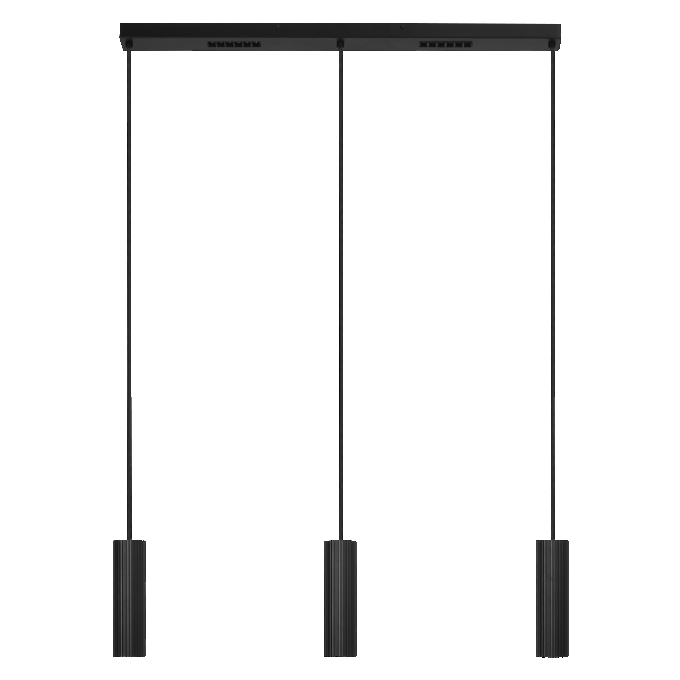

Product image: white background, upright, alternative image
DECOR DRUMS PENDANT 3XGU10 2XLED BK
DECOR DRUMS PENDANT 3XGU10 2XLED BK

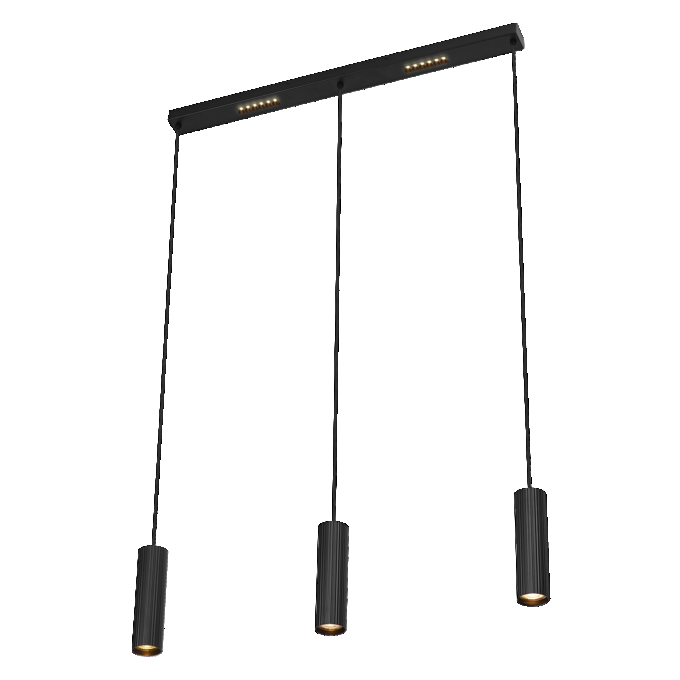

Product image: white background, upright, switched on
DECOR DRUMS PENDANT 3XGU10 2XLED BK
DECOR DRUMS PENDANT 3XGU10 2XLED BK
Product infographic (application image with text and graphic)
Decor Hard Stuff 4 e-Com graphic 1200x1200px 2024 EN
Decor Hard Stuff 4 e-Com graphic 1200x1200px 2024 EN
Product line drawing with letters
DECOR DRUMS PENDANT 3XGU10 2XLED BK
DECOR DRUMS PENDANT 3XGU10 2XLED BK
Product line drawing with numbers
DECOR DRUMS PENDANT 3XGU10 2XLED BK
DECOR DRUMS PENDANT 3XGU10 2XLED BK
Product line drawing - technical
DECOR DRUMS PENDANT 3XGU10 2XLED BK
DECOR DRUMS PENDANT 3XGU10 2XLED BK

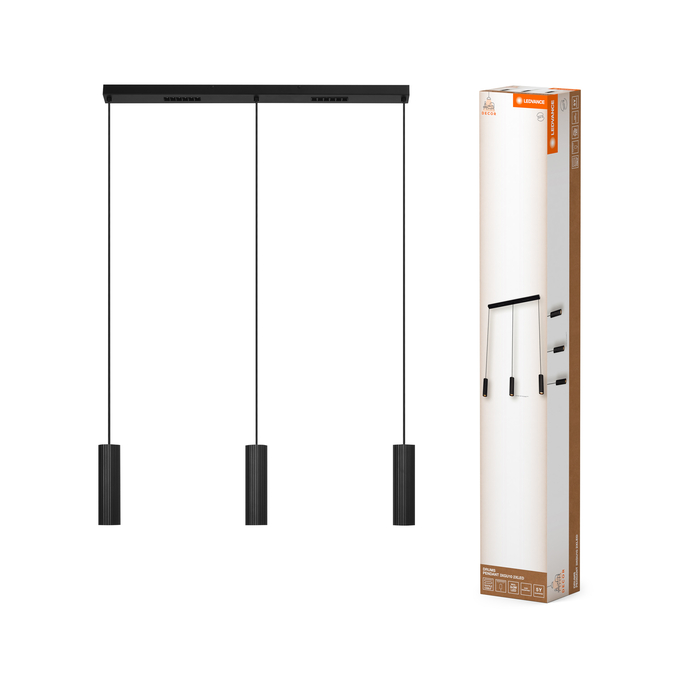

Combo Shot = Product Beauty Shot + Packaging Image
FC LUM DECOR DRUMS PENDANT 3XGU10
FC LUM DECOR DRUMS PENDANT 3XGU10
Packaging image, frontal
FC LUM DECOR DRUMS PENDANT 3XGU10
FC LUM DECOR DRUMS PENDANT 3XGU10
Packaging image, spacial
FC LUM DECOR DRUMS PENDANT 3XGU10
FC LUM DECOR DRUMS PENDANT 3XGU10
Product infographic with environment and dimensions
DECORLUM
DECORLUM
Product image with graphic and measurements
DECORLUM
DECORLUM
Application pictures

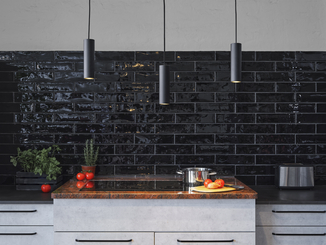

DECOR DRUMS PENDANT 3XGU10 2XLED BK Ambient
DECOR DRUMS PENDANT 3XGU10 2XLED BK Ambient
Application pictures

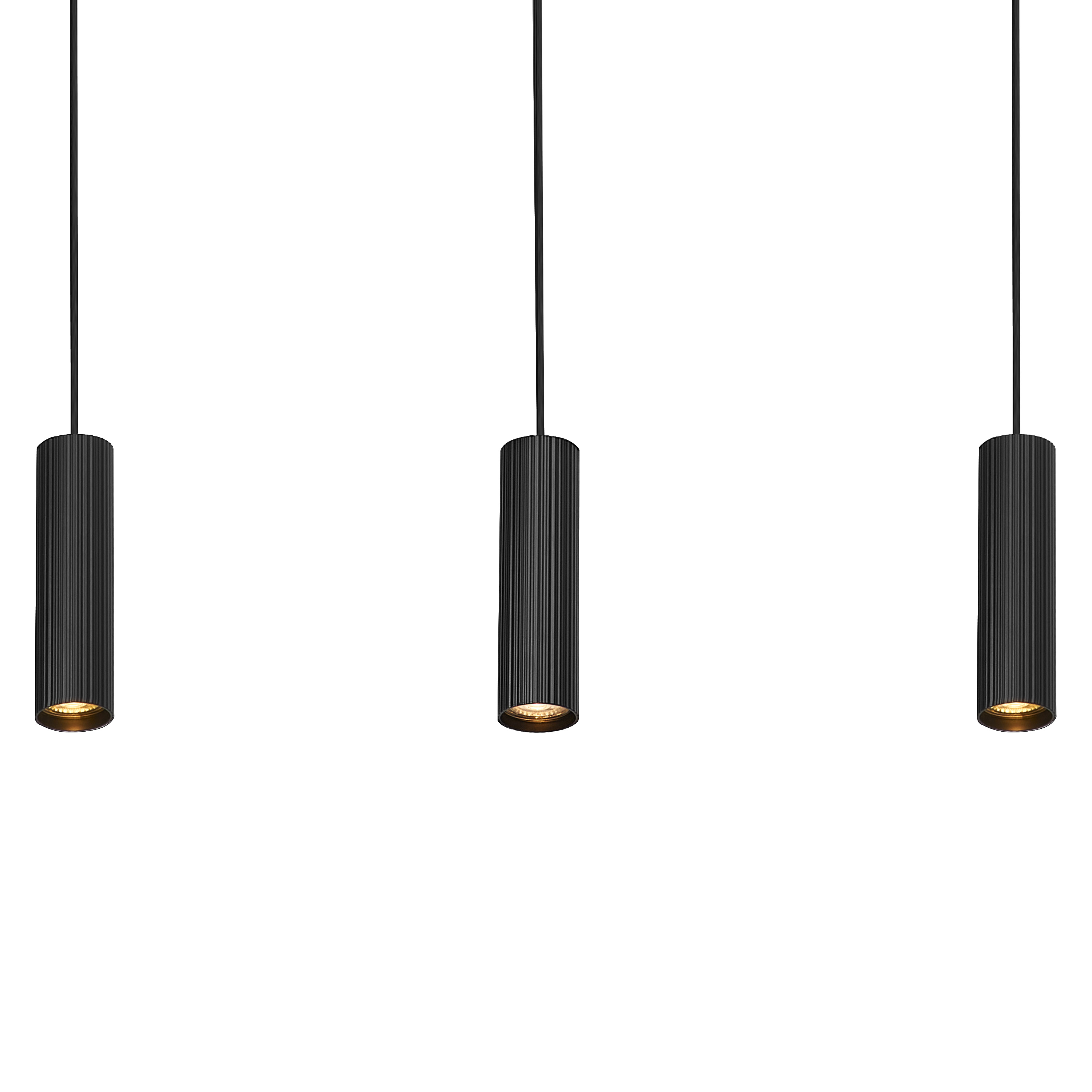

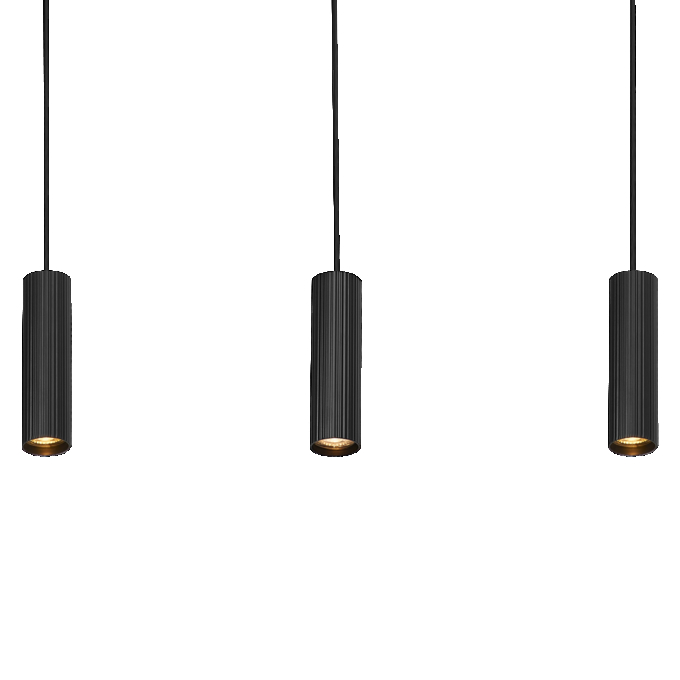

DECOR DRUMS PENDANT 3XGU10 2XLED BK Closeup 1
DECOR DRUMS PENDANT 3XGU10 2XLED BK Closeup 1
Application pictures
DECOR DRUMS PENDANT 3XGU10 2XLED BK Closeup 1 LED off
DECOR DRUMS PENDANT 3XGU10 2XLED BK Closeup 1 LED off

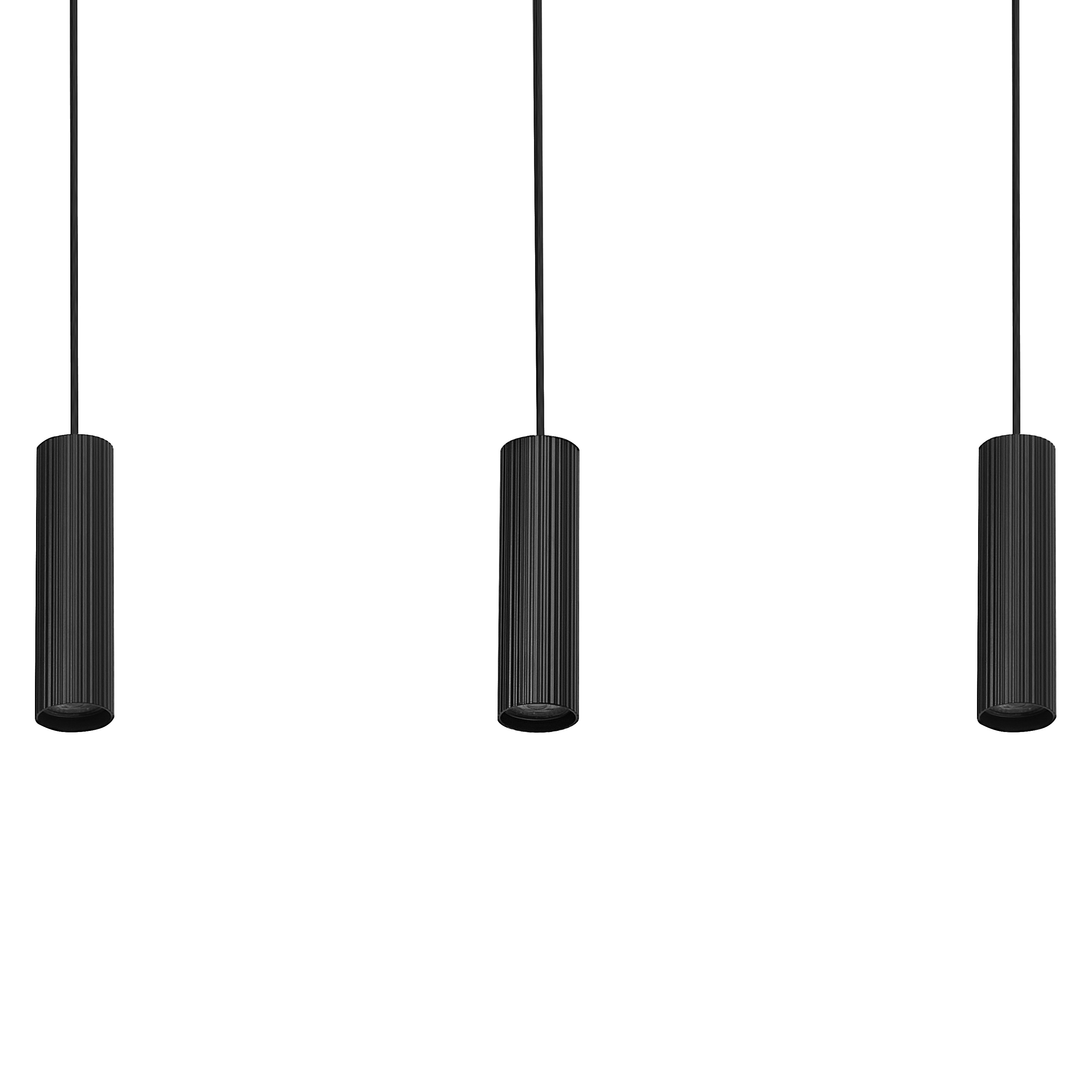

Application pictures
DECOR DRUMS PENDANT 3XGU10 2XLED BK Closeup 2
DECOR DRUMS PENDANT 3XGU10 2XLED BK Closeup 2
Application pictures

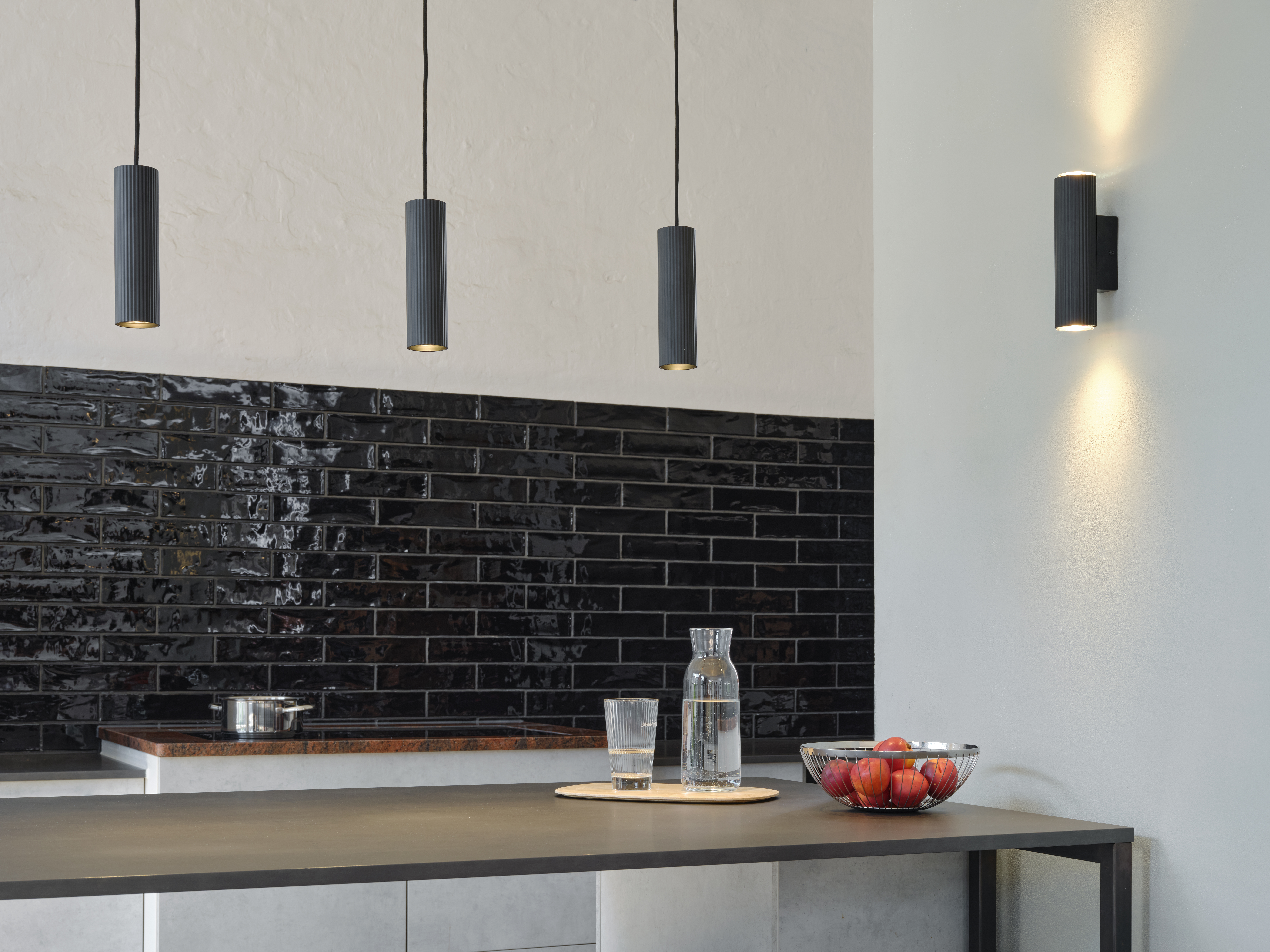

DECOR DRUMS Family
DECOR DRUMS Family
Application pictures Getty

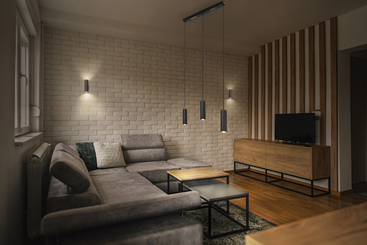

DECOR DRUMS PENDANT 3XGU10 2XLED WALL UPDOWN BK
