Decor Fuji
Decor Fuji Table 5W 930 Black
GTIN: 4058075841789
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Geometric shapes meet even illumination
- Minimalistic style fits to every room
- Different types of luminaires with the same design language maintain a consistent style at home
- Two options for easy wall installation (via EU plug on cable or direct wiring)
- On-/Off-switch on housing for convenient operation
- Easy mounting
Areas of application
- Indoor applications
- Corridors, entrance areas, stairwells, living rooms, basements
Product features
- Housing material: metal
- High-power LED
- Color temperature: 3,000 K
- Optional 1.5m cable provided with fitted EU plug (only for wall luminaire)
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Electrical data
| Nominal wattage | 5.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 30.000 mA |
| Inrush current | 0.035 A |
| Inrush current time Th50 | 46 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 36 |
| Max. number of luminaires per miniature circuit breaker C10 | 22 |
| Max. number of luminaires per miniature circuit breaker C16 | 36 |
| Power factor λ | ≥0.5 |
| Total harmonic distortion | < 70 % |
| Protection class | II |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 180 lm |
| Total luminous flux of contained light sources | 330 lm |
| Luminous efficacy | 40 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | > 90 |
| Standard deviation of color matching | 6 sdcm |
| Flickering metric (Pst LM) | ≤1 |
| Stroboscope effect metric (SVM) | ≤0.4 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 115 ° |
Dimensions & Weight
| Length | 200.00 mm |
| Height | 405.00 mm |
| Width | 210.00 mm |
| Product weight | 1400.00 g |
| Cable length | 1600 mm |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| Body material | Steel |
| Cover material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Plug type C (EU) |
| Type of protection | IP20 |
| Dimmable | No |
| Mounting type | Standing |
| Application environment | Indoor |
| Adjustable | No |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1), 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV-329)(3147-75-9) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075841789 | Folding box 1 |
162 mm x 282 mm x 453 mm | 1714.00 g | 20.69 dm³ |
| 4058075841796 | Shipping box 2 |
472 mm x 347 mm x 310 mm | 4271.00 g | 50.77 dm³ |
User instruction / safety instructions
DECOR FUJI TABLE 5W 830 BK
DECOR FUJI TABLE 5W 830 BK
Legal information
DECOR FUJI TABLE
DECOR FUJI TABLE
Declarations of conformity
DECOR LUM FUJI TABLE
DECOR LUM FUJI TABLE

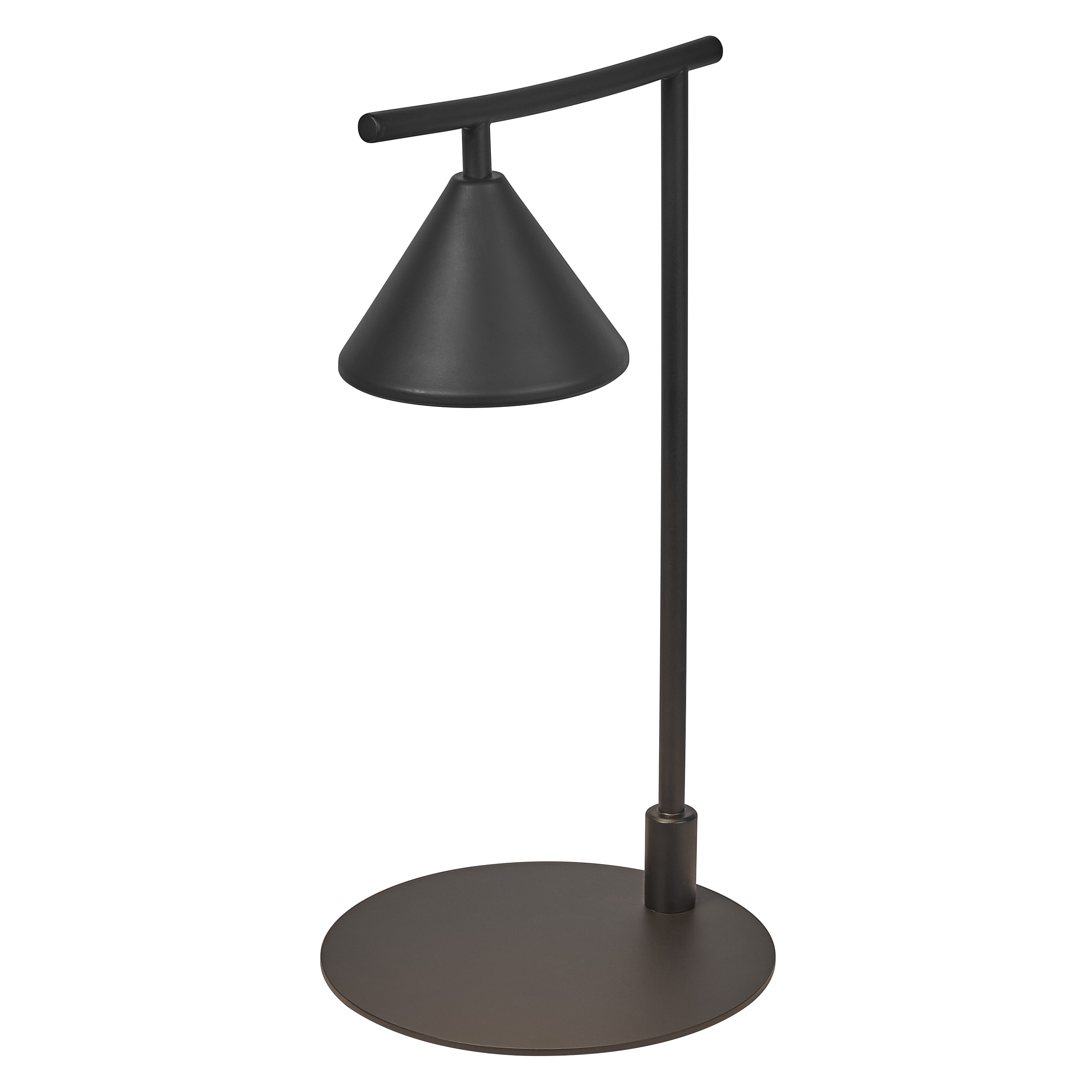

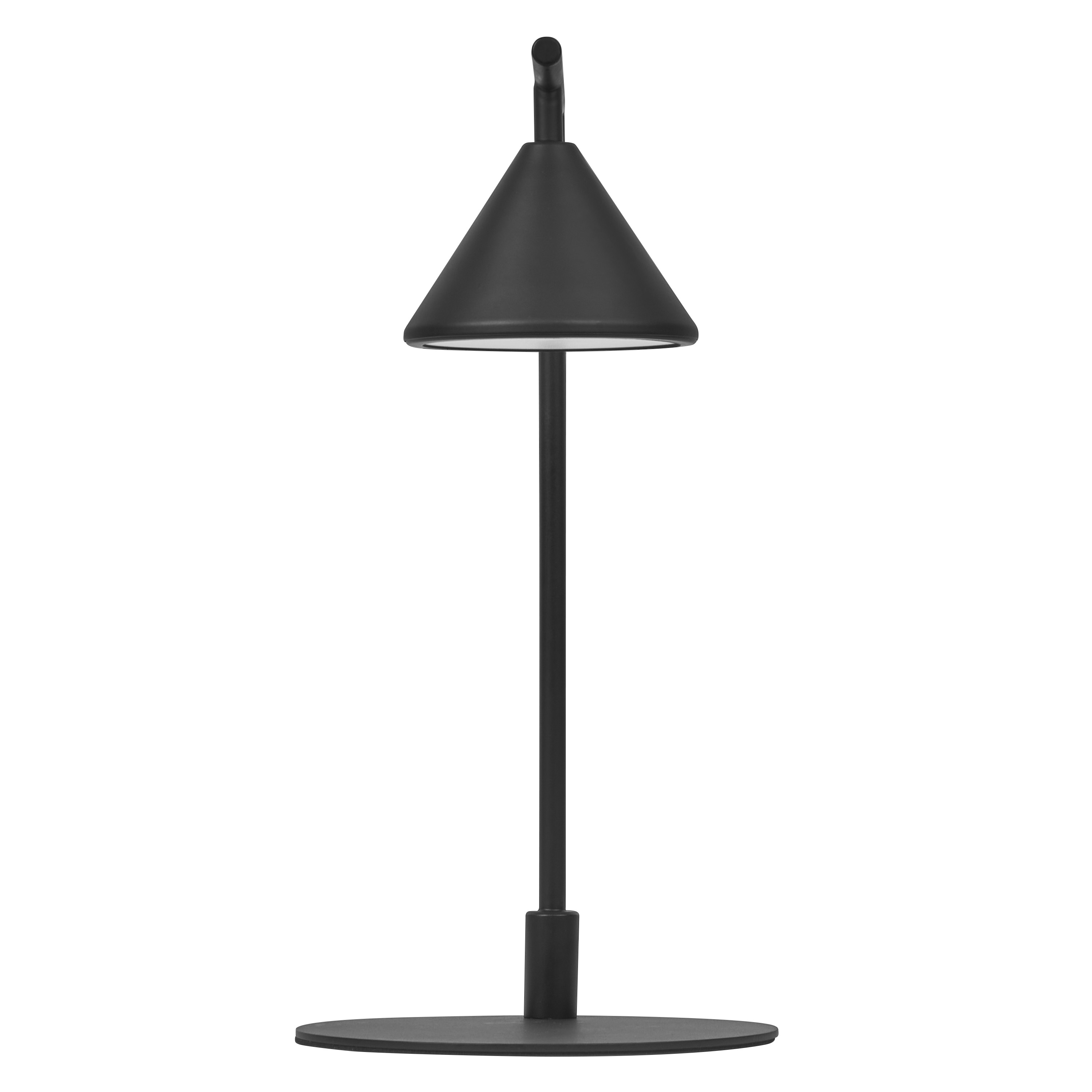

Product image: white background, upright
DECOR FUJI TABLE 5W 830 BK
DECOR FUJI TABLE 5W 830 BK
Product image: white background, upright, alternative image
DECOR FUJI TABLE 5W 830 BK
DECOR FUJI TABLE 5W 830 BK
Product image: white background, upright, switched on
DECOR FUJI TABLE 5W 830 BK
DECOR FUJI TABLE 5W 830 BK
Product line drawing with letters
DECOR FUJI TABLE 5W 830 BK
DECOR FUJI TABLE 5W 830 BK
Product line drawing with numbers
DECOR FUJI TABLE 5W 830 BK
DECOR FUJI TABLE 5W 830 BK
Product line drawing - technical
DECOR FUJI TABLE 5W 830 BK
DECOR FUJI TABLE 5W 830 BK

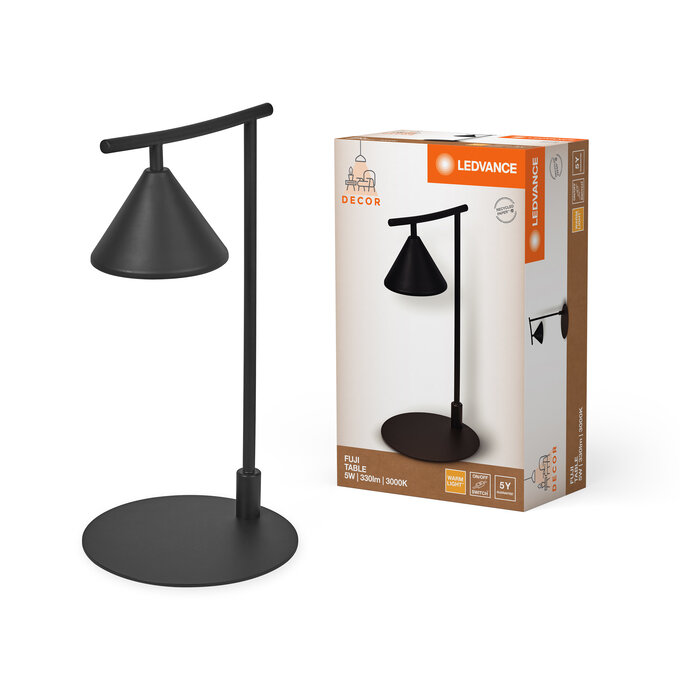

Combo Shot = Product Beauty Shot + Packaging Image
