ORBIS Tray Sparkle
Orbis Tray Sparkle Remote-CCT 580mm 35W
GTIN: 4058075227545
Shipping box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Very homogenous light
- Easy and quick installation
Areas of application
- For indoor use only
- Decorative domestic lighting
- Ceiling and wall surface mounting
Product features
- Ceiling luminaire with advanced LED technology
- Circular light emission
- Housing surface made of brushed nickel
- Color temperature adjustment, dimming and night functions via remote control
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Electrical data
| Nominal wattage | 35.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Power factor λ | > 0.90 |
| Protection class | I |
Photometrical data
| Luminous flux | 2000 lm |
| Luminous efficacy | 57 lm/W |
| Color temperature | 2700…6500 K |
| Light color (designation) | Warm White, Cool White, Daylight |
| Color rendering index Ra | > 80 |
| Beam angle | 120 ° |
Dimensions & Weight
| Diameter | 580.00 mm |
| Height | 135.00 mm |
| Product weight | 2200.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Aluminum |
| Cover material | Polymethylmethacrylate (PMMA) |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Type of connection | Screw terminal |
| Type of protection | IP20 |
| Dimmable | Yes |
| Mounting type | Surface |
| Mounting location | Ceiling |
| Application environment | Indoor |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 25000 h 1) |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
BATTERY
| Type of Battery | Alkaline |
| Battery size [GMS] | AAA |
| Nominal voltage of battery | 1.5 V |
Certificates & Standards
| Standards | CE |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075227545 | Shipping box 1 |
160 mm x 600 mm x 600 mm | 2858.00 g | 57.60 dm³ |
User instruction / safety instructions
ORBIS TRAY SPARKLE
ORBIS TRAY SPARKLE
Legal information
Legal insert B-not dimmable
Legal insert B-not dimmable
Declarations of conformity
CE Declaration Orbis Sparkle
CE Declaration Orbis Sparkle

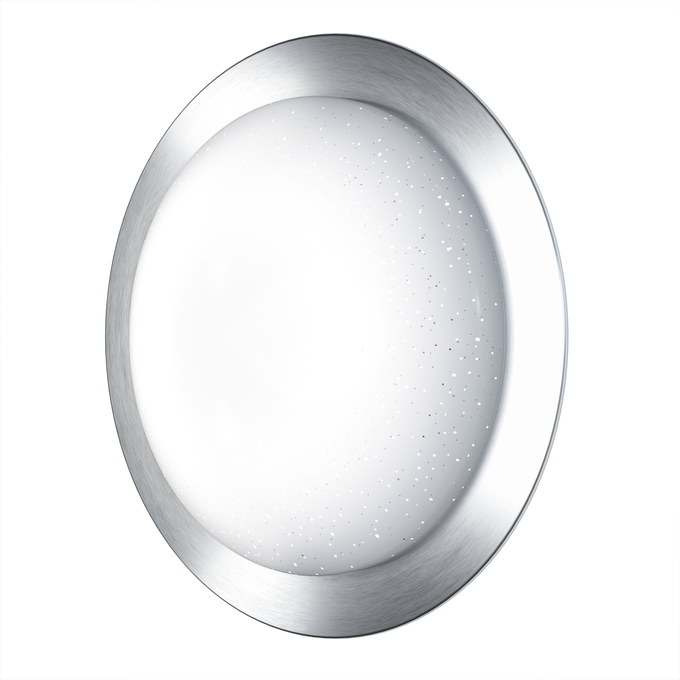

Product image: white background, horizontal, alternative image
ORBIS TRAY
ORBIS TRAY

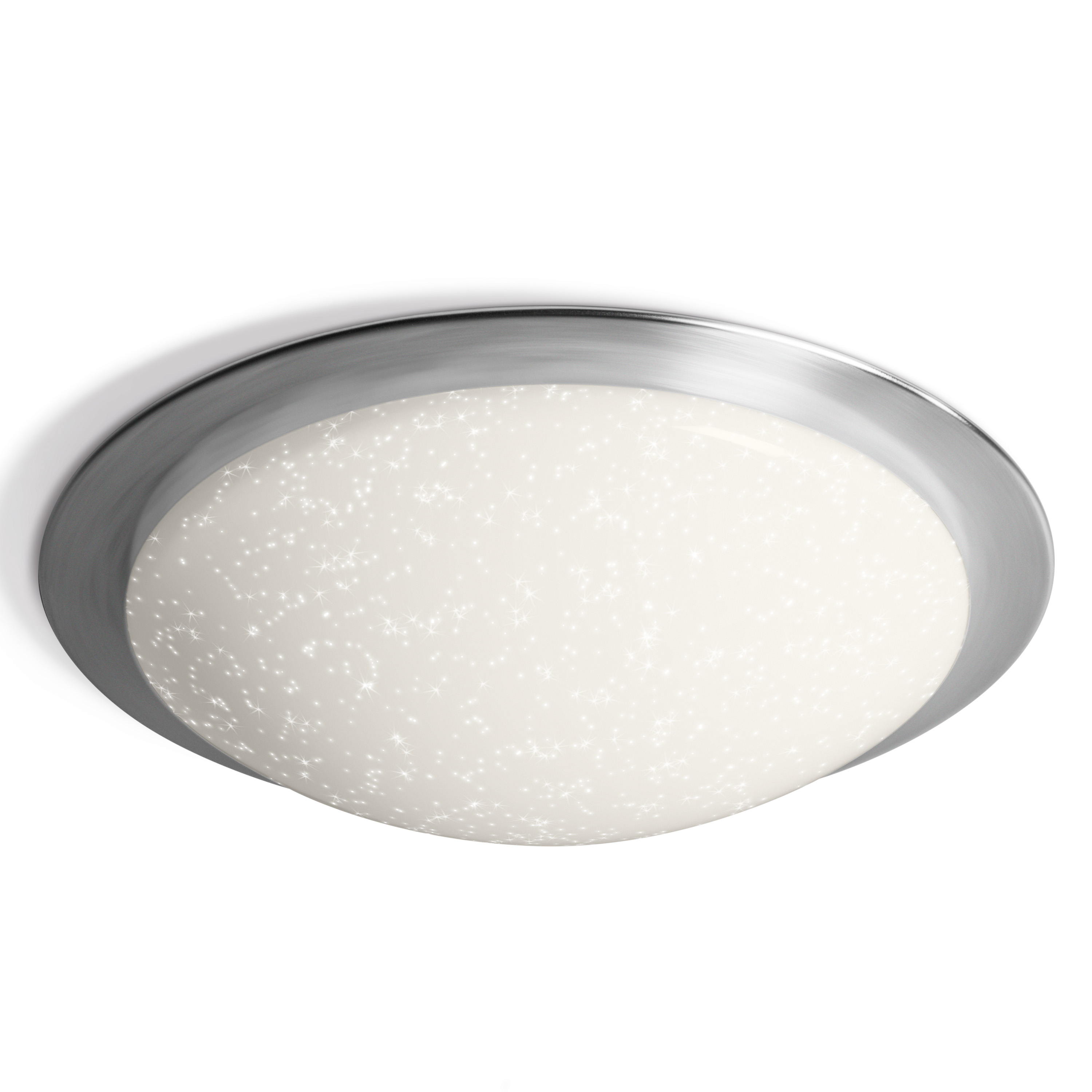

Product image: white background, upright, alternative image
ORBIS TRAY SPARKLE 580
ORBIS TRAY SPARKLE 580
Product image: white background, upright, switched on
ORBIS TRAY 580
ORBIS TRAY 580
Product image: white background, spacial
ORBIS TRAY 580
ORBIS TRAY 580
Product line drawing with letters
ORBIS TRAY SPARKLE 580MM 35W REMCCT
ORBIS TRAY SPARKLE 580MM 35W REMCCT
Product line drawing with numbers
ORBIS TRAY SPARKLE 580MM 35W REMCCT
ORBIS TRAY SPARKLE 580MM 35W REMCCT
Product line drawing, front, no dimensions
ORBIS TRAY SPARKLE 580MM 35W REMCCT
ORBIS TRAY SPARKLE 580MM 35W REMCCT
Packaging image, frontal
LUM FC ORBIS TS 580 MIPRC LDV Front
LUM FC ORBIS TS 580 MIPRC LDV Front
Packaging image, spacial
LUM FC ORBIS TS 580 MIPRC LDV Side
LUM FC ORBIS TS 580 MIPRC LDV Side
| EAN | ELDAS number |
|---|---|
| 4058075227545 | 941320460 |
