SURFACE COMPACT IK10
SF COMPACT IK10 300 24 W 4000 K IP65 WT
GTIN: 4058075062221
Folding box / 1
Show all packages
5-year warranty
PRODUCT DETAILS
Product benefits
- Slim profile
- Resistance against vandalism
- High luminous efficacy
- Very homogenous light
- LED protected for safe installation
- 5 years guarantee
Areas of application
- Corridors
- Stairways
- Bathrooms
- Foyers
- Public areas
Product features
- Beam angle: 120°
- Type of protection: IP65
- Impact resistance: IK10
- Housing and cover made from polycarbonate
- Glow Wire Test according to IEC 60695-2-12: 850 °C
- Through-wiring possible
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 24.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 110 mA |
| Inrush current | 15.6 A |
| Inrush current time Th50 | 620 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 30 |
| Max. number of luminaires per miniature circuit breaker C10 | 28 |
| Max. number of luminaires per miniature circuit breaker C16 | 45 |
| Power factor λ | ≥0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | II |
| Operating mode | Integrated LED driver |
Photometrical data
| Luminous flux | 1920 lm |
| Luminous efficacy | 80 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | ≤4 sdcm |
| Luminous intensity | - |
| Low flicker | Yes |
| Flickering metric (Pst LM) | - |
| Stroboscope effect metric (SVM) | - |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 120 ° |
Dimensions & Weight
| Diameter | 300.00 mm |
| Height | 61.00 mm |
| Product weight | 940.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Polycarbonate (PC) |
| Cover material | Polycarbonate (PC) |
| Light emitting surface material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 850 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+50 °C |
| Type of connection | Screwless terminal, 3-Pole |
| Type of protection | IP65 |
| Protection class IK (shock resistance) | IK10 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Ceiling, Wall |
| Application environment | Indoor |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
| Lifespan L80/B10 at 25 °C | 30000 h 1) |
| Lifespan L90/B10 at 25 °C | 15000 h |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
| Output current | 280 mA |
Certificates & Standards
| Standards | CE, CB, ENEC, TÜV SÜD, EAC |
| Luminaire with limited surface temperature, "D sign" | Yes |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075062221 | Folding box 1 |
61 mm x 304 mm x 304 mm | 1060.00 g | 5.64 dm³ |
| 4058075062238 | Shipping box 8 |
555 mm x 320 mm x 325 mm | 9430.00 g | 57.72 dm³ |
User instruction / safety instructions
SURFACE COMPACT IK10
SURFACE COMPACT IK10
On-Pack-Info
Legal Insert Surface
Legal Insert Surface
Legal information
LS Insert SF Compact IK10
LS Insert SF Compact IK10
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Declarations of conformity
SURFACE COMPACT IK10
SURFACE COMPACT IK10
Declarations of conformity
EC declaration of surface compact IK10 LEDV
EC declaration of surface compact IK10 LEDV
Certificates
CE Certificate Sruface Compact RD300 24W
CE Certificate Sruface Compact RD300 24W
Product image: white background, upright
SF Compact 300 24W IK10 IP65
SF Compact 300 24W IK10 IP65
Product image: white background, spacial
SF Compact 300 24W IK10 IP65
SF Compact 300 24W IK10 IP65
Product line drawing with letters
SF Compact 300 24W IK10 IP65
SF Compact 300 24W IK10 IP65
Product line drawing with numbers
SF Compact 300 24W IK10 IP65
SF Compact 300 24W IK10 IP65

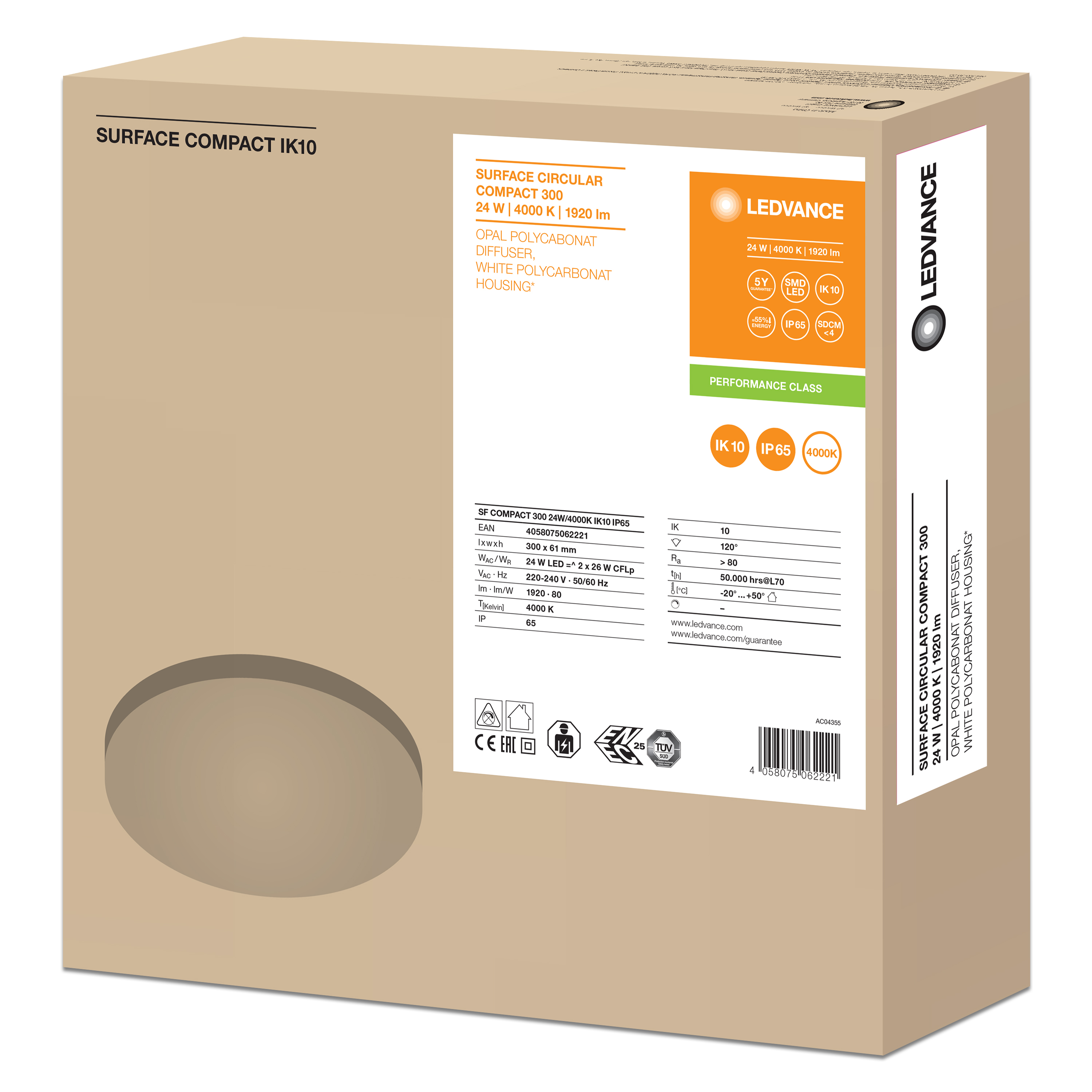

Packaging image, spacial
SURFACE COMPACT 24 W 4000 K WT Mich Side
SURFACE COMPACT 24 W 4000 K WT Mich Side
Catalog info 1
Surface Compact IK10
Surface Compact IK10
Catalog info 2
Surface Compact IK10
Surface Compact IK10
IES file (IES)
SF Compact RD300 24W 4000K IP65 IK10 WT
SF Compact RD300 24W 4000K IP65 IK10 WT
LDT file (Eulumdat)
SF Compact RD300 24W 4000K IP65 IK10 WT
SF Compact RD300 24W 4000K IP65 IK10 WT
ULD file (DIALux)
SURFACECOMPACTIK1024W4 000KIP65WT
SURFACECOMPACTIK1024W4 000KIP65WT
ROLF file (RELUX)
SF COMPACT 300 24W-4000K
SF COMPACT 300 24W-4000K
UGR file (UGR table)
4058075062221 SF Compact RD300 24W 4000K IP65 IK10 WT
4058075062221 SF Compact RD300 24W 4000K IP65 IK10 WT
Light distribution curve type cone
4058075062221 SF Compact RD300 24W 4000K IP65 IK10 WT
4058075062221 SF Compact RD300 24W 4000K IP65 IK10 WT
Light distribution curve type polar
4058075062221 SF Compact RD300 24W 4000K IP65 IK10 WT
4058075062221 SF Compact RD300 24W 4000K IP65 IK10 WT
BIM Revit 3D
SURFACE-COMPACT IK10
SURFACE-COMPACT IK10
CAD STEP 3D
SF Compact IK10
SF Compact IK10
Tender documents
SURFACE COMPACT IK10 24 W 4000 K IP65 WT-EN
SURFACE COMPACT IK10 24 W 4000 K IP65 WT-EN
Application pictures
Corridors and Stairways illumination
Corridors and Stairways illumination
Application pictures

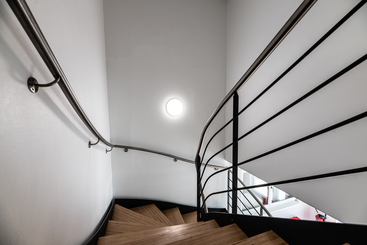

Office picture at SPIESS
Office picture at SPIESS
Application pictures

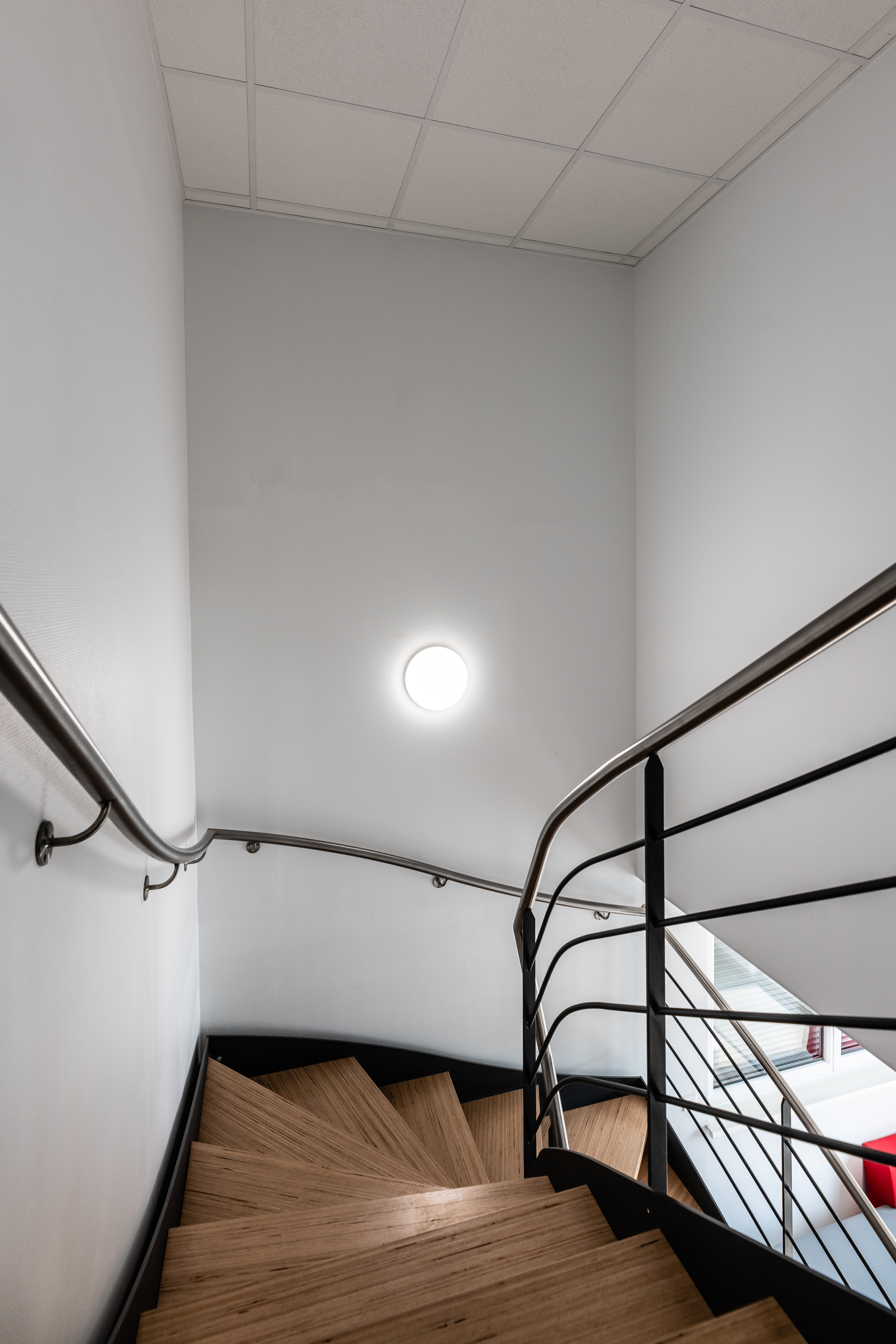

Office picture at SPIESS
