TruSys FLEX T5 TRACK

TRUSYS FLEX T5 TRACK REFLECTOR VW

GTIN: 4099854230196 BAG / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Simple installation
Product features
  • 150 cm insert with T5 tube fitting holders and preinstalled wires
  • Including optional side covers for luminaire inserts
Electrical data
Protection class I
Photometrical data
Beam angle 130 °
Dimensions & Weight
Length 1486 mm
Height 50 mm
Width 121 mm
Product weight 1280.00 g
Materials & Colors
Product color White
RAL Color (most similar) RAL9016
Body material Steel
Cover material Steel
Application & Mounting
Type of protection IP20
Replaceable light source No
Certificates & Standards
Standards CE, CB, UKCA, ENEC, EAC
Ball shot safe No
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1), Nonafluorobutanesulphonic acid (375-73-5),2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV-329)(3147-75-9)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854230196 BAG
1		 200 mm x 1,600 mm 1290.00 g
4099854230202 Shipping box
6		 1,561 mm x 312 mm x 119 mm 9137.00 g 57.96 dm³
User instruction / safety instructions
UI TruSys Flex T5 Track
PDF (3.86 MB)
Legal information
Informationstext 18 Abs 4 ElektroG
PDF (435.15 KB)
Declarations of conformity
TRUSYS FLEX T5 TRACK
PDF (375.79 KB)

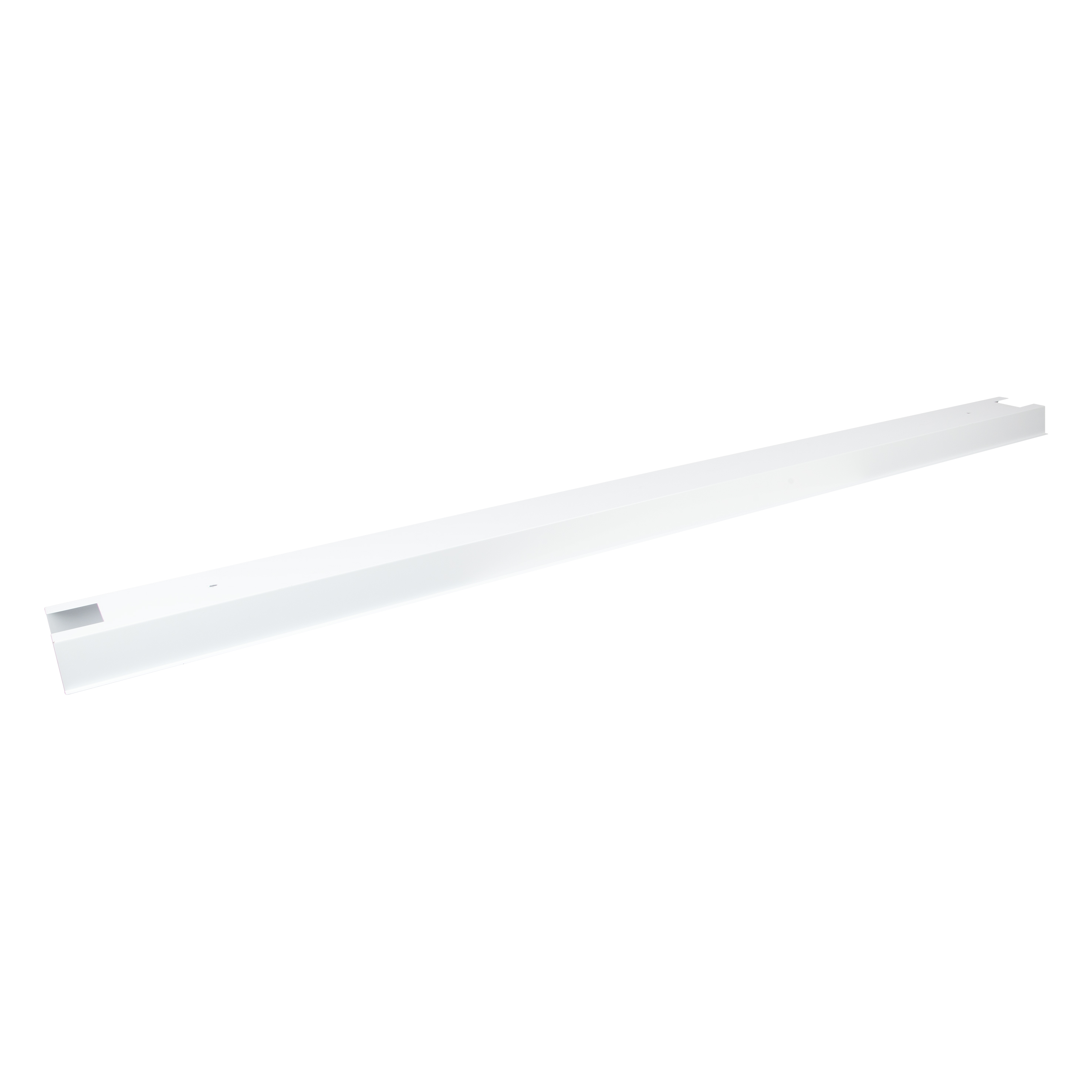

Product image: white background, diagonal
TRUSYS FLEX T5 TRACK REFLECTOR VW
JPG (692.7 KB)

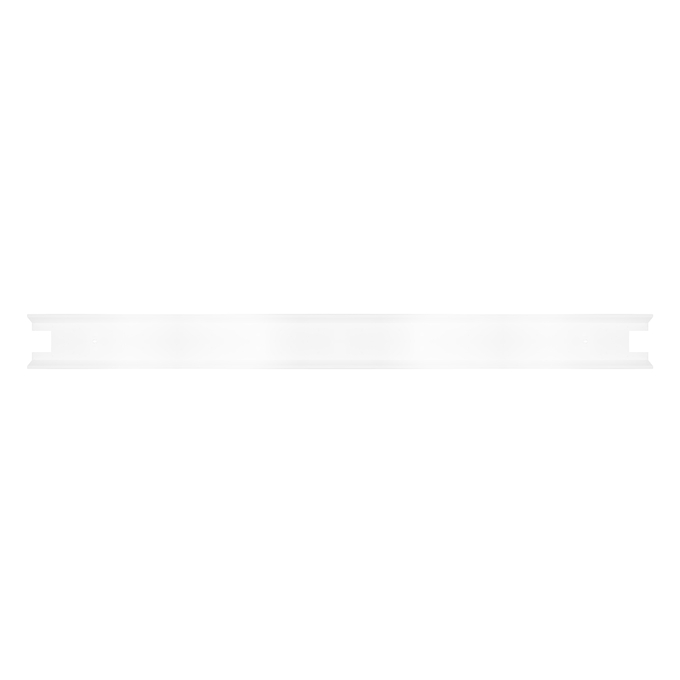

Product image: white background, upright
TRUSYS FLEX T5 TRACK REFLECTOR VW
JPG (623.29 KB)
Product line drawing with letters
TRUSYS FLEX T5 TRACK REFLECTOR VW
SVG (8.5 KB)
Product line drawing with numbers
TRUSYS FLEX T5 TRACK REFLECTOR VW
SVG (15.21 KB)
Product line drawing, front, no dimensions
TRUSYS FLEX T5 TRACK REFLECTOR VW
SVG (4.88 KB)

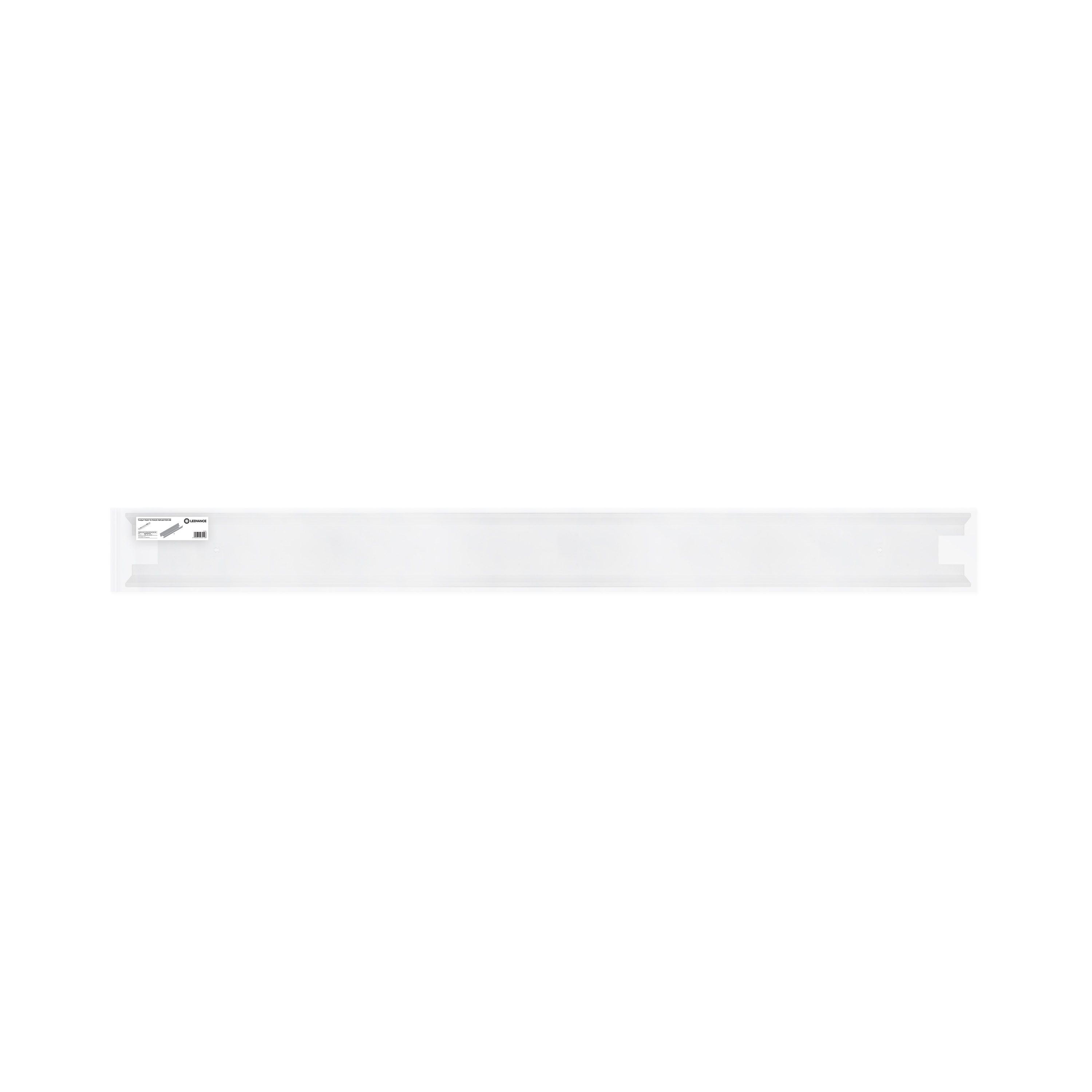

Packaging image, frontal
TRUSYS FLEX T5 TRACK REFLECTOR VW
JPG (548.77 KB)
Tender documents
TruSys FLEX T5 TRACK REFLECTOR VW-EN
TXT (472 B)
EAN STK number ELDAS number UK Org
4099854230196 4325307 941964920 437369204
