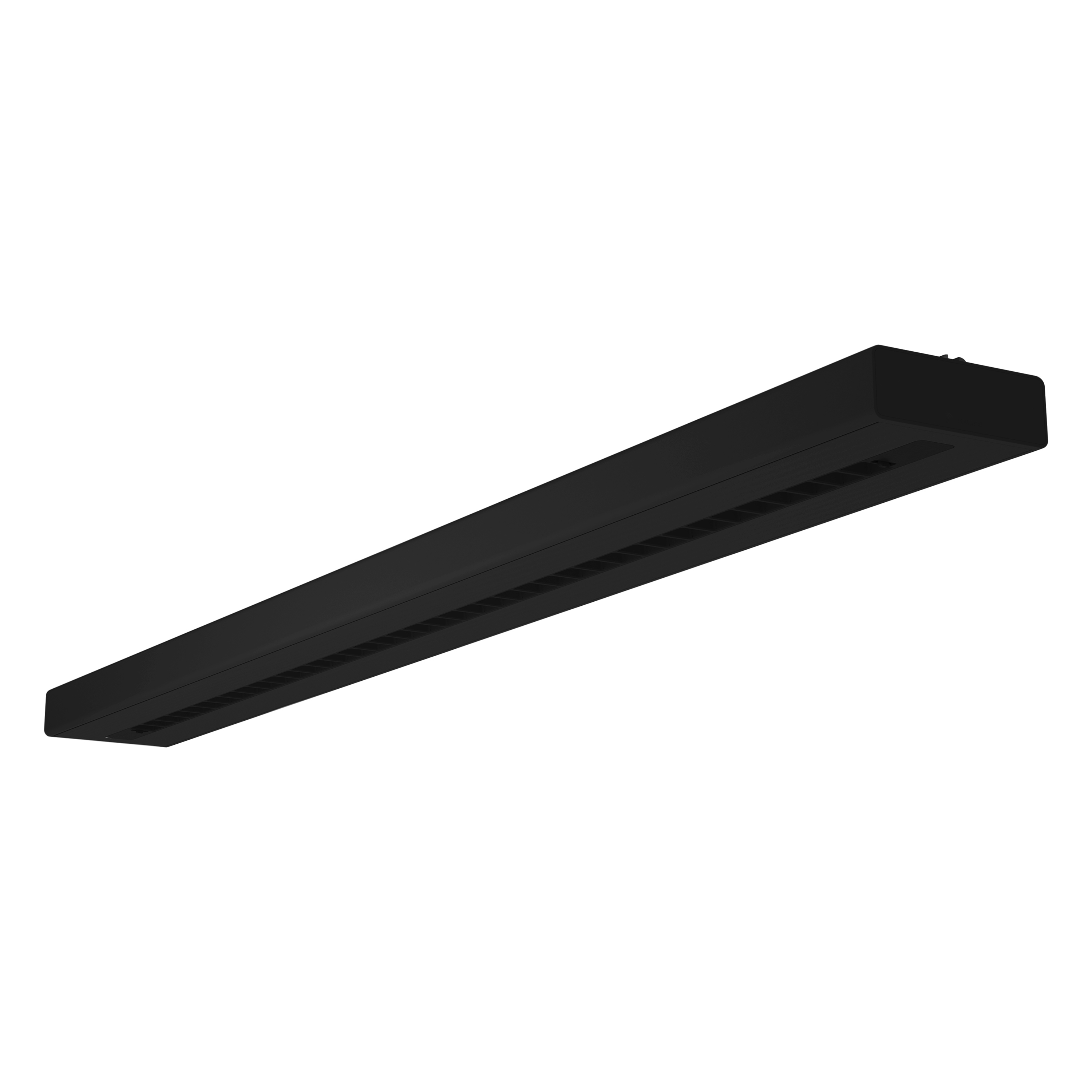

LN INV D 1500 P 52W 940 PS BK

GTIN: 4099854296826 Folding box / 1 Show all packages

Contact sales

Tools

Easy upgradeability of light source and driver (EVERLOOP design)
Homogenous light distribution and reduced glare (UGR ≤ 19) thanks to IndiviLED® optics
High performance with CRI90 and up to 130 lm/W

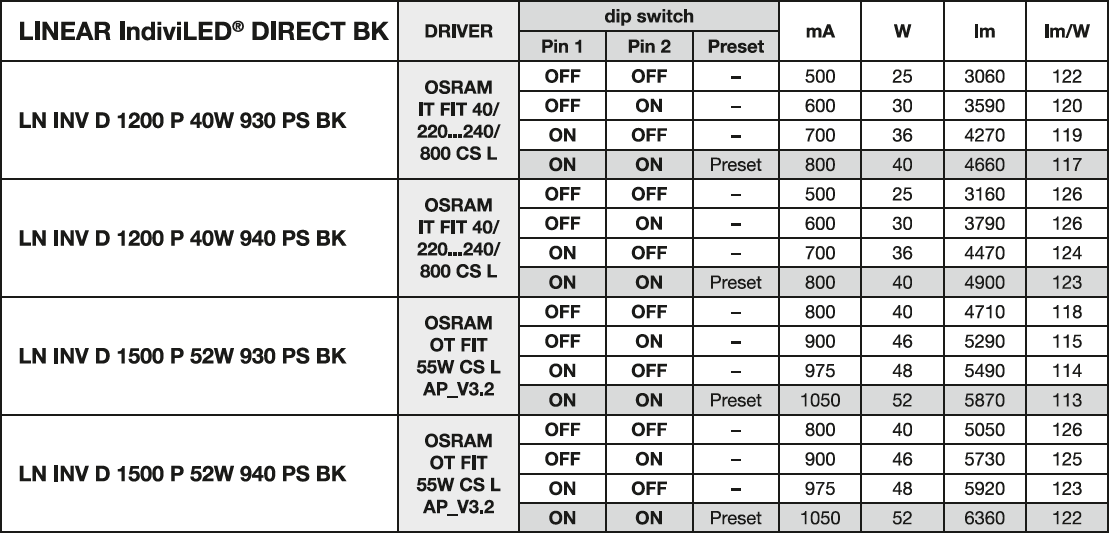

Highly versatile due to selectable power steps (Power Select - PS) on the driver
Symmetric light distribution for various application areas
High color consistency with SDCM 3
Easy installation
Low flicker light thanks to special electronic control gear
Multiple mounting options thanks to different accessories

Minimalistic LEDVANCE SCALE design in extruded aluminum housing, available in white and black color
Includes EVERLOOP: Convenient replacement of light source and LED driver
Linkable into seamless light line with accessories (surface or pendant mounting)
Pendant mounting with suspension kit (to be ordered separetely)
Glow Wire Test according to IEC 60695-2-12: 850 °C
5-pole terminal block, cable cross section up to 5 x 2.5 mm²
Lifetime (L80/B10): 70,000 h (at 25 °C)

Suspension kit available for pendant luminaire version (to be ordered separately)
Inline, corner and infill connectors available as separate accessory
Through-wiring cable kit available

All electrical connections must be made by a qualified person.
Caution, risk of electric shock.
Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.

Nominal wattage	52 W / 48 W / 46 W / 40 W
Nominal voltage	220…240 V
Mains frequency	0/50/60 Hz
Nominal current	240…220…205…185 mA
Inrush current	14.6 A
Inrush current time T_h50	170 µs
Max. number of luminaires per miniature circuit breaker B16	28
Max. number of luminaires per miniature circuit breaker C10	23
Max. number of luminaires per miniature circuit breaker C16	38
Power factor λ	> 0.90
Total harmonic distortion	≤ 20 %
Protection class	I
Operating mode	Integrated LED driver

Luminous flux	6350 lm / 5900 lm / 5700 lm / 5050 lm
Luminous efficacy	122 lm/W / 123 lm/W / 124 lm/W / 126 lm/W
Color temperature	4000 K
Light color (designation)	Cool White
Color rendering index Ra	> 90
Standard deviation of color matching	3 sdcm
Low flicker	Yes
Flickering metric (Pst LM)	≤1
Stroboscope effect metric (SVM)	≤0.4
Photobiological safety group acc. to EN62778	RG0
Photobiological safety group acc. to EN62471	RG0
Beam angle	90 °
UGR	< 19

Nominal wattage	Color temperature	Luminous flux	Luminous efficacy
52 W	4000 K	6350 lm	122 lm/W
48 W	4000 K	5900 lm	123 lm/W
46 W	4000 K	5700 lm	124 lm/W
40 W	4000 K	5050 lm	126 lm/W

Product color	Black
Housing color	Black
Body material	Aluminum
Cover material	Polymethylmethacrylate (PMMA)
Light emitting surface material	Polymethylmethacrylate (PMMA)
Glow Wire Test according to IEC 60695-2-12	850 °C
Mercury content	0.0 mg

Ambient temperature range	-20…+50 °C
Temperature range at storage	-20…+80 °C
Type of connection	Screwless terminal, 5-Pole (L, N, PE, DA+, DA-)
Type of protection	IP20
Protection class IK (shock resistance)	IK06
Dimmable	No
Mounting type	Suspended/Surface
Mounting location	Ceiling
Application environment	Indoor
Adjustable	No
With light source	Yes
Replaceable light source	Yes

¹⁾ t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Standards	CE, CB, ENEC, TÜV SÜD, UKCA, EAC, EPD
Luminaire with limited surface temperature, "D sign"	No
Ball shot safe	No
EPD	LEDV-00027-V01.01-EN
Replaceable light source (EPREL)	By the end consumer

Number of illuminants	1

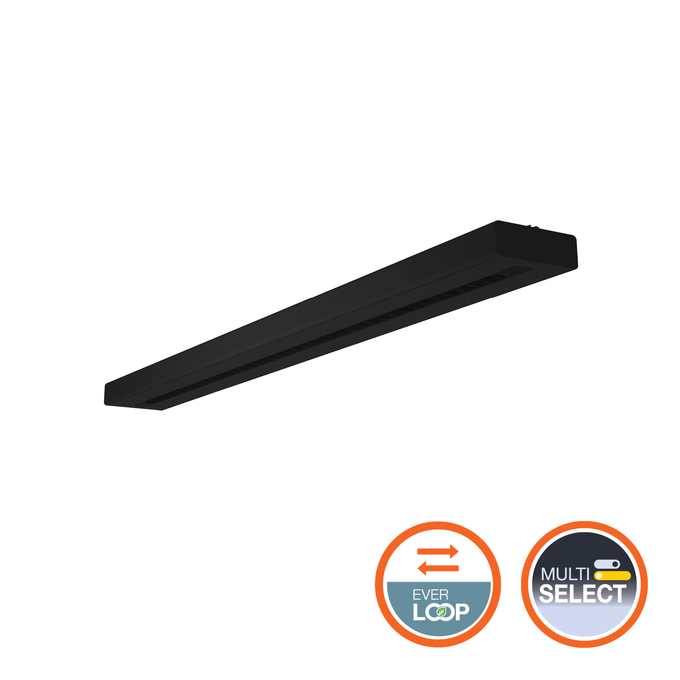

Added function	EVERLOOP, MULTI SELECT

Quantity of precious metals	Contains at least 10 mg
Quantity of rare earths	Contains at least 1 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage	Lead (7439-92-1), N,N-Dimethylformamide (68-12-2)

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume

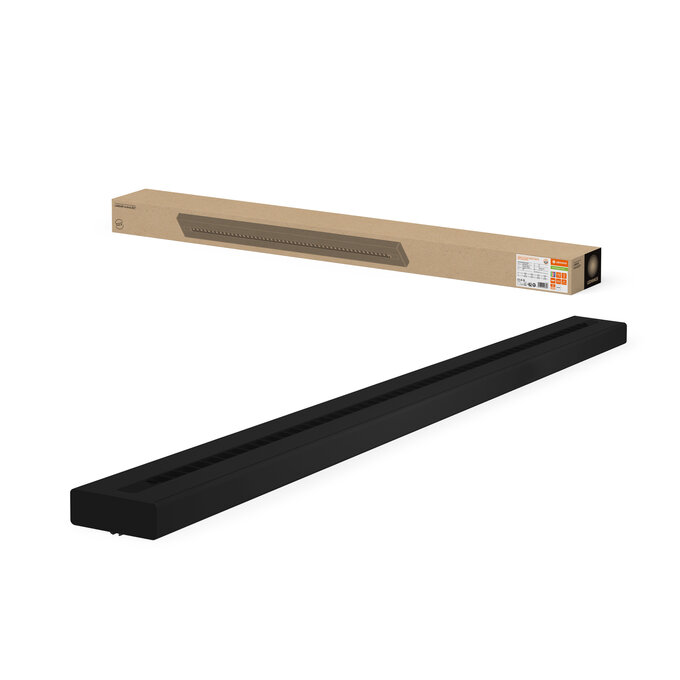

4099854296826	Folding box 1	177 mm x 1,530 mm x 102 mm	4660.00 g	27.62 dm³
4099854296833	Shipping box 2	1,550 mm x 197 mm x 224 mm	10920.00 g	68.40 dm³
