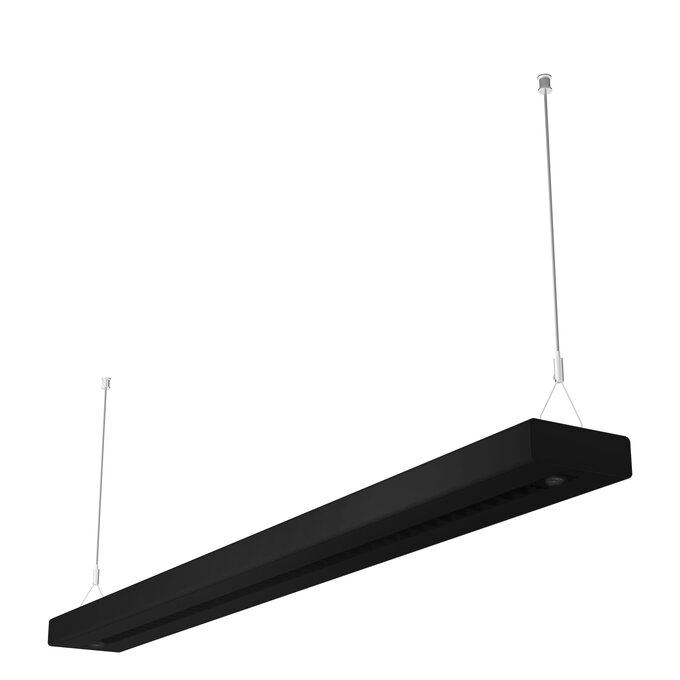

LINEAR INDIVILED DIRECT/INDIRECT 1500 DALI SENSOR

LN INV DI 1500 P 69W 930 DAVR SN BK

GTIN: 4099854371844 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions
Fast Light Calculation Tool
The fast way to plan lighting projects

PRODUCT DETAILS

Product benefits
  • Easy upgradeability of light source and driver (EVERLOOP design)
  • Homogenous light distribution and reduced glare (UGR ≤ 19) thanks to IndiviLED® optics
  • Pendant luminaires with direct light emission (70%) and indirect light emission (30%)
  • High performance with CRI90 and up to 131 lm/W
  • High color consistency with SDCM 3
  • Easy installation
  • Low flicker light thanks to special electronic control gear
  • Suitable for battery emergency installations acc. to EN 60598-2-22
  • Multiple mounting options thanks to different accessories
Areas of application
  • Direct replacement for luminaires with fluorescent lamps
  • Offices, education, public buildings
  • Single and continuous line configuration
  • Direct and indirect lighting
Product features
  • Minimalistic LEDVANCE SCALE design in extruded aluminum housing, available in white and black color
  • Includes EVERLOOP: Convenient replacement of light source and LED driver
  • PIR-Sensor with leader-follower function
  • Combined daylight and motion detection
  • Individual adjustment of the parameters with configuration software or remote control
  • Linkable into seamless light line with accessories (surface or pendant mounting)
  • Pendant mounting with suspension kit (to be ordered separetely)
  • Glow Wire Test according to IEC 60695-2-12: 850 °C
  • 5-pole terminal block, cable cross section up to 5 x 2.5 mm²
  • Lifetime (L80/B10): 70,000 h (at 25 °C)
Equipment / Accessories
  • Suspension kit available for pendant luminaire version (to be ordered separately)
  • Inline, corner and infill connectors available as separate accessory
  • Through-wiring cable kit available
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
Electrical data
Nominal wattage 69 W / 63 W / 60 W / 54 W
Nominal voltage 220…240 V
Mains frequency 0/50/60 Hz
Nominal current 308…285…270…240 mA
Inrush current 16 A
Inrush current time Th50 40 µs
Max. number of luminaires per miniature circuit breaker B16 23
Max. number of luminaires per miniature circuit breaker C10 20
Max. number of luminaires per miniature circuit breaker C16 32
Power factor λ > 0.90
Total harmonic distortion ≤ 20 %
Protection class I
Operating mode Integrated LED driver
Photometrical data
Luminous flux 8000 lm / 7500 lm / 7150 lm / 6550 lm
Luminous efficacy 116 lm/W / 119 lm/W / 121 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra ≥90
Standard deviation of color matching 3 sdcm
Low flicker Yes
Flickering metric (Pst LM) ≤1
Stroboscope effect metric (SVM) ≤0.4
Photobiological safety group acc. to EN62778 RG0
Photobiological safety group acc. to EN62471 RG0
Beam angle 90 ° + 130 °
UGR < 19
Adjustable attributes

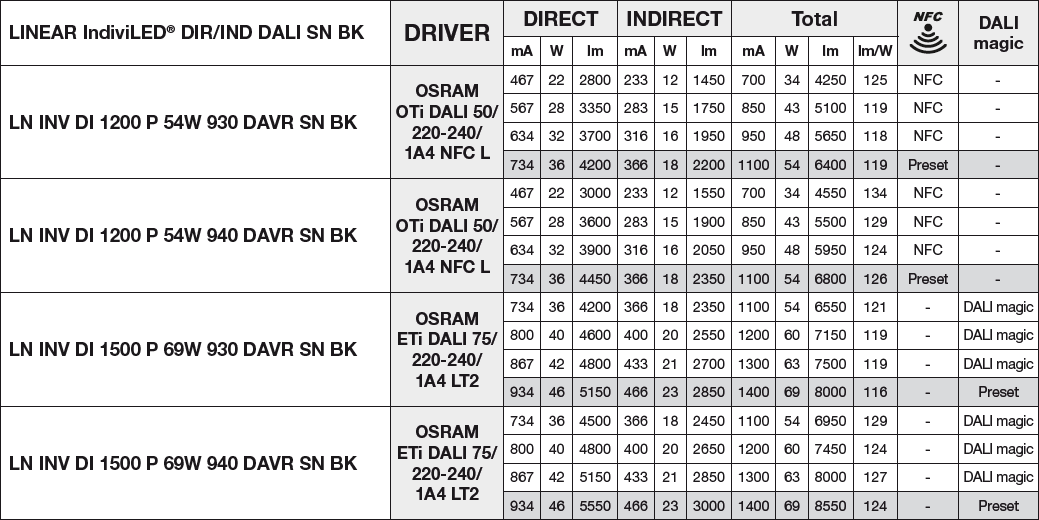

Nominal wattage Color temperature Luminous flux Luminous efficacy
69 W 3000 K 8000 lm 116 lm/W
63 W 3000 K 7500 lm 119 lm/W
60 W 3000 K 7150 lm 119 lm/W
54 W 3000 K 6550 lm 121 lm/W
Dimensions & Weight
Length 1475.00 mm
Height 43.00 mm
Width 125.00 mm
Product weight 4250.00 g
Materials & Colors
Product color Black
Housing color Black
Body material Aluminum
Cover material Polymethylmethacrylate (PMMA)
Light emitting surface material Polymethylmethacrylate (PMMA)
Glow Wire Test according to IEC 60695-2-12 850 °C
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+50 °C
Temperature range at storage -20…+80 °C
Type of connection Screwless terminal, 5-Pole (L, N, PE, DA+, DA-)
Type of protection IP20
Protection class IK (shock resistance) IK06
Dimmable Yes
Type of dimming DALI2
IoT ready Support of DALI data type PART 251, 252, 253 1)
Mounting type Suspended
Mounting location Ceiling
Application environment Indoor
Adjustable No
With light source Yes
Replaceable light source Yes
1) Internet of Things. Supports data transfer via gateway to cloud-based monitoring platforms, such as LEDVANCE VIVARES Cloud
Lifespan
Lifespan L70/B50 at 25 °C 100000 h 1)
Lifespan L80/B10 at 25 °C 70000 h 1)
Lifespan L90/B10 at 25 °C 35000 h
Number of switching cycles 25000
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
Output current 1400mA / 1300mA / 1200mA / 1100 mA
ECG - Output ripple current ≤ 5 %
Recommended control gear OSRAM type ETI DALI 75/220-240/1A4 LT2
Sensor
Type of sensor Motion, Light
Sensor technology Passive infrared/Photocell
Sensor detection angle 80 °
Sensor controlled switching time 10 s … 30 min
Detection range of motion sensor 1.7 m … 4 m
Certificates & Standards
Standards CE, CB, ENEC, TÜV SÜD, UKCA, EAC
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Replaceable light source (EPREL) By the end consumer
Additional product data
Added function EVERLOOP, VIVARES, Programmable Multi Lumen
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1), N,N-Dimethylformamide (68-12-2)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854371844 Folding box
1		 177 mm x 1,530 mm x 102 mm 4950.00 g 27.62 dm³
4099854371851 Shipping box
2		 1,550 mm x 197 mm x 224 mm 11500.00 g 68.40 dm³
User instruction / safety instructions
LN INV P DAVR SN
PDF (5.92 MB)
Legal information
Legal Insert LN INV P DA
PDF (781.7 KB)
Legal information
LSI LN INV DA
PDF (2.6 MB)
Declarations of conformity
LN INV
PDF (298.65 KB)
Certificates
LN INV
PDF (343.84 KB)

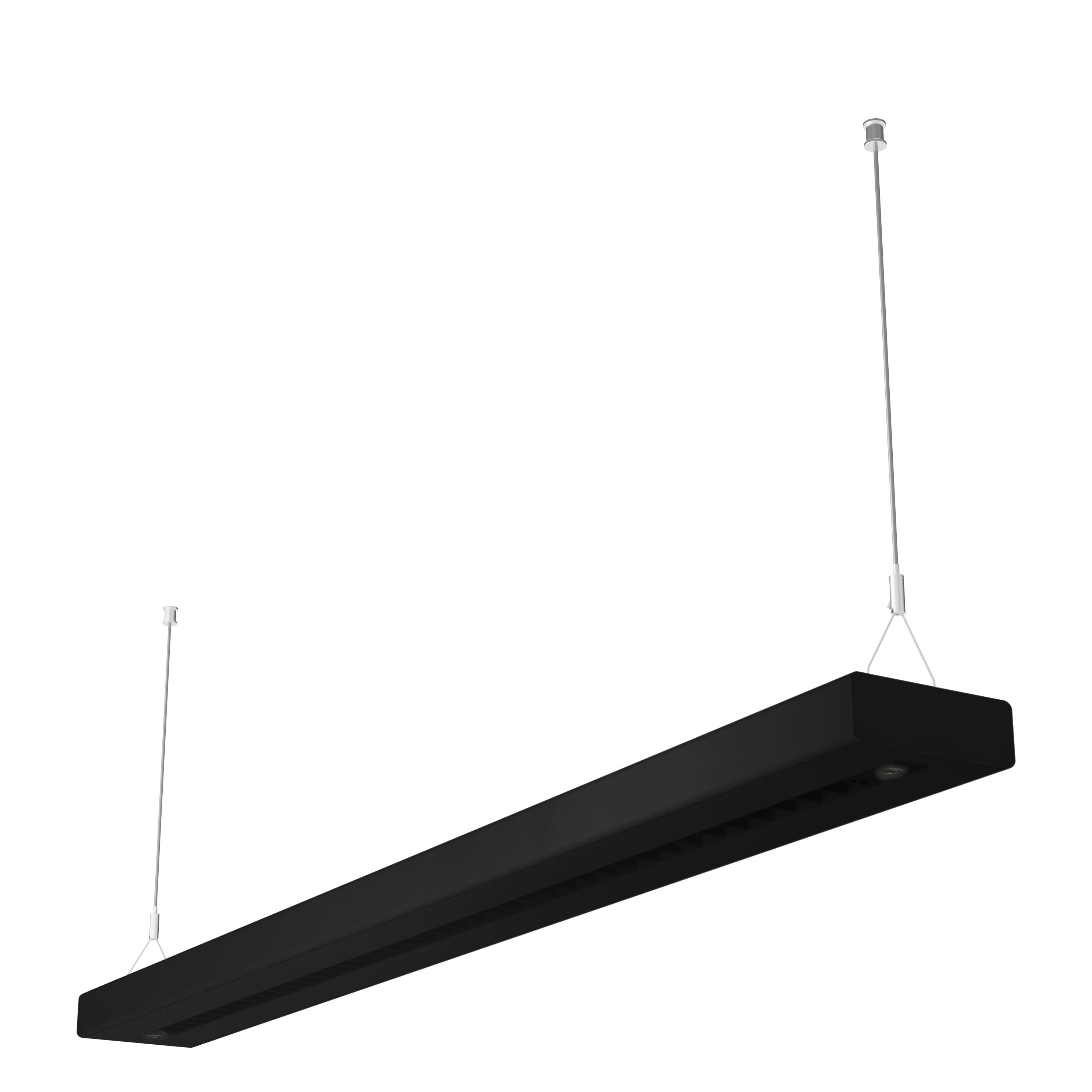

Product image: white background, diagonal
LN INV DI DAVR SN BK
JPG (794 KB)

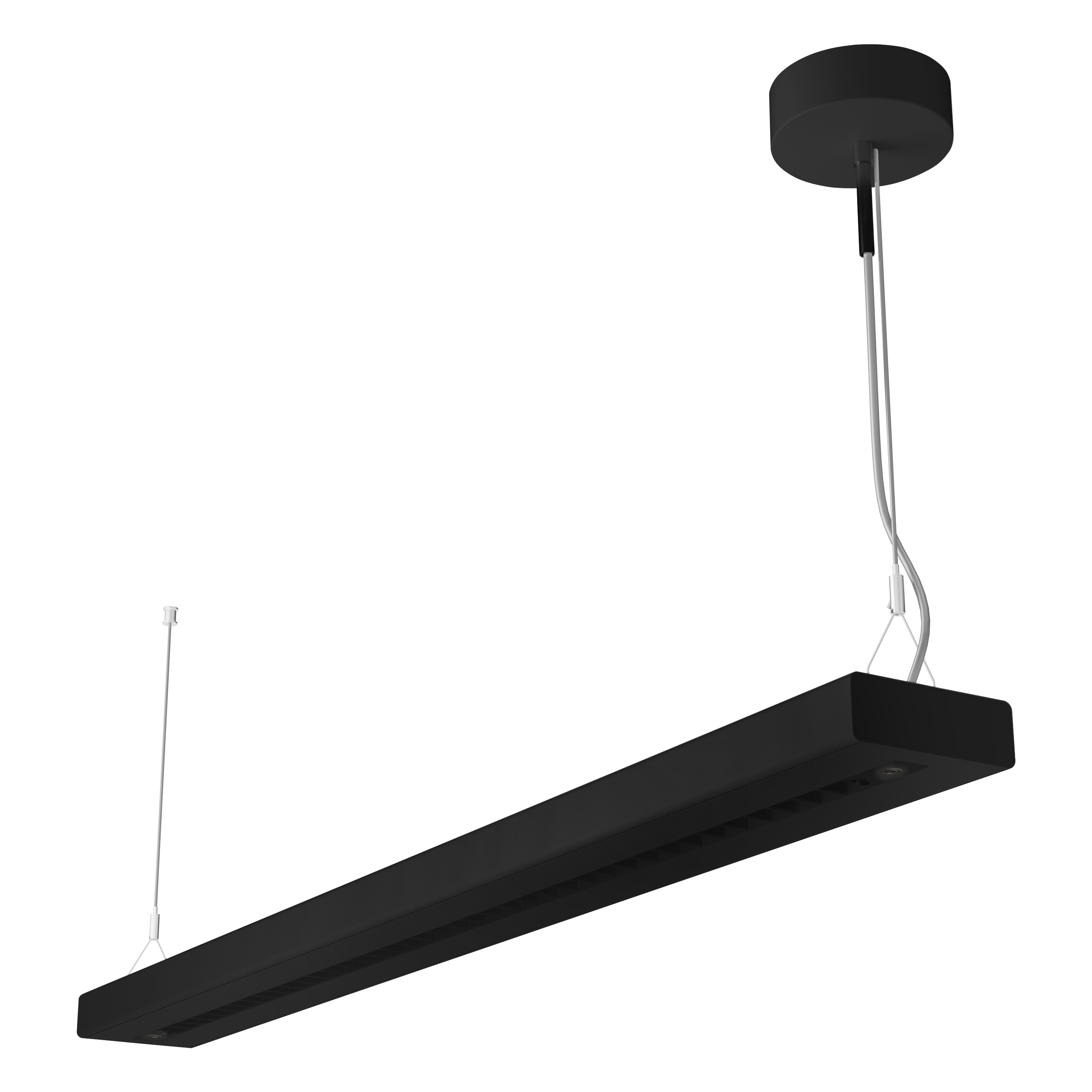

Product image: white background, diagonal, alternative image
LN INV DI DAVR SN BK
JPG (818.58 KB)

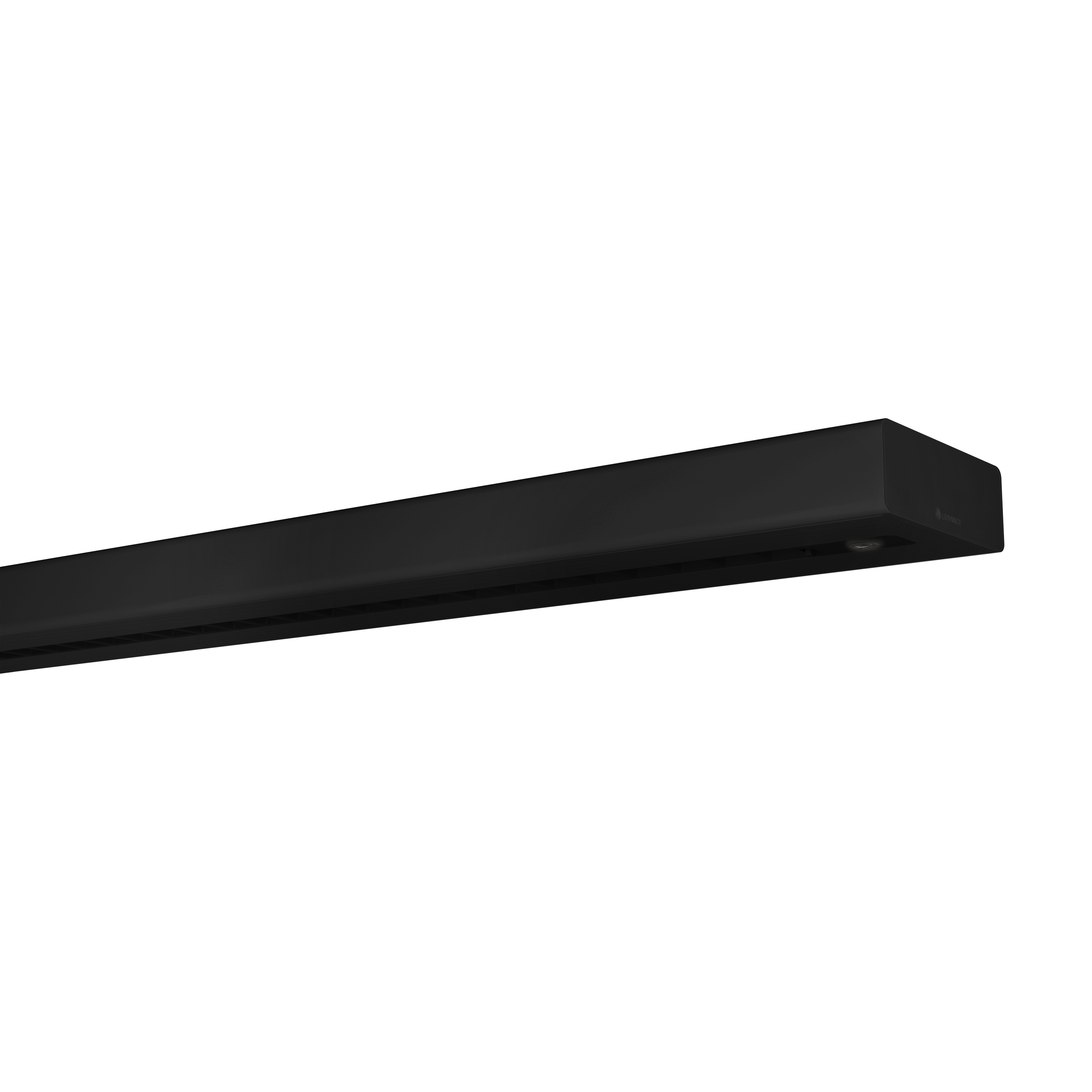

Product image: white background, diagonal, alternative image
LN INV DI DAVR SN BK
JPG (797.03 KB)

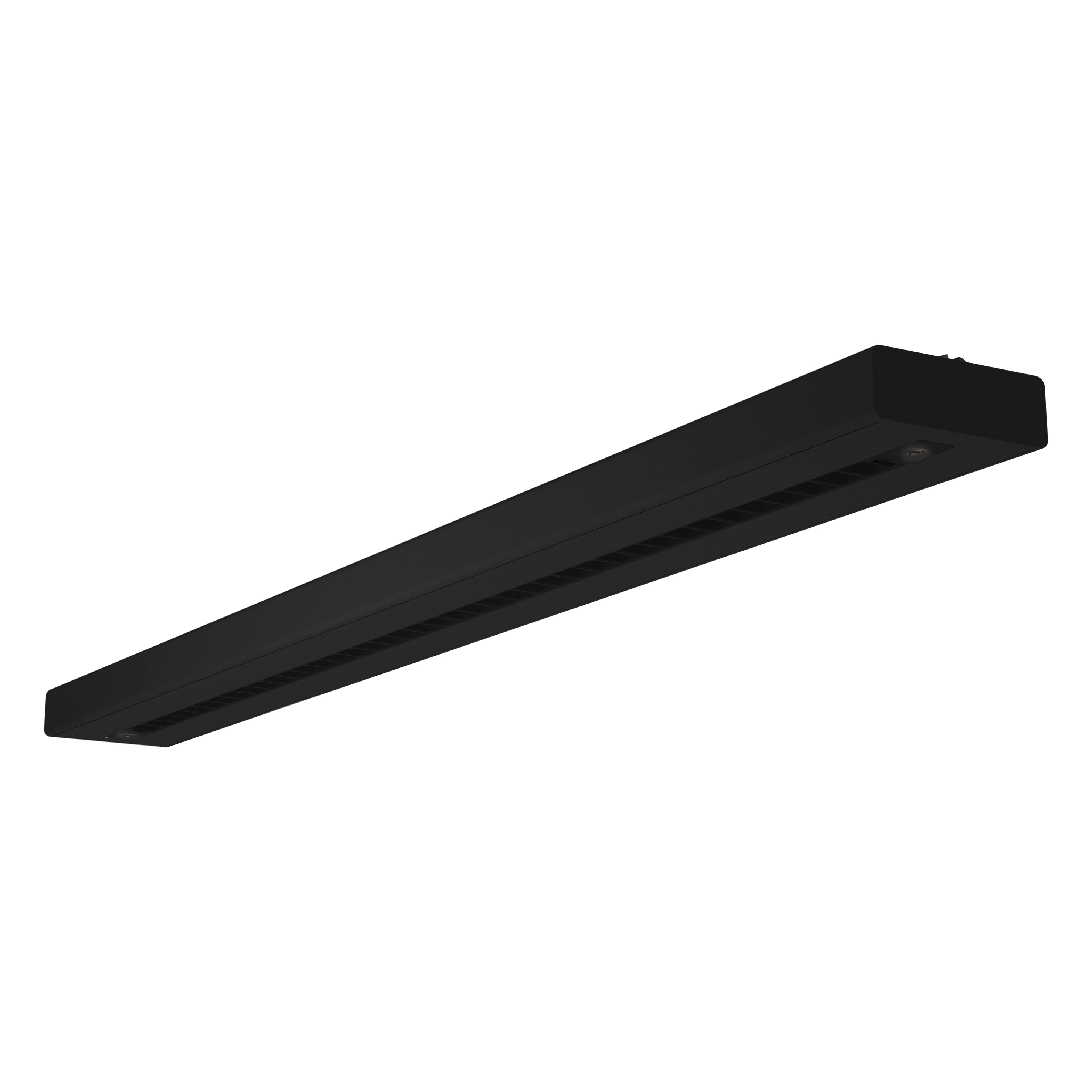

Product image: white background, horizontal
LN INV P BK
JPG (652.07 KB)

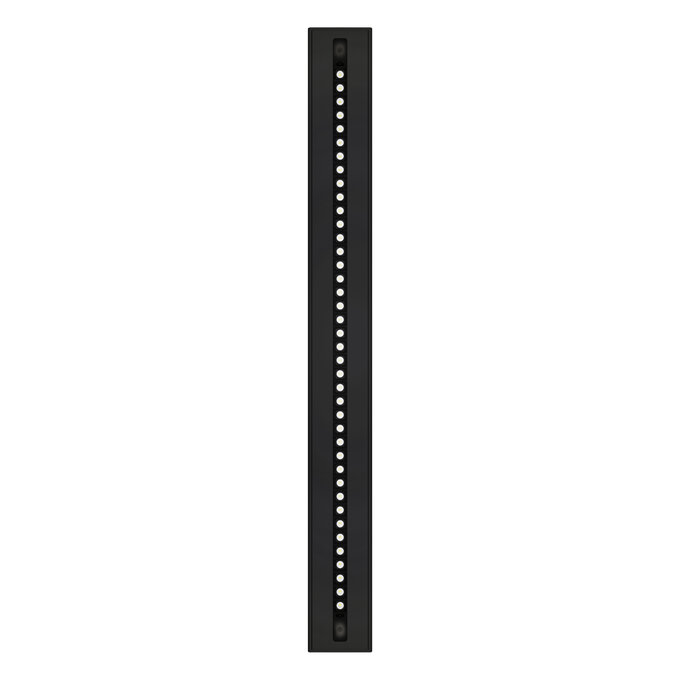

Product image: white background, upright
LN INV DI DAVR SN BK
JPG (1.05 MB)

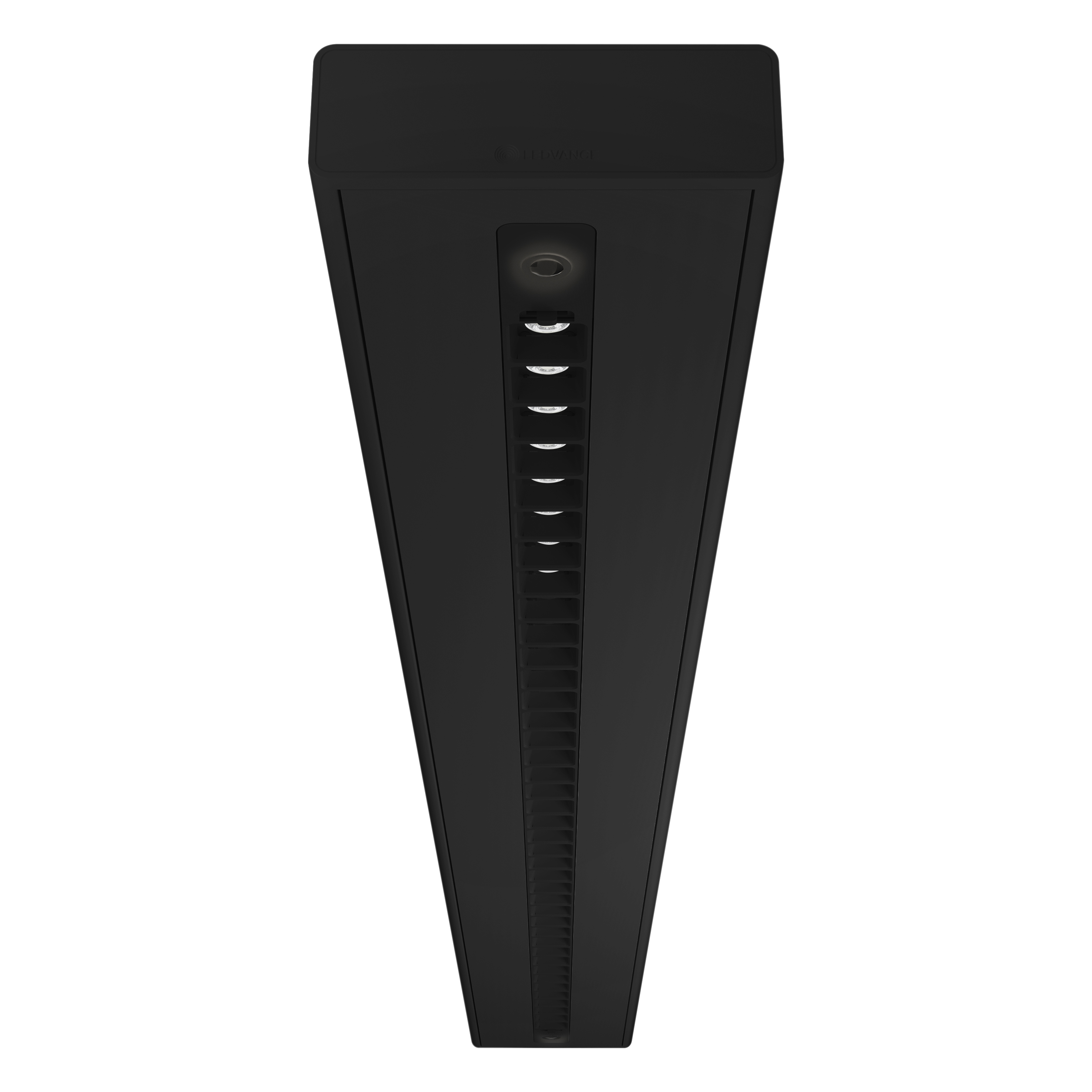

Product image: white background, spacial
LN INV DI DAVR SN BK
JPG (842.23 KB)
Product line drawing with letters
LN INV 1200 P
SVG (76.41 KB)
Product line drawing with numbers
LN INV 1200 P
SVG (82.97 KB)
Product line drawing, front, no dimensions
LN INV 1200 P
SVG (72.8 KB)

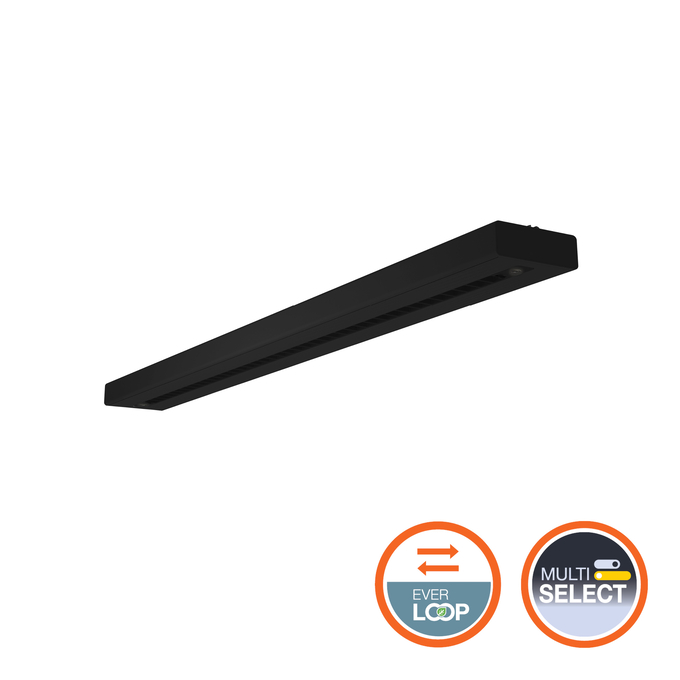

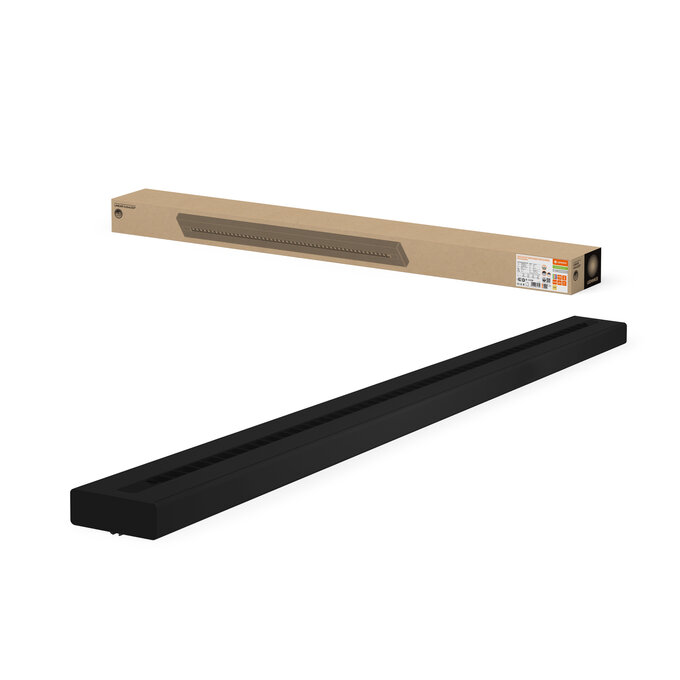

Combo Shot = Product Beauty Shot + Packaging Image
