LINEAR INDIVILED DIRECT/INDIRECT 1500 EMERGENCY
LN INV DI 1500 P 69W 940 PS EL BK
GTIN: 4099854297939
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Seamless integration of luminaires with emergency lighting function into general lighting
- Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
- Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function
- Convenient visualization of results of automatic test with an included control LED
- Easy upgradeability of light source and driver (EVERLOOP design)
- Homogenous light distribution and reduced glare (UGR ≤ 19) thanks to IndiviLED® optics
- High performance with CRI90 and up to 130 lm/W
- Highly versatile due to selectable power steps (Power Select - PS) on the driver
- Symmetric light distribution for various application areas
- High color consistency with SDCM 3
- Multiple mounting options thanks to different accessories
Areas of application
- Emergency illumination of escape routes
- Buildings requiring up to 3 h emergency light operation
- Direct replacement for luminaires with fluorescent lamps
- Offices, education, public buildings
- Single and continuous line configuration
- Direct and indirect lighting
Product features
- Certified according to European norms (EN 60598-2-22)
- Luminaire suitable for normal lighting and emergency lighting
- Emergency lighting function: battery discharge time of 3 h
- Function test of emergency lighting: automatic (AT)
- Battery technology: LiFePO4
- Includes EVERLOOP: Convenient replacement of light source and LED driver
- Linkable into seamless light line with accessories (surface or pendant mounting)
- Pendant mounting with suspension kit (to be ordered separetely)
- 5-pole terminal block, cable cross section up to 5 x 2.5 mm²
- Lifetime (L80/B10): 70,000 h (at 25 °C)
Equipment / Accessories
- Suspension kit available for pendant luminaire version (to be ordered separately)
- Inline, corner and infill connectors available as separate accessory
- Through-wiring cable kit available
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 69 W / 63 W / 61 W / 53 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 315mA / 285mA/ 270mA / 242 mA |
| Inrush current | 23.6 A |
| Inrush current time Th50 | 176 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 17 |
| Max. number of luminaires per miniature circuit breaker C10 | 14 |
| Max. number of luminaires per miniature circuit breaker C16 | 23 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | ≤ 20 % |
| Protection class | I |
| Surge capability (L-N) | 1000 V |
| Surge capability (L/N-Ground) | 2000 V |
| Operating mode | Integrated LED driver |
Photometrical data
| Luminous flux | 8850 lm / 8200 lm / 8000 lm / 6950 lm |
| Luminous efficacy | 128 lm/W / 130 lm/W / 131 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | ≥90 |
| Standard deviation of color matching | 3 sdcm |
| Low flicker | Yes |
| Flickering metric (Pst LM) | ≤1 |
| Stroboscope effect metric (SVM) | ≤0.4 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 90 ° + 130 ° |
| UGR | < 19 |
Adjustable attributes
| Nominal wattage | Color temperature | Luminous flux | Luminous efficacy |
|---|---|---|---|
| 69 W | 4000 K | 8850 lm | 128 lm/W |
| 63 W | 4000 K | 8200 lm | 130 lm/W |
| 61 W | 4000 K | 8000 lm | 131 lm/W |
| 53 W | 4000 K | 6950 lm | 131 lm/W |
Dimensions & Weight
| Length | 1475.00 mm |
| Height | 43.00 mm |
| Width | 125.00 mm |
| Product weight | 4600.00 g |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| RAL Color (most similar) | RAL 9005 |
| Body material | Aluminum |
| Cover material | Polymethylmethacrylate (PMMA) |
| Light emitting surface material | Polymethylmethacrylate (PMMA) |
| Glow Wire Test according to IEC 60695-2-12 | 850 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | 0…+40 °C |
| Temperature range at storage | -25…+25 °C |
| Type of connection | Screwless terminal |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK06 |
| Dimmable | No |
| Mounting type | Suspended |
| Mounting location | Ceiling |
| Application environment | Indoor |
| Adjustable | No |
| With light source | Yes |
| Replaceable light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 100000 h 1) |
| Lifespan L80/B10 at 25 °C | 70000 h 1) |
| Lifespan L90/B10 at 25 °C | 35000 h |
| Number of switching cycles | 25000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
| Output current | 1400mA / 1300mA / 1200mA / 1100 mA |
| ECG - Output ripple current | ≤ 5 % |
| Recommended control gear | OSRAM OT FIT 55/220–240/1A0 CS L AP & IT FIT 18/220-240/350 CS L |
BATTERY
| Type of Battery | LiFePO4 |
| Battery size [GMS] | Others |
| Nominal voltage of battery | 3.2 V |
| Nominal capacity of battery | 4500 mAh |
| Battery charging time | 24 h |
Emergency lighting
| Type of Emergency Lighting (EL) | EL unit (battery and controller) for decentral operation included |
| Area of emergency application | Anti-panic lighting, Escape route lighting |
| Type of emergency light operation | Non-maintained, Maintained |
| Type of emergency operation test | Automatic |
| Wattage in emergency operation mode | 2.3 W |
| Luminous flux in emergency operation mode | 400 lm |
| Battery life in emergency operation mode | 3 h |
Certificates & Standards
| Standards | CE, CB, ENEC, TÜV SÜD, UKCA, EAC, EPD |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | By the end consumer |
Additional product data
| Number of illuminants | 2 |
| Added function | EVERLOOP, MULTI SELECT |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1), 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV329) - (3147-75-9) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854297939 | Folding box 1 |
177 mm x 1,530 mm x 102 mm | 5000.00 g | 27.62 dm³ |
| 4099854297946 | Shipping box 2 |
1,550 mm x 197 mm x 224 mm | 11600.00 g | 68.40 dm³ |
| Product image | Product name | EAN |
|---|---|---|
|
LN INV SUSPENSION KIT BK | 4099854297069 |
|
LN INV SUSPENSION WIRE | 4099854323980 |
User instruction / safety instructions
LN INV D/DI 1200/1500 P PS EL
LN INV D/DI 1200/1500 P PS EL
Legal information
Legal Insert G11235609
Legal Insert G11235609
Legal information
Safety Insert G11205497
Safety Insert G11205497
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Legal information
LN IND EM
LN IND EM
Declarations of conformity
CE declaration LN INV D P PS EL
CE declaration LN INV D P PS EL
Product image: white background, diagonal, alternative image
LN INV P BK
LN INV P BK
Product image: white background, diagonal, alternative image
LN INV P BK
LN INV P BK
Product image: white background, horizontal
LN INV P BK
LN INV P BK
Product image: white background, upright
LN INV P BK
LN INV P BK
Product image: white background, spacial
LN INV DI
LN INV DI
Product line drawing with letters
LN INV 1500 P
LN INV 1500 P
Product line drawing with numbers
LN INV 1500 P
LN INV 1500 P
Product line drawing, front, no dimensions
LN INV 1500 P
LN INV 1500 P

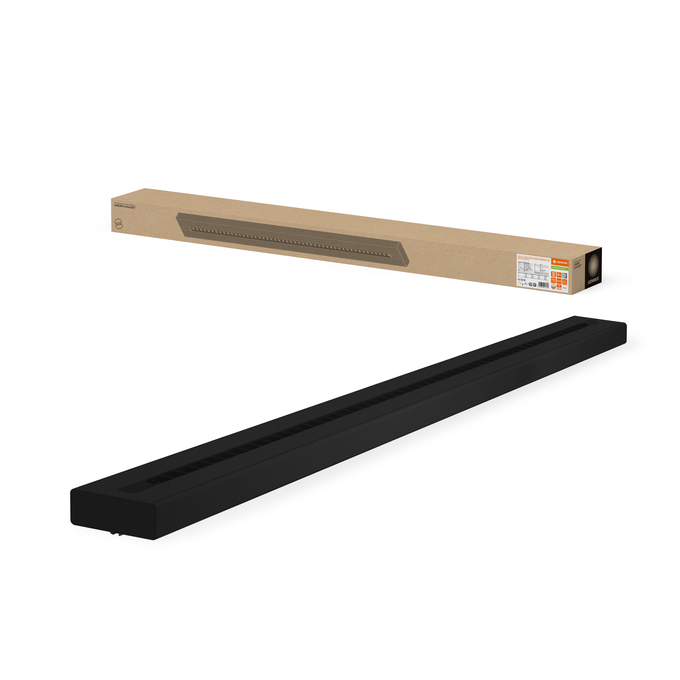

Combo Shot = Product Beauty Shot + Packaging Image
