LINEAR INDIVILED INLINE CONNECTOR

LN INV INLINE CONNECTOR

GTIN: 4099854215612 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Easy and quick connection of luminaires for light line installations
  • Very solid connector for long operation
Product features
  • Mechanical H connector made of metal sheet with stainless steel M4 screws for light line connection
Safety advice
  • All electrical connections must be made by a qualified person.
Dimensions & Weight
Length 100 mm
Height 27 mm
Width 122 mm
Product weight 120.00 g
Materials & Colors
Product color Silver
Body material Steel
Application & Mounting
With light source No
Replaceable light source No
Certificates & Standards
Standards CE, UKCA
Luminaire with limited surface temperature, "D sign" No
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1) N,N-Dimethylformamide (68-12-2)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854215612 Folding box
1		 112 mm x 130 mm x 34 mm 166.00 g 0.50 dm³
4099854215629 Shipping box
72		 417 mm x 297 mm x 364 mm 12761.00 g 45.08 dm³
User instruction / safety instructions
LN INV accessories
PDF (3.48 MB)
Legal information
Safety Insert G11218828
PDF (234.52 KB)
Legal information
Informationstext 18 Abs 4 ElektroG
PDF (435.15 KB)
Declarations of conformity
LN INV
PDF (271.88 KB)

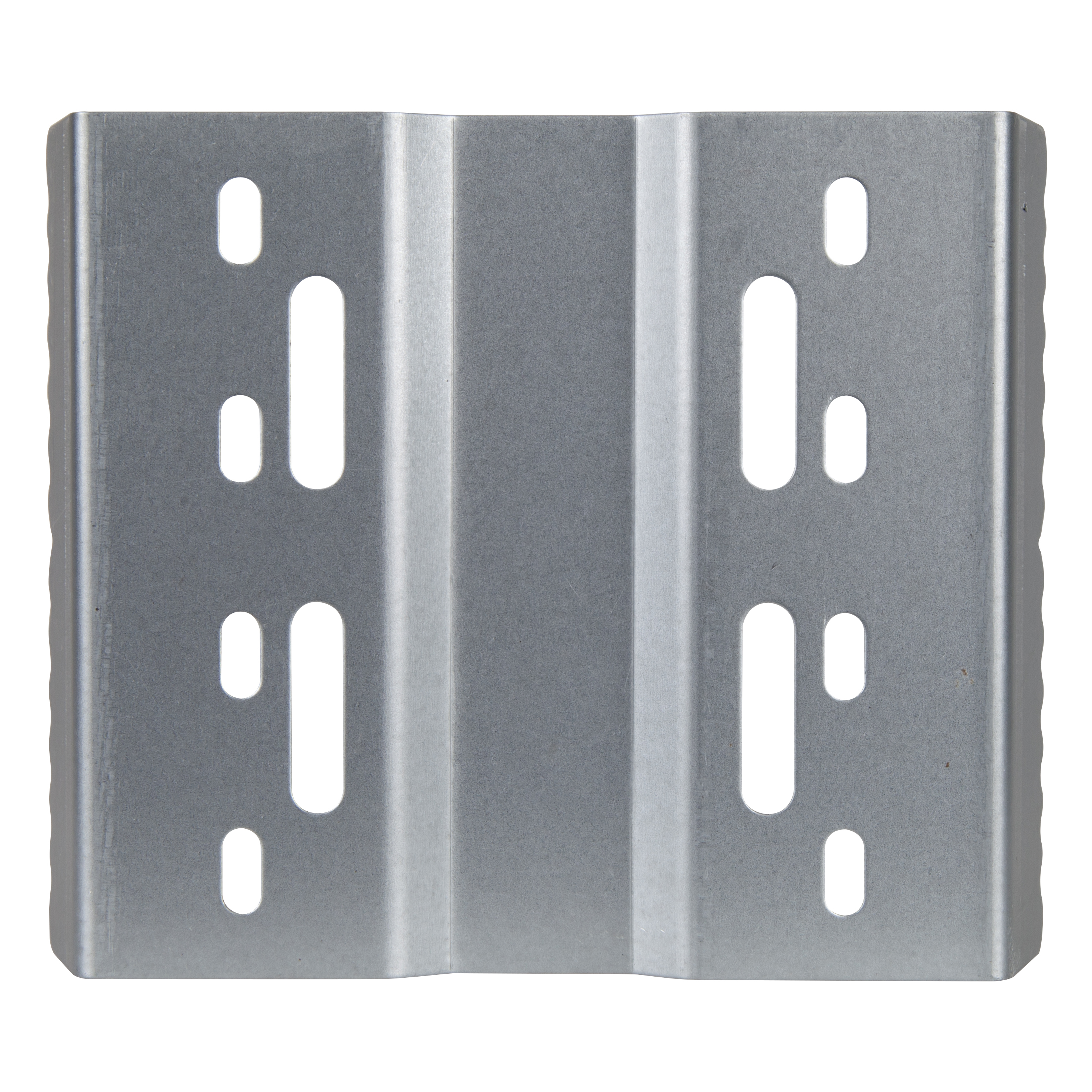

Product image: white background, upright
LN INV INLINE CONNECTOR
JPG (3.47 MB)
Product line drawing with letters
LN INV INLINE CONNECTOR
SVG (15.77 KB)
Product line drawing with numbers
LN INV INLINE CONNECTOR
SVG (21.75 KB)

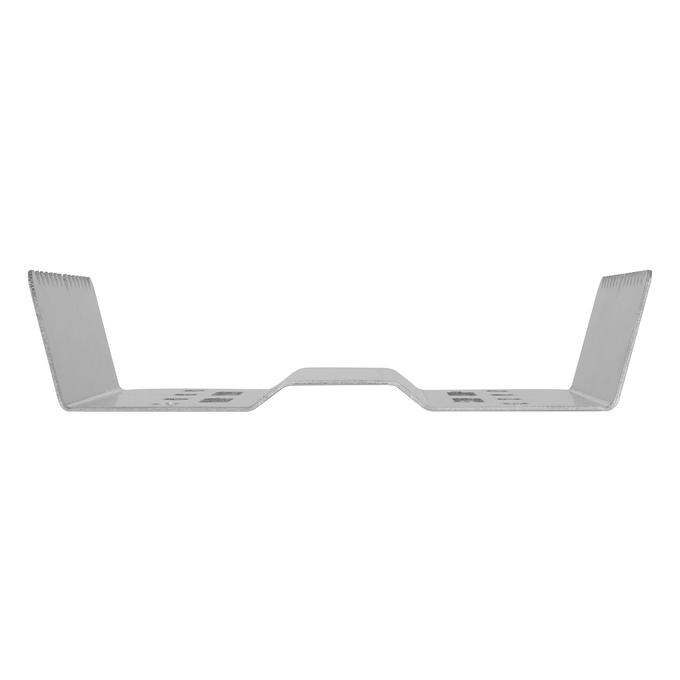

Product line drawing, front, no dimensions
LN INV INLINE CONNECTOR
SVG (11.99 KB)

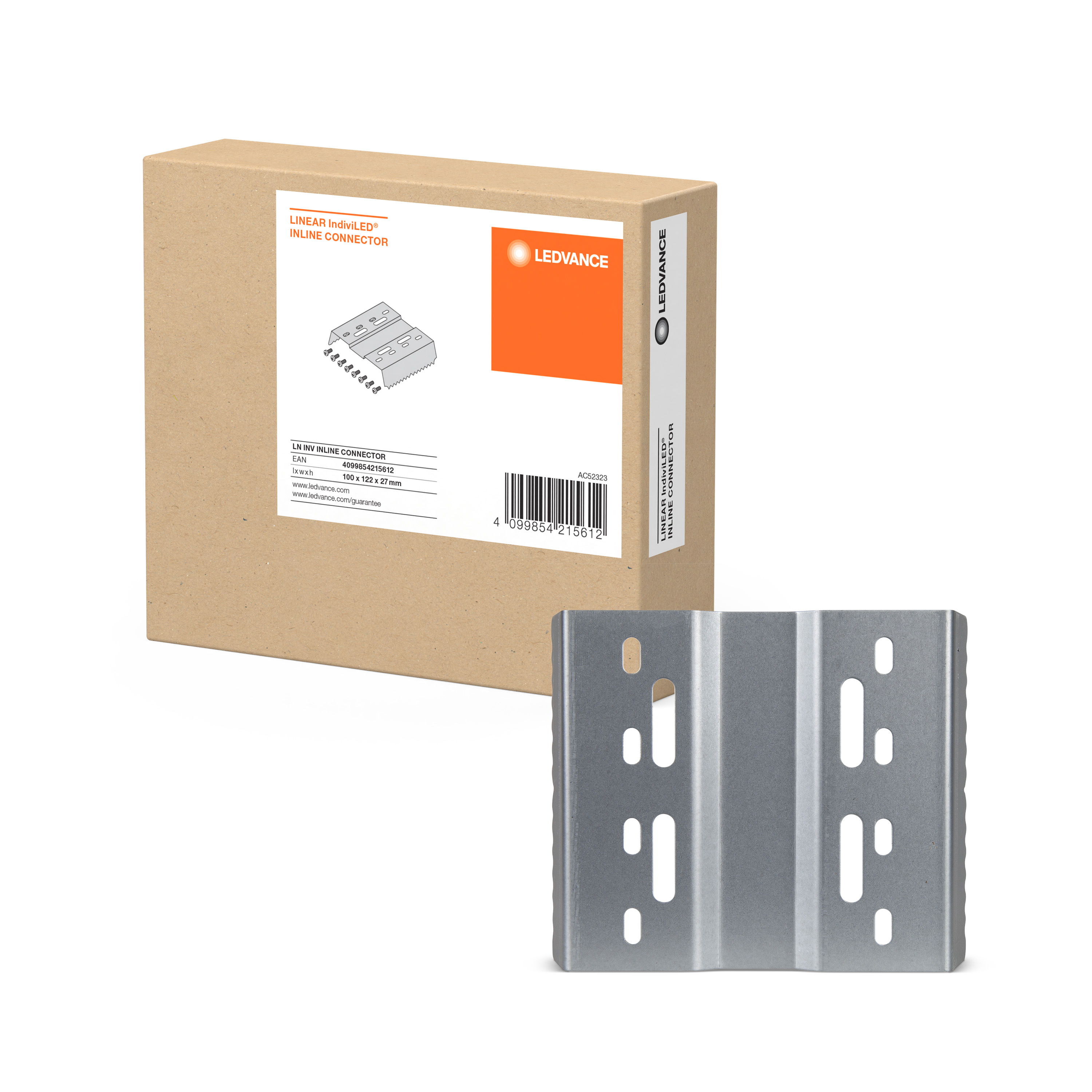

Combo Shot = Product Beauty Shot + Packaging Image
