LINEAR INDIVILED INFILL

LN INV INFILL 600 WT

GTIN: 4099854214882 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Easy and quick connection of luminaires for light line installations
  • Very solid connector for long operation
Product features

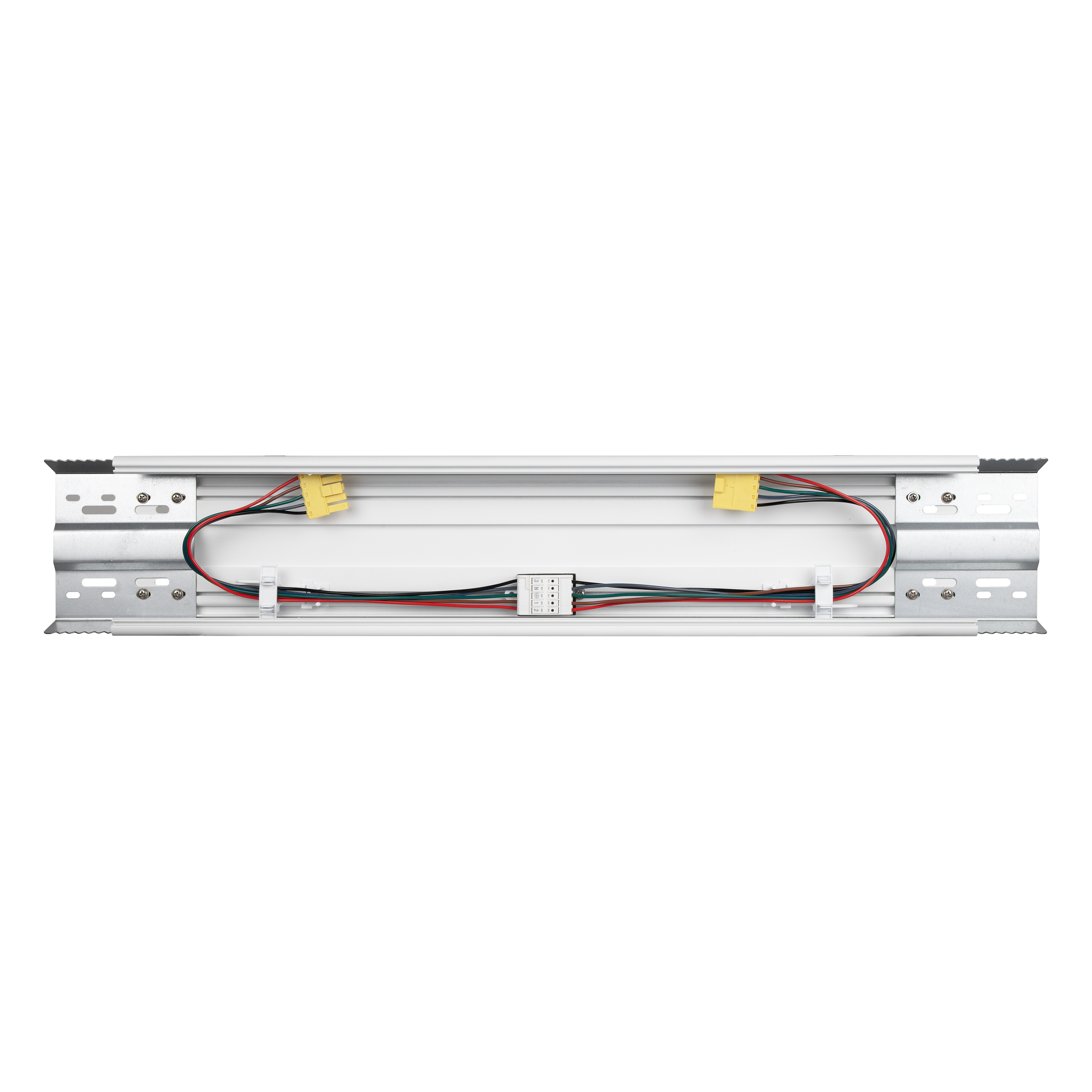

  • Mechanical and electric connector (profile, 5 x 2.5 mm² internal wiring and terminal plug, male-female AC plug)
  • Connector made of aluminum, white powder-coated
  • Available in black and white color
Safety advice
  • All electrical connections must be made by a qualified person.

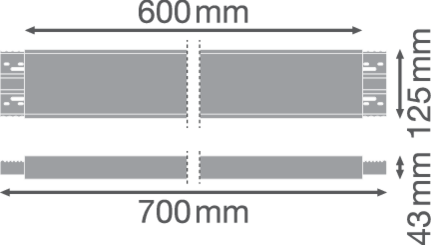

Dimensions & Weight
Length 700 mm
Height 43 mm
Width 125 mm
Product weight 1420.00 g
Materials & Colors
Product color White
Body material Aluminum
Application & Mounting
With light source No
Replaceable light source No
Certificates & Standards
Standards CE, UKCA
Luminaire with limited surface temperature, "D sign" No
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854214882 Folding box
1		 177 mm x 757 mm x 102 mm 1660.00 g 13.67 dm³
4099854214899 Shipping box
2		 777 mm x 197 mm x 224 mm 3987.00 g 34.29 dm³
User instruction / safety instructions
LN INV accessories
PDF (3.48 MB)
Legal information
Informationstext 18 Abs 4 ElektroG
PDF (435.15 KB)
Legal information
Safety Insert G11218828
PDF (234.52 KB)
Declarations of conformity
LN INV
PDF (271.88 KB)

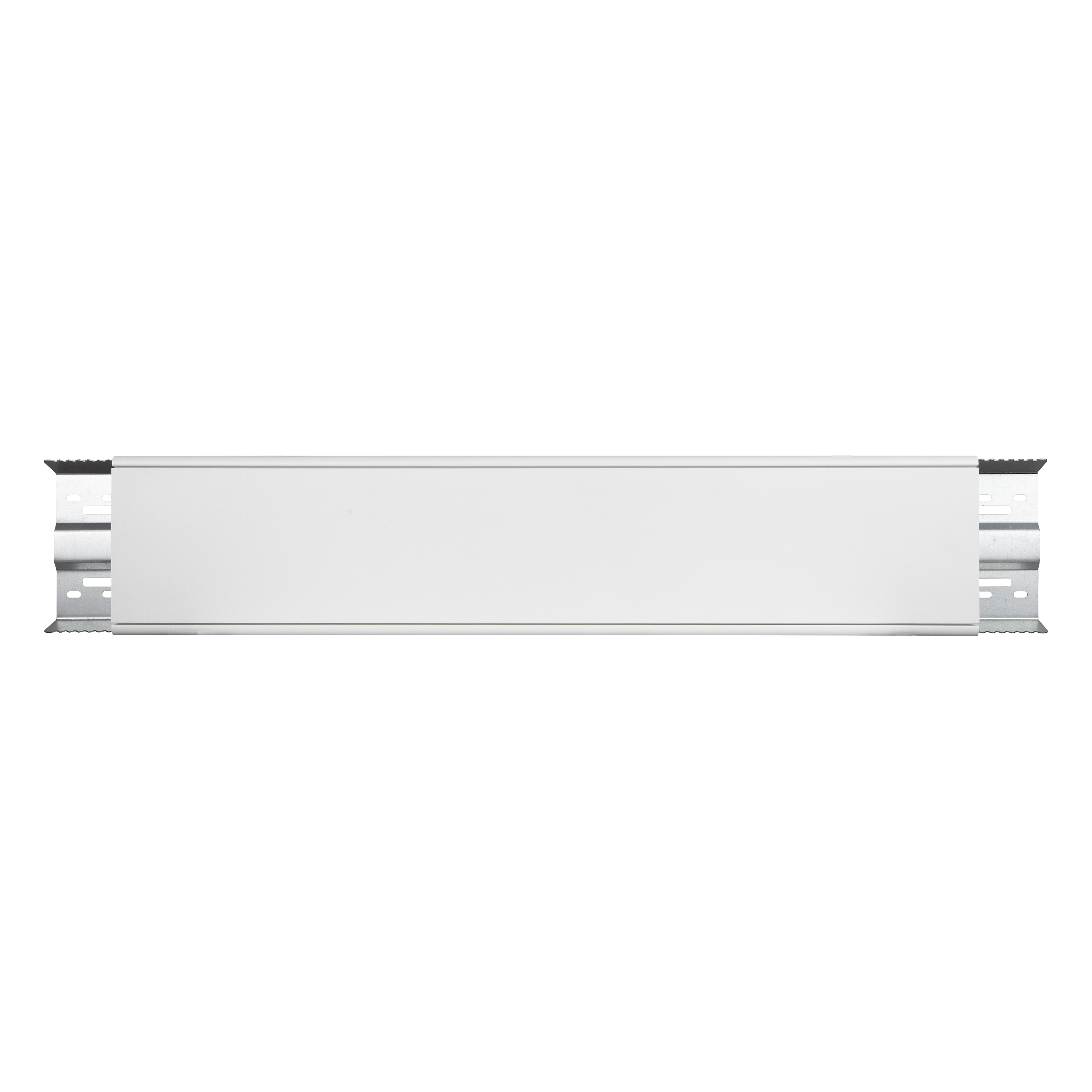

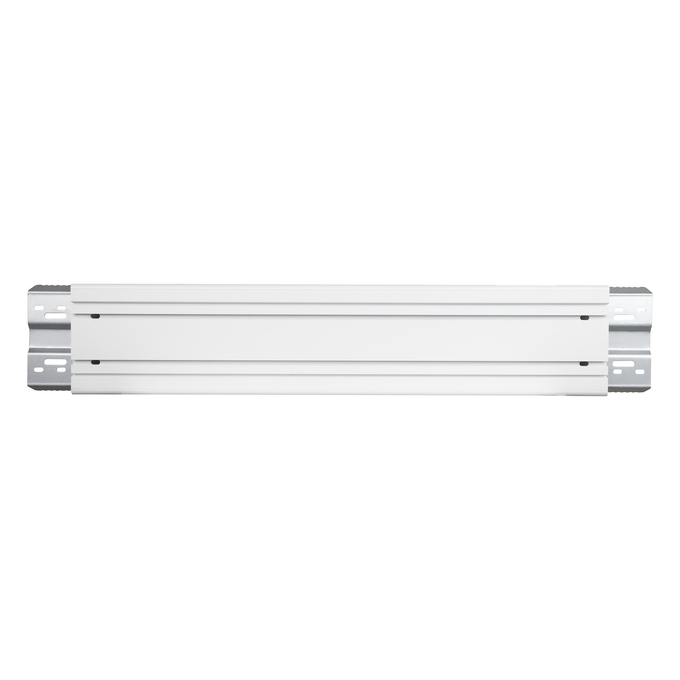

Product image: white background, horizontal
LN INV INFILL 600 WT
JPG (972.41 KB)
Product image: white background, horizontal, alternative image
LN INV INFILL 600 WT
JPG (1.21 MB)

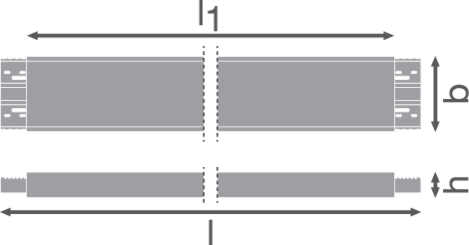

Product line drawing with letters
LN INV INFILL 600 WT
EPS (1.17 MB)
Product line drawing with numbers
LN INV INFILL 600 WT
EPS (1.18 MB)

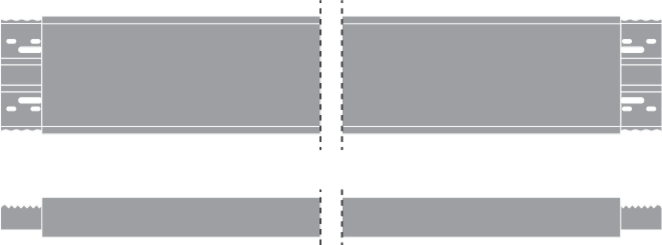

Product line drawing, front, no dimensions
LN INV INFILL 600 WT
EPS (1.15 MB)

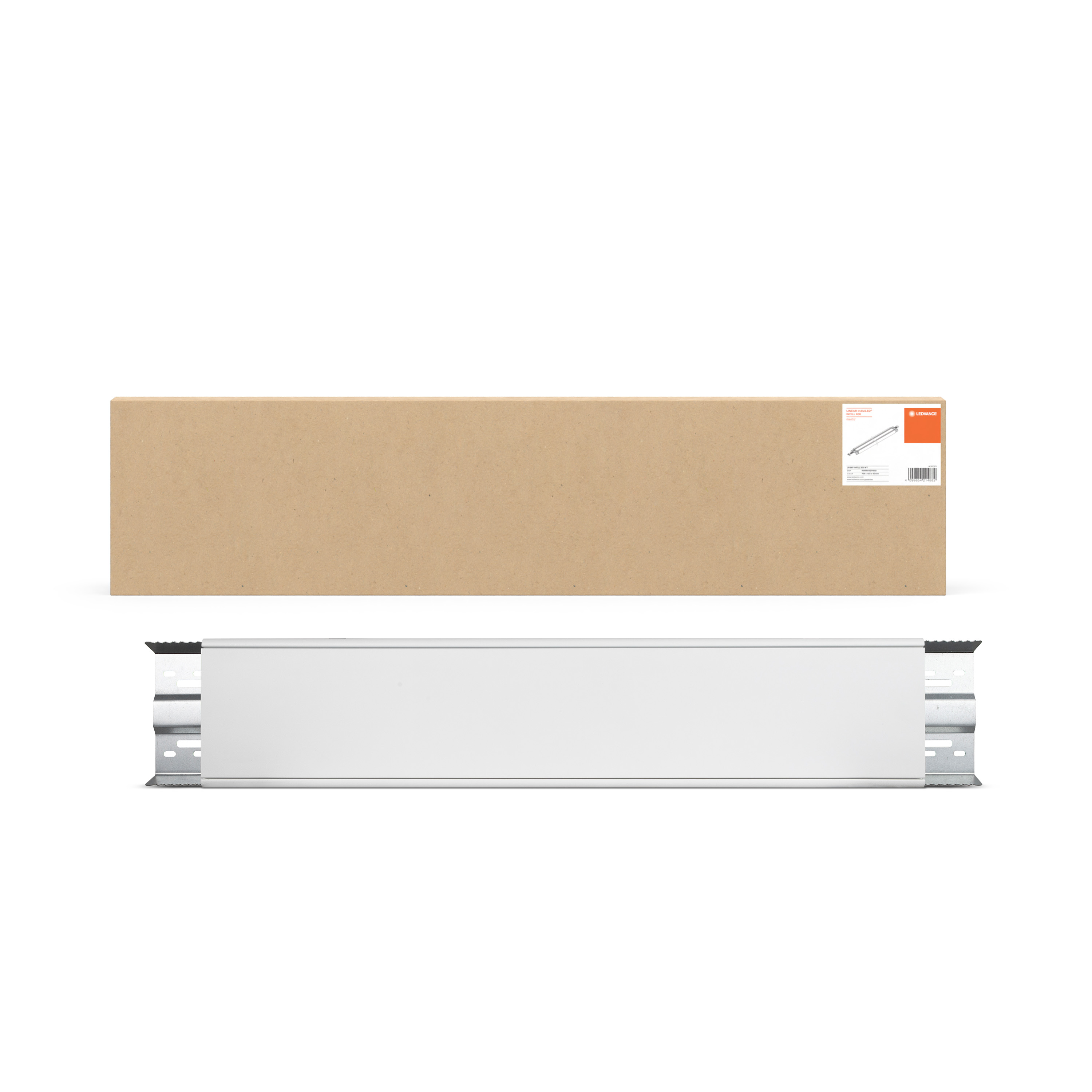

Combo Shot = Product Beauty Shot + Packaging Image
LN INV INFILL 600 WT
JPG (2.22 MB)
Packaging image, frontal
LN INV INFILL 600 WT
JPG (2.17 MB)

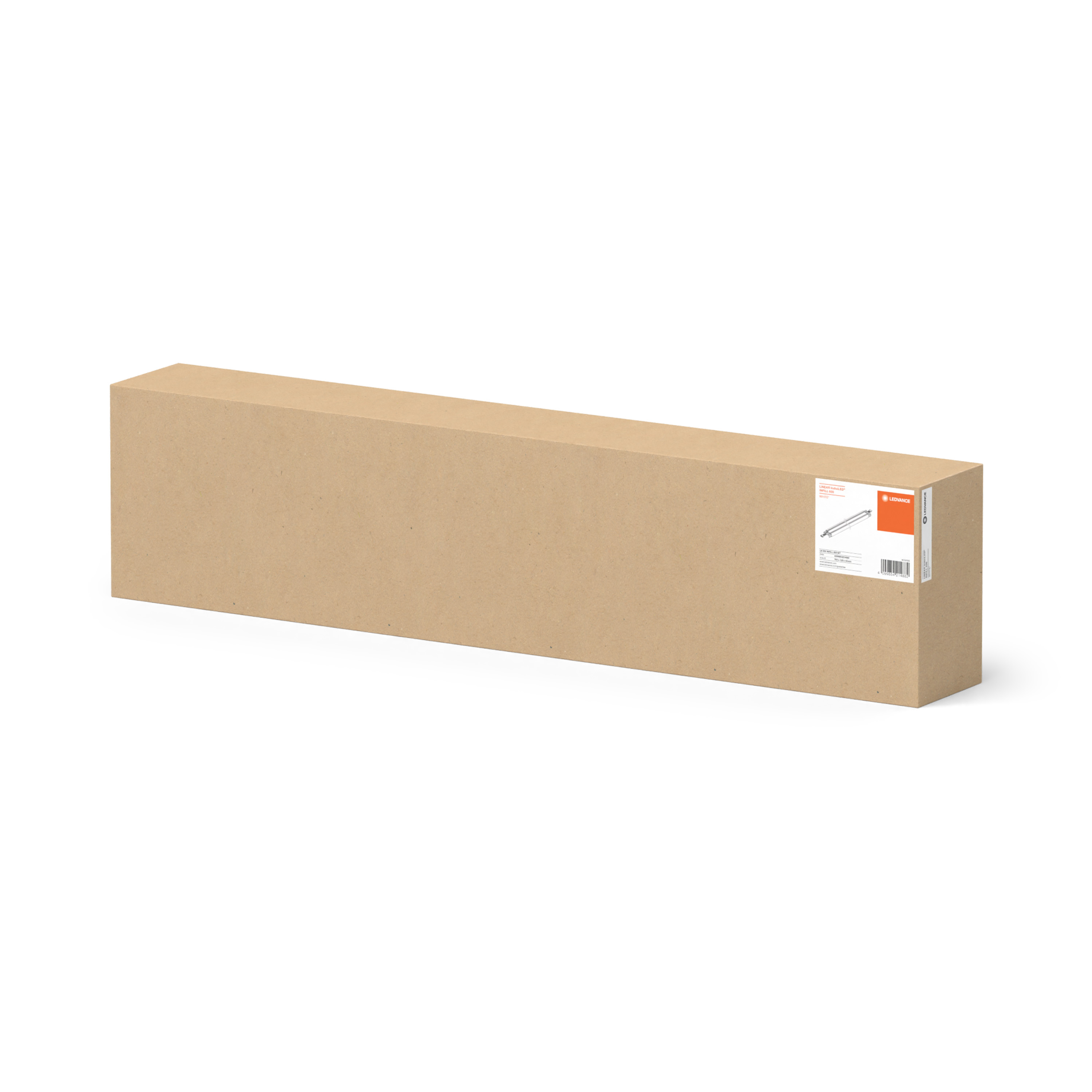

Packaging image, spacial
LN INV INFILL 600 WT
JPG (2.19 MB)
Catalog info 3
LN INV
PNG (123.54 KB)
Tender documents
LINEAR INDIVILED INFILL 600 WT-EN
TXT (591 B)

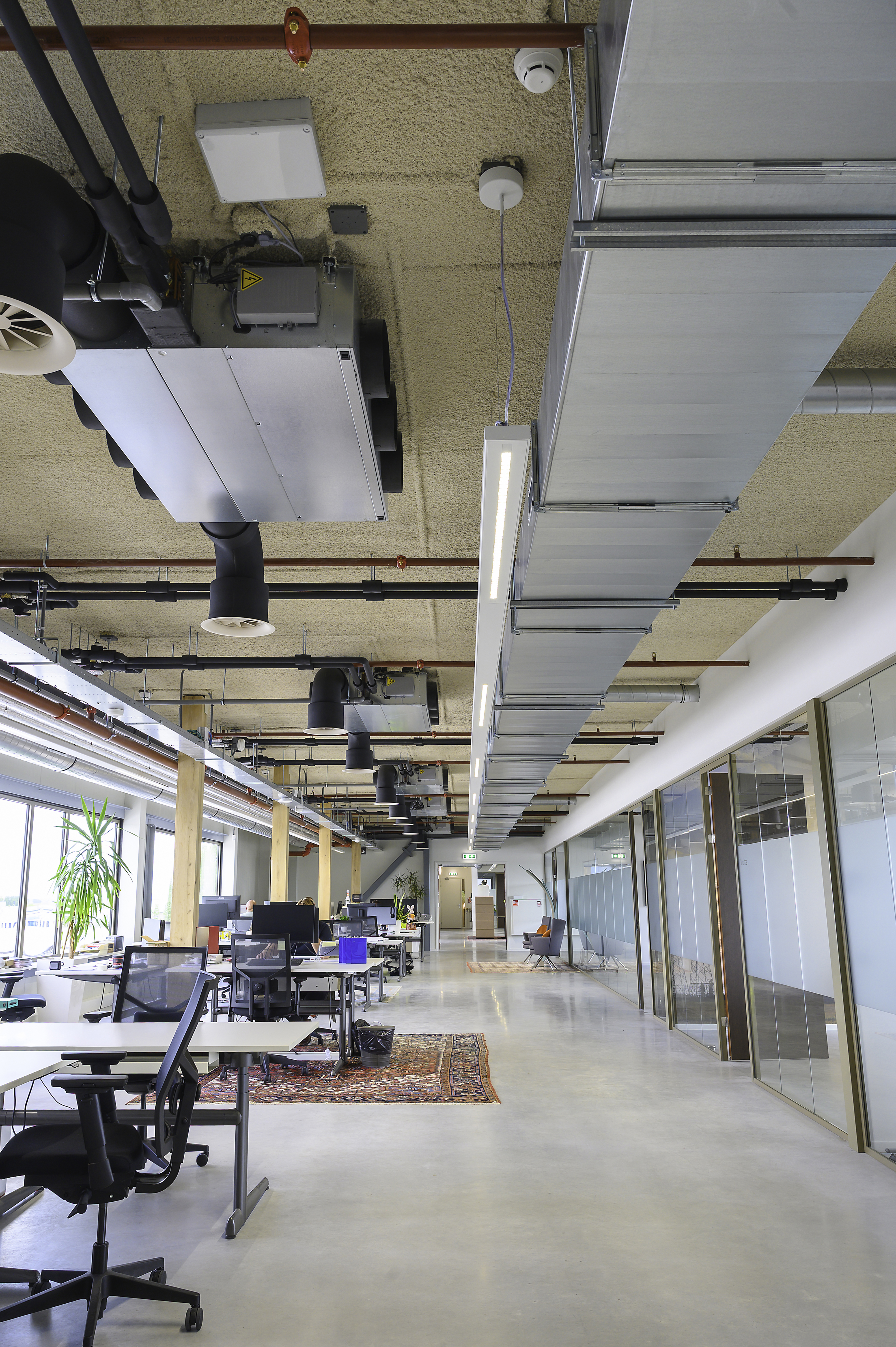

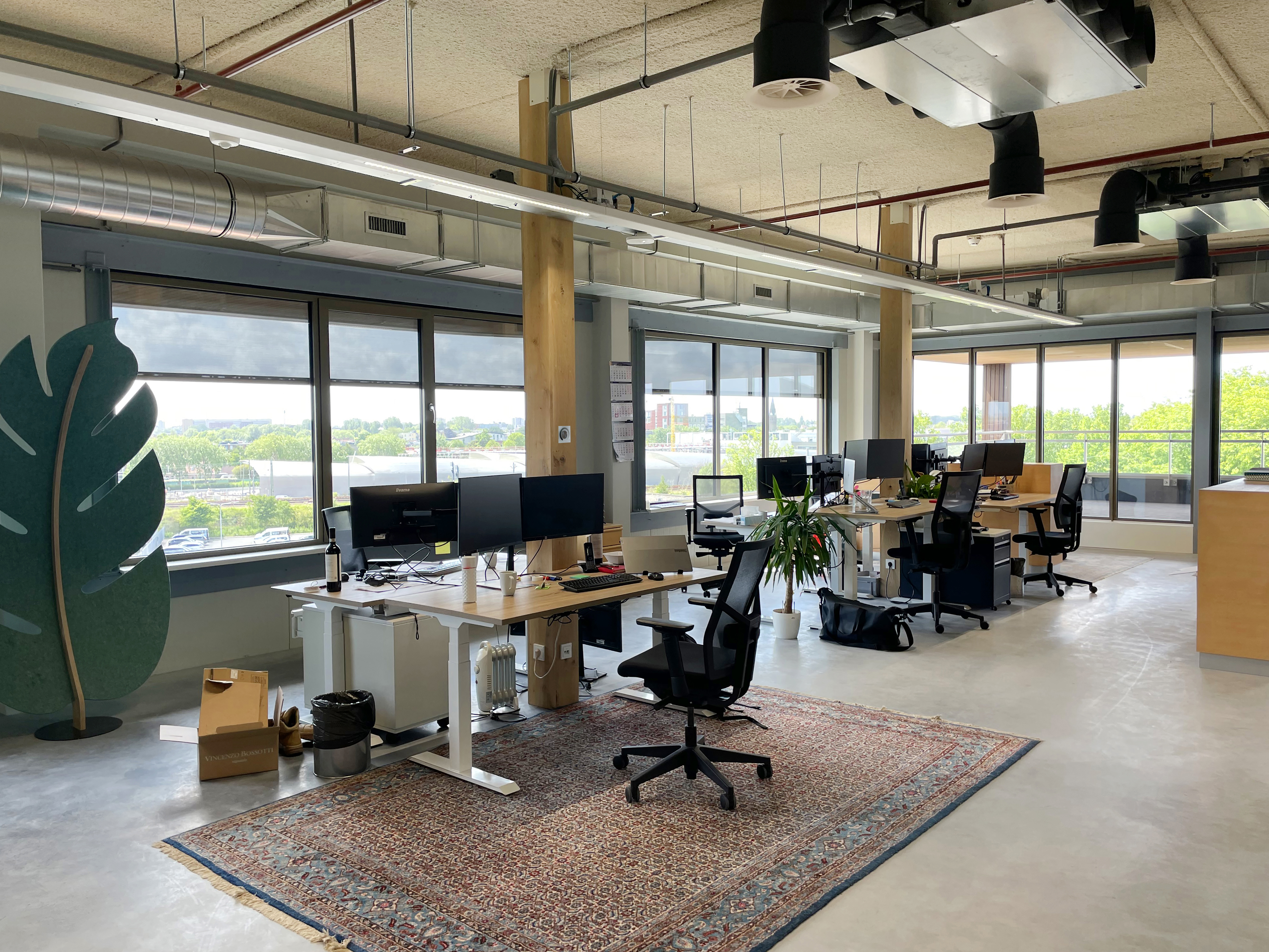

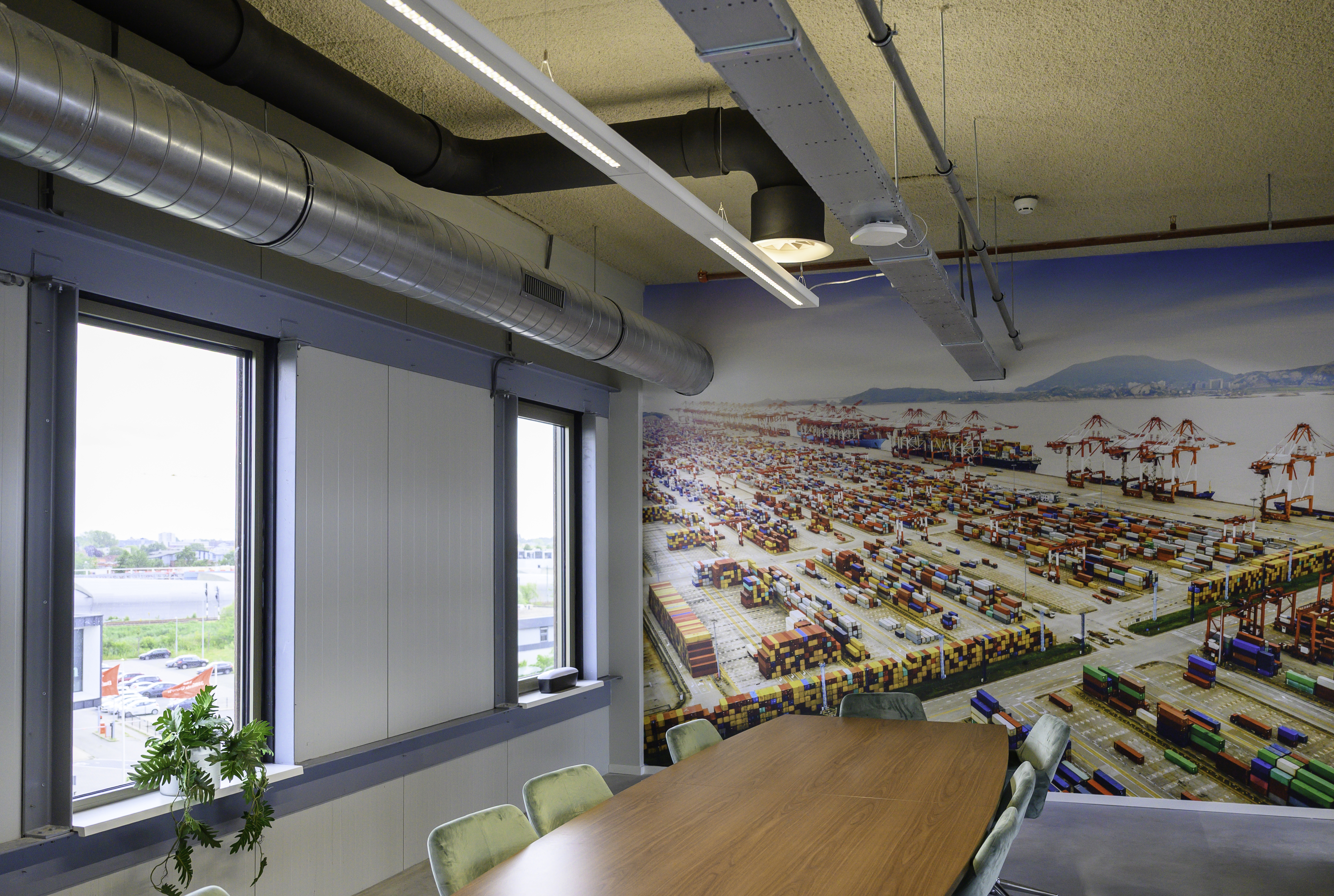

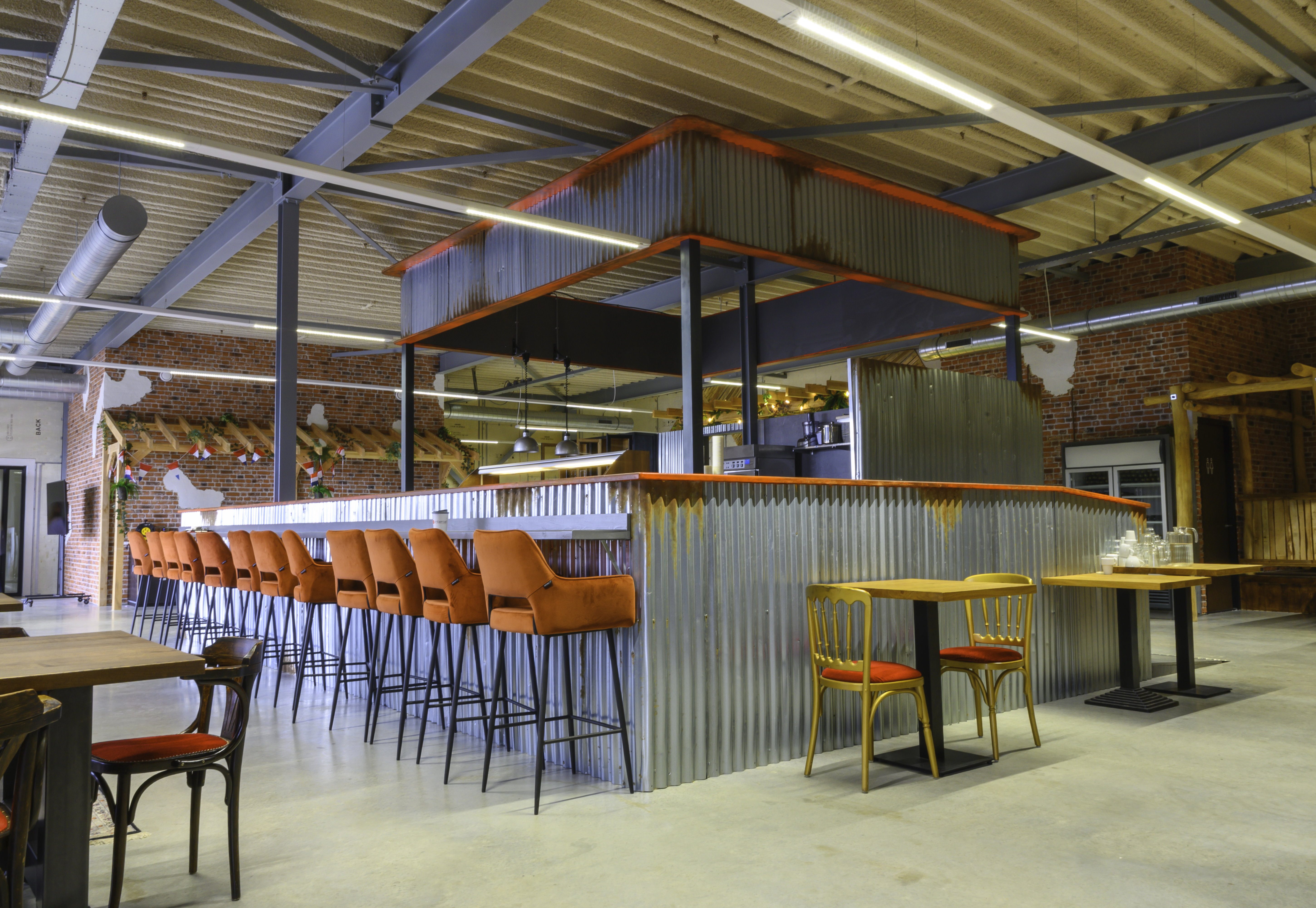

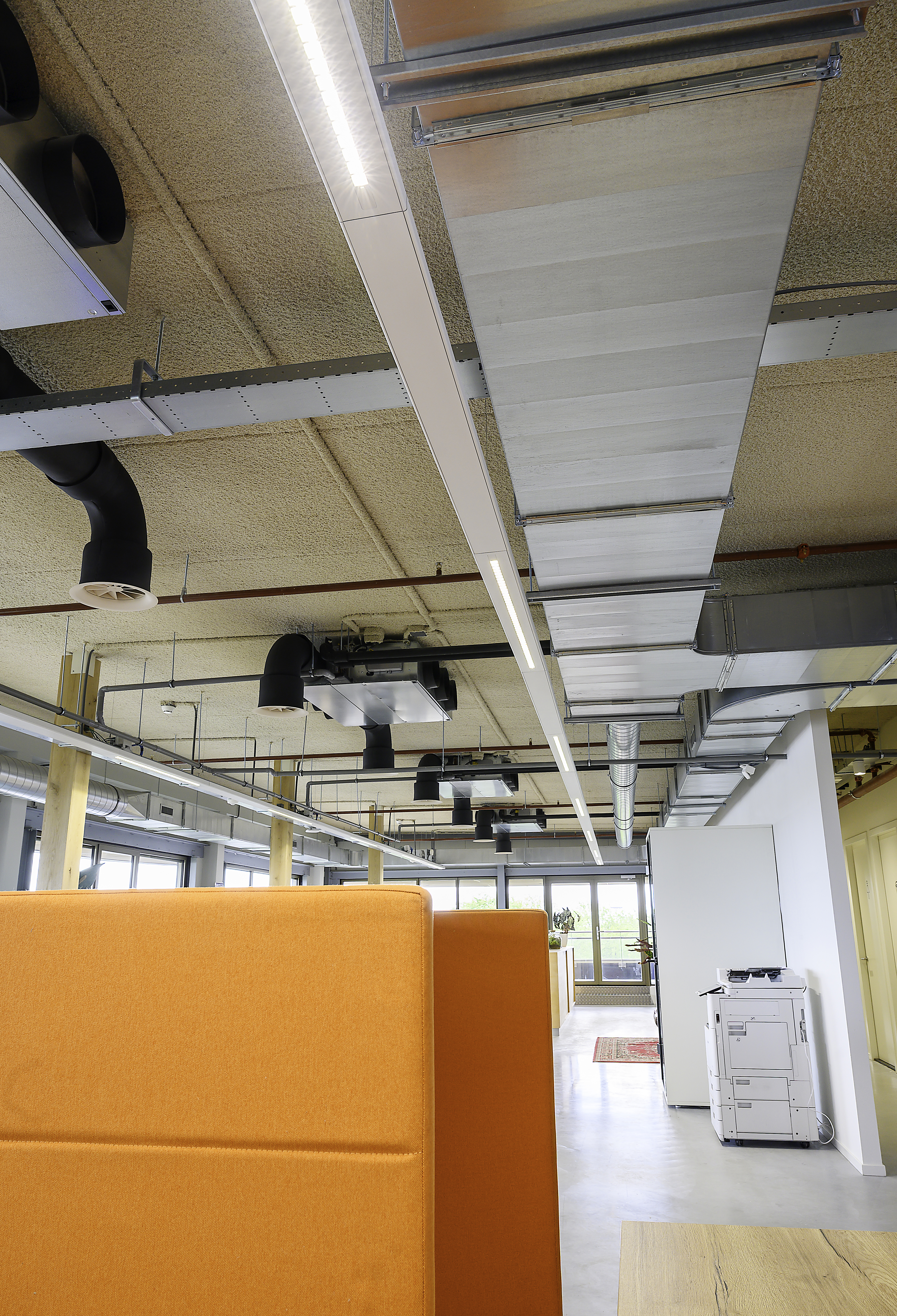

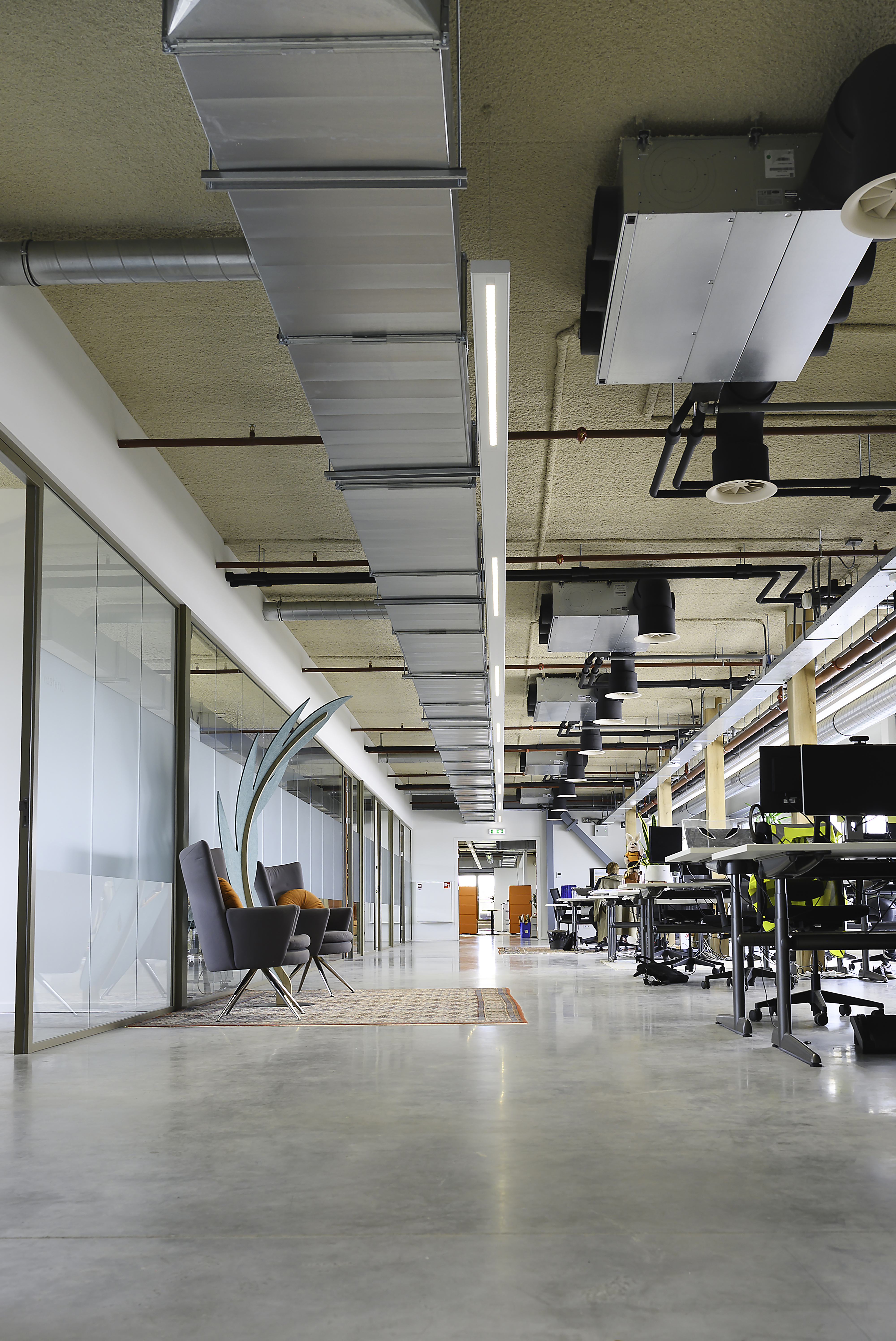

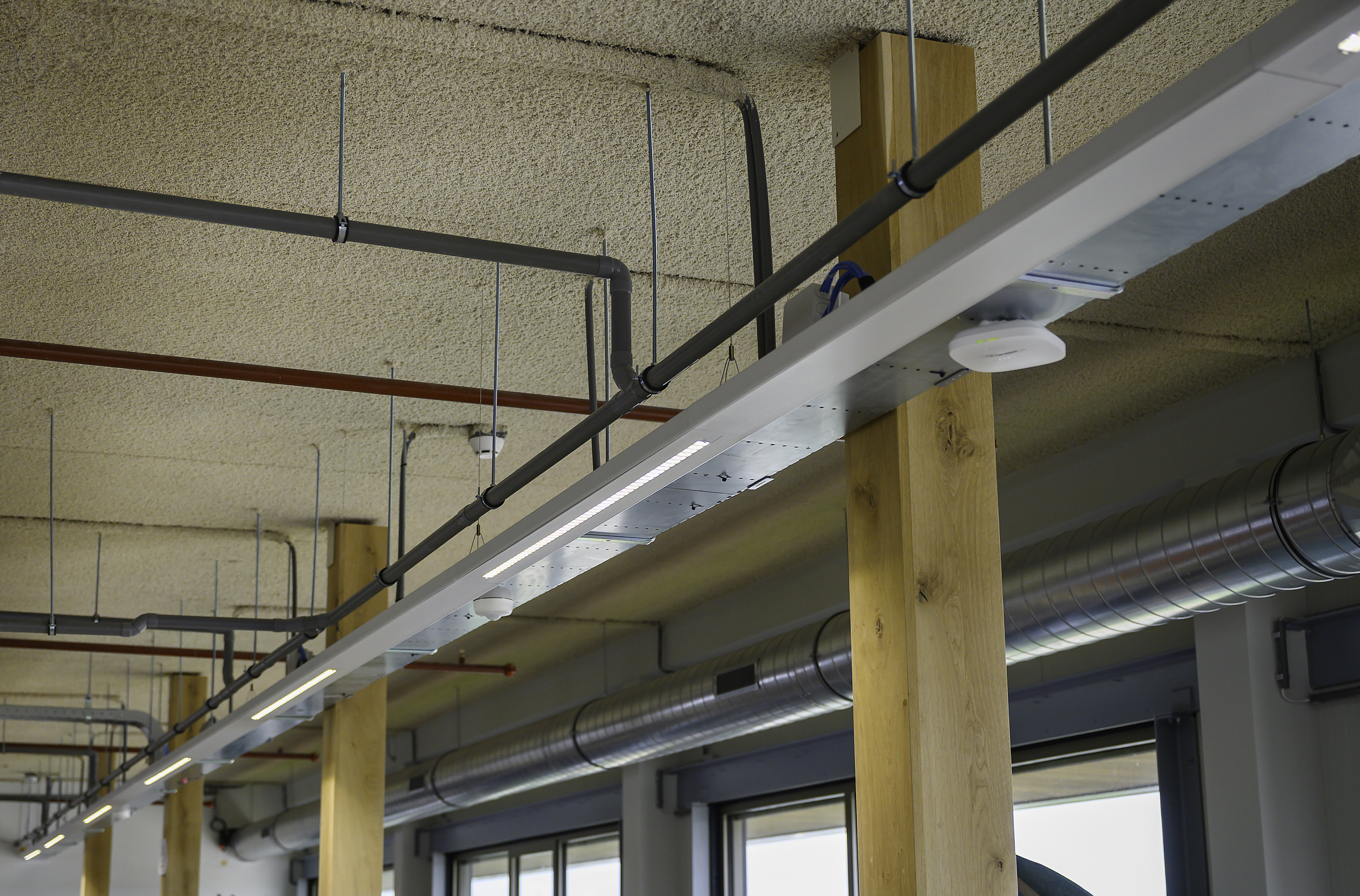

Application pictures

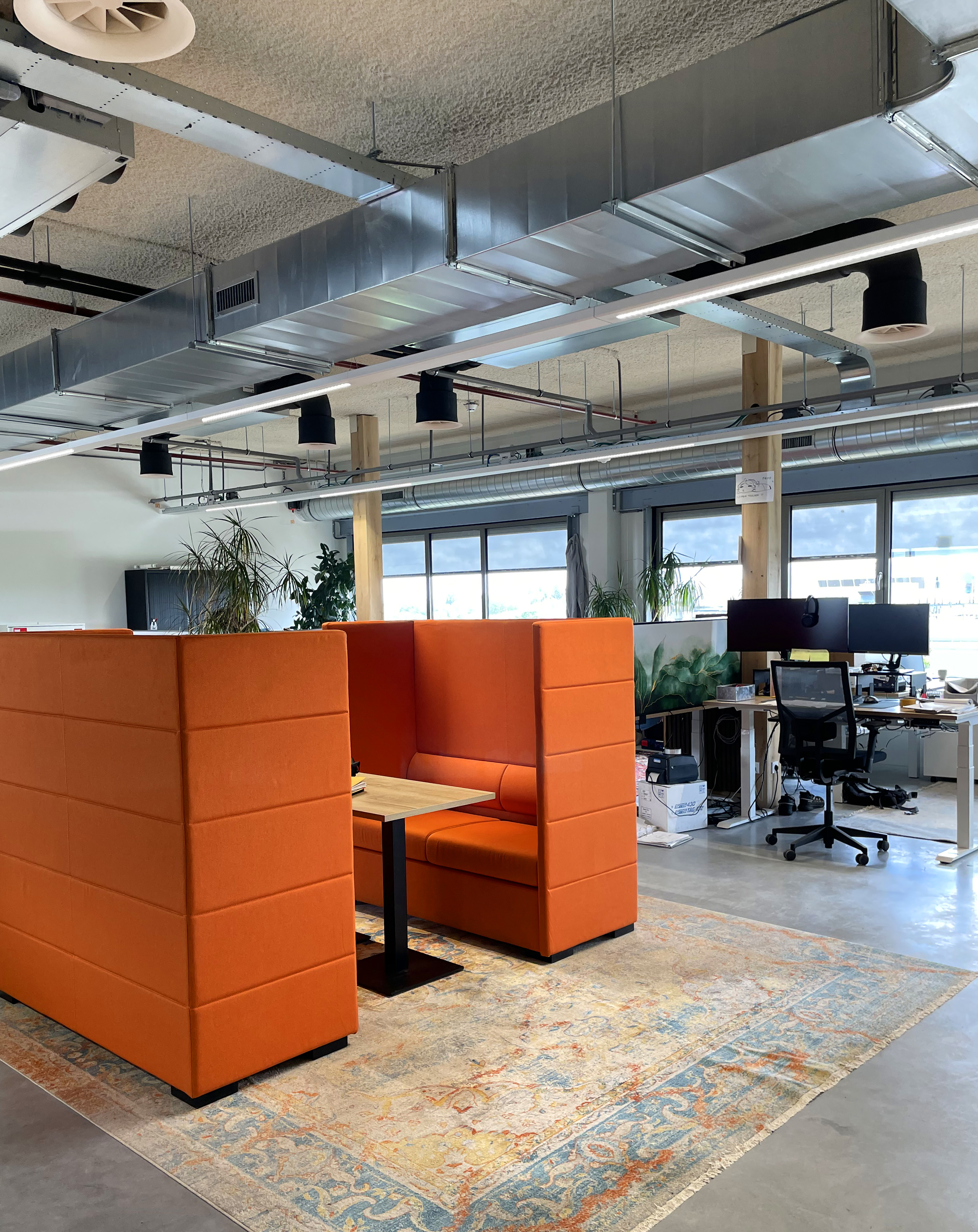

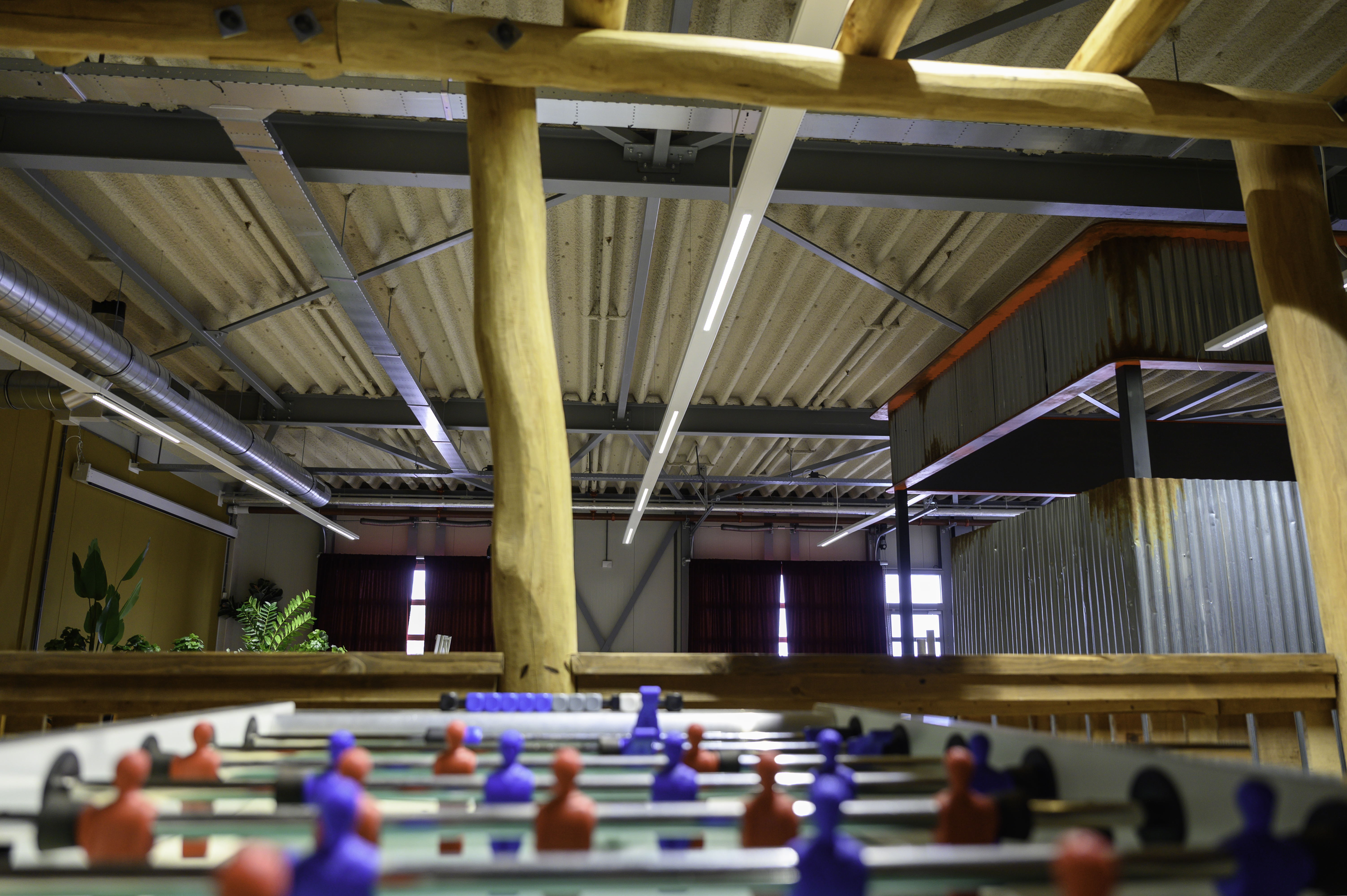

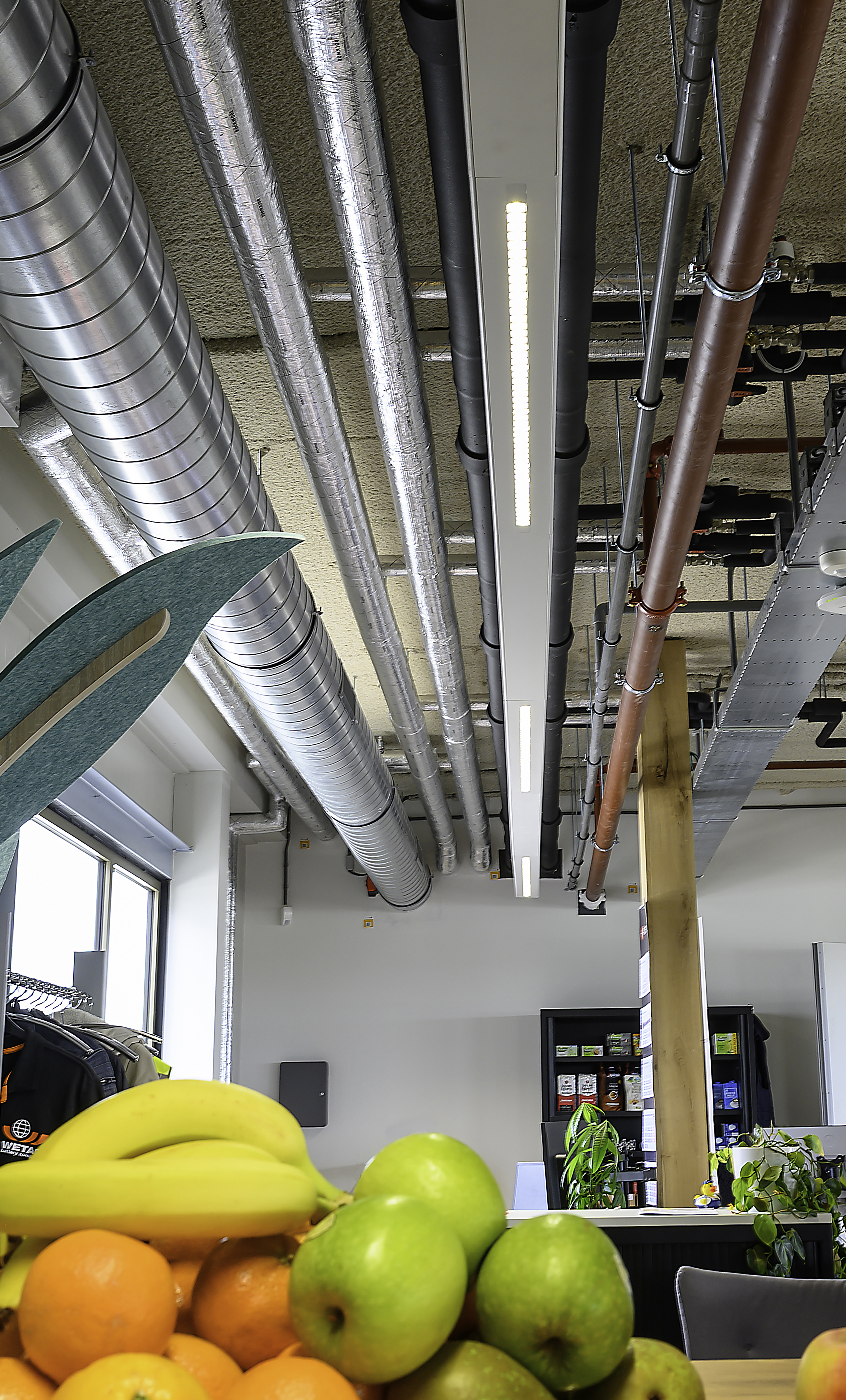

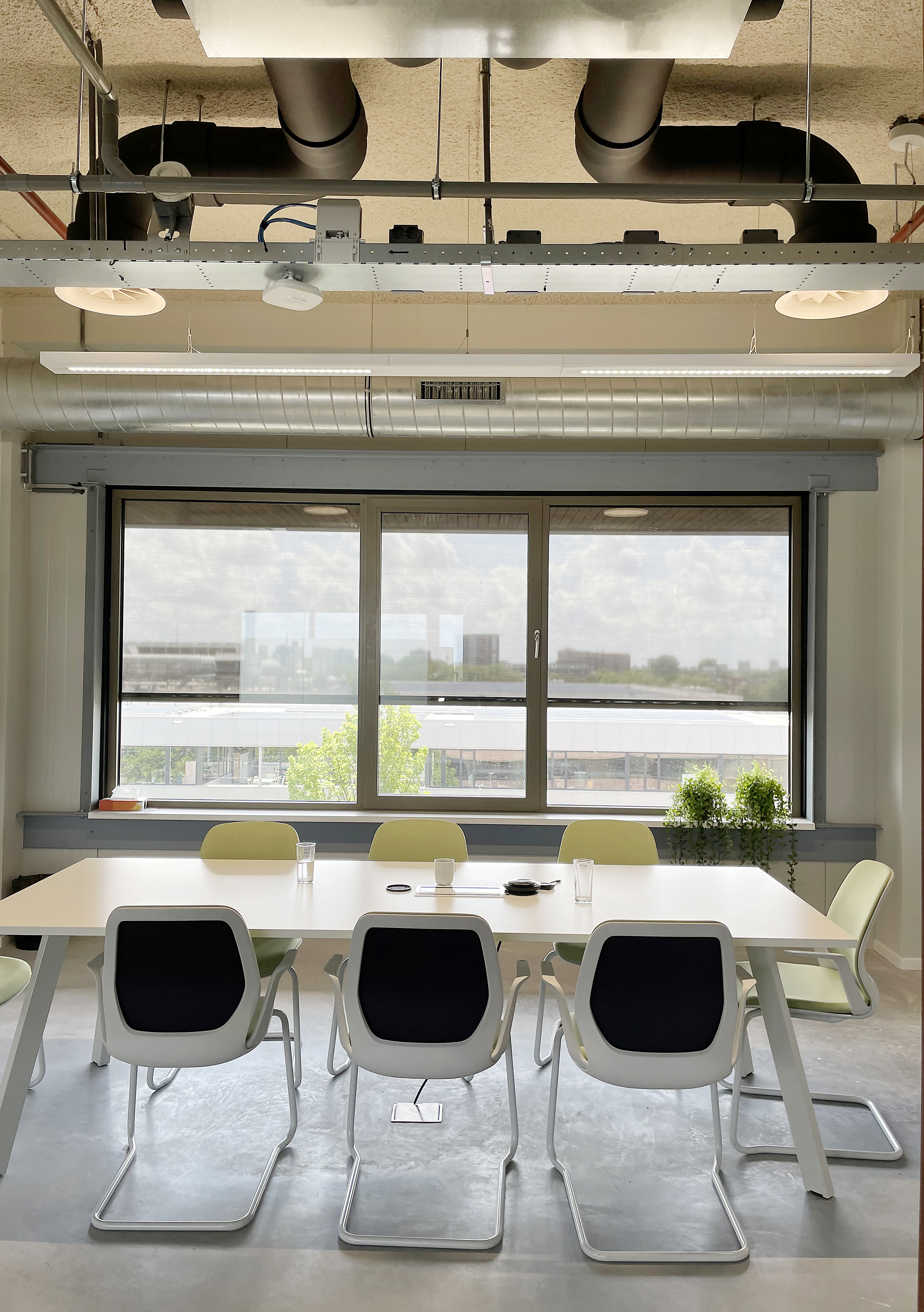

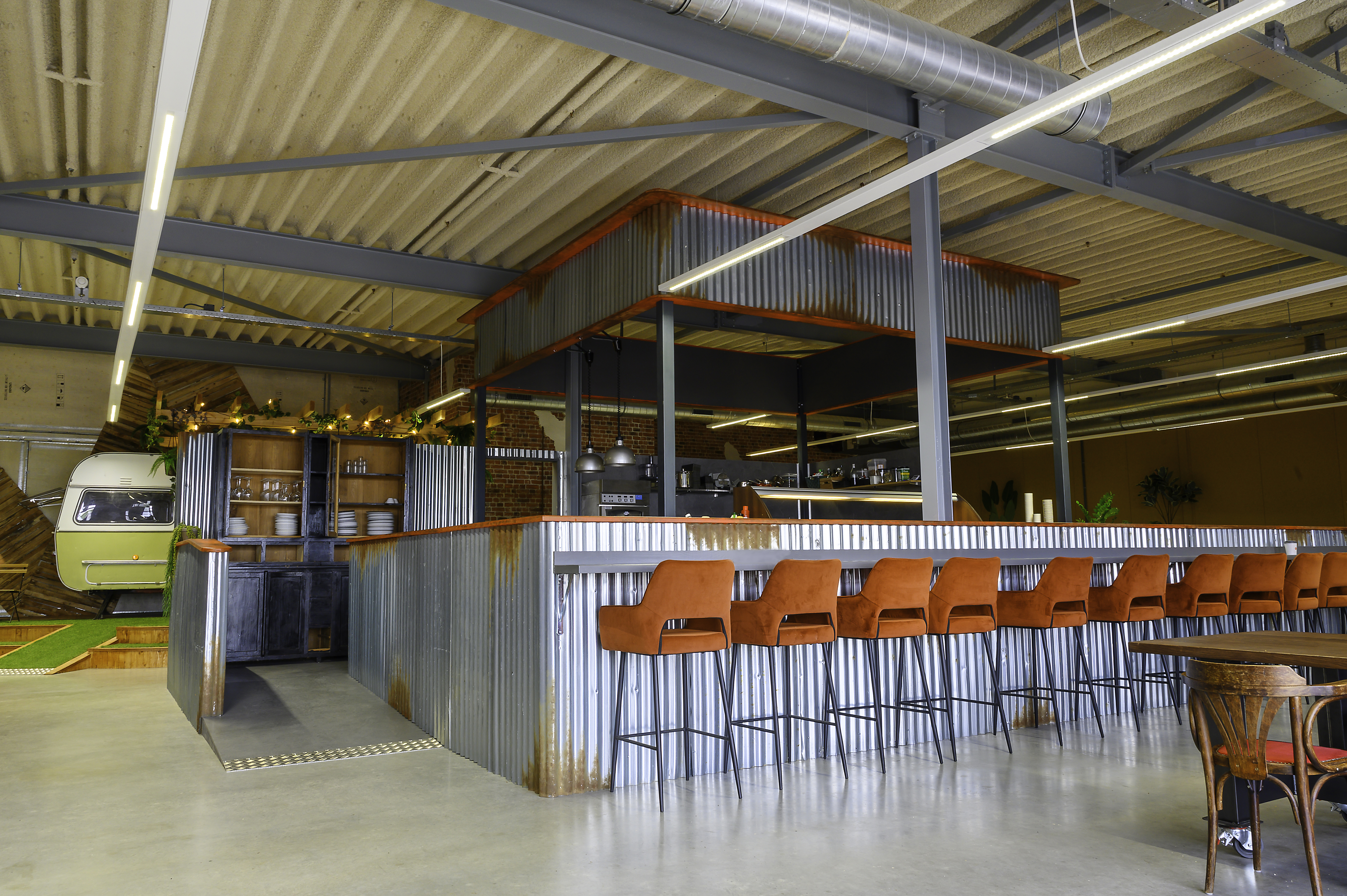

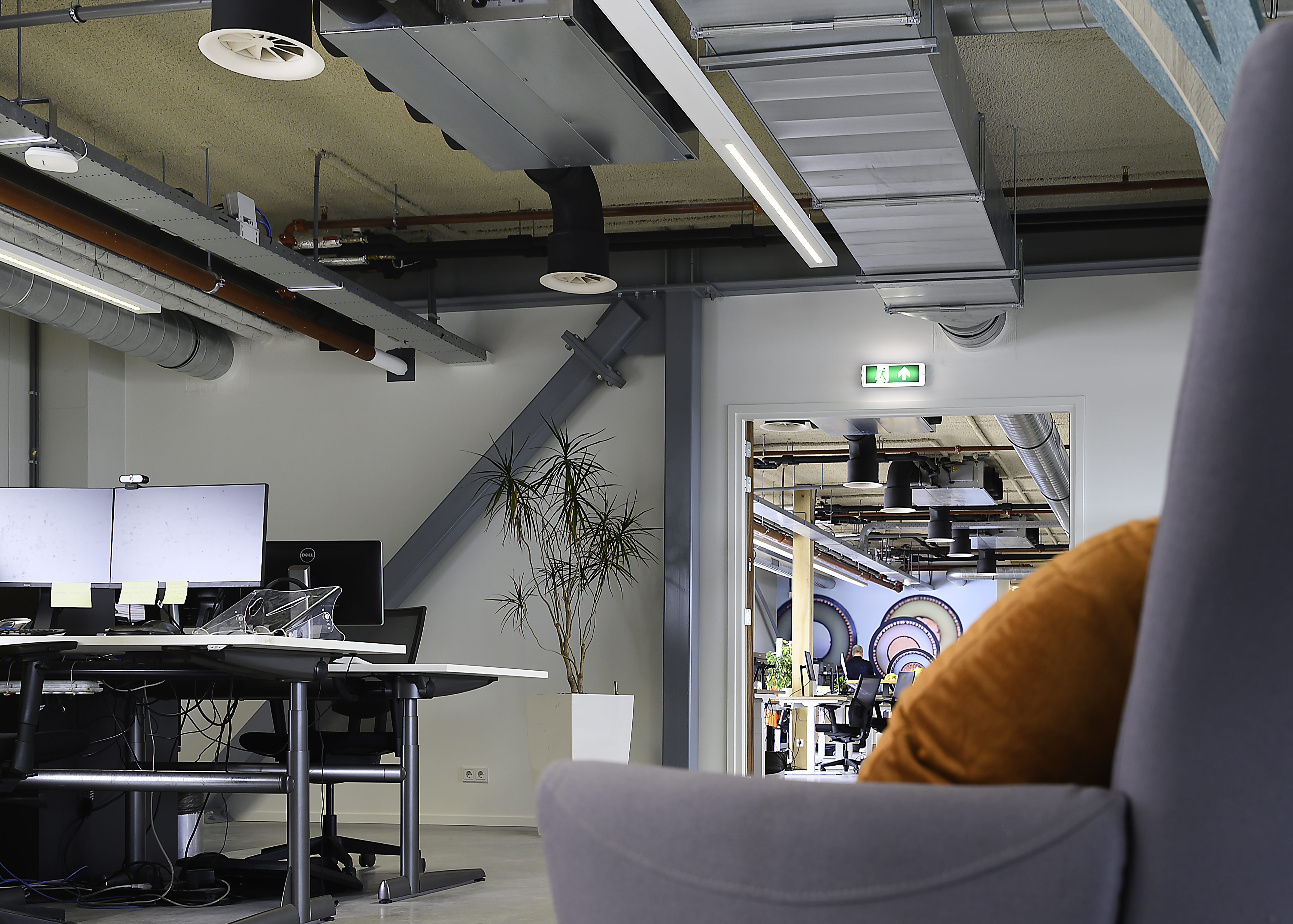

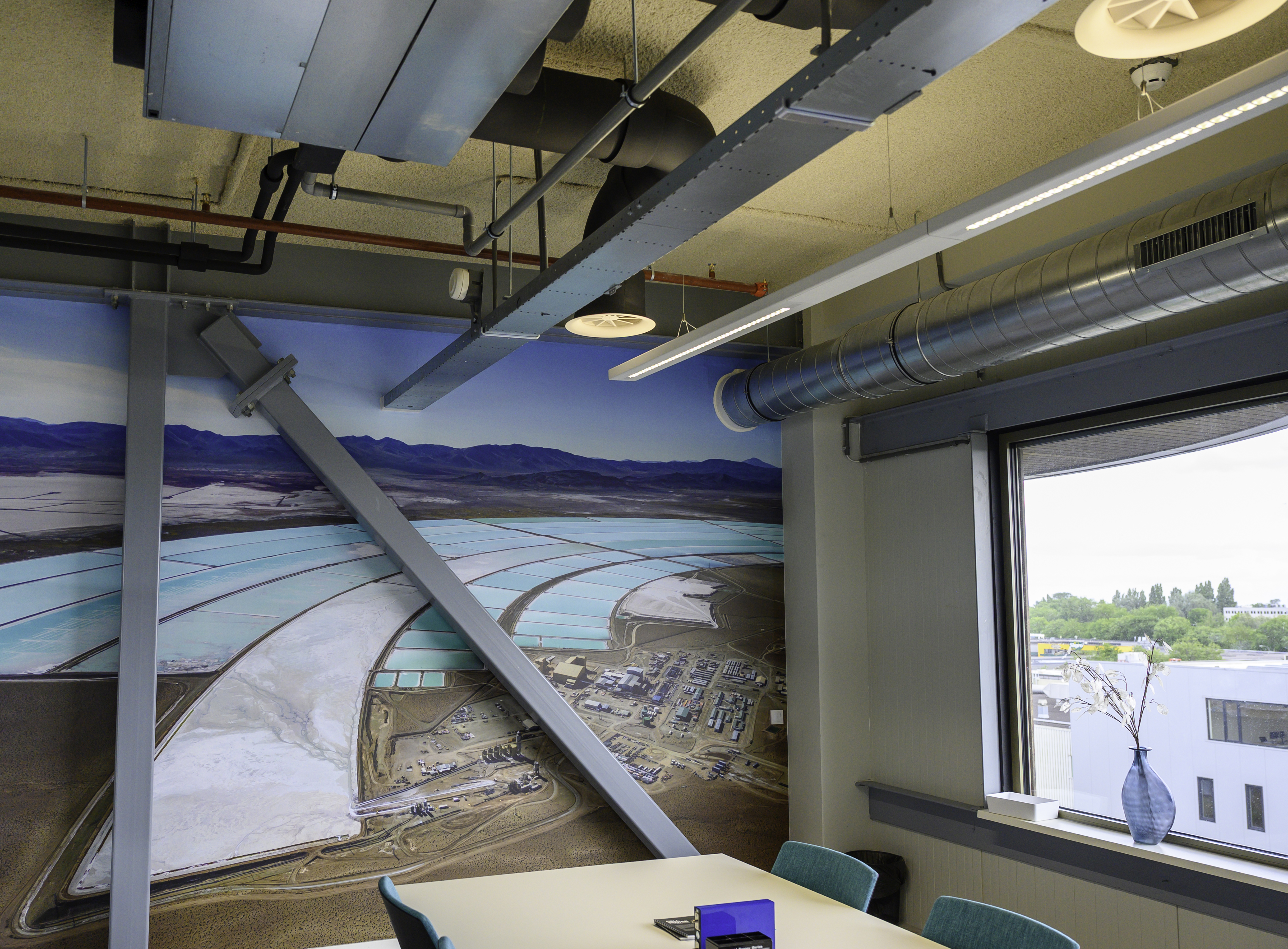

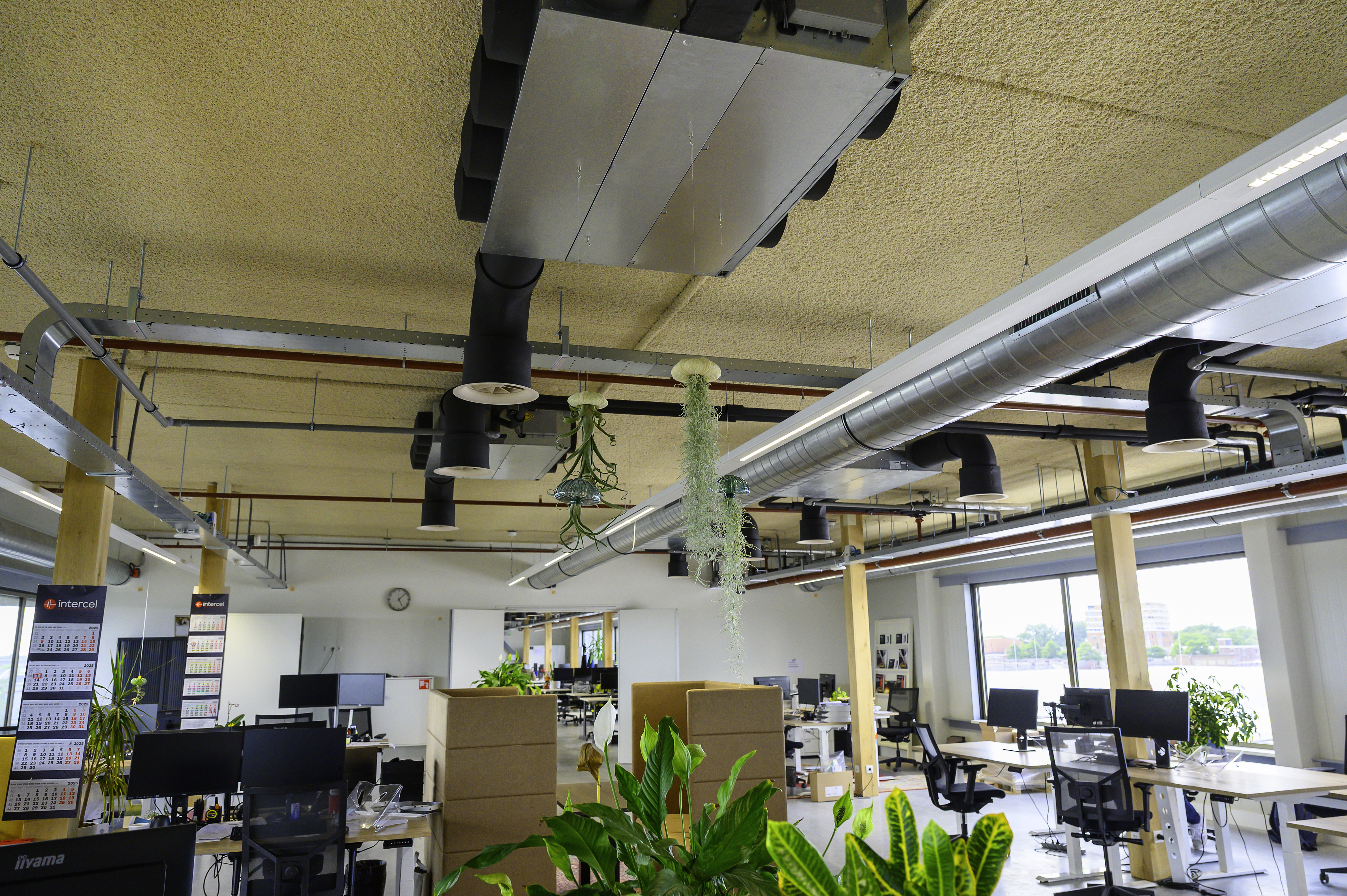

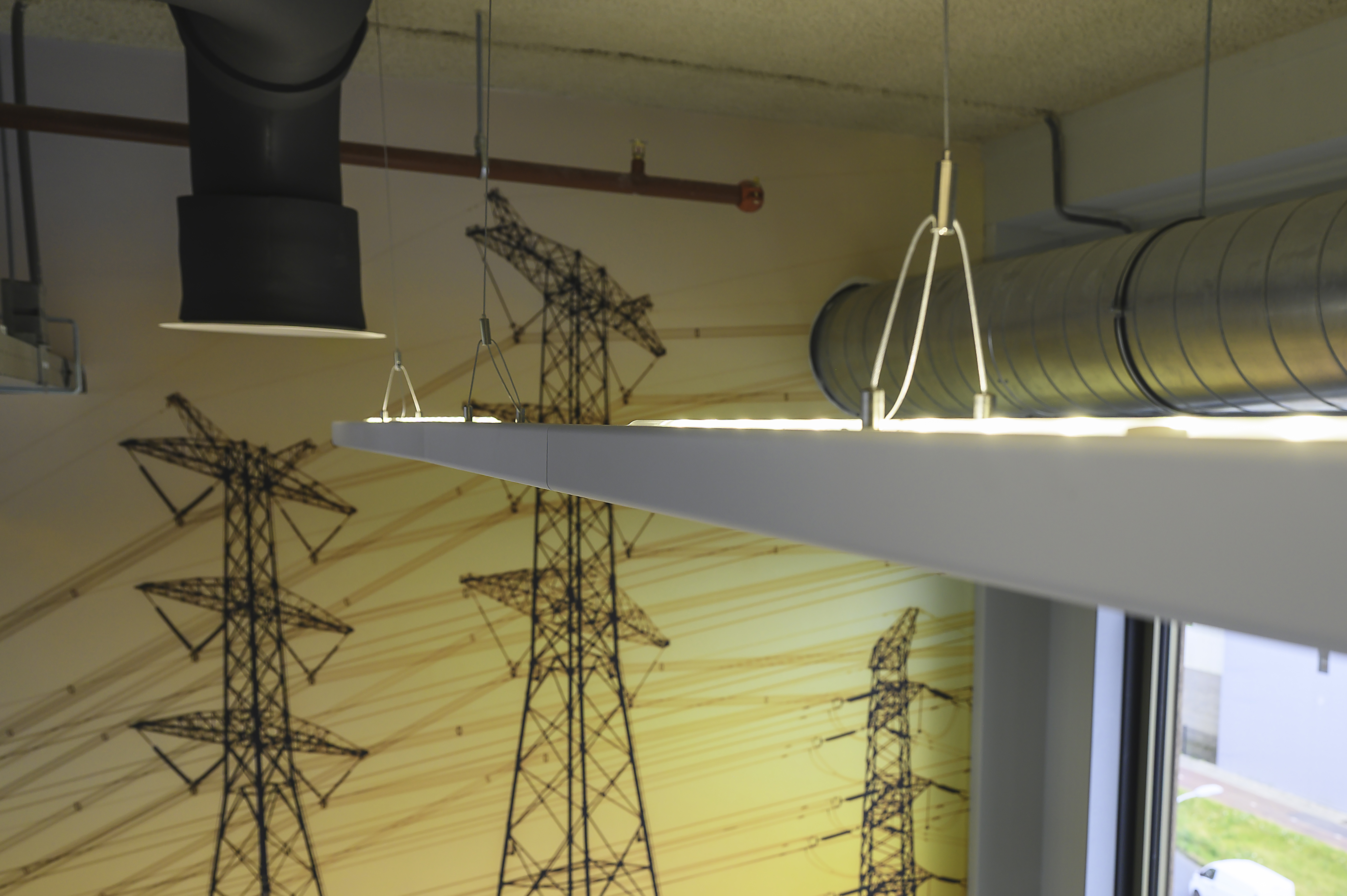

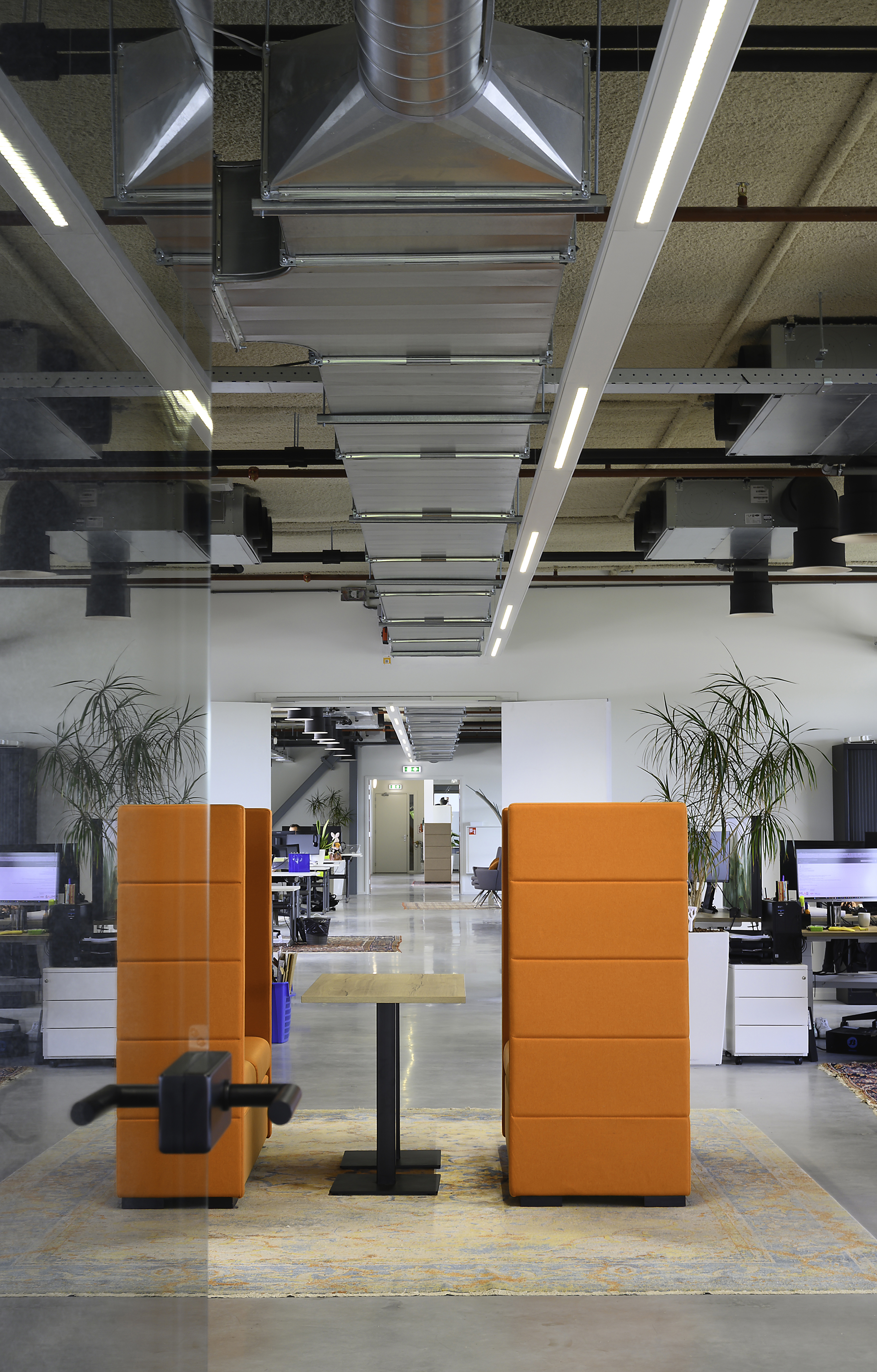

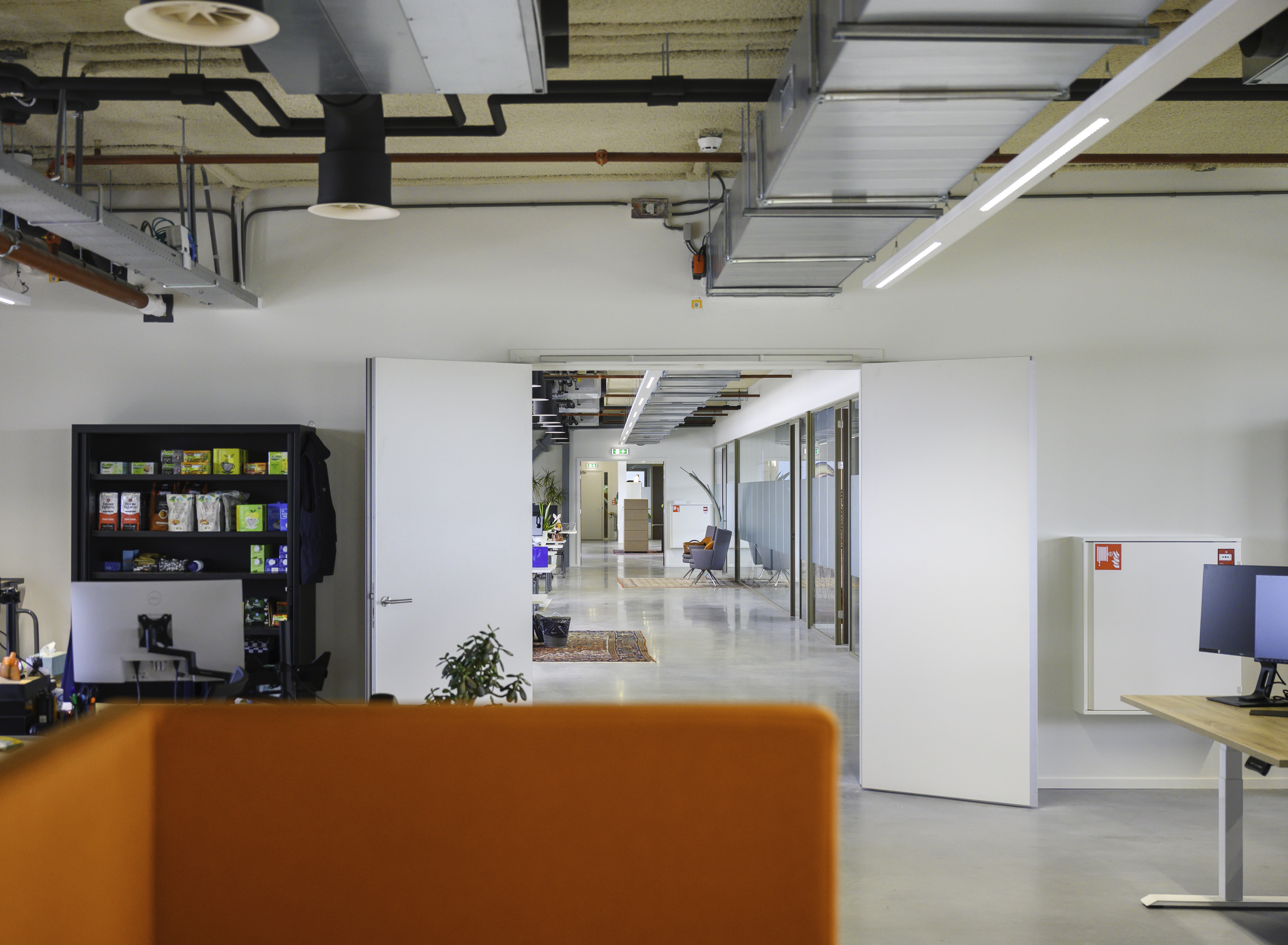

Application Office - Intercel
