PANEL COMPACT 600 TPA
PL COMP 600 TPA V 28W MC 840
GTIN: 4058075849464
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Highly versatile due to selectable CCT (Multi Color) in 3000K and 4000K
- Low flicker light thanks to special electronic control gear
- Energy savings thanks to system efficacy of up to 120 lm/W
- External driver for extended flexibility and easy installation
Areas of application
- Areas which require UK building regulation rating TP(a)
- Direct replacement for luminaires with fluorescent lamps
- Offices, conference rooms
- Reception areas, foyers, corridors, elevators
- Suitable for recessed ceiling systems with grid size of 600 x 600 mm
Product features
- Extruded aluminum frame
- Polystyrene diffuser - TP(a) rated (UK)
- Lifetime (L80/B10): up to 50,000 h (at 25 °C)
Equipment / Accessories
- Accessories for several mounting options available
- External control gear included

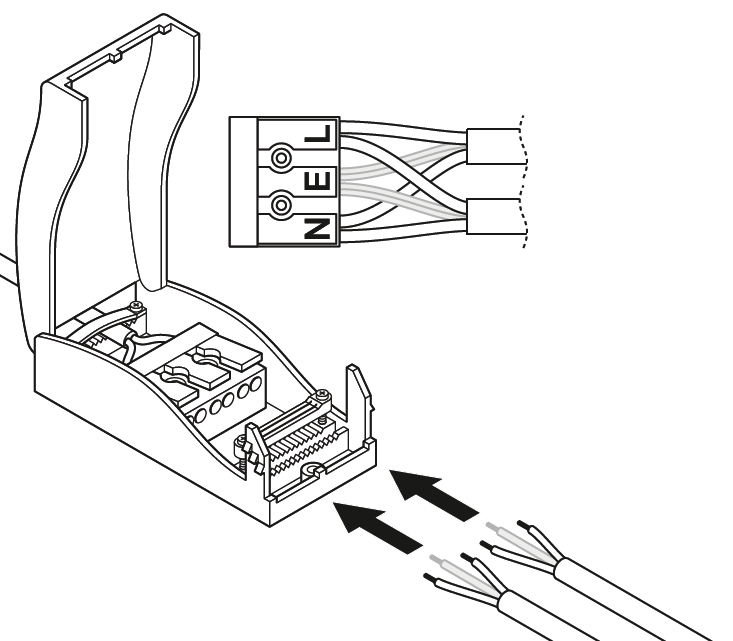

- Preinstalled connector box for easy wiring and optional through-wiring
- Suitable for use with seperate Emergency Conversion Box
- Separate DALI driver available
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- The luminaires are not suitable for covering with thermally insulated material.
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 28.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50/60 Hz |
| Nominal current | 140.000 mA |
| Inrush current | 25 A |
| Inrush current time Th50 | 150 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 24 |
| Max. number of luminaires per miniature circuit breaker C10 | 19 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | II |
| Operating mode | External LED driver |
Photometrical data
| Luminous flux | 3360 lm / 3220 lm |
| Luminous efficacy | 120 lm/W / 115 lm/W |
| Color temperature | 4000 K / 3000 K |
| Reference control setting of contained light source (Kelvin) | 4000 K |
| Light color (designation) | Cool White, Warm White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | 5 sdcm |
| Low flicker | Yes |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | <0.4 |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 115 ° |
Adjustable attributes
| Nominal wattage | Color temperature | Luminous flux | Luminous efficacy |
|---|---|---|---|
| 28 W | 4000 K | 3360 lm | 120 lm/W |
| 28 W | 3000 K | 3220 lm | 115 lm/W |

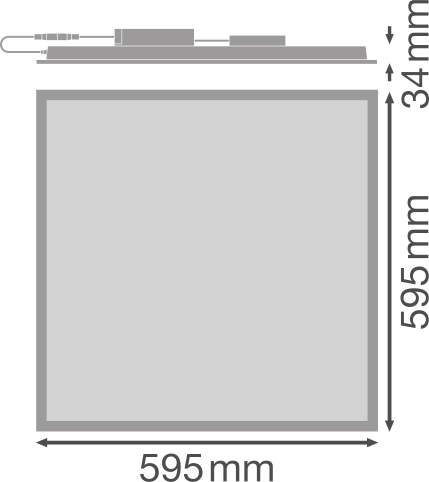

Dimensions & Weight
| Length | 595.00 mm |
| Height | 34.00 mm |
| Width | 595.00 mm |
| Product weight | 1450.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Steel |
| Cover material | Polystyrene (PS) |
| Light emitting surface material | Polystyrene |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -10…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Screwless terminal, 2-Pole (L, N) |
| Type of protection | IP40/IP20 |
| Protection class IK (shock resistance) | IK02 |
| Dimmable | No |
| Mounting type | Recessed/Suspended/Surface |
| Mounting location | Ceiling |
| Application environment | Indoor |
| Mounting length | 575 mm |
| Mounting width | 575 mm |
| Mounting depth | 50 mm |
| Adjustable | No |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 75000 h 1) |
| Lifespan L80/B10 at 25 °C | 35000 h 1) |
| Lifespan L90/B10 at 25 °C | 20000 h |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
| Output current | 750 mA |
| ECG - Output ripple current | < 5 % |
| ECG - Length | 100 mm |
| ECG - Width | 38 mm |
| ECG - Height | 25 mm |
| Recommended control gear | DR DALI-P-42/220-240/1A0 |
Emergency lighting
| Type of Emergency Lighting (EL) | Optional EL unit (battery and controller) for decentral operation available separately |
| Type of emergency operation test | None |
| Wattage in emergency operation mode | 3 W |
| Luminous flux in emergency operation mode | 330 lm |
Certificates & Standards
| Standards | CE, CB, UKCA, EAC, TÜV SÜD, UK TP(a) |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Added function | MULTI SELECT |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075849464 | Folding box 1 |
622 mm x 48 mm x 602 mm | 1751.00 g | 17.97 dm³ |
| 4058075849471 | Shipping box 4 |
642 mm x 211 mm x 627 mm | 7734.00 g | 84.93 dm³ |
User instruction / safety instructions
PL COMPACT TPA
PL COMPACT TPA
Addon technical information
PANEL COMPACT 600
PANEL COMPACT 600
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Legal information
Safety Insert G11205013
Safety Insert G11205013
Legal information
PL COMP 600 TPA V 28W
PL COMP 600 TPA V 28W
Legal information
Legal Insert G11146927
Legal Insert G11146927
Declarations of conformity
PL COMP 600 TPA V 28W MC 840_U19 LEDV
PL COMP 600 TPA V 28W MC 840_U19 LEDV
Product image: white background, diagonal
PANEL
PANEL
Product image: white background, horizontal
PANEL
PANEL

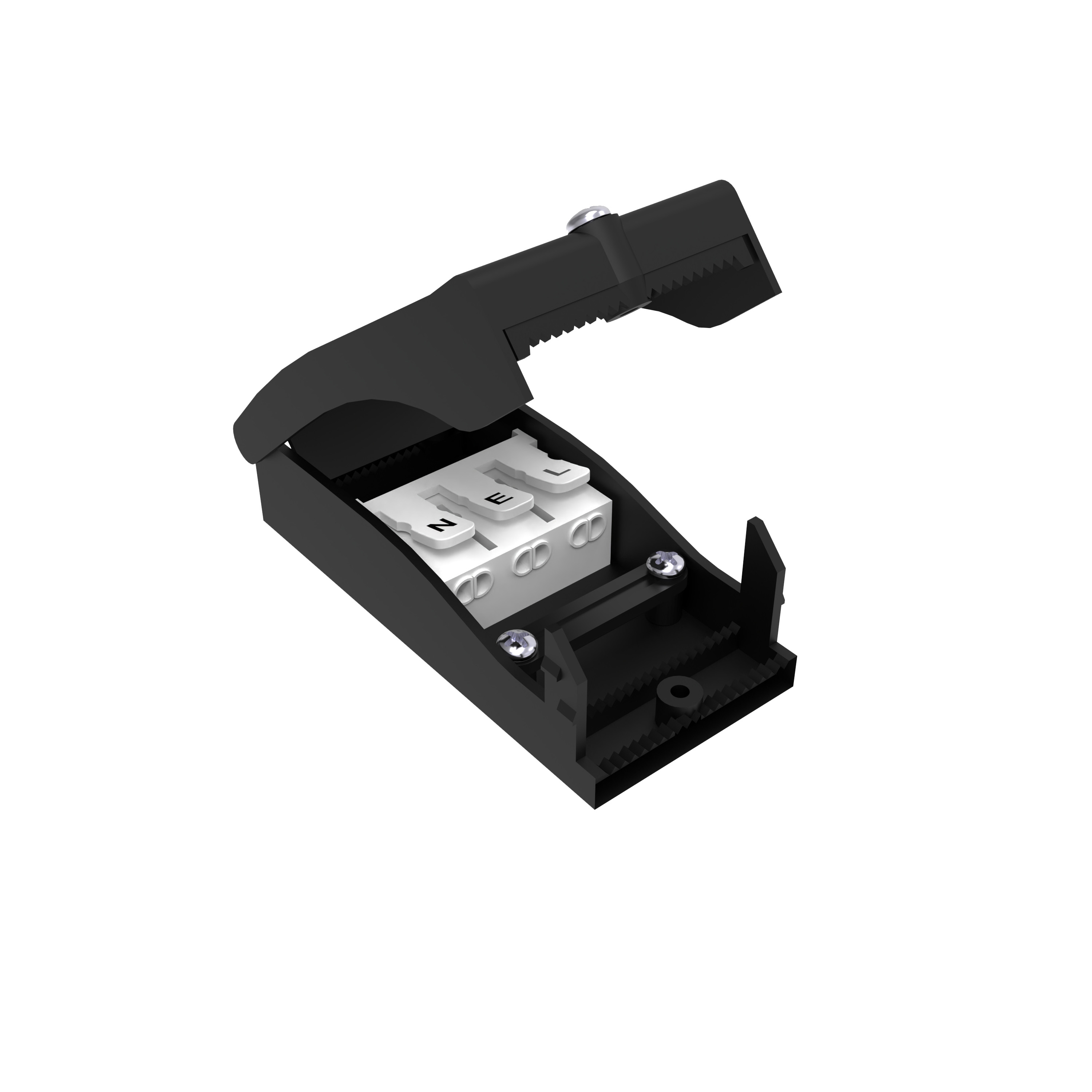

Product image: white background, with accessory, alternative image
PL COMB TPA
PL COMB TPA
Product line drawing with letters
PL PFM PL FLEX PL COMP
PL PFM PL FLEX PL COMP
Product line drawing with numbers
PL COMP 600 TPA 28W
PL COMP 600 TPA 28W
Product line drawing, front, no dimensions
PL PFM PL FLEX PL COMP
PL PFM PL FLEX PL COMP
Catalog info 1
PL COMB TPA
PL COMB TPA

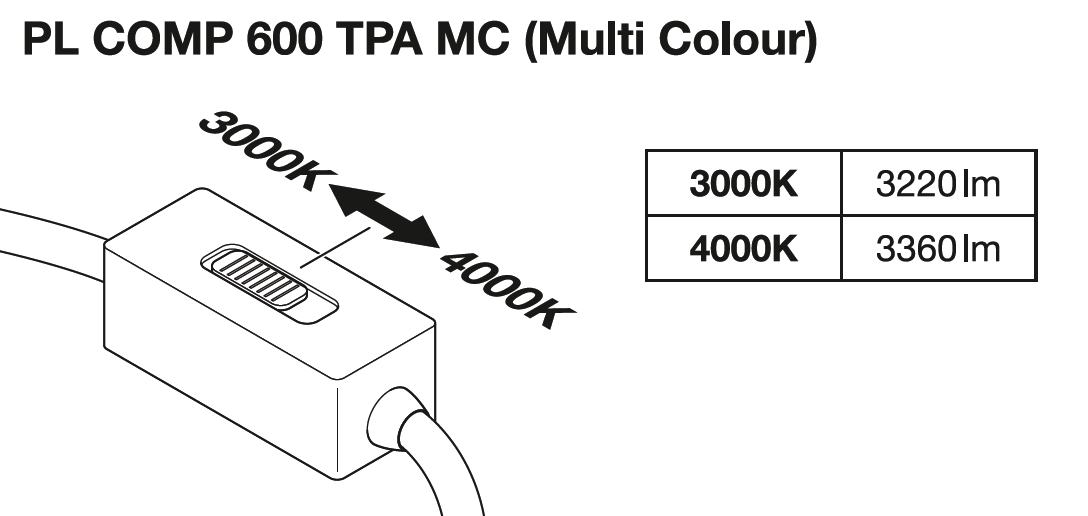

Catalog info 2
