PANEL PERFORMANCE 600 UGR < 19 TPA
PANEL PFM 600 UGR < 19 TPA 36 W 4000 K WT
GTIN: 4058075384309
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Energy savings thanks to system efficacy of up to 110 lm/W
- Flexible application thanks to TP(A) rated diffusor for the UK market
- Good glare reduction (UGR < 19)
- Versions with DALI ECG available
- Emergency lighting possible with LEDVANCE Emergency Conversion Box
- Low flicker light thanks to special electronic control gear
- External driver for extended flexibility and easy installation
- Easy to clean thanks to a smooth diffuser
- 5 years guarantee
Areas of application
- Direct replacement for luminaires with fluorescent lamps
- Offices, conference rooms
- Reception areas, foyers, corridors, elevators
- Suitable for recessed ceiling systems with grid size of 600 x 600 mm
Product features
- Extruded aluminum frame
- Polycarbonate diffuser (TP(A) rated)
- Lifetime (L80/B10): up to 50,000 h (at 25 °C)
Equipment / Accessories
- Accessories for several mounting options available
- External control gear included
- Not suitable for use with Emergency Conversion Box
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 36.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 170.000 mA |
| Inrush current | 23 A |
| Inrush current time Th50 | 200 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 19 |
| Max. number of luminaires per miniature circuit breaker C10 | 19 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Power factor λ | ≥0.95 |
| Total harmonic distortion | ≤ 20 % |
| Protection class | II |
| Operating mode | External LED driver |
Photometrical data
| Luminous flux | 3960 lm |
| Luminous efficacy | 110 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | 5 sdcm |
| Luminous intensity | - |
| Flickering metric (Pst LM) | - |
| Stroboscope effect metric (SVM) | - |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 90 ° |
| UGR | < 19 |
Dimensions & Weight
| Length | 595.00 mm |
| Height | 34.00 mm |
| Width | 595.00 mm |
| Product weight | 1800.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Steel |
| Cover material | Polycarbonate (PC) |
| Light emitting surface material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -10…+45 °C |
| Type of connection | Screwless terminal |
| Type of protection | IP40 |
| Protection class IK (shock resistance) | IK02 |
| Dimmable | No |
| Mounting type | Recessed/Suspended/Surface |
| Mounting location | Ceiling, Wall |
| Application environment | Indoor |
| Mounting length | 580 mm |
| Mounting width | 580 mm |
| Mounting depth | 50,0 mm |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
| Lifespan L80/B10 at 25 °C | 50000 h 1) |
| Lifespan L90/B10 at 25 °C | 50000 h |
| Number of switching cycles | 25000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, CB |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075384309 | Folding box 1 |
602 mm x 40 mm x 648 mm | 2192.00 g | 15.60 dm³ |
| 4058075384316 | Shipping box 4 |
667 mm x 182 mm x 634 mm | 10015.00 g | 76.96 dm³ |
User instruction / safety instructions
PANEL
PANEL
Legal information
LSI PL PFM AND VAL
LSI PL PFM AND VAL
Legal information
Legal Insert
Legal Insert
Declarations of conformity
EU Declaration of conformity
EU Declaration of conformity

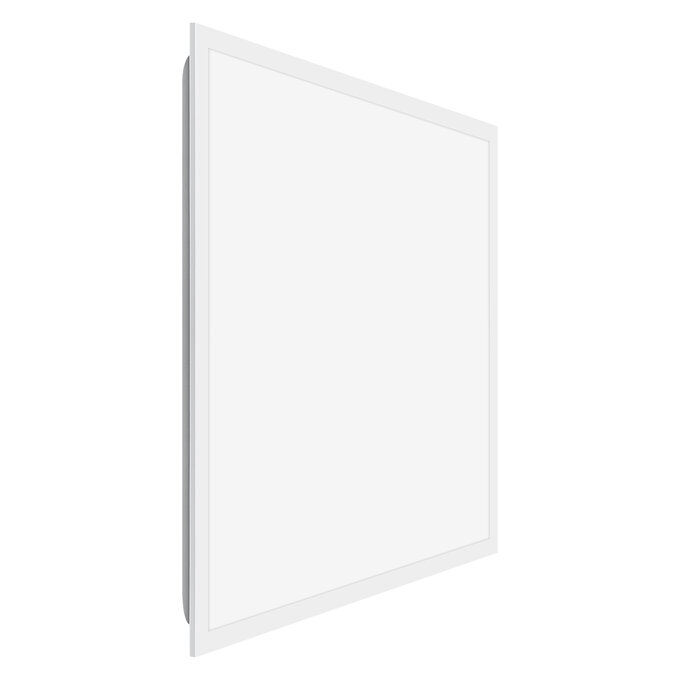

Product image: white background, diagonal
PL PFM 600 36W UGR19 TPA
PL PFM 600 36W UGR19 TPA
Product line drawing with letters
PL VAL 600 36W TPB
PL VAL 600 36W TPB
Product line drawing with numbers
PL VAL 600 36W TPB
PL VAL 600 36W TPB
Product line drawing, front, no dimensions
PL VAL 600 36W TPB
PL VAL 600 36W TPB
Packaging image, spacial
Panel PFM 600 white 36W 840 TPA MiCh
Panel PFM 600 white 36W 840 TPA MiCh
IES file (IES)
PL PFM 600 36W 4000K UGR19 TPA
PL PFM 600 36W 4000K UGR19 TPA
LDT file (Eulumdat)
PL PFM 600 36W 4000K UGR19 TPA
PL PFM 600 36W 4000K UGR19 TPA
ULD file (DIALux)
PL PFM 600
PL PFM 600
ROLF file (RELUX)
PL PFM 600
PL PFM 600

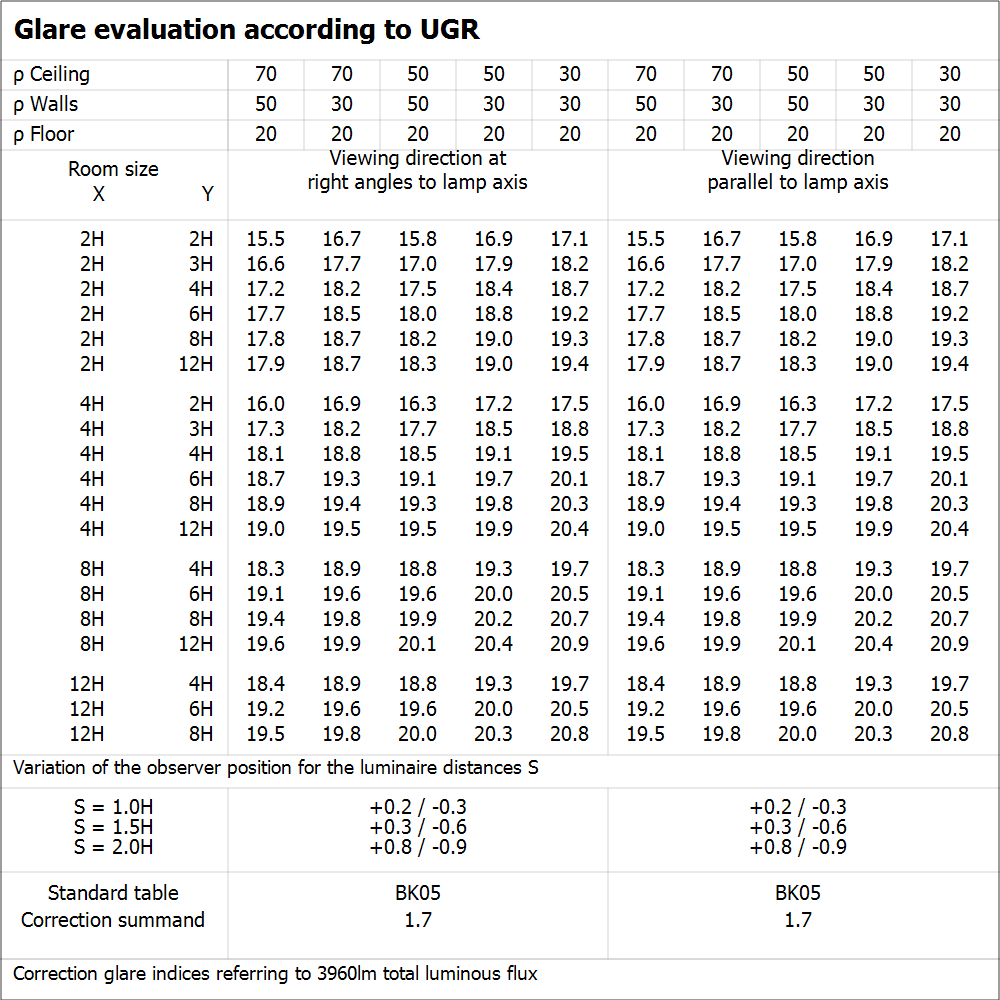

UGR file (UGR table)
