SURFACE MOUNT KIT
PANEL 600 SURFACE MOUNT KIT H75 BK
GTIN: 4058075834330
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Ready-to-mount thanks pre-assembled magnetic corners
- Crossbar for advanced stability
- H50 version with slim design fits for panels with an overall height of 38 mm (Panel + driver)
Areas of application
- H75 versions suitable for all LEDVANCE Panels
- H50 versions suitable only for LEDVANCE Biolux Panel and Panel Protect
Product features
- Extruded aluminum frame
- Mount frames available in 75 mm (H75) or 50 mm (H50) height
- Available in white (like RAL9003) or black (like RAL9005) color
Dimensions & Weight
| Length | 600 mm |
| Height | 76 mm |
| Width | 600 mm |
| Product weight | 1530.00 g |
Materials & Colors
| Product color | Black |
| Body material | Aluminum |
Application & Mounting
| Ambient temperature range | -20…+50 °C |
| Mounting type | Surface |
| Mounting location | Ceiling |
| Replaceable light source | No |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075834330 | Folding box 1 |
605 mm x 81 mm x 606 mm | 1939.00 g | 29.70 dm³ |
| 4058075834347 | Shipping box 4 |
625 mm x 355 mm x 635 mm | 9176.00 g | 140.89 dm³ |

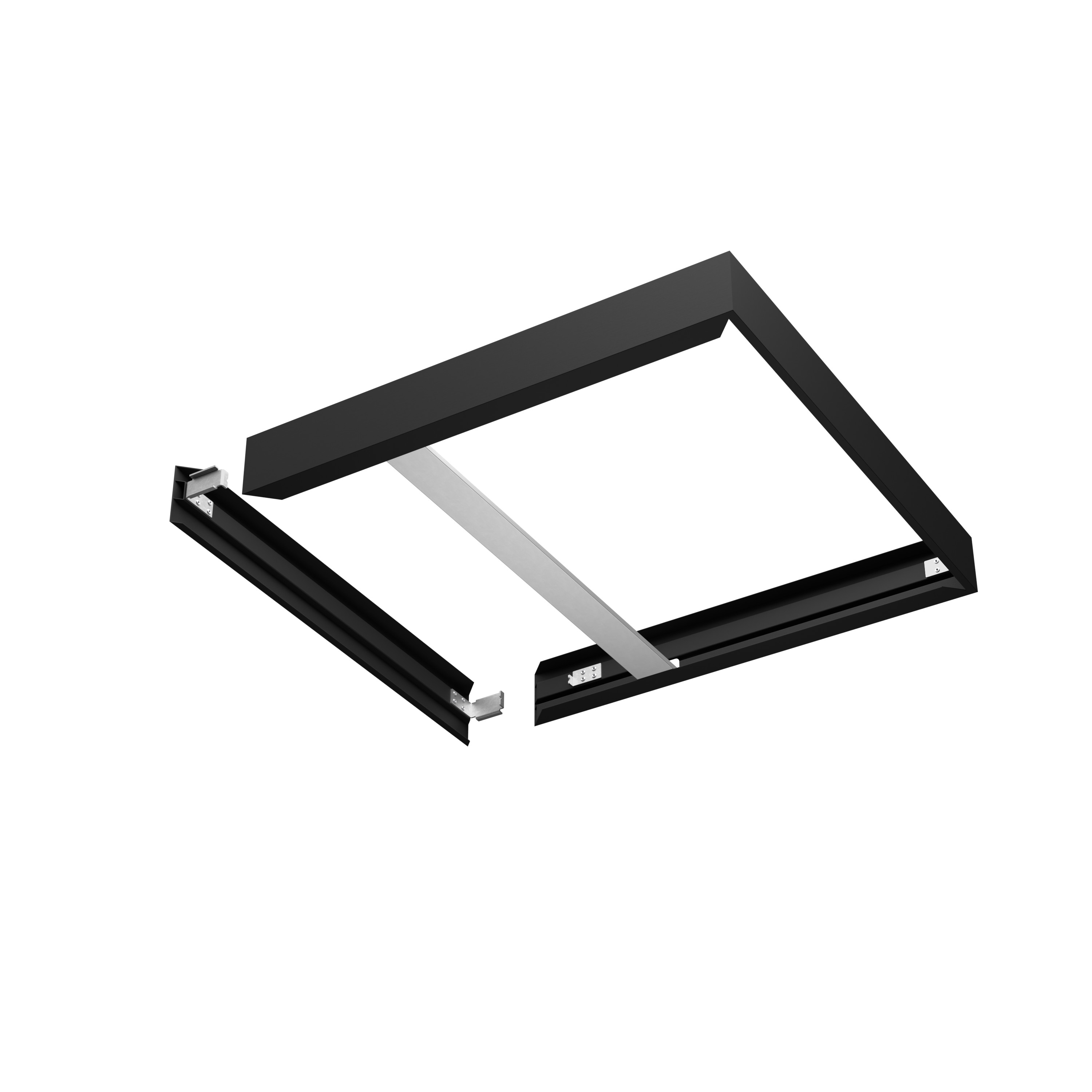

Product image: white background, diagonal
PL 600 SURFACE MOUNT KIT H75 BK
PL 600 SURFACE MOUNT KIT H75 BK
Product line drawing with letters
LEDVANCE Panel Surface Mount Kit 600 ml
LEDVANCE Panel Surface Mount Kit 600 ml
Product line drawing with numbers
PL 600 SURFACE MOUNT KIT H75
PL 600 SURFACE MOUNT KIT H75
Product line drawing, front, no dimensions
LEDVANCE Panel Surface Mount Kit 600 k
LEDVANCE Panel Surface Mount Kit 600 k

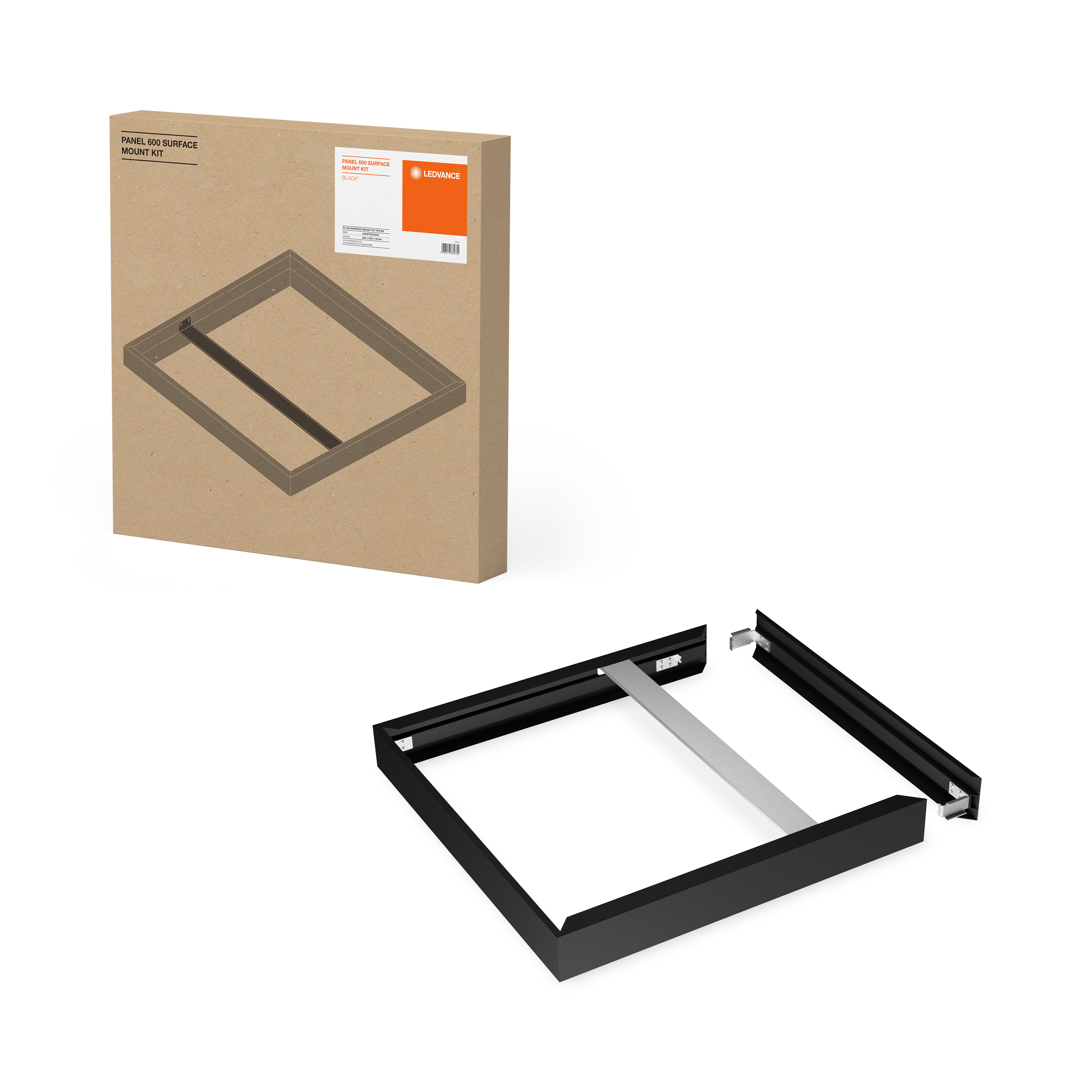

Combo Shot = Product Beauty Shot + Packaging Image
FC1 Panel 600 SURFACE MOUNT KIT
FC1 Panel 600 SURFACE MOUNT KIT
Packaging image, frontal
FC1 Panel 600 SURFACE MOUNT KIT
FC1 Panel 600 SURFACE MOUNT KIT
Packaging image, spacial
FC1 Panel 600 SURFACE MOUNT KIT
FC1 Panel 600 SURFACE MOUNT KIT
Tender documents
SURFACE MOUNT KIT 600 SURFACE MOUNT KIT H75 BK-EN
SURFACE MOUNT KIT 600 SURFACE MOUNT KIT H75 BK-EN
Application pictures
Hairdressing salon with black panel frame
Hairdressing salon with black panel frame
| EAN | SEG number | STK number | ELDAS number |
|---|---|---|---|
| 4058075834330 | 7027133 | 4136268 | 941005950 |
