LOW BAY FLEX SUSPENSION KIT
LB FLEX SUSPENSION KIT
GTIN: 4058075693722
BAG / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Easy installation with click-in suspension brackets
Product features
- Wire suspension with bracket and 5 m adjustable steel cable
Equipment / Accessories
- 5 m adjustable steel cable
Dimensions & Weight
| Length | 125.0 mm |
| Height | 46 mm |
| Width | 30 mm |
| Product weight | 240.00 g |
| Cable length | 5000 mm |
Materials & Colors
| Product color | Steel |
| Body material | Steel |
Application & Mounting
| Temperature range at storage | -30…+80 °C |
| Mounting type | Surface mounting |
| Mounting location | Ceiling |
| Replaceable light source | No |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075693722 | BAG 1 |
|||
| 4058075693739 | Shipping box 30 |
421 mm x 282 mm x 173 mm | 7650.00 g | 20.54 dm³ |

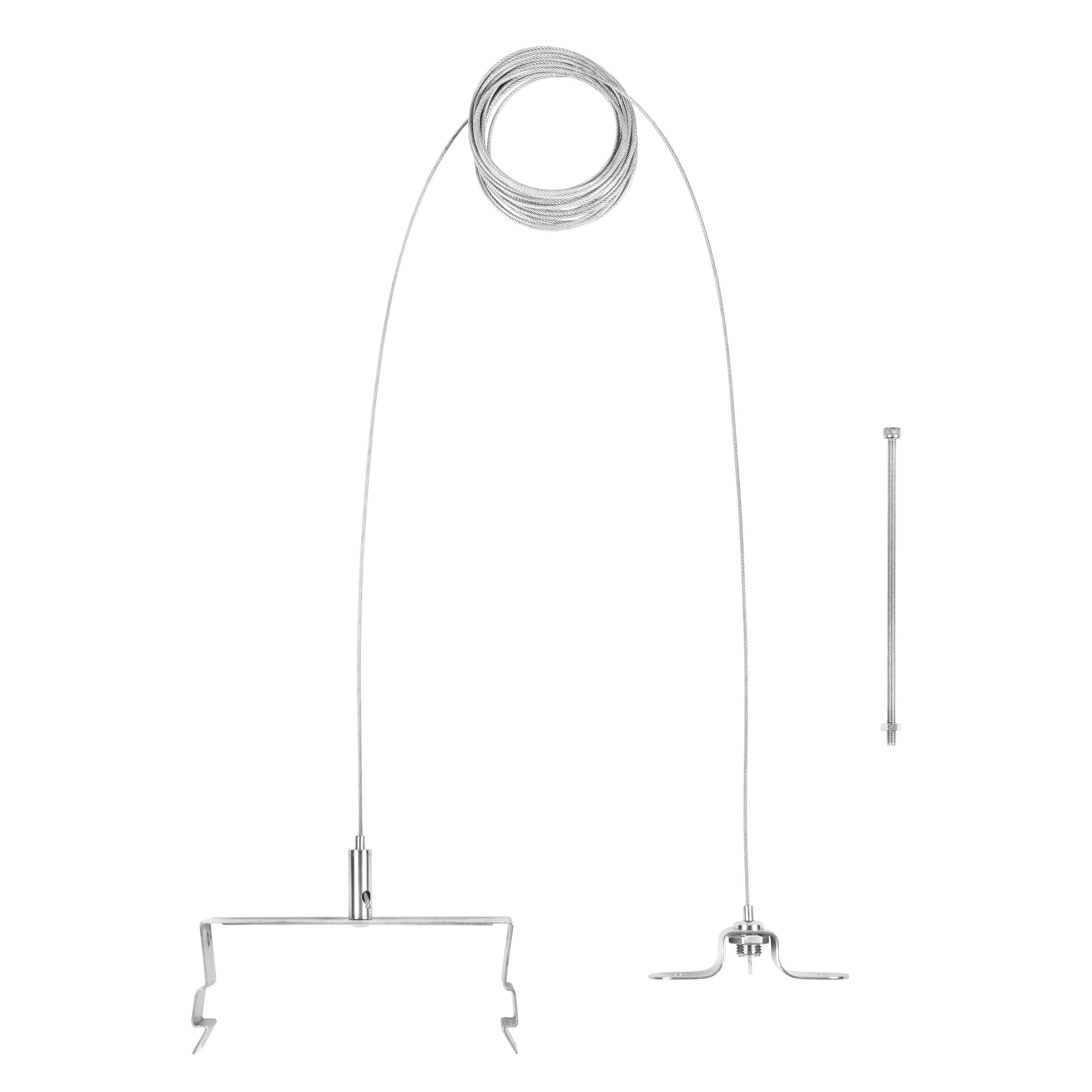

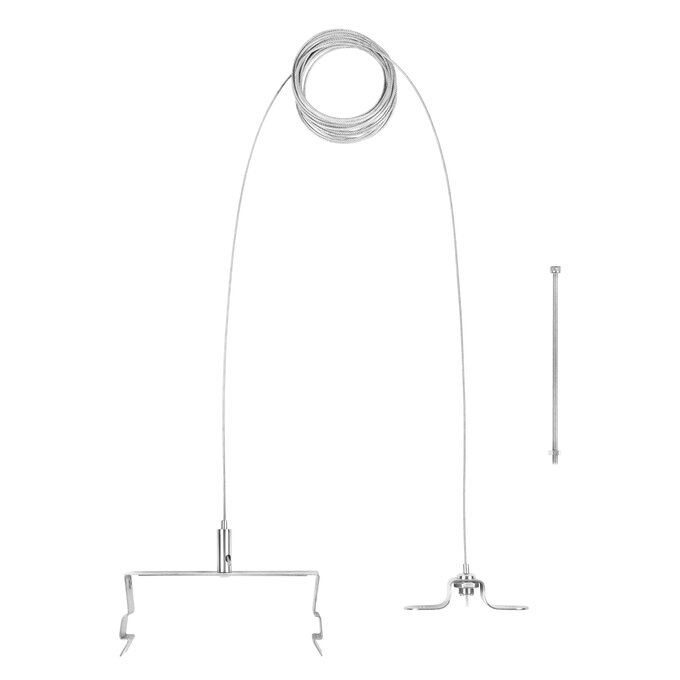

Product image: white background, upright
LOWBAY SUSPENSION KIT
LOWBAY SUSPENSION KIT

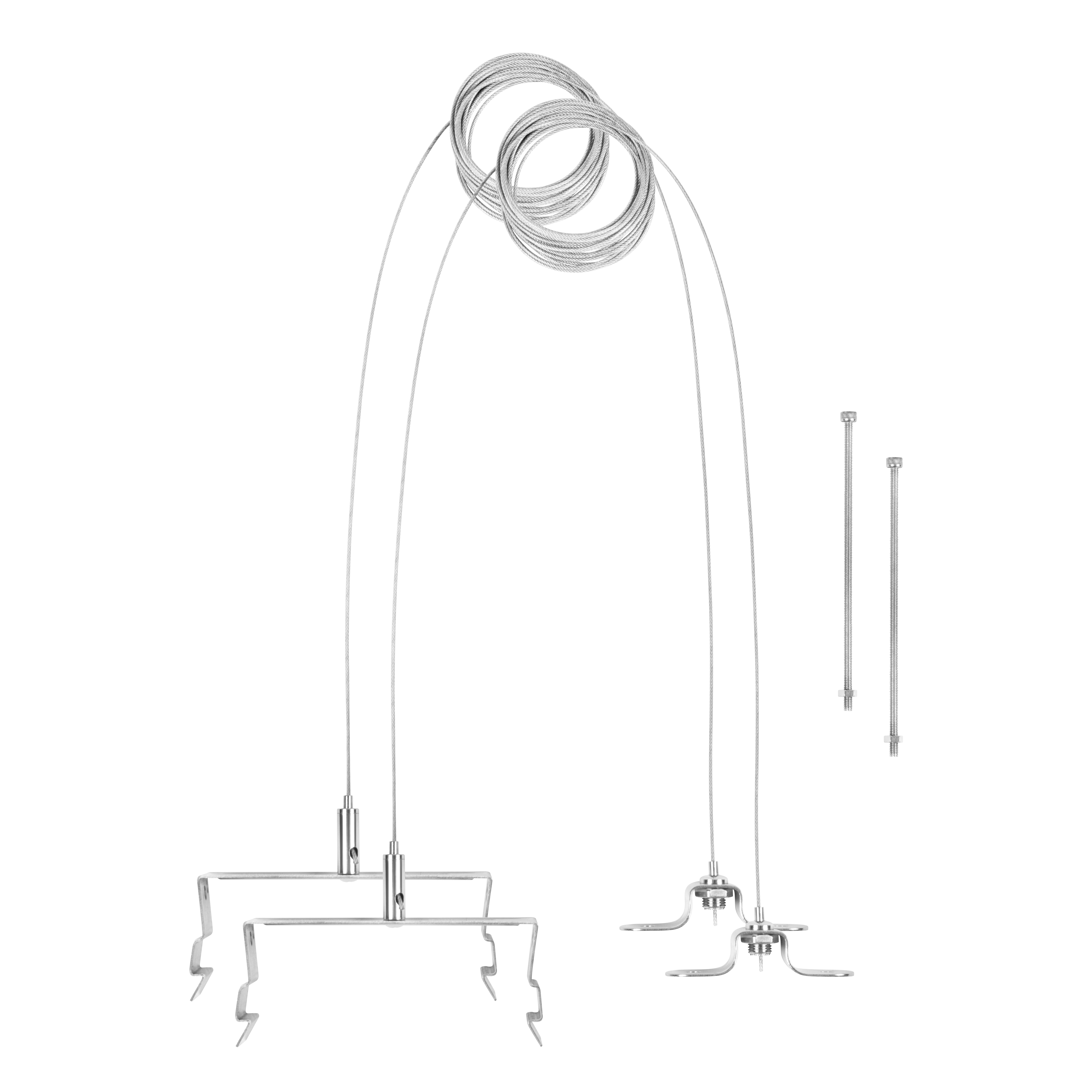

Product image: white background, upright
LOWBAY SUSPENSION KIT
LOWBAY SUSPENSION KIT
Product line drawing with letters
LOWBAY SUSPENSION KIT
LOWBAY SUSPENSION KIT
Product line drawing with numbers
LOWBAY SUSPENSION KIT
LOWBAY SUSPENSION KIT
Product line drawing - technical
LOWBAY SUSPENSION KIT
LOWBAY SUSPENSION KIT
Catalog info 1
Lowbay Suspension Kit
Lowbay Suspension Kit
Catalog info 2
Lowbay Suspension Kit mounting
Lowbay Suspension Kit mounting
Tender documents
LOW BAY FLEX ACCESSORIES SUSPENSION KIT-EN
LOW BAY FLEX ACCESSORIES SUSPENSION KIT-EN
| EAN | SEG number | STK number | EFO number | ELDAS number |
|---|---|---|---|---|
| 4058075693722 | 7216984 | 4324753 | 3304059 | 941902470 |
