NEW
EMERGENCY SPOT ACCESSORIES
EM SPOT SURFACE FRAME
GTIN: 4099854232183
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Easy installation
Areas of application
- Antipanic lighting
Product features
- Low mounting depth
- Robust polycarbonate casing
Equipment / Accessories
- Mounting accessories included
Dimensions & Weight
| Diameter | 104.00 mm |
| Height | 75.00 mm |
| Product weight | 84.00 g |
Materials & Colors
| Product color | White |
| Body material | Polycarbonate (PC) |
Application & Mounting
| Mounting type | Surface |
| Mounting location | Ceiling |
| With light source | No |
| Replaceable light source | No |
Emergency lighting
| Area of emergency application | Anti-panic lighting |
Certificates & Standards
| Standards | CE, CB, UKCA, EAC |
| Luminaire with limited surface temperature, "D sign" | No |
Additional product data
| Product remark | Available from March 2025 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (3147-75-9) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854232183 | Folding box 1 |
107 mm x 107 mm x 89 mm | 134.00 g | 1.02 dm³ |
| 4099854232190 | Shipping box 20 |
230 mm x 230 mm x 470 mm | 3080.00 g | 24.86 dm³ |
User instruction / safety instructions
EM SPOT
EM SPOT

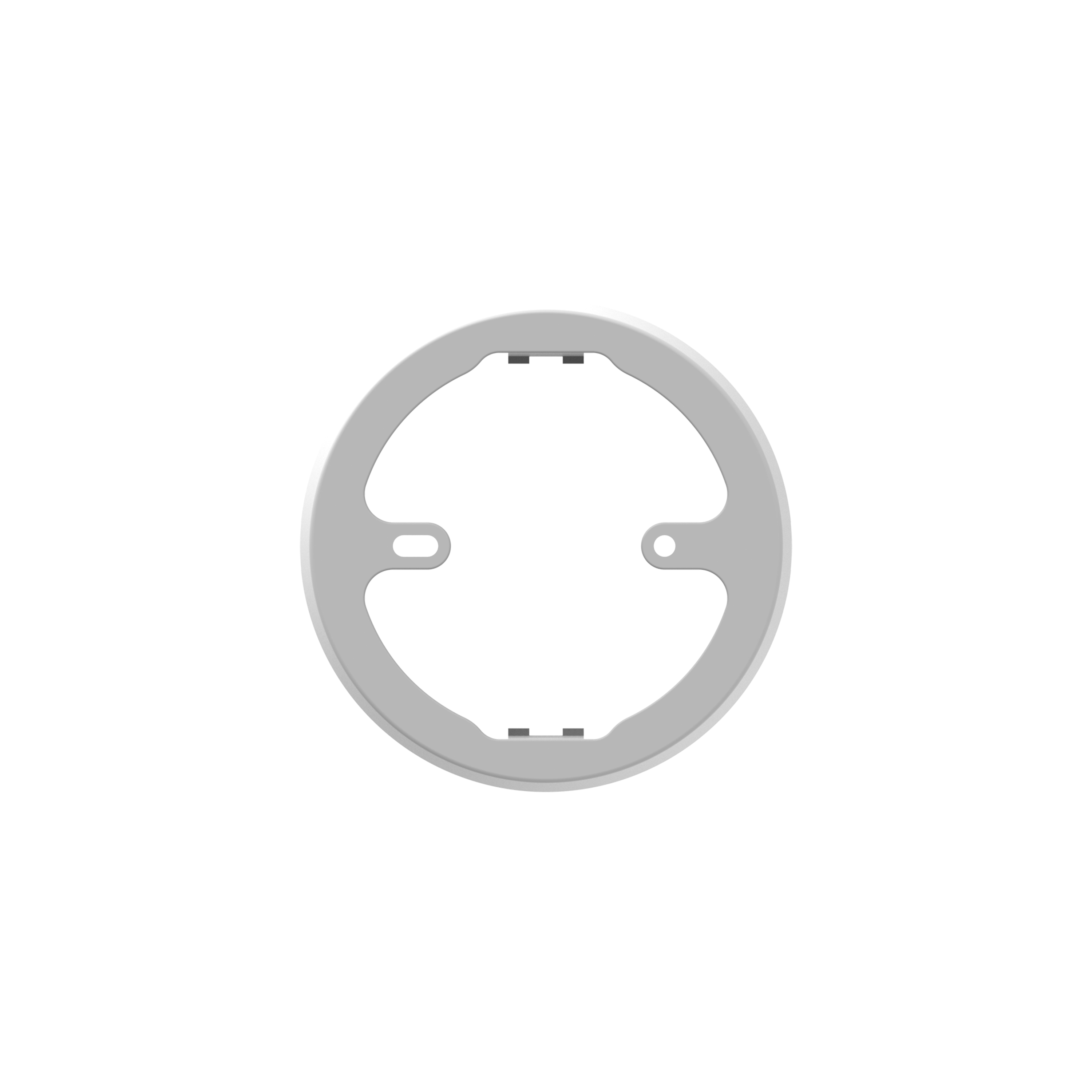

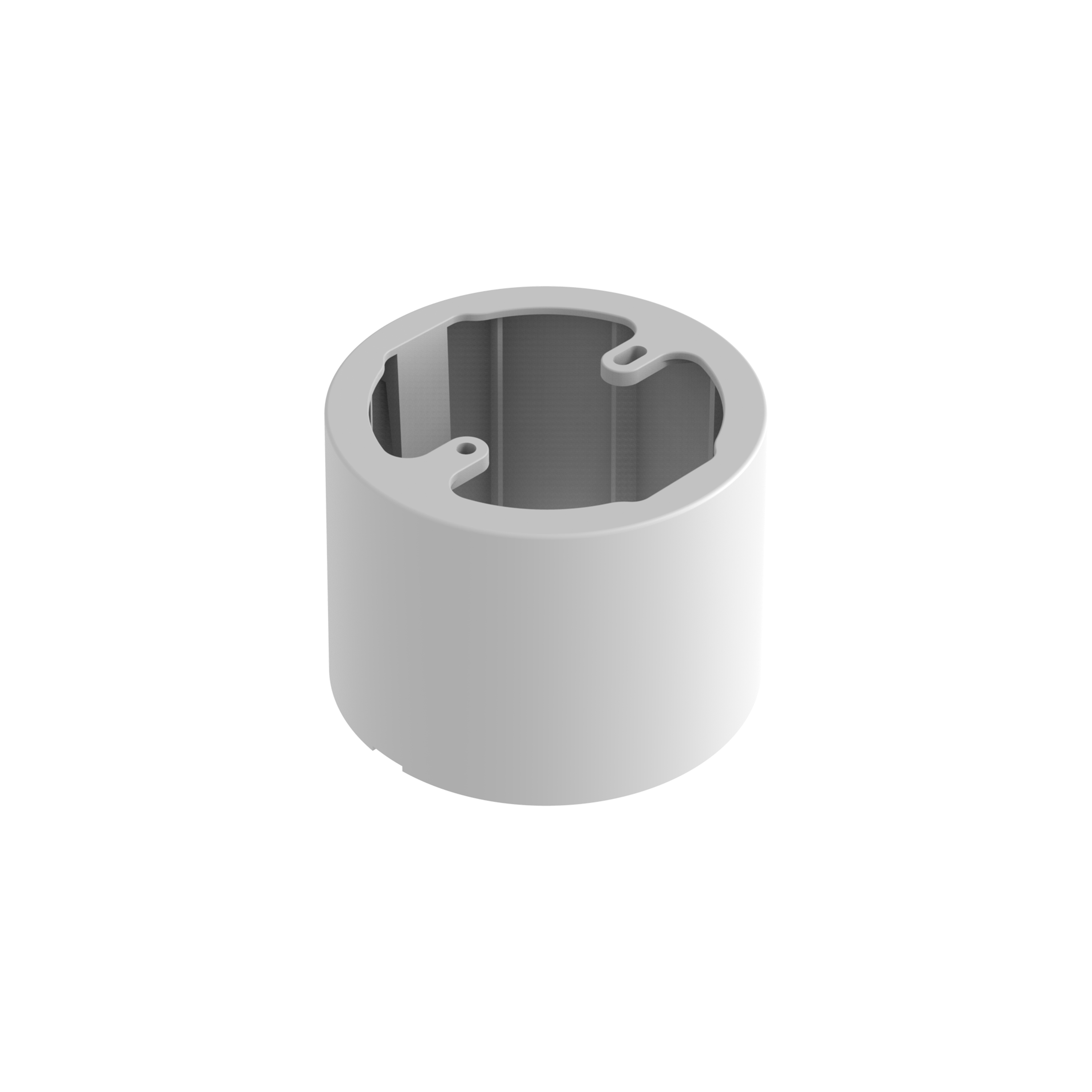

Product image: white background, diagonal
EM SPOT SURFACE FRAME
EM SPOT SURFACE FRAME

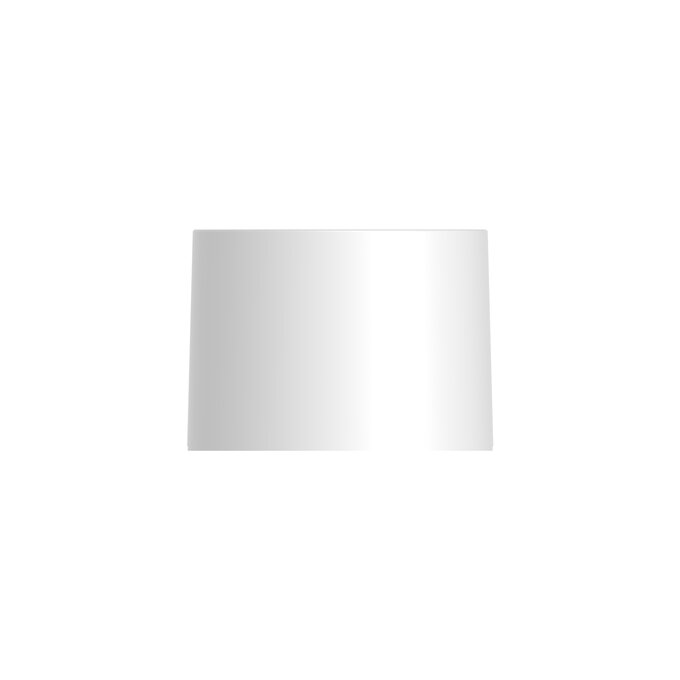

Product image: white background, horizontal
EM SPOT SURFACE FRAME
EM SPOT SURFACE FRAME
Product line drawing with letters
EM SPOT SURFACE FRAME
EM SPOT SURFACE FRAME
Product line drawing with numbers
EM SPOT SURFACE FRAME
EM SPOT SURFACE FRAME

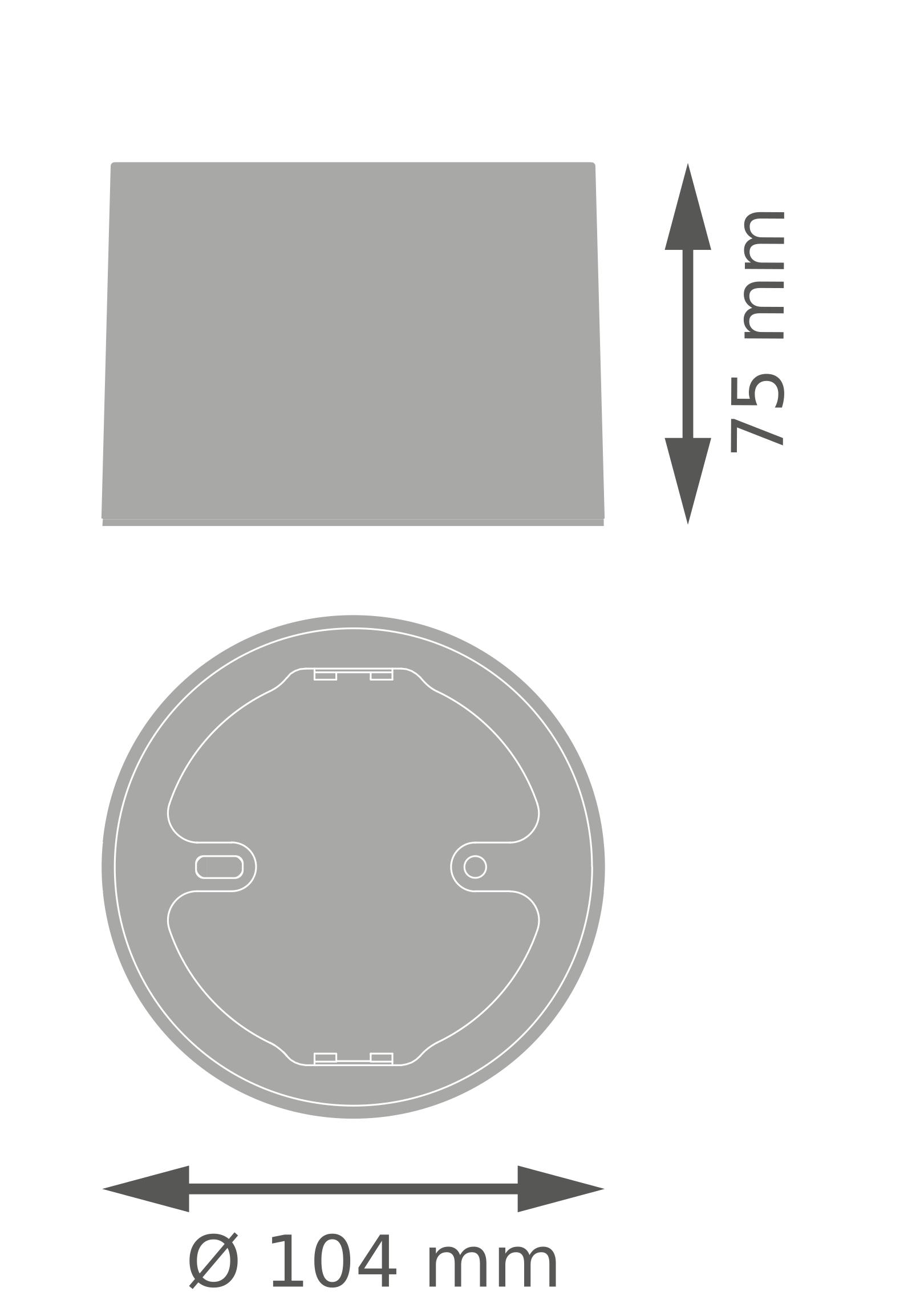

Product line drawing - technical
EM SPOT SURFACE FRAME
EM SPOT SURFACE FRAME
