DOWNLIGHT SLIM ALU
DL SLIM ALU D100 V 8W ML 83040 WT
GTIN: 4099854441776
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Low installation depth
- Highly versatile due to selectable CCT and power steps (Multi Color / Multi Lumen)
- Very homogenous light distribution
- External driver with 3-pole through-wiring feature for flexibility and easy installation
- Emergency lighting possible with LEDVANCE Emergency Conversion Box
- Energy savings up to 60 % (compared to luminaires that use CFL lamps)
Areas of application
- Direct replacement for luminaires with compact fluorescent lamps
- General illumination
- Public areas
- Stairways
- Corridors
- Foyers
- Shops
Product features
- Very slim aluminum housing with only 23 mm height
- High luminous efficacy: up to 100 lm/W
- Multi Lumen function: power steps selectable
- Multi Color function: 3000 K and 4000 K
- Type of protection: IP44
- Luminaire available in 5 sizes for different cut-outs
- Lifetime (L70/B50): 50,000 h (temperature at Ta = 40 °C)
Equipment / Accessories
- Accessories for surface mounting available
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 8 W / 6 W / 4 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 35/28/20 mA |
| Inrush current | 4.26 A |
| Inrush current time Th50 | 26 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 90 |
| Max. number of luminaires per miniature circuit breaker C10 | 90 |
| Max. number of luminaires per miniature circuit breaker C16 | 110 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | II |
| Operating mode | External LED driver |
Photometrical data
| Luminous flux | 800 lm / 600 lm / 400 lm |
| Luminous efficacy | 100 lm/W |
| Color temperature | 3000 K / 4000 K |
| Reference control setting of contained light source (Kelvin) | 4000 K |
| Light color (designation) | Warm White, Cool White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | < 5 sdcm |
| Luminous intensity | - |
| Low flicker | Yes |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | <0.4 |
| Photobiological safety group acc. to EN62778 | RG0 |
| Photobiological safety group acc. to EN62471 | RG1 |
| Beam angle | 90 ° |
Adjustable attributes
| Nominal wattage | Color temperature | Luminous flux | Luminous efficacy |
|---|---|---|---|
| 8 W | 3000 K | 800 lm | 100 lm/W |
| 8 W | 4000 K | 800 lm | 100 lm/W |
| 6 W | 3000 K | 600 lm | 100 lm/W |
| 6 W | 4000 K | 600 lm | 100 lm/W |
| 4 W | 3000 K | 400 lm | 100 lm/W |
| 4 W | 4000 K | 400 lm | 100 lm/W |
Dimensions & Weight
| Diameter | 112.00 mm |
| Height | 23.00 mm |
| Product weight | 180.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| RAL Color (most similar) | RAL 9003 |
| Body material | Aluminum |
| Cover material | Polycarbonate (PC) |
| Light emitting surface material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 850 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+85 °C |
| Type of connection | Screwless terminal, 3-Pole (N, E, L) |
| Type of protection | IP44/IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | No |
| Mounting type | Recessed |
| Mounting location | Ceiling, Wall |
| Application environment | Indoor |
| Mounting diameter | 100 mm |
| Mounting depth | 23.0 mm |
| Adjustable | No |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
| Lifespan L80/B10 at 25 °C | 35000 h 1) |
| Lifespan L90/B10 at 25 °C | 15000 h |
| Number of switching cycles | 25000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
| Output current | 170 mA |
| ECG - Output ripple current | < 10 % |
| ECG - Length | 100 mm |
| ECG - Width | 49 mm |
| ECG - Height | 26 mm |
Emergency lighting
| Type of Emergency Lighting (EL) | Optional EL unit (battery and controller) for decentral operation available separately |
| Type of emergency operation test | None |
| Wattage in emergency operation mode | 2,5 W |
| Luminous flux in emergency operation mode | 300 lm |
Certificates & Standards
| Standards | CE, UKCA, EAC, ENEC, EPD |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| EPD | LEDV-00050-V01.01-EN |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Added function | MULTI SELECT |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854441776 | Folding box 1 |
57 mm x 118 mm x 118 mm | 215.00 g | 0.79 dm³ |
| 4099854441783 | Shipping box 12 |
358 mm x 249 mm x 142 mm | 2833.00 g | 12.66 dm³ |
User instruction / safety instructions
DOWNLIGHT SLIM ALU
DOWNLIGHT SLIM ALU
Legal information
LSI DL SLIM ALU ON\OFF
LSI DL SLIM ALU ON\OFF
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Legal information
Safety Insert G11207793
Safety Insert G11207793
Legal information
DL SLIM ALU
DL SLIM ALU
Legal information
Legal insert G11262490 MW T
Legal insert G11262490 MW T
Declarations of conformity
DL SLIM ALU
DL SLIM ALU
EPD
EPD EN DOWNLIGHT SLIM ALU DALI
EPD EN DOWNLIGHT SLIM ALU DALI

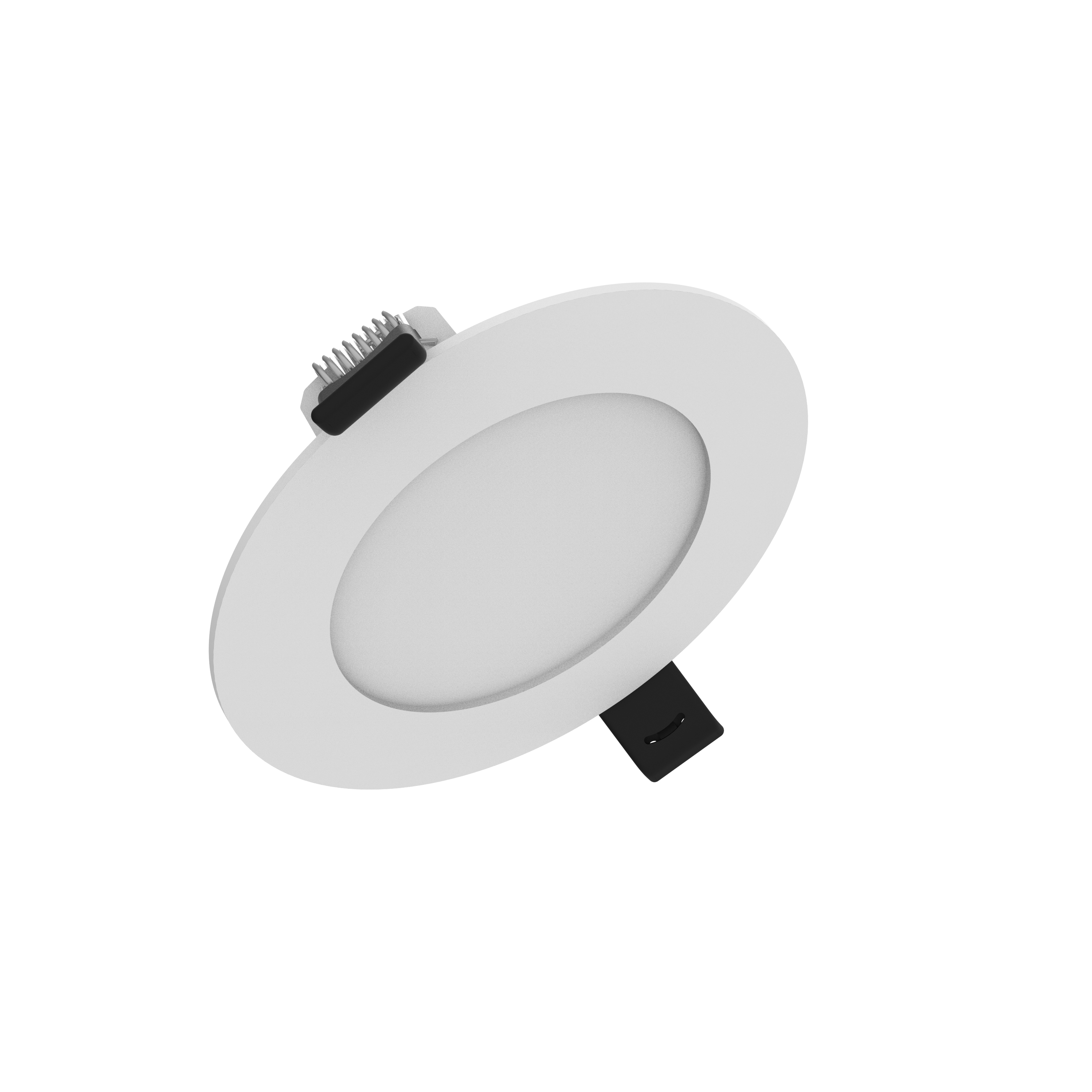

Product image: white background, diagonal
DL SLIM ALU D100 V 8W MS 840 WT
DL SLIM ALU D100 V 8W MS 840 WT

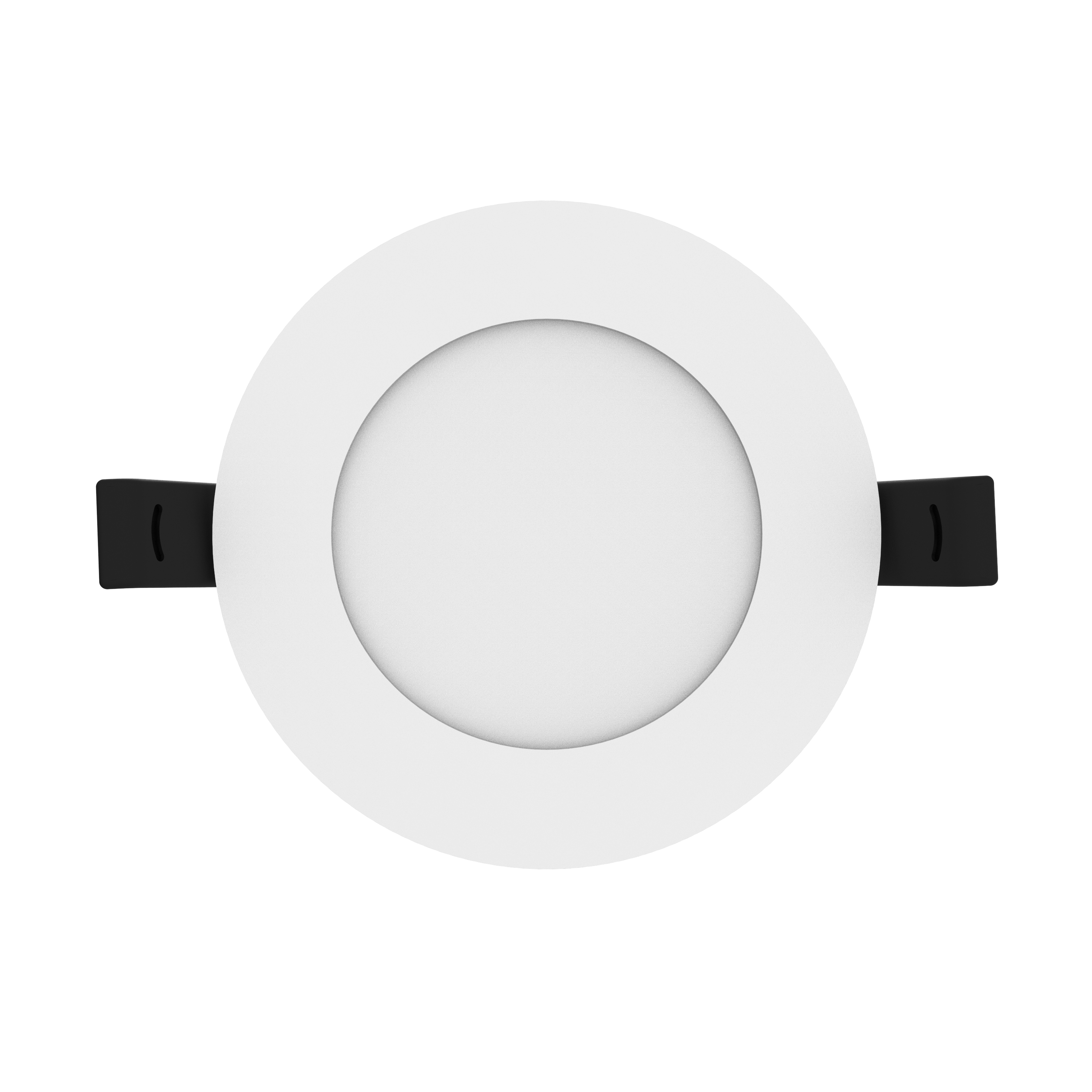

Product image: white background, upright
DL SLIM ALU D100 V 8W MS 840 WT
DL SLIM ALU D100 V 8W MS 840 WT

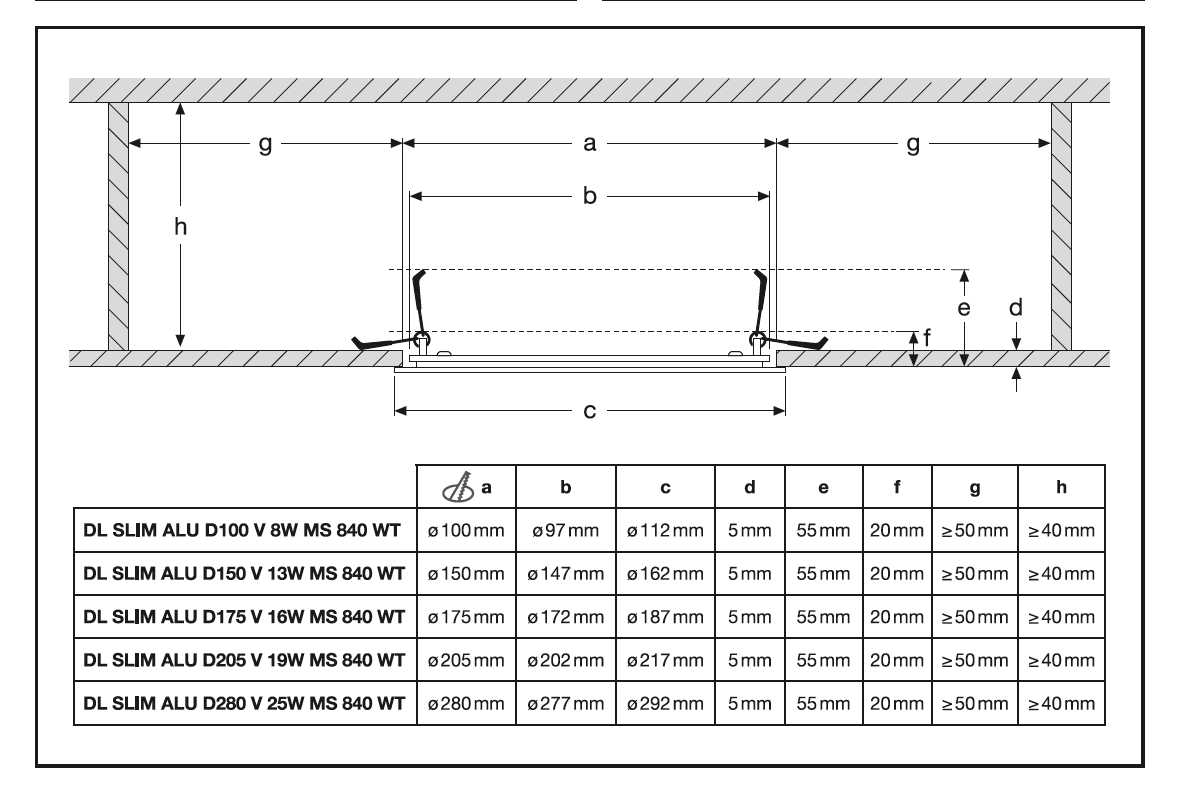

Product line drawing with letters
DL SLIM ALU D100 V
DL SLIM ALU D100 V
Product line drawing with numbers
DL SLIM ALU D100 V
DL SLIM ALU D100 V

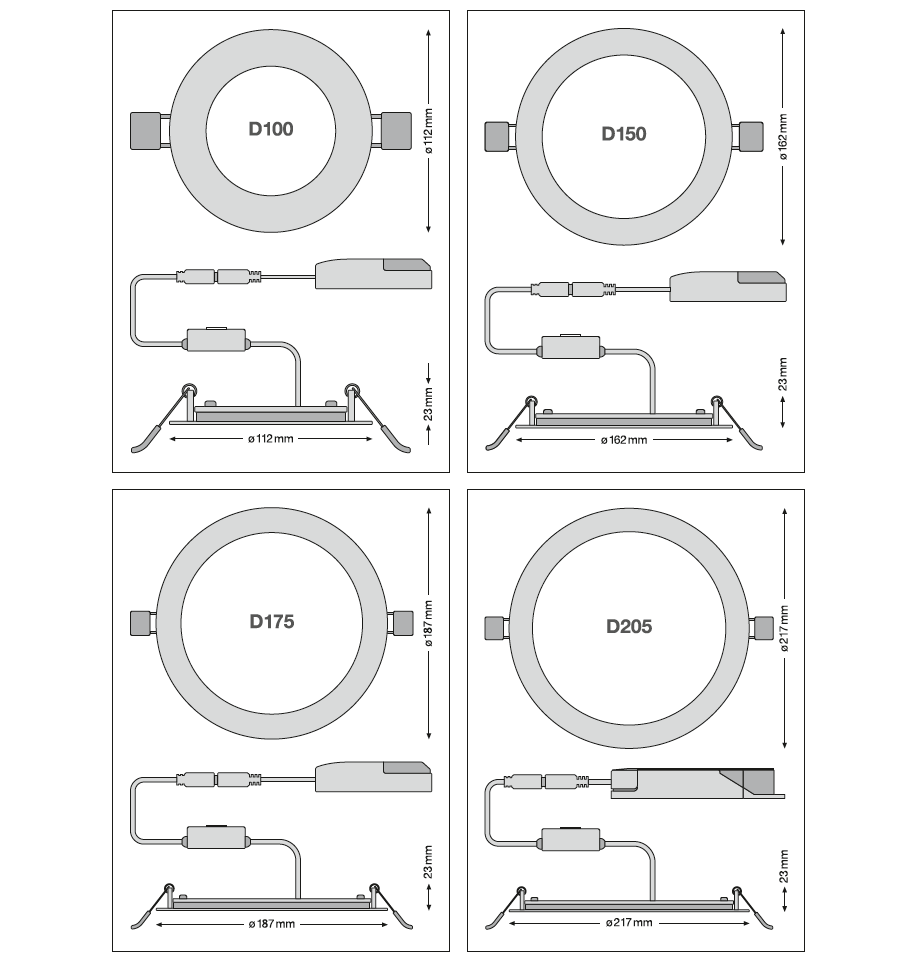

Catalog info 1
DL SLIM ALU V MS 840 WT
DL SLIM ALU V MS 840 WT
Catalog info 2
DL SLIM ALU V MS 840 WT
DL SLIM ALU V MS 840 WT
IES file (IES)
DL SLIM ALU D100 V 8W MS 830 WT
DL SLIM ALU D100 V 8W MS 830 WT
IES file (IES)
DL SLIM ALU D100 V 8W MS 840 WT
DL SLIM ALU D100 V 8W MS 840 WT
LDT file (Eulumdat)
DL SLIM ALU D100 V 8W MS 830 WT
DL SLIM ALU D100 V 8W MS 830 WT
LDT file (Eulumdat)
DL SLIM ALU D100 V 8W MS 840 WT
DL SLIM ALU D100 V 8W MS 840 WT
ULD file (DIALux)
DL SLIM ALU D100 V 8W MS 840 WT
DL SLIM ALU D100 V 8W MS 840 WT
ROLF file (RELUX)
DL SLIM ALU D100 V 8W MS 840 WT
DL SLIM ALU D100 V 8W MS 840 WT
UGR file (UGR table)
DL SLIM ALU D100 V 8W MS 830 WT
DL SLIM ALU D100 V 8W MS 830 WT
UGR file (UGR table)
DL SLIM ALU D100 V 8W MS 840 WT
DL SLIM ALU D100 V 8W MS 840 WT
Light distribution curve type cone
DL SLIM ALU D100 V 8W MS 830 WT
DL SLIM ALU D100 V 8W MS 830 WT
Light distribution curve type cone
DL SLIM ALU D100 V 8W MS 840 WT
DL SLIM ALU D100 V 8W MS 840 WT
Light distribution curve type polar
DL SLIM ALU D100 V 8W MS 830 WT
DL SLIM ALU D100 V 8W MS 830 WT
Light distribution curve type polar
DL SLIM ALU D100 V 8W MS 840 WT
DL SLIM ALU D100 V 8W MS 840 WT
BIM Revit 3D
Downlight Slim Alu MS
Downlight Slim Alu MS
CAD STEP 3D
DL SLIM ALU DN100 MS
DL SLIM ALU DN100 MS
Tender documents
DOWNLIGHT SLIM ALU D100 V 8W MS 840 WT-en
DOWNLIGHT SLIM ALU D100 V 8W MS 840 WT-en
| EAN | SEG number | STK number | ELDAS number | UK Org |
|---|---|---|---|---|
| 4099854441776 | 7477977 | 4161060 | 941403420 | 438157062 |
