DOWNLIGHT SLIM ALU DALI

DL SLIM ALU DA D175 V 16W MS 840 WT

GTIN: 4099854441936 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions
Fast Light Calculation Tool
The fast way to plan lighting projects

PRODUCT DETAILS

Product benefits
  • Low installation depth
  • Highly versatile due to selectable CCT and power steps (Multi Color / Multi Lumen)
  • Very homogenous light distribution
  • External driver with 3-pole through-wiring feature for flexibility and easy installation
  • Emergency lighting possible with LEDVANCE Emergency Conversion Box
  • Energy savings up to 60 % (compared to luminaires that use CFL lamps)
Areas of application
  • Direct replacement for luminaires with compact fluorescent lamps
  • General illumination
  • Public areas
  • Stairways
  • Corridors
  • Foyers
  • Shops
Product features
  • External DALI-2 driver included
  • Very slim aluminum housing with only 23 mm height
  • High luminous efficacy: up to 100 lm/W
  • Multi Lumen function: power steps selectable
  • Multi Color function: 4000K and 3000K
  • Type of protection: IP44
  • Luminaire available in 5 sizes for different cut-outs
  • Lifetime (L70/B50): 50,000 h (temperature at Ta = 40 °C)
Equipment / Accessories
  • Accessories for surface mounting available
References / Links
Electrical data
Nominal wattage 16.0 W / 9.5 W
Nominal voltage 220…240 V
Mains frequency 0/50/60 Hz
Nominal current 70/48 mA
Inrush current 5.13 A
Inrush current time Th50 26 µs
Max. number of luminaires per miniature circuit breaker B16 64
Max. number of luminaires per miniature circuit breaker C10 40
Max. number of luminaires per miniature circuit breaker C16 64
Power factor λ > 0.92
Total harmonic distortion < 20 %
Protection class II
Operating mode External LED driver
Photometrical data
Luminous flux 1650 lm / 1000 lm
Luminous efficacy 105 lm/W
Color temperature 3000 K / 4000 K
Reference control setting of contained light source (Kelvin) 4000 K
Light color (designation) Warm White, Cool White
Color rendering index Ra > 80
Standard deviation of color matching < 5 sdcm
Luminous intensity -
Low flicker Yes
Flickering metric (Pst LM) <1
Stroboscope effect metric (SVM) <0.4
Photobiological safety group acc. to EN62778 RG0
Photobiological safety group acc. to EN62471 RG1
Beam angle 90 °
Adjustable attributes
Nominal wattage Color temperature Luminous flux Luminous efficacy
16 W 3000 K 1650 lm 105 lm/W
16 W 4000 K 1650 lm 105 lm/W
9.5 W 3000 K 1000 lm 105 lm/W
9.5 W 4000 K 1000 lm 105 lm/W
Dimensions & Weight
Diameter 187.00 mm
Height 23.00 mm
Product weight 400.00 g
Materials & Colors
Product color White
Housing color White
Body material Aluminum
Cover material Polycarbonate (PC)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 850 °C
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+40 °C
Temperature range at storage -20…+85 °C
Type of connection Screwless terminal, 4-Pole (L,N, DA+, DA-)
Type of protection IP44/IP20
Protection class IK (shock resistance) IK03
Dimmable Yes
Type of dimming DALI2
IoT ready Support of DALI data type PART 251, 252, 253
Mounting type Recessed
Mounting location Ceiling, Wall
Application environment Indoor
Mounting diameter 175 mm
Mounting depth 23 mm
Adjustable No
With light source Yes
Replaceable light source No
Lifespan
Lifespan L70/B50 at 25 °C 50000 h 1)
Lifespan L80/B10 at 25 °C 35000 h 1)
Lifespan L90/B10 at 25 °C 15000 h
Number of switching cycles 25000
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
Output current 350 mA
ECG - Output ripple current < 10 %
ECG - Length 164 mm
ECG - Width 45 mm
ECG - Height 25 mm

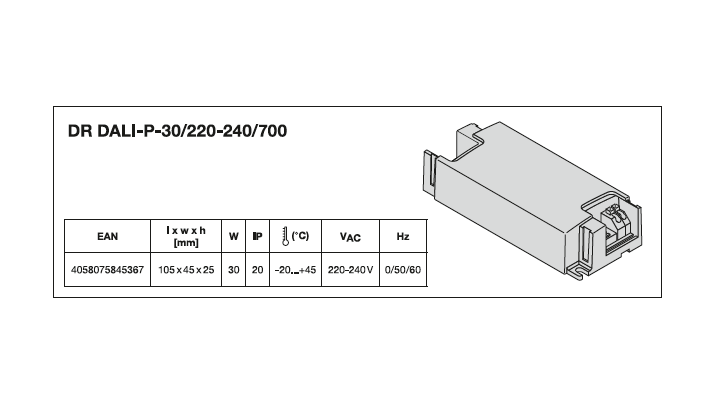

Recommended control gear DR DALI-P-30/220-240/700
Emergency lighting
Type of Emergency Lighting (EL) EL certified driver (0Hz / DC operation) for central battery operation included
Type of emergency operation test None
Luminous flux in emergency operation mode 160 lm
Certificates & Standards
Standards CE, UKCA, EAC, ENEC
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Replaceable light source (EPREL) Not replaceable
Additional product data
Product remark Available from March 2025
Added function MULTI SELECT
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854441936 Folding box
1		 57 mm x 194 mm x 194 mm 470.00 g 2.15 dm³
4099854441943 Shipping box
10		 401 mm x 300 mm x 218 mm 5096.00 g 26.23 dm³
Product image Product name EAN
DL SLIM ALU FRAME D175 WT 4099854476006
User instruction / safety instructions
DOWNLIGHT SLIM ALU DALI
PDF (3.75 MB)
Legal information
Informationstext 18 Abs 4 ElektroG
PDF (435.15 KB)
Legal information
Safety Insert G11207793
PDF (332.93 KB)
Legal information
LSI G11226725 DL SLIM ALU
PDF (2.18 MB)
Legal information
DL SLIM ALU DA_CMFT DA
PDF (822.06 KB)
Legal information
DL SLIM ALU
PDF (4.69 MB)
Declarations of conformity
DL SLIM ALU
PDF (279 KB)

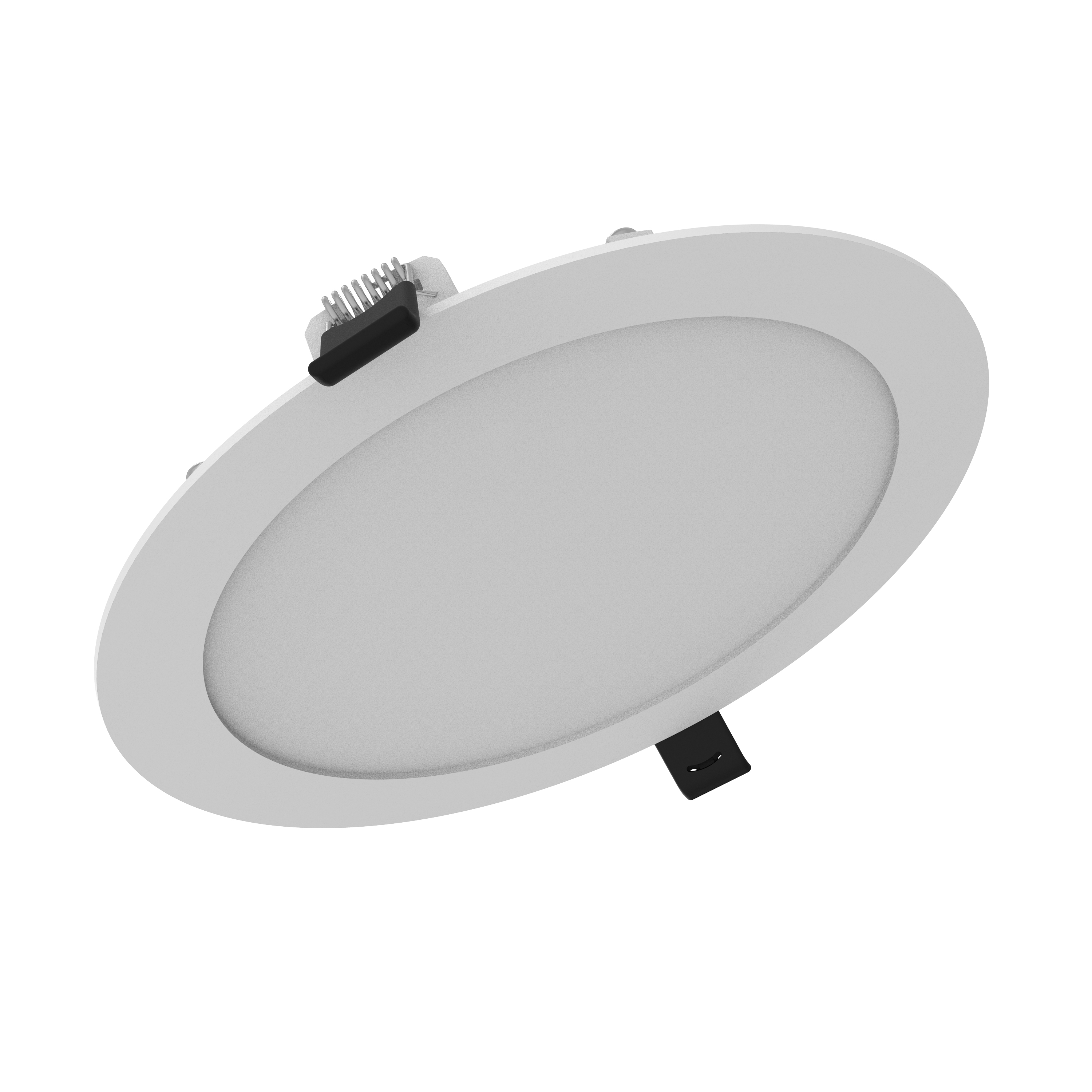

Product image: white background, diagonal
DL SLIM ALU D175 V 16W MS 840 WT
JPG (1.81 MB)

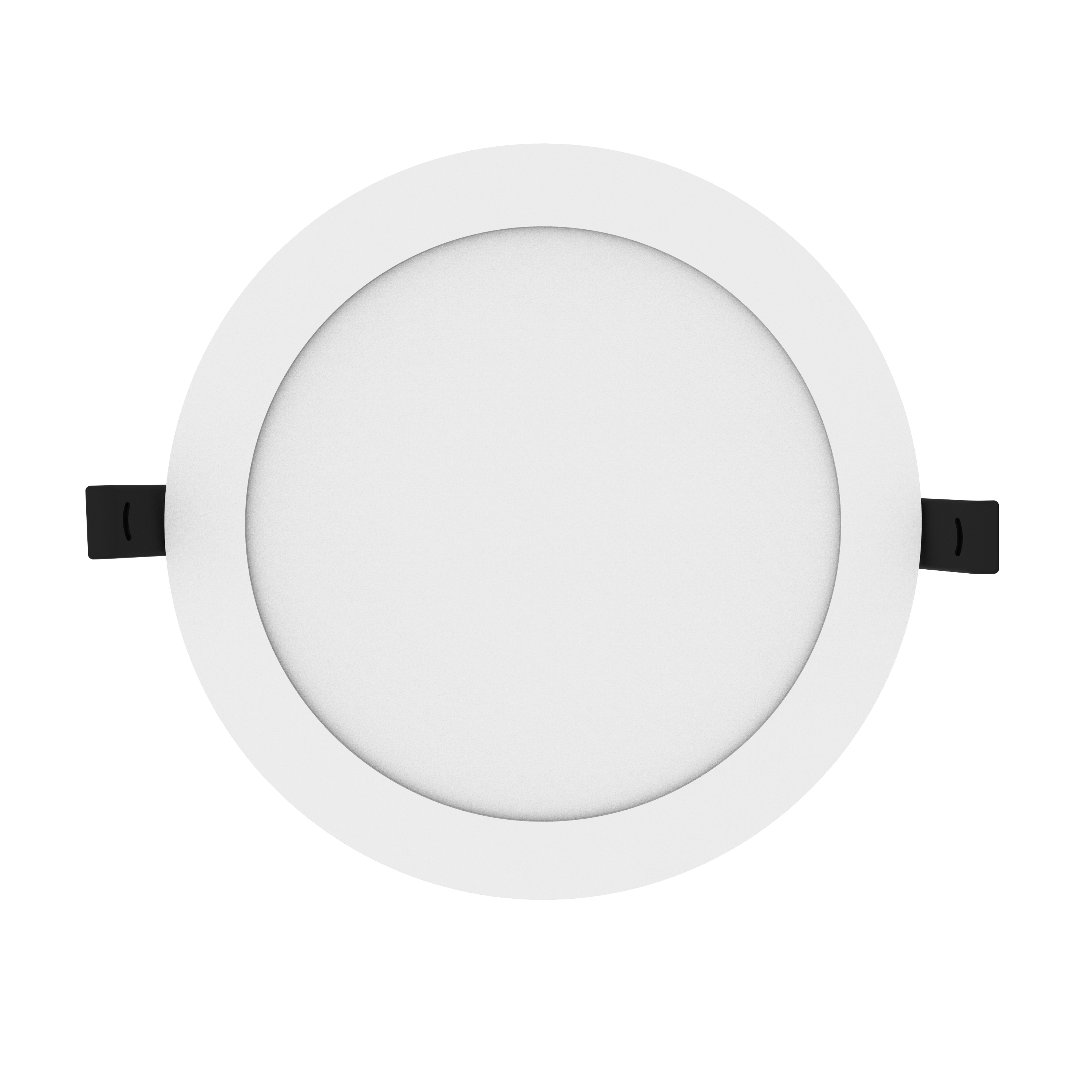

Product image: white background, upright
DL SLIM ALU D175 V 16W MS 840 WT
JPG (1.89 MB)

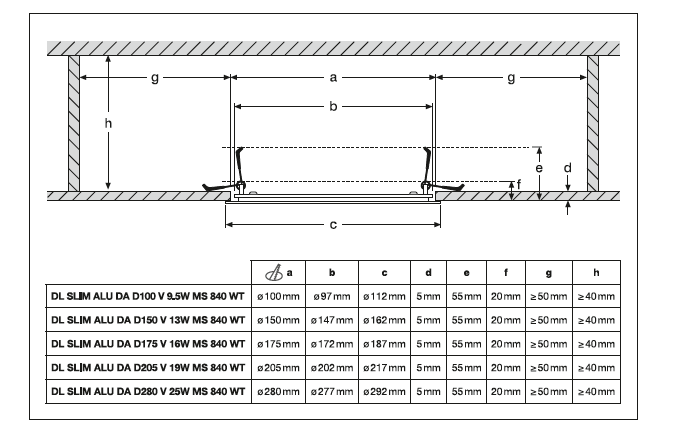

Product line drawing with letters
DL SLIM ALU DA D175 V
SVG (51.19 KB)
Product line drawing with numbers
DL SLIM ALU D175 V
PNG (10.48 KB)

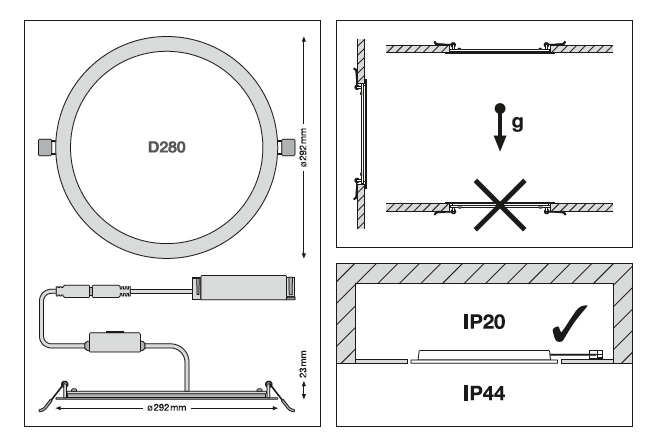

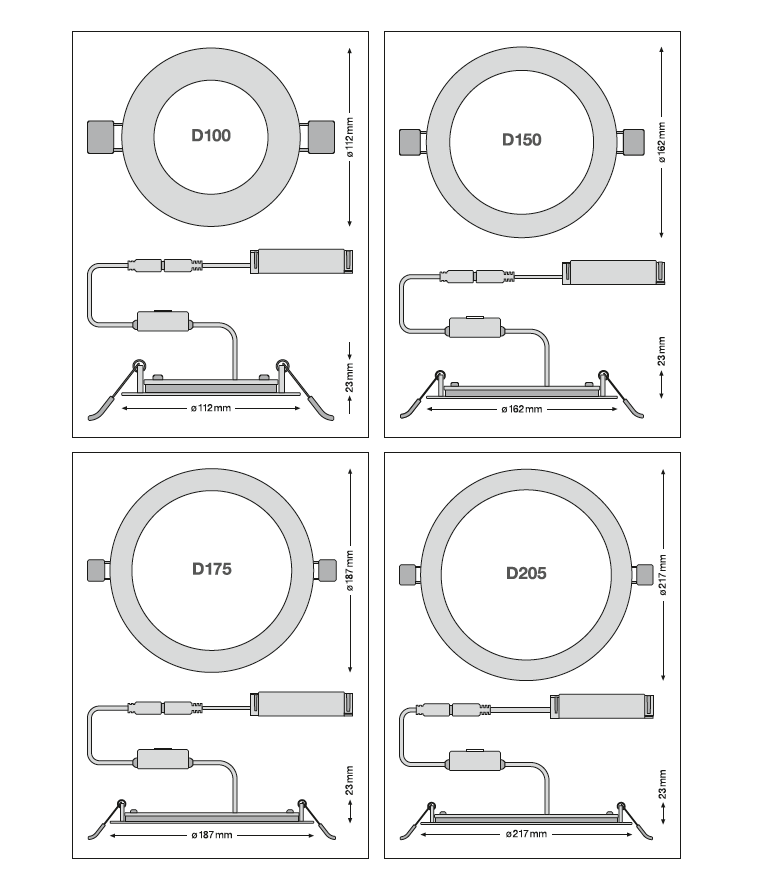

Catalog info 1
