DOWNLIGHT SLIM ROUND

DL SLIM DN 105 6 W 6500 K WT

GTIN: 4058075079014 Folding box / 1 Show all packages
Download data sheet
Contact sales
5-year warranty
Fast Light Calculation Tool
The fast way to plan lighting projects

PRODUCT DETAILS

Product benefits
  • Very slim housing
  • Low installation depth
  • High luminous efficacy
  • Energy savings up to 60 % (compared to luminaires that use CFL lamps)
  • Very homogenous light
  • Functional design
  • Easy installation with fast connection
  • Simple installation thanks to integrated driver
Areas of application
  • Direct replacement for luminaires with compact fluorescent lamps
  • General illumination
  • Public areas
  • Stairways
  • Corridors
  • Foyers
  • Shops
Product features
  • Small visible bezel
  • Connector box with push wire terminal for tool-free connection
  • Light guide made of non-yellowing PMMA for long lifetime
Equipment / Accessories
  • Surface mounting frames available as accessories
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • The luminaires are not suitable for covering with thermally insulated material.
References / Links
Electrical data
Nominal wattage 6.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 58 mA
Inrush current 6 A
Inrush current time Th50 120 µs
Max. number of luminaires per miniature circuit breaker B16 72
Max. number of luminaires per miniature circuit breaker C10 60
Max. number of luminaires per miniature circuit breaker C16 96
Power factor λ 0.50
Total harmonic distortion < 20 %
Protection class II
Operating mode Integrated LED driver
Photometrical data
Luminous flux 430 lm
Luminous efficacy 70 lm/W
Color temperature 6500 K
Light color (designation) Cool Daylight
Color rendering index Ra > 80
Standard deviation of color matching < 6 sdcm
Luminous intensity -
Flickering metric (Pst LM) -
Stroboscope effect metric (SVM) -
Photobiological safety group acc. to EN62778 RG0
Photobiological safety group acc. to EN62471 RG0
Beam angle 120 °
Dimensions & Weight
Diameter 118.00 mm
Height 30.00 mm
Product weight 158.00 g
Materials & Colors
Product color White
Housing color White
Body material Polycarbonate (PC)
Cover material Polycarbonate (PC)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+50 °C
Temperature range at storage -30…+70 °C
Type of connection Screwless terminal, 2-Pole
Type of protection IP20
Protection class IK (shock resistance) IK03
Dimmable No
Mounting type Recessed
Mounting location Ceiling
Application environment Indoor
Mounting diameter 105.00 mm
Mounting depth 50,0 mm
With light source Yes
Lifespan
Lifespan L70/B50 at 25 °C 30000 h 1)
Lifespan L80/B10 at 25 °C 20000 h 1)
Lifespan L90/B10 at 25 °C 12000 h
Number of switching cycles 50000
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
Output current 180 mA
ECG - Output ripple current < 6.5 %
Certificates & Standards
Standards CE, CB, EAC
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Replaceable light source (EPREL) Not replaceable
Additional product data
Number of illuminants Not relevant
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075079014 Folding box
1		 45 mm x 145 mm x 145 mm 192.00 g 0.95 dm³
4058075079021 Shipping box
6		 290 mm x 155 mm x 165 mm 1317.00 g 7.42 dm³
Product image Product name EAN
DL SLIM FRAME DN 105 WT 4058075079151
Extended installation guide
User Instruction Downlight LED Slim
PDF (3.43 MB)
On-Pack-Info
Legal Insert Downlight Slim
PDF (4.64 MB)
Legal information
LSI DL SLIM
PDF (2.73 MB)
Legal information
Informationstext 18 Abs 4 ElektroG
PDF (435.15 KB)
Declarations of conformity
CE Certificate downlight Slim
PDF (924.61 KB)

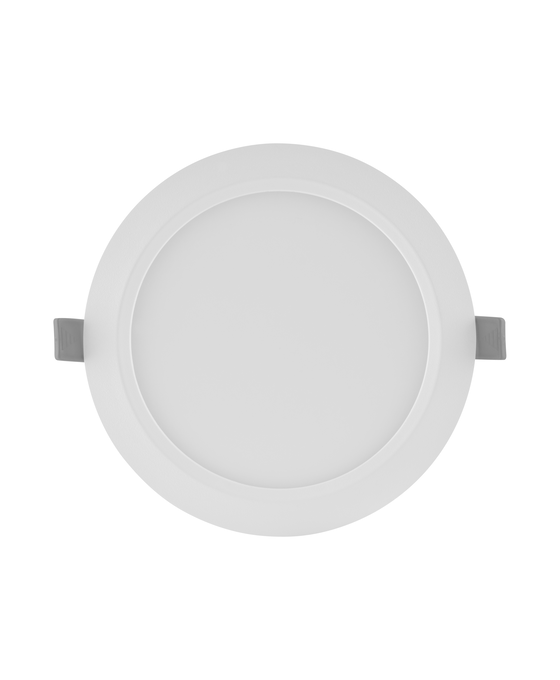

Product image: white background, upright
DL Slim DN105 6W
TIF (43.04 MB)

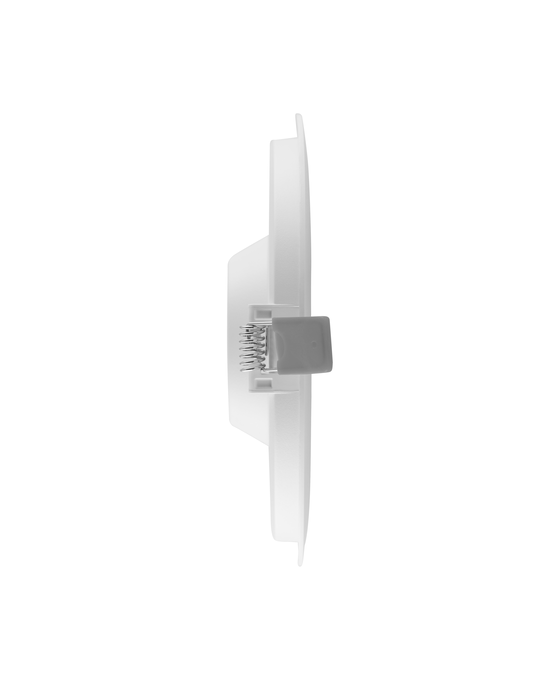

Product image: white background, spacial
DL Slim DN105 6W
TIF (58.12 MB)
Product line drawing with letters
DL Slim DN105 6W
SVG (11.4 KB)
Product line drawing with numbers
DL Slim DN105 6W
SVG (11.44 KB)
Packaging image, spacial
Downlight Slim DN105 6W 865 MiCh Side
TIF (16.38 MB)
Catalog info 1
Downlight Slim
SVG (136.29 KB)
Catalog info 2
Downlight Slim
SVG (64.35 KB)
Catalog info 6
Downlight Slim
SVG (187.68 KB)
IES file (IES)
DL SLIM DN105 6W 6500K WT IP20
IES (6.58 KB)
LDT file (Eulumdat)
DL SLIM DN105 6W 6500K WT IP20
LDT (7.33 KB)
ULD file (DIALux)
DOWNLIGHTSLIMROUND1056 W6500KWT
ULD (640.51 KB)
ROLF file (RELUX)
DL SLIM DN105 6W-6500K
ROLF (205.81 KB)
UGR file (UGR table)
4058075052260 DL SLIM DN105 6W 6500K WT IP20
PNG (58.32 KB)
Light distribution curve type cone
4058075052260 DL SLIM DN105 6W 6500K WT IP20
SVG (82.28 KB)
Light distribution curve type polar
4058075052260 DL SLIM DN105 6W 6500K WT IP20
SVG (244.48 KB)
BIM Revit 3D
Downlight Slim Round
ZIP (1.83 MB)
CAD STEP 3D
DL SLIM DN 105
STEP (832.42 KB)
Tender documents
DOWNLIGHT SLIM ROUND 105 6 W 6500 K WT-EN
TXT (1.36 KB)
EAN STK number ELDAS number
4058075079014 4295633 941400140
