BIOLUX HCL DOWNLIGHT ZIGBEE GEN 2
BIOLUX HCL DL DN150 S 20W TW ZB
GTIN: 4058075724600
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits

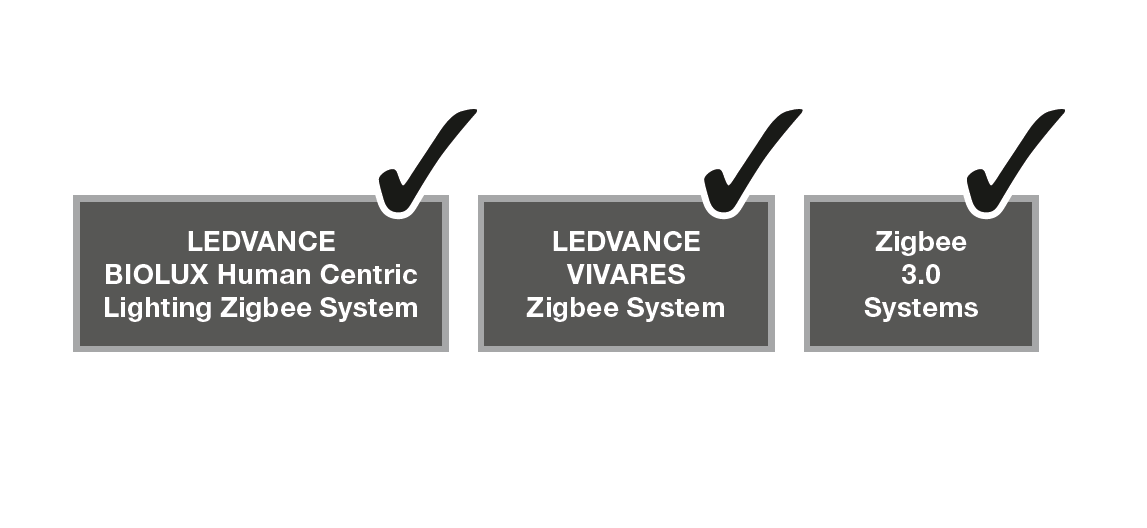

- Luminaire suitable for VIVARES ZIGBEE, BIOLUX HCL and other Zigbee 3.0 light controls
- Individual Tunable White or HCL light through connection to compatible Zigbee 3.0 controls
- Light quality of CRI 90 supports increased well-being in HCL applications
- 7 year system guarantee when operated in a BIOLUX HCL or VIVARES ZIGBEE system
- Compatible with VIVARES CLOUD SERVICE for energy monitoring
- External Zigbee driver for extended flexibility and easy installation
- Good glare reduction (UGR ≤ 19)
Areas of application
- Direct replacement for luminaires with compact fluorescent lamps
- Offices, conference rooms
- Nursery and elderly homes
- Reception areas, foyers and corridors
Product features
- IoT-ready luminaire with Zigbee 3.0 technology
- Housing material: Aluminum mirror-finished reflector

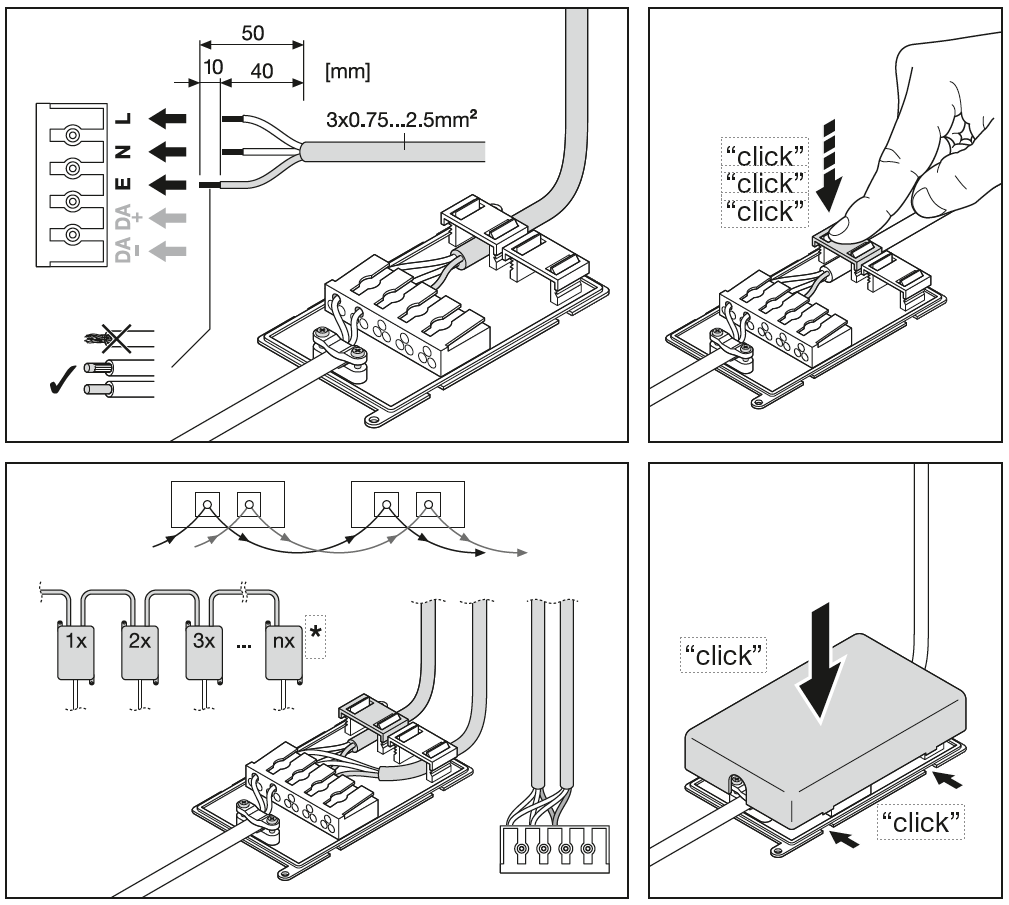

- Connector box with push wire terminal for tool-free connection
- Through-wiring possible
- Adjustable color temperature via Tunable White: 2,700…6,500 K
- Very high color rendering index Ra: > 90
Equipment / Accessories
- Connector box with 5-pole terminal included
- External control gear included
- LEDVANCE BIOLUX app required for commissioning of the BIOLUX HCL system only (available for Android and iOS)
- LEDVANCE VIVARES app for project planning and required for commissioning of the VIVARES ZIGBEE system only (available for Android and iOS)
Legal advice
- The use of the LEDVANCE BIOLUX- / VIVARES-app is exclusively subject to the LEDVANCE BIOLUX- - VIVARES-app Terms of Use, which are displayed during installation of the app and are available in the app
Safety advice
- Important operating notice and legal disclaimer: This product is intended for operation as part of a BIOLUX HCL system (BIOLUX HCL- or VIVARES ZIGBEE control unit in combination with BIOLUX HCL-Luminaire(s) / BIOLUX HCL LED strips including built-in or supplied firmware/software). LEDVANCE GmbH assumes no responsibility, liability, warranty or guarantee for the operation of the product in combination or conjunction with third-party products or other products that are not BIOLUX HCL- / VIVARES ZIGBEE system products.
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 20.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 95.000 mA |
| Inrush current | 7.84 A |
| Inrush current time Th50 | 91 µs |

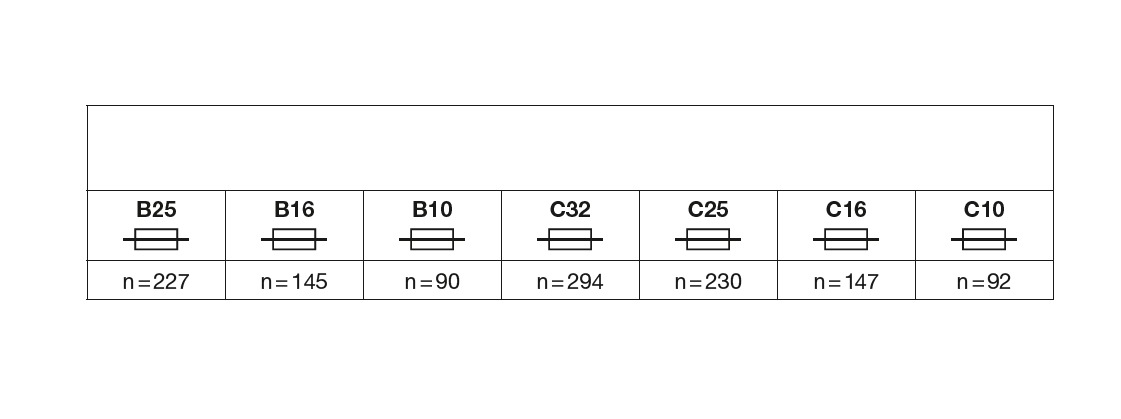

| Max. number of luminaires per miniature circuit breaker B16 | 145 |
| Max. number of luminaires per miniature circuit breaker C10 | 92 |
| Max. number of luminaires per miniature circuit breaker C16 | 147 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | II |
| Operating mode | External LED driver |
Photometrical data
| Luminous flux | 2100 lm |
| Luminous efficacy | 105 lm/W |
| Color temperature | 2700…6500 K |
| Reference control setting of contained light source (Kelvin) | 4000 K |
| Light color (designation) | Tunable White |
| Color rendering index Ra | ≥90 |
| Standard deviation of color matching | ≤3 sdcm |
| Luminous intensity | - |
| Low flicker | Yes |
| Flickering metric (Pst LM) | ≤1 |
| Stroboscope effect metric (SVM) | ≤ 0.4 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 60 ° |
| UGR | ≤ 19 |
Dimensions & Weight
| Diameter | 175.00 mm |
| Height | 99.00 mm |
| Product weight | 570.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Aluminum |
| Cover material | Polycarbonate (PC) |
| Light emitting surface material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Terminal, 3-Pole (L, N, PE) |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | Yes |
| Type of dimming | ZIGBEE |
| Dimming range | 1…100 % |
| Mounting type | Recessed |
| Mounting location | Ceiling |
| Application environment | Indoor |
| Mounting diameter | 160 mm |
| Mounting depth | 125 mm |
| Adjustable | No |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
| Lifespan L80/B10 at 25 °C | 40000 h 1) |
| Lifespan L90/B10 at 25 °C | 25000 h |
| Number of switching cycles | 50000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
| Output current | 550 mA |
| ECG - Output ripple current | < 20 % |
| ECG - Length | 160 mm |
| ECG - Width | 70 mm |
| ECG - Height | 33 mm |
Certificates & Standards
| Standards | CE, CB, UKCA, EAC |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Added function | VIVARES, BIOLUX |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075724600 | Folding box 1 |
190 mm x 190 mm x 143 mm | 776.00 g | 5.16 dm³ |
| 4058075724617 | Shipping box 4 |
398 mm x 208 mm x 312 mm | 3513.00 g | 25.83 dm³ |
| Product image | Product name | Product brand | Product component type | GTIN |
|---|---|---|---|---|
|
MANUAL CONTROL UNIT SELECT DIRECT 100-240 TW RGB ZB | LEDVANCE | Light control | 4099854476334 |
|
SENSOR DIRECT LS-PD-7 IR CI ZB | LEDVANCE | Light control | 4099854476358 |
|
VIVARES ZB CONTROL | LEDVANCE | Light control | 4058075427488 |
|
VIVARES ZB L/O SENS 220-240 | LEDVANCE | Light control | 4058075446182 |
|
VIVARES ZB O SENS 220-240 | LEDVANCE | Light control | 4058075544222 |
|
VIVARES ZB COUPLER | LEDVANCE | Light control | 4058075463806 |
|
VIVARES ZB SENS ADAPTER | LEDVANCE | Light control | 4058075650107 |
User instruction / safety instructions
BIOLUX HCL CONTROL UNIT
BIOLUX HCL CONTROL UNIT
User instruction / safety instructions
BIOLUX HCL DL DN150 S 20W TW ZB
BIOLUX HCL DL DN150 S 20W TW ZB
Legal information
BIOLUX HCL
BIOLUX HCL
Legal information
BIOLUX HCL DL DN150 S 20W TW ZB
BIOLUX HCL DL DN150 S 20W TW ZB
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Legal information
Safety Insert G11215256
Safety Insert G11215256
Declarations of conformity
CE_BIOLUX HCL DL
CE_BIOLUX HCL DL
EU Data Act
SMART ZigBee Lamps and Luminaires
SMART ZigBee Lamps and Luminaires
Product image: white background, diagonal
BIOLUX HCL DL DN150 ZB 20W TW
BIOLUX HCL DL DN150 ZB 20W TW
Product line drawing with letters
BIOLUX HCL DL DN150 ZB 20W TW
BIOLUX HCL DL DN150 ZB 20W TW
Product line drawing with numbers
BIOLUX HCL DL DN150 S 21W TW DALI
BIOLUX HCL DL DN150 S 21W TW DALI

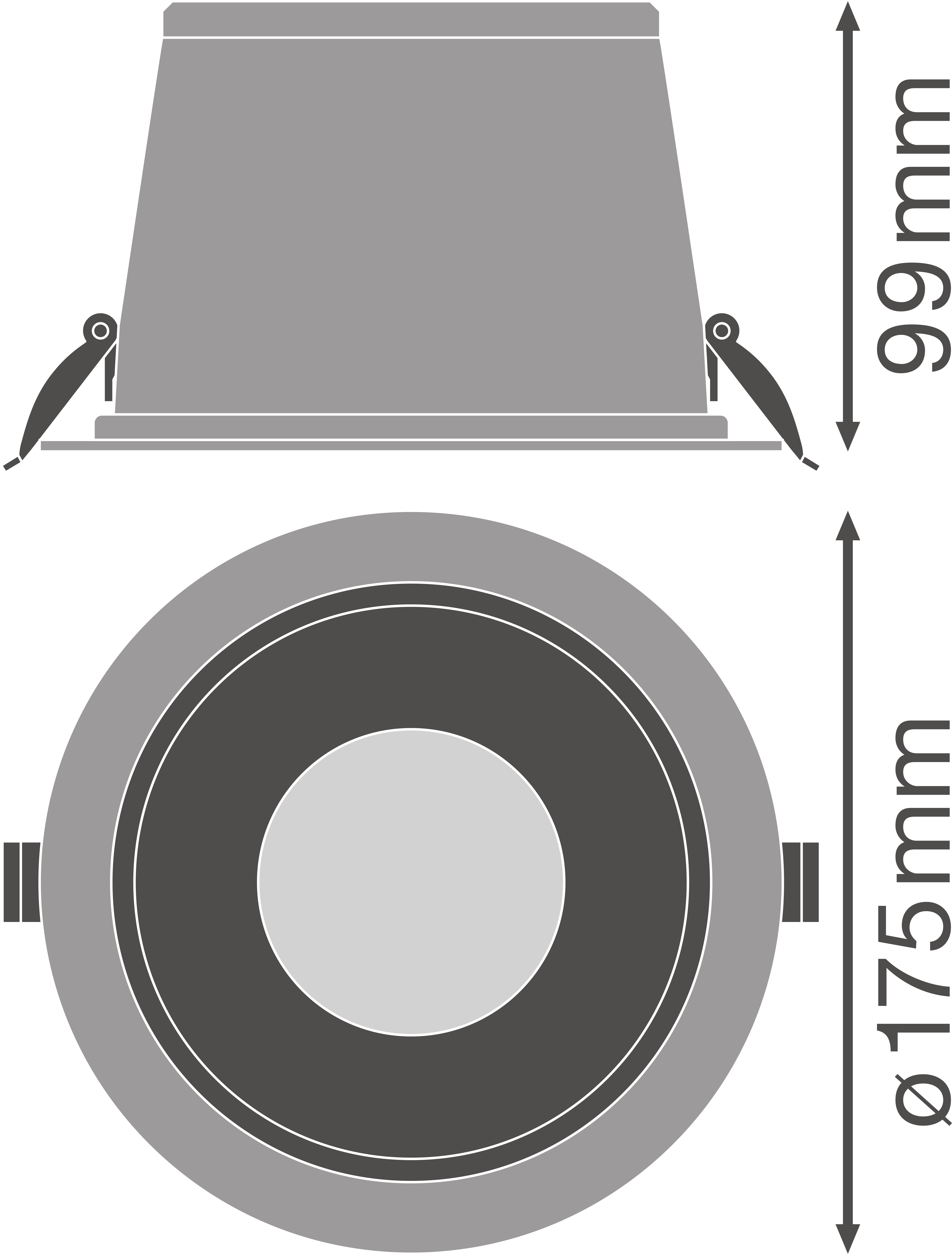

Product line drawing - technical
BIOLUX HCL DL DN150 ZB 20W TW
BIOLUX HCL DL DN150 ZB 20W TW
Catalog info 1
BIOLUX HCL DL DN150 S 20W TW ZB
BIOLUX HCL DL DN150 S 20W TW ZB
Catalog info 2
BIOLUX HCL DL DN150 S 20W TW ZB
BIOLUX HCL DL DN150 S 20W TW ZB
Catalog info 3
BIOLUX HCL DL DN150 S 20W TW ZB
BIOLUX HCL DL DN150 S 20W TW ZB
IES file (IES)
BIOLUX HCL DL DN150 S 20W TW ZB
BIOLUX HCL DL DN150 S 20W TW ZB
LDT file (Eulumdat)
BIOLUX HCL DL DN150 S 20W TW ZB
BIOLUX HCL DL DN150 S 20W TW ZB
ULD file (DIALux)
BIOLUX HCL DL DN150 S 20W TW ZB
BIOLUX HCL DL DN150 S 20W TW ZB
ROLF file (RELUX)
BIOLUX HCL DL GEN 2 DN150 S 20W TW ZB
BIOLUX HCL DL GEN 2 DN150 S 20W TW ZB

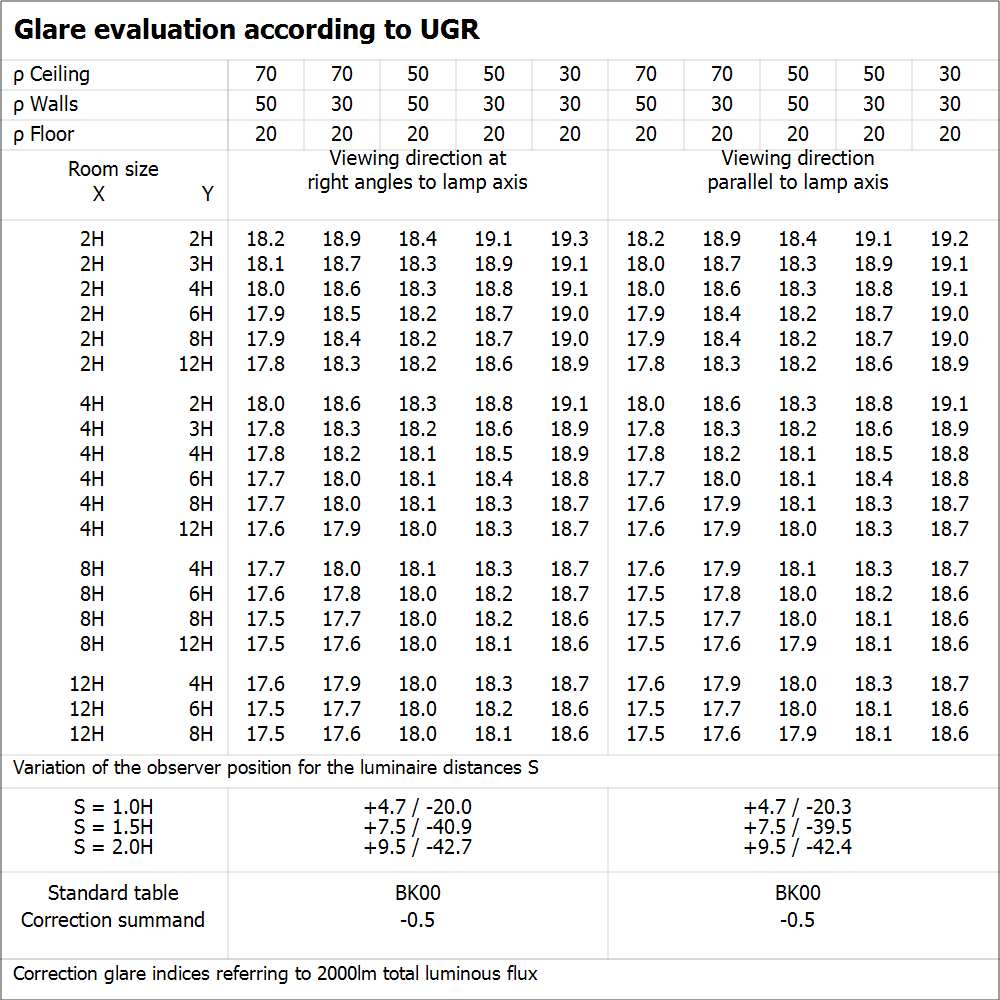

UGR file (UGR table)
