DAMP PROOF MAX

DP MAX 600 S 15W 840 VW IP69

GTIN: 4058075849785 Shipping box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions
Fast Light Calculation Tool
The fast way to plan lighting projects

PRODUCT DETAILS

Product benefits
  • Uniform light distribution
  • Flexible application through a wide range of beam angles
  • Versatile applications due to resistance to many chemicals and UV light
  • Easy to clean, even at high temperatures with a high-pressure cleaner
  • Energy savings up to 68 % (compared to luminaires that use fluorescent lamps)
  • Low flicker ≤ 5 %
Areas of application
  • Food industry
  • Open car parks and underpasses
  • Car wash facilities
  • Outdoor applications
  • Industrial and storage facilities
  • Workshops, assembly lines
  • Passages, underpasses
  • Parking garages
Product features
  • High luminous efficacy: up to 158 lm/W
  • Lifetime (L80/B50): up to 100,000 h (at 35 °C)
  • Type of protection: IP66, IP69 (80 °C)
  • Impact resistance: IK10
  • Ammonia resistant
  • UV-resistant PMMA diffuser
  • Compatible to Zhaga Book 7 LED light sources
Equipment / Accessories

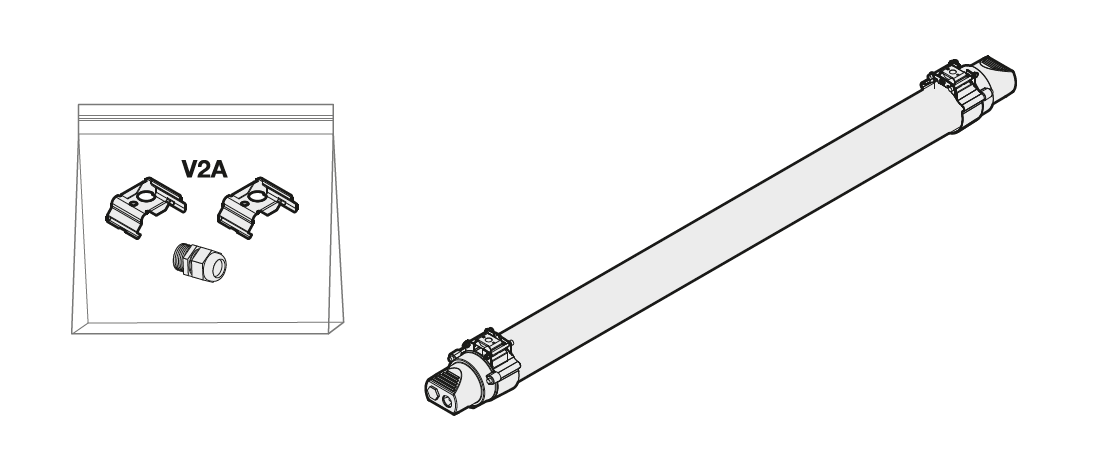

  • Stainless steel clamps and M20 cable gland included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
Electrical data
Nominal wattage 15.00 W
Nominal voltage 220…240 V
Mains frequency 0/50/60 Hz
Nominal current 65 mA
Inrush current 41 A
Inrush current time Th50 1300 µs

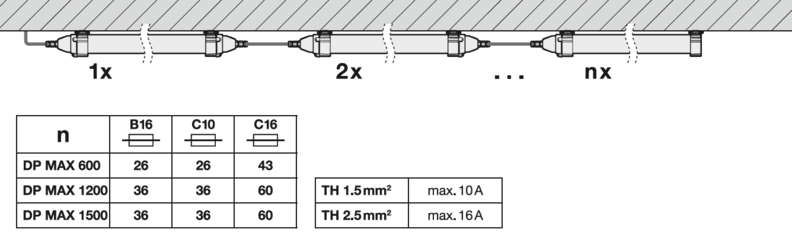

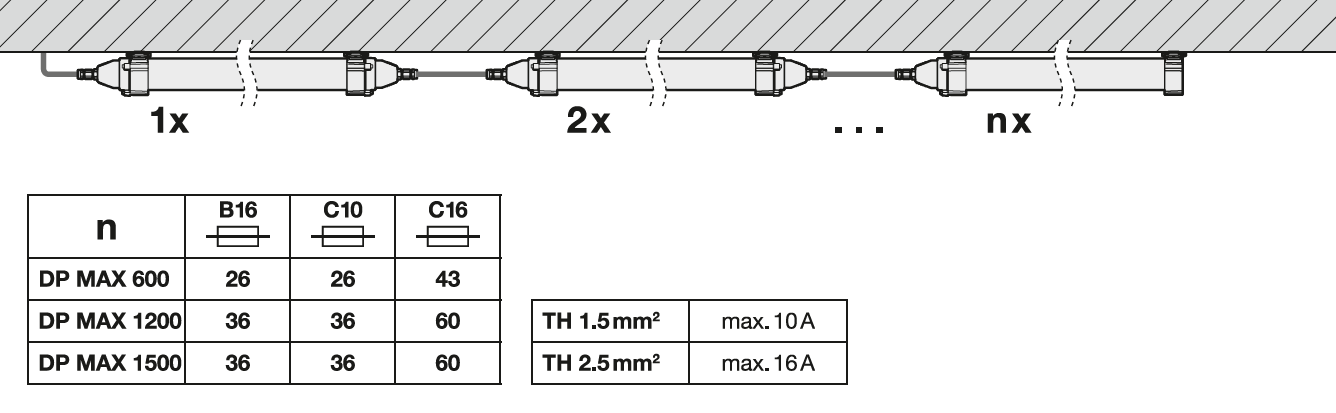

Max. number of luminaires per miniature circuit breaker B16 26
Max. number of luminaires per miniature circuit breaker C10 26
Max. number of luminaires per miniature circuit breaker C16 43
Power factor λ 0.77
Total harmonic distortion 15 %
Protection class I
Surge capability (L-N) 4 kV
Operating mode Integrated LED driver
Photometrical data
Luminous flux 2000 lm
Luminous efficacy 133 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra > 80
Standard deviation of color matching ≤3 sdcm
Low flicker Yes
Flickering metric (Pst LM) <1
Stroboscope effect metric (SVM) ≤ 0.4
Photobiological safety group acc. to EN62778 RG1
Beam angle 133 ° x 107 °
Dimensions & Weight
Length 885.00 mm
Height 138.00 mm
Width 125.00 mm
Product weight 3000.00 g
Materials & Colors
Product color Gray
Housing color Gray
Body material Polymethylmethacrylate (PMMA)
Cover material Polymethylmethacrylate (PMMA)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -25…+45 °C
Temperature range at storage -40…+45 °C

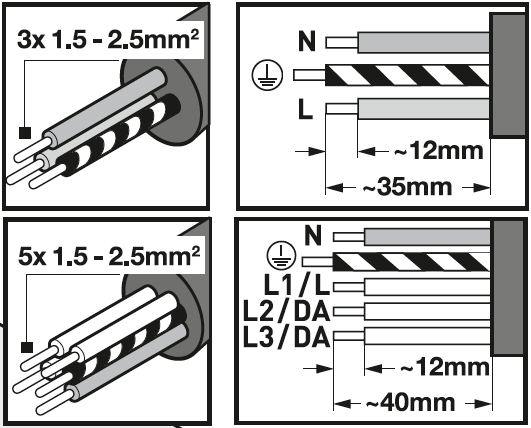

Type of connection Screwless terminal, 3-Pole
Type of protection IP66/IP69K
Protection class IK (shock resistance) IK10
Dimmable No

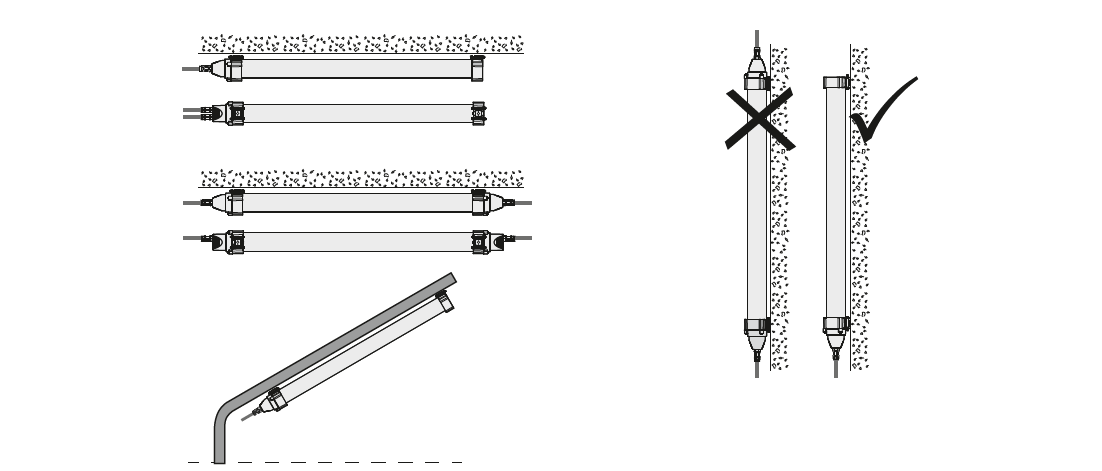

Mounting type Surface/Suspended
Mounting location Ceiling, Wall
Application environment Outdoor
With light source Yes
Replaceable light source No
Lifespan
Lifespan L70/B50 at 25 °C 100000 h 1)
Lifespan L80/B10 at 25 °C 100000 h 1)
Number of switching cycles > 200000
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L80 / B50 @ 35 °C (Ta)
Control gear
ECG - Output ripple current < 1 %
Recommended control gear OT FIT 75/220-240/550 D NFC L
Emergency lighting
Type of Emergency Lighting (EL) EL certified driver (0Hz / DC operation) for central battery operation included
Type of emergency operation test None
Certificates & Standards
Standards CE, CB, ENEC, UKCA, EAC
Luminaire with limited surface temperature, "D sign" Yes
Ball shot safe No
Replaceable light source (EPREL) Not replaceable
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075849785 Shipping box
1		 1,016 mm x 165 mm x 146 mm 3763.00 g 24.48 dm³
User instruction / safety instructions
DAMP PROOF MAX
PDF (11.77 MB)
Legal information
Safety Insert G11205497
PDF (178.17 KB)
Legal information
Informationstext 18 Abs 4 ElektroG
PDF (435.15 KB)
Legal information
DP MAX
PDF (2.29 MB)
Legal information
Legal insert G11231557
PDF (878.51 KB)
Declarations of conformity
DP MAX
PDF (253.85 KB)

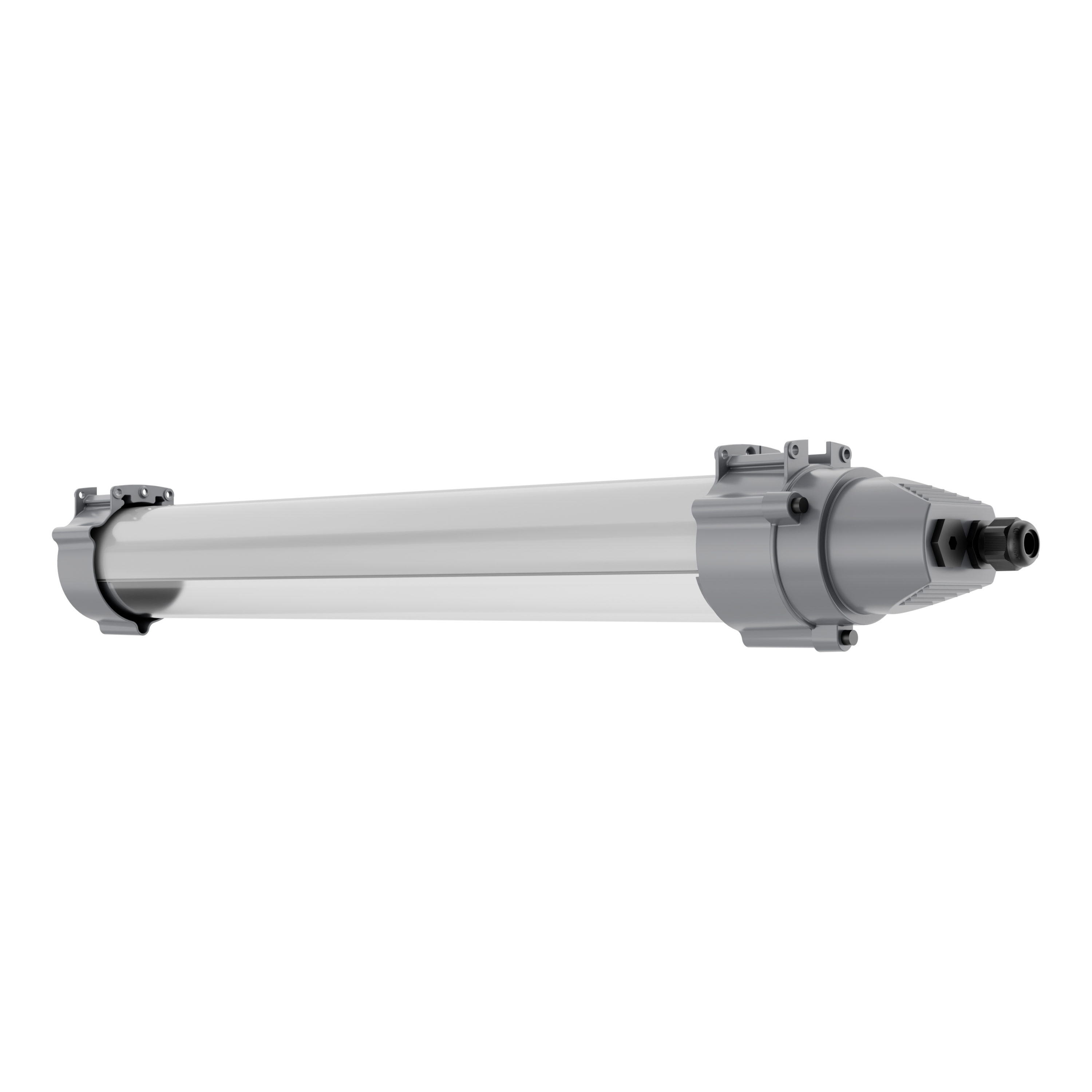

Product image: white background, spacial
