DAMP PROOF HOUSING GEN 2
DP HOUSING 600 1x Lamp IP65
GTIN: 4058075312395
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Prewired for easy installation of tubular AC LED lamps
- Robust housing
- Easy and quick installation
- 5 years guarantee
Areas of application
- Parking lots, warehouses, production areas
Product features
- Luminaire housing, available for 1 or 2 T8 LED lamps
- Type of protection: IP65
- Suitable for SubstiTUBE EM/UN and SubstiTUBE Connected
Equipment / Accessories
- All required accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Protection class | I |
Photometrical data
| Luminous intensity | - |
| Flickering metric (Pst LM) | - |
| Stroboscope effect metric (SVM) | - |
| Beam angle | 105 ° |
Dimensions & Weight
| Length | 651.00 mm |
| Height | 75.00 mm |
| Width | 64.00 mm |
| Product weight | 600.00 g |
Materials & Colors
| Product color | Grey |
| Housing color | Gray |
| Body material | Polycarbonate (PC) |
| Cover material | Polycarbonate (PC) |
| Light emitting surface material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -30…+40 °C |
| Temperature range at storage | -20…80 °C |
| Type of connection | Screw terminal |
| Type of protection | IP65 |
| Protection class IK (shock resistance) | IK08 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Ceiling |
| Application environment | Indoor |
| With light source | No |
| Replaceable light source | No |
Certificates & Standards
| Standards | CE, TÜV Rheinland, EAC, ROHS, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
Additional product data
| Number of illuminants | - |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Additional info can be provided per individual request |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075312395 | Folding box 1 |
77 mm x 71 mm x 660 mm | 688.00 g | 3.61 dm³ |
| 4058075312401 | Shipping box 10 |
670 mm x 161 mm x 420 mm | 7702.00 g | 45.31 dm³ |
User instruction / safety instructions
UI_DampProof_Housing_i ncl-TH-KIT
UI_DampProof_Housing_i ncl-TH-KIT
Legal information
Legal Insert DP Housing IP65
Legal Insert DP Housing IP65
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Declarations of conformity
CE DAMP PROOF 600 1XLAMP HOUSING IP65 LEDV AC18351
CE DAMP PROOF 600 1XLAMP HOUSING IP65 LEDV AC18351

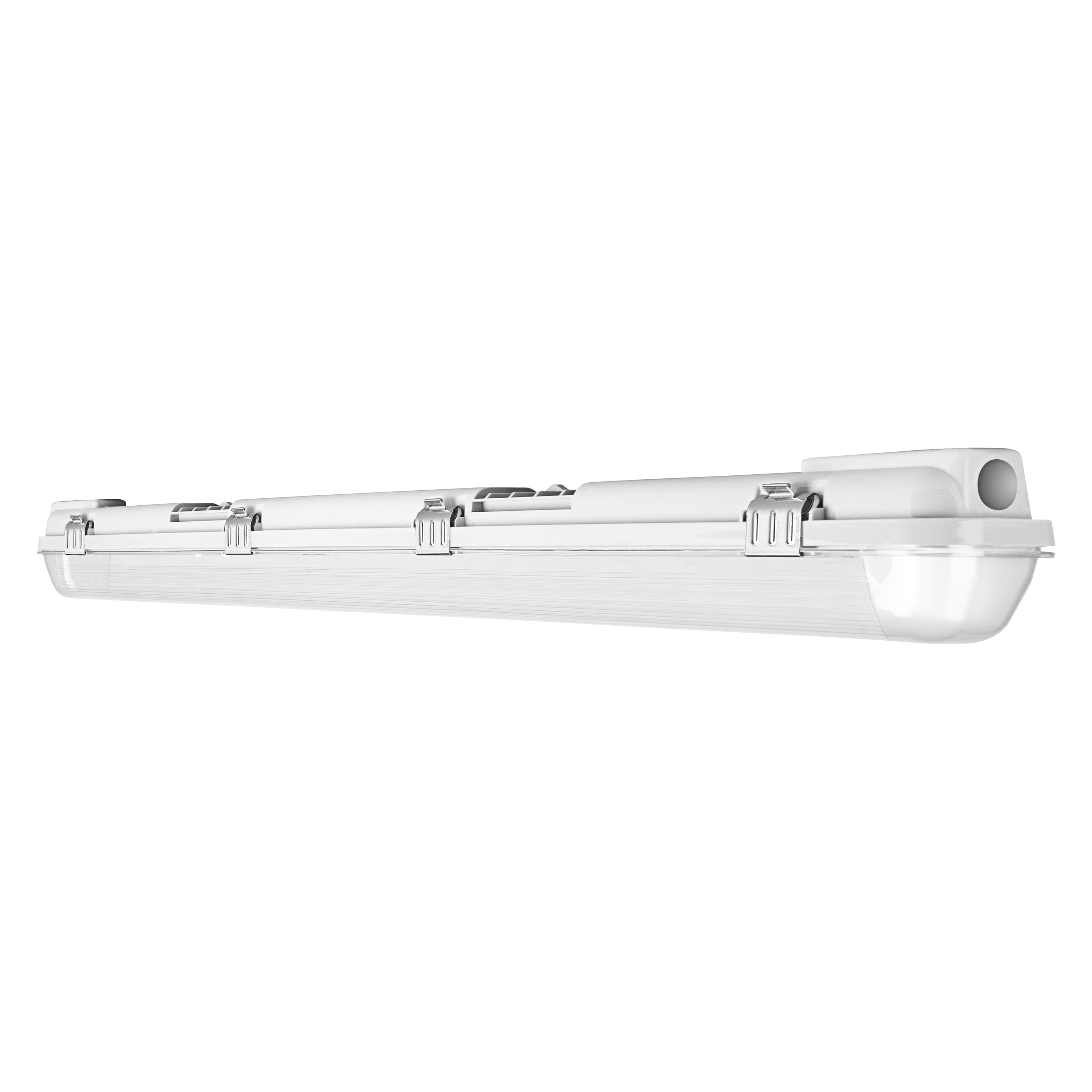

Product image: white background, diagonal
DAMP PROOF 600 1XLAMP HOUSING IP65
DAMP PROOF 600 1XLAMP HOUSING IP65

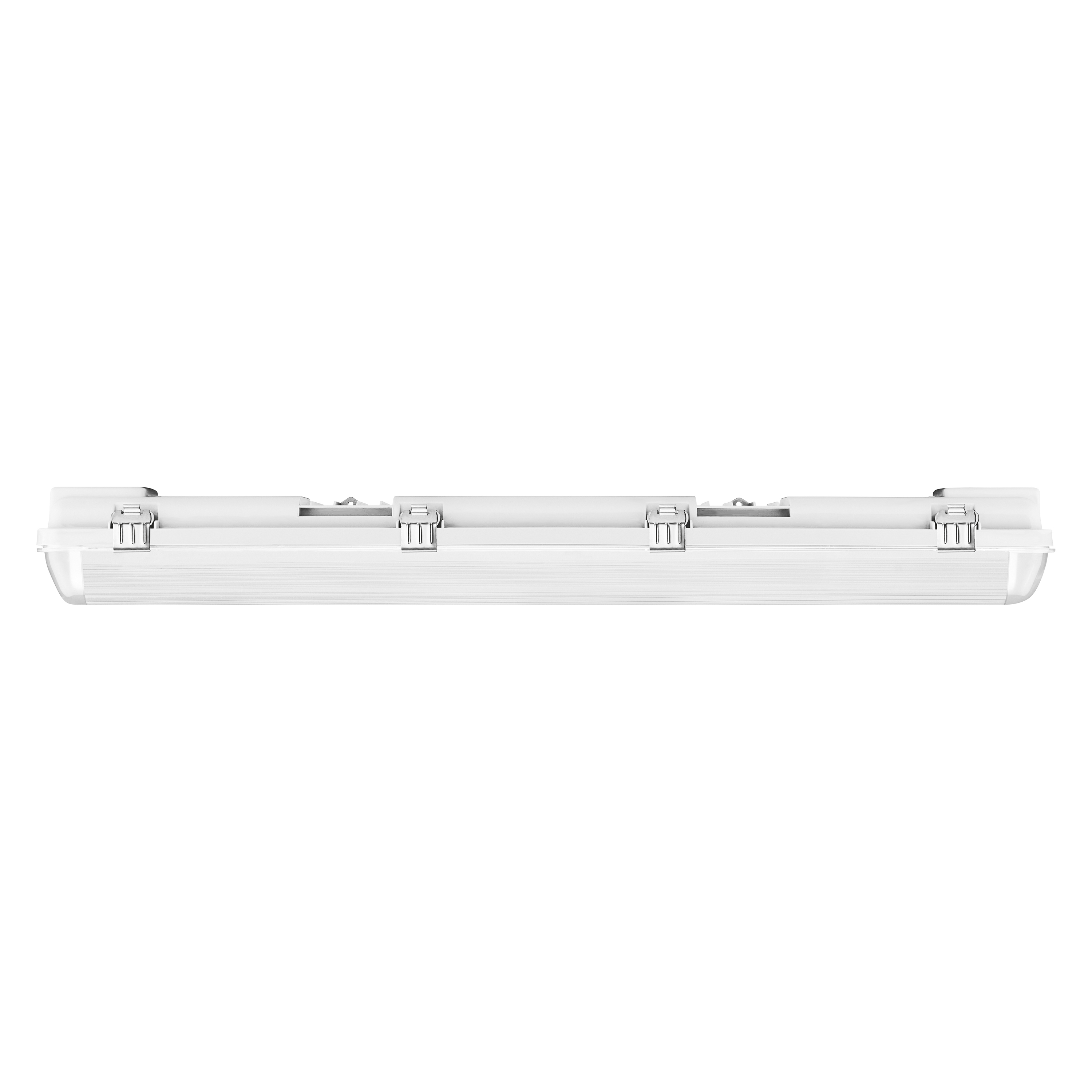

Product image: white background, horizontal
DAMP PROOF 600 1XLAMP HOUSING IP65
DAMP PROOF 600 1XLAMP HOUSING IP65
Product image: white background, horizontal, alternative image
DAMP PROOF 600 1XLAMP HOUSING IP65
DAMP PROOF 600 1XLAMP HOUSING IP65

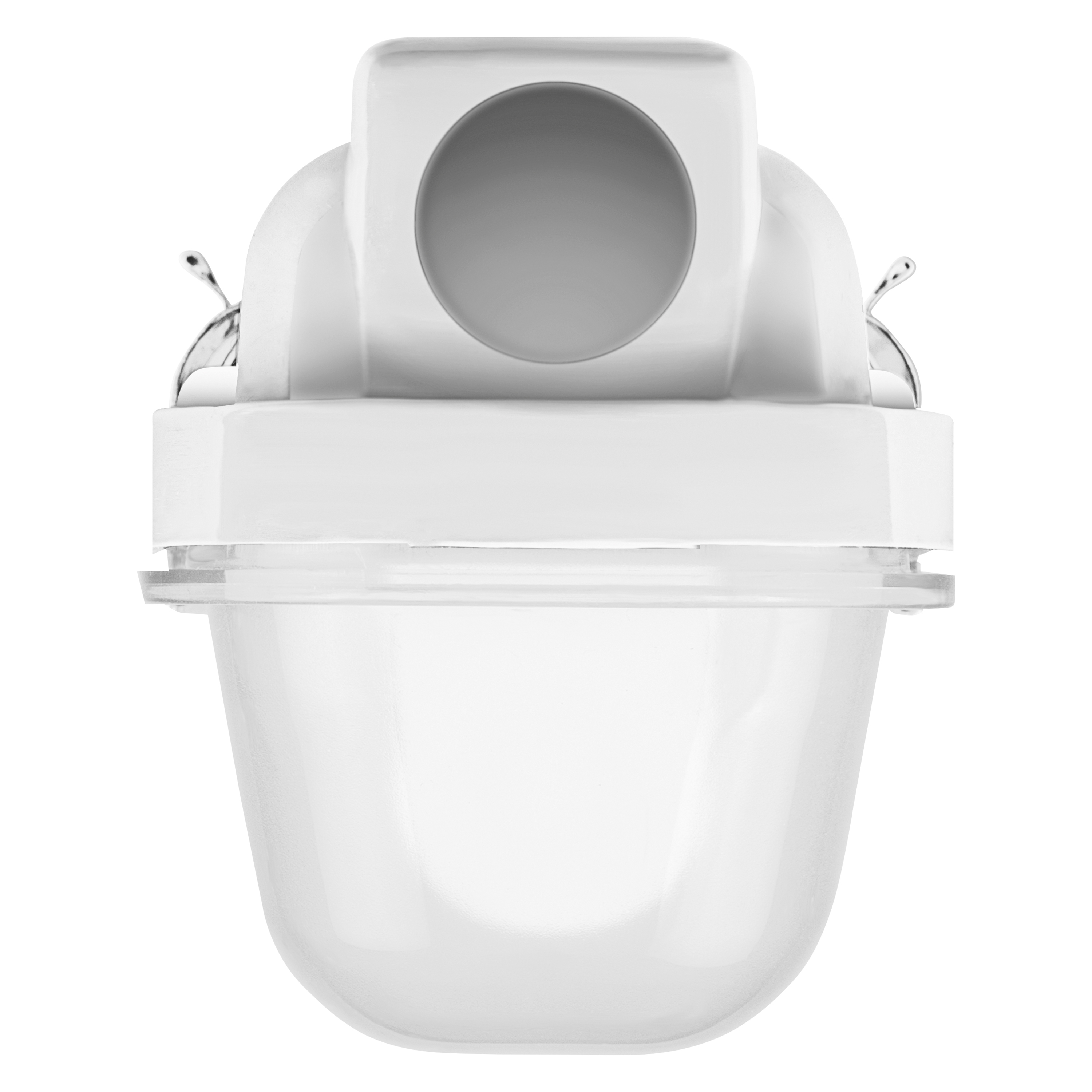

Product image: white background, upright
DAMP PROOF 600 1XLAMP HOUSING IP65
DAMP PROOF 600 1XLAMP HOUSING IP65
Product line drawing with letters
DAMP PROOF 600 1XLAMP HOUSING IP65
DAMP PROOF 600 1XLAMP HOUSING IP65
Product line drawing with numbers
DAMP PROOF 600 1XLAMP HOUSING IP65
DAMP PROOF 600 1XLAMP HOUSING IP65
Product line drawing, front, no dimensions
DAMP PROOF 600 1XLAMP HOUSING IP65
DAMP PROOF 600 1XLAMP HOUSING IP65

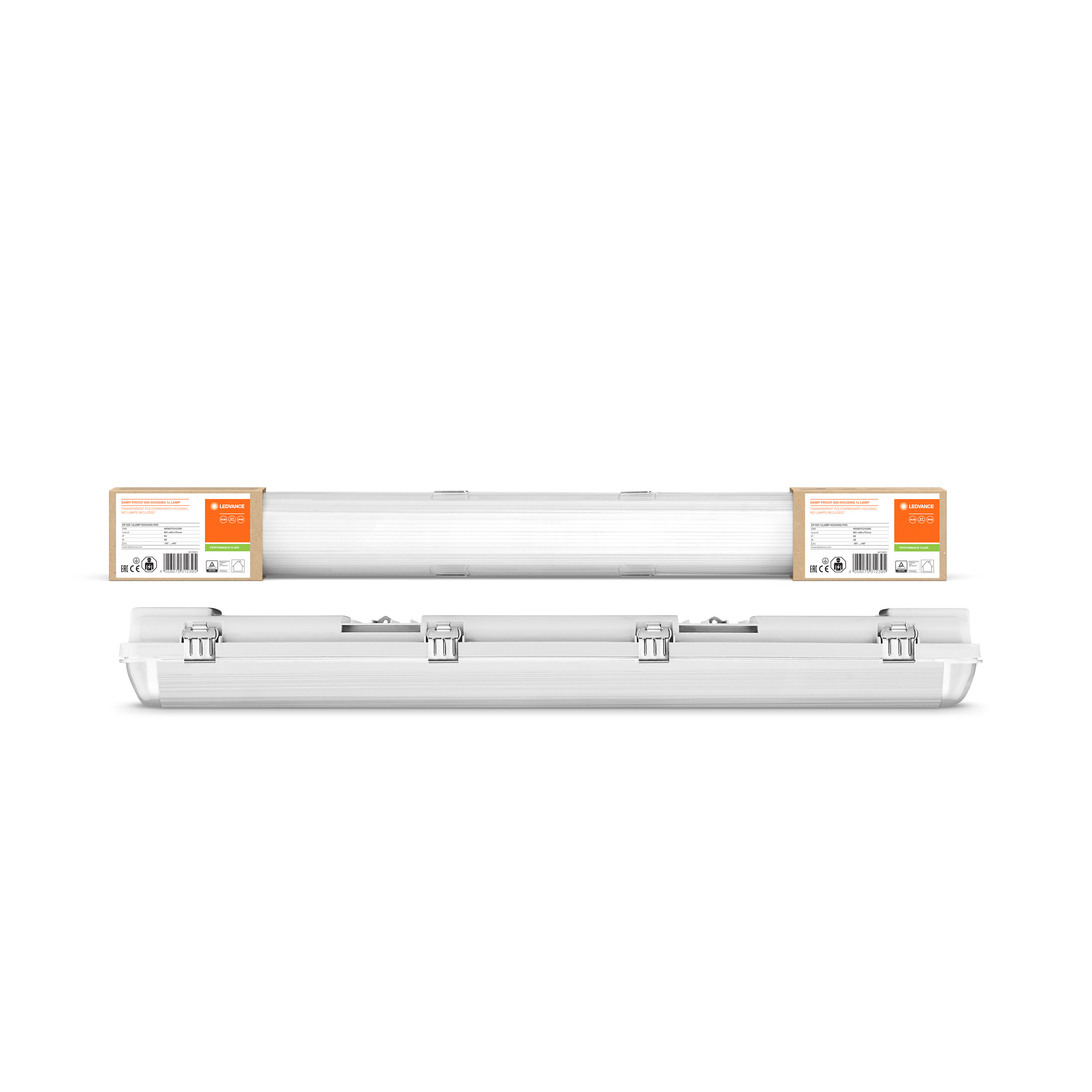

Combo Shot = Product Beauty Shot + Packaging Image
DAMP PROOF 600 1XLAMP HOUSING IP65
DAMP PROOF 600 1XLAMP HOUSING IP65

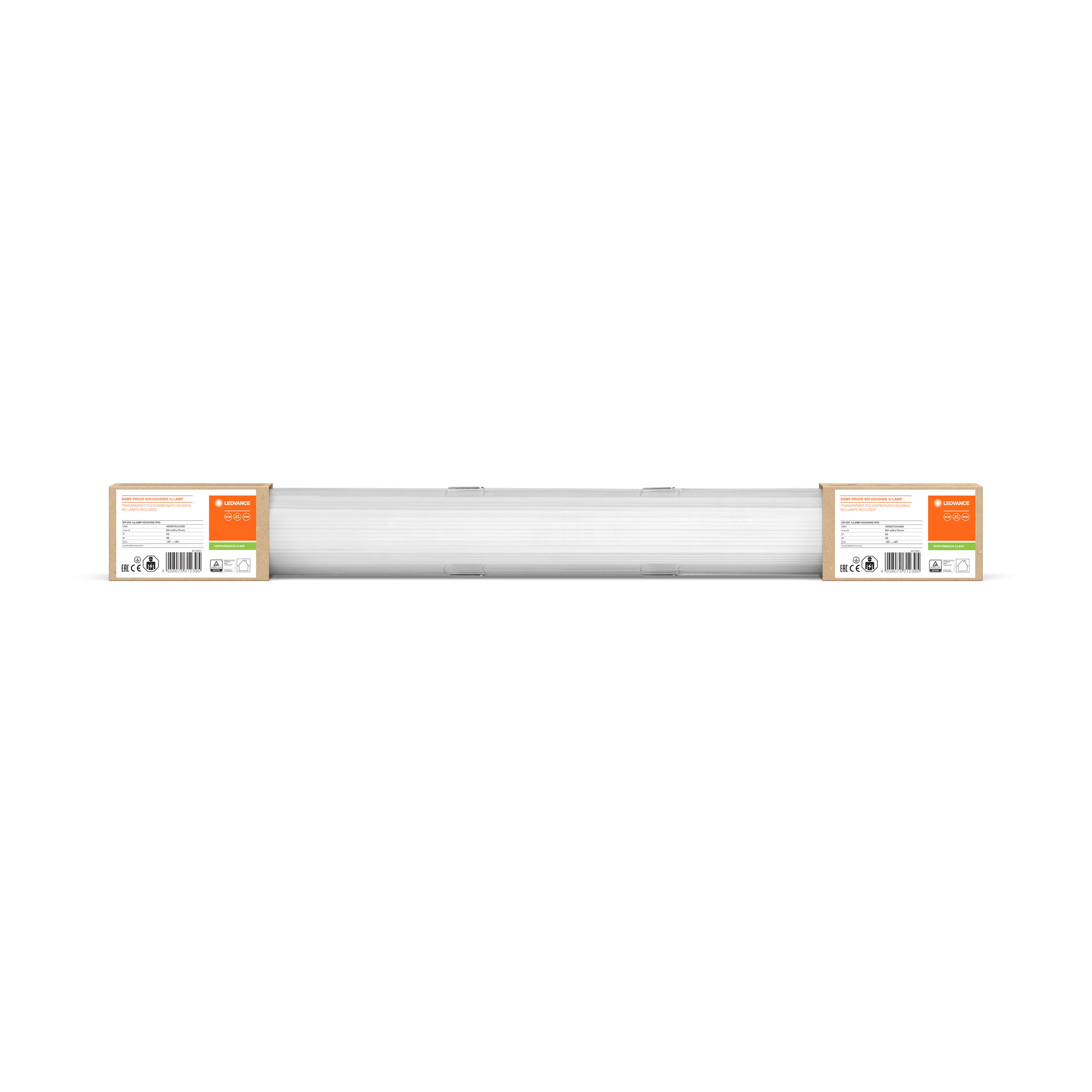

Packaging image, frontal
DAMP PROOF 600 1XLAMP HOUSING IP65
DAMP PROOF 600 1XLAMP HOUSING IP65

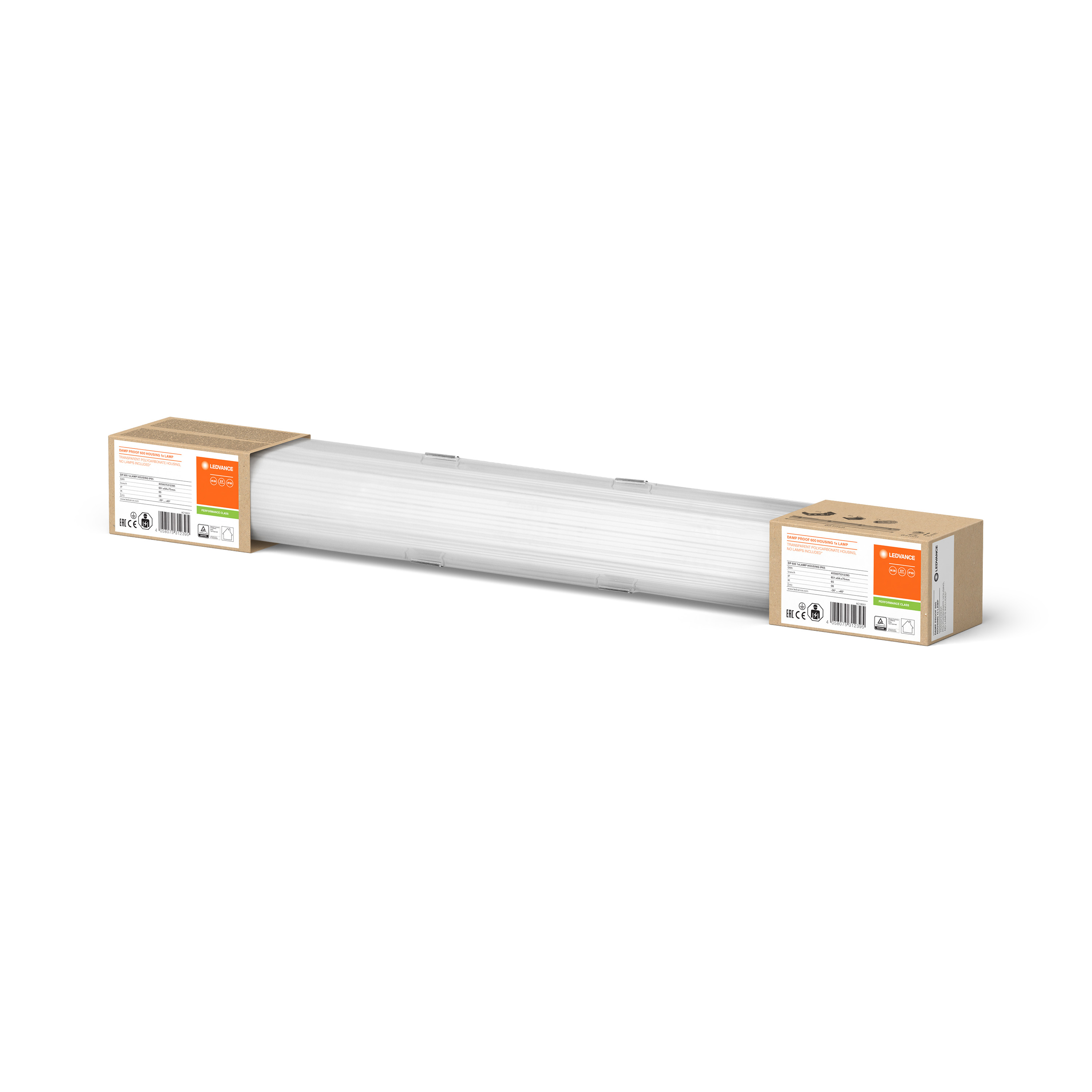

Packaging image, spacial
DAMP PROOF HOUSING 600 1x Lamp Mich Side copy
DAMP PROOF HOUSING 600 1x Lamp Mich Side copy
CAD STEP 3D
DP HOUSING G2 1 600
DP HOUSING G2 1 600
Tender documents
DAMP PROOF HOUSING 600 1x Lamp IP65-EN
DAMP PROOF HOUSING 600 1x Lamp IP65-EN
Application pictures
LEDVANCE_Garage_Damp Proof
LEDVANCE_Garage_Damp Proof
| EAN | SEG number | STK number | EFO number | ELDAS number |
|---|---|---|---|---|
| 4058075312395 | 7215001 | 4315565 | 3304021 | 941000720 |
