SENSOR DIRECT
SENSOR DIRECT LS-PD-7 IR CI ZB
GTIN: 4099854476358
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Light sensor up-to 2000 lx
- Quick and easy installation using spring clips
- Low maintenance through mains power operation
- Can be integrated into lighting and building management systems that support Zigbee 3.0
- Compatible with LEDVANCE VIVARES ZIGBEE and DIRECT EASY light management system
- Quick factory reset via button
Areas of application
- Open office spaces
- Meeting, storage and break rooms
- Classrooms
- Stairways
Product features
- Zigbee 3.0 certified presence sensor for ceiling integration
- Presence detection via passive IR element
- AC mains powered 100 V - 277 V
- Detection height up to 4 m
- Large detection area up to 7 m
- Direct commissioning via bluetooth possible
Equipment / Accessories
- Surface mounting via SENSOR CM KIT
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For current information see www.ledvance.com/light-management-systems
Electrical data
| Nominal wattage | 0.36 W |
| Nominal voltage | 100…277 V |
| Type of current | DC |
| Mains frequency | 50…60 Hz |
| Power factor λ | 0.2 |
Dimensions & Weight
| Length | 88.00 mm |
| Width | 88.00 mm |
| Height | 55.00 mm |
| Cable cross-section, input side | 0.5…1.5 mm² |
| Wire preparation length, input side | 6…7 mm |
| Product weight | 210.00 g |
Colors & materials
| Product color | White |
| Body material | Polycarbonate (PC) |
Temperatures & operating conditions
| Ambient temperature range | -20…+50 °C |
| Temperature range in operation | -20…+50 °C |
Additional product data
| Commissioning App | DIRECT EASY, VIVARES |
| Added function | VIVARES |
Capabilities
| Dimmable | No |
| Dimming interface | Zigbee Direct |
| Maximum installation height | 4 m |
| Detection angle | 360 ° |
| Type of installation | Ceiling integration |
Certificates & Standards
| Protection class | II |
| Type of protection | IP20 |
LOGISTICAL DATA
| Temperature range at storage | -40…+85 °C |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1), 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV329) - (3147-75-9) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854476358 | Folding box 1 |
100 mm x 60 mm x 100 mm | 227.00 g | 0.60 dm³ |
| 4099854476365 | Shipping box 10 |
320 mm x 220 mm x 125 mm | 2587.00 g | 8.80 dm³ |
| Product image | Product name | EAN |
|---|---|---|
|
SENSOR DIRECT CEILING MOUNTING KIT | 4099854485770 |
User instruction / safety instructions
SENSOR DIRECT LS-PD-7 IR CI ZB
SENSOR DIRECT LS-PD-7 IR CI ZB
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Legal information
Safety Insert MCU SELECT DIRECT AND SENSOR DIRECT
Safety Insert MCU SELECT DIRECT AND SENSOR DIRECT
Legal information
App Download guide
App Download guide
Declarations of conformity
SENSOR DIRECT LS-PD-7 IR CI ZB
SENSOR DIRECT LS-PD-7 IR CI ZB

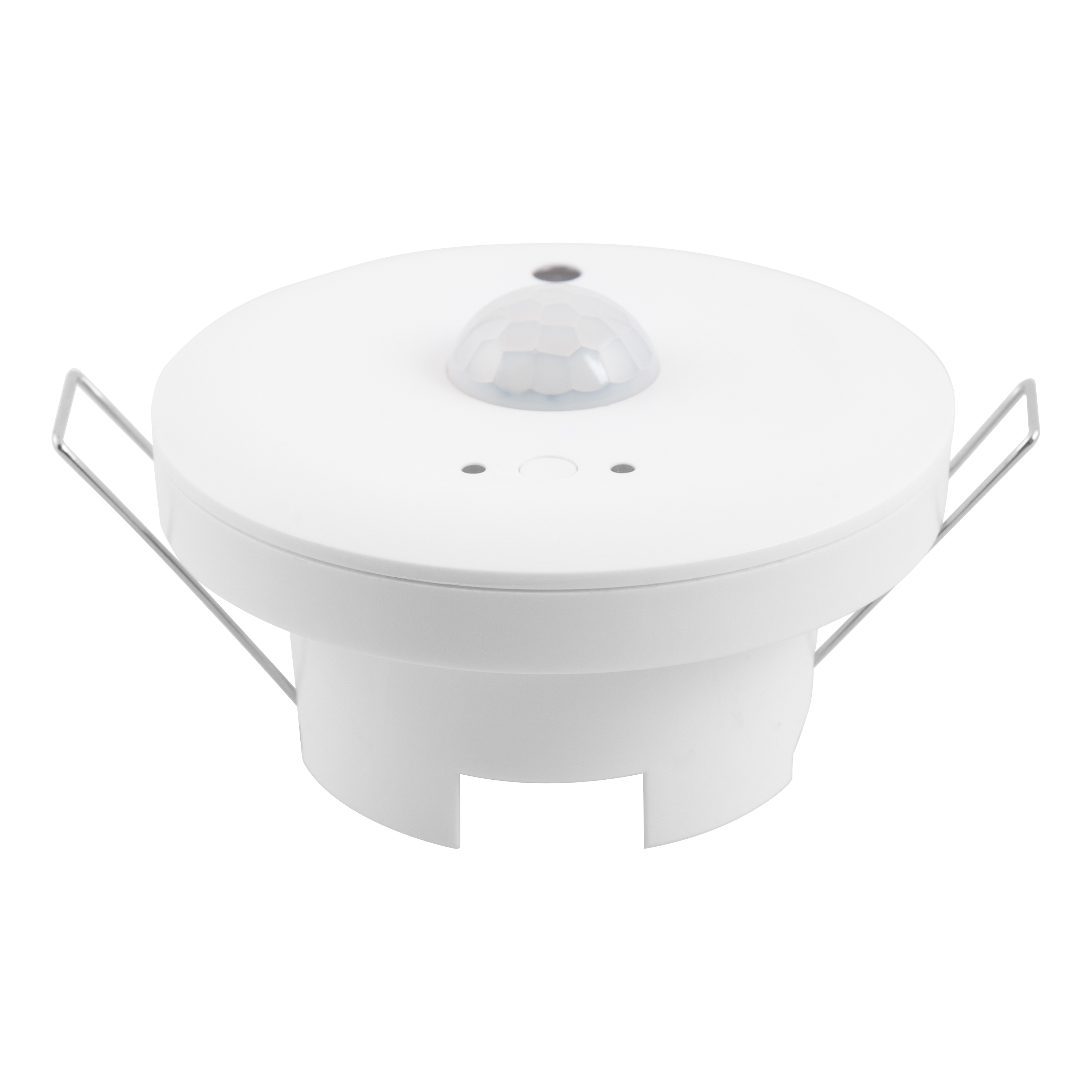

Product image: white background, spacial
