BIOLUX HCL LED STRIP KIT
BIOLUX HCL LS S TW ZB KIT
GTIN: 4058075671270
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Set with 5 m LED strip, matching driver and Zigbee adapter
- Set products ZB KIT: 1x LED Strip Superior 2000 lm/m TW (4058075436084), OTi Dali driver 160 W/220-240/24 2CH DT6/8 (4062172177948); Zigbee Dali converter (4062172044776) with strain relief ECO CI KIT (4008321392091)
- Set products IP67 ZB KIT: 1x LED Strip Superior 2000 lm/m TW (4058075436008), OTi Dali driver 160 W/220-240/24 2CH DT6/8 (4062172177948); Zigbee Dali converter (4062172044776) with strain relief ECO CI KIT (4008321392091)
- BIOLUX HCL CONTROL UNIT for LED Strip control must be ordered separately (EAN 4058075308657)
- Extensive accessories can be found on LEDVANCE homepage in product category LED Strips
- Enables an individual lighting solution in combination with compatible Zigbee HCL lighting controls
- Biologically optimized lighting by adapting artificial light to natural daylight course
- 5 years BIOLUX HCL system guarantee when operated as part of a BIOLUX HCL system (BIOLUX HCL- - VIVARES ZIGBEE control unit in combination with BIOLUX HCL luminaire(s) - BIOLUX HCL LED strips)
Areas of application
- Lighting solution for up to 40 BIOLUX HCL luminaires - BIOLUX HCL LED strips combined mit BIOLUX HCL control unit
- KIT available for indoor or outdoor applications
- Cove lighting
- Hotel and office rooms with little daylight
Product features
- Zigbee 3.0 certified Tunable White luminaires - LED strips for simple integration into partner systems
- Ready for connection to BIOLUX HCL and VIVARES ZIGBEE control unit
- Adjustable color temperature via Tunable White: 2,700…6,500 K
- Wireless communication between control unit and luminaries via Zigbee protocol
- Very high color rendering index Ra: > 90
- Smallest cuttable unit: 100 mm
Equipment / Accessories
- LEDVANCE BIOLUX app required for commissioning of the BIOLUX HCL system only (available for Android and iOS)
- LEDVANCE VIVARES app for project planning and required for commissioning of the VIVARES ZIGBEE system only (available for Android and iOS)
Legal advice
- The use of the LEDVANCE BIOLUX- / VIVARES-app is exclusively subject to the LEDVANCE BIOLUX- - VIVARES-app Terms of Use, which are displayed during installation of the app and are available in the app
Safety advice
- Important operating notice and legal disclaimer: This product is exclusively intended for operation as part of a BIOLUX HCL system (BIOLUX HCL- or VIVARES ZIGBEE control unit in combination with BIOLUX HCL-Luminaire(s) / BIOLUX HCL LED strips including built-in or supplied firmware/software). LEDVANCE GmbH assumes no responsibility, liability, warranty or guarantee for the operation of the product in combination or conjunction with third-party products or other products that are not BIOLUX HCL- / VIVARES ZIGBEE system products.
References / Links
- For Guarantee see www.ledvance.com/guarantee
- Further information for the KIT products can be found on LEDVANCE homepage in the related product categories
Electrical data
| Nominal wattage | 108.00 W |
| Nominal wattage per meter | 21.6 W |
| Nominal voltage | 220…240 V |
| Type of current | DC |
| Nominal current | 57000.000 mA |
| Mains frequency | 50…60 Hz |
Photometrical data
| Luminous efficacy | 84 lm/W |
| Luminous flux | 9140 lm |
| Luminous flux per meter | 1700 lm |
| Color temperature | 2700…6500 K |
| Color rendering index Ra | > 90 |
| Light color (designation) | Tunable White |
| Standard deviation of color matching | ≤4 sdcm |
Light technical data
| Beam angle | 120 ° |
LED MODULE INFORMATION
| Number of LEDs per meter | 120 |
Dimensions & Weight
| Length | 5000.00 mm |
| Width | 10.00 mm |
| Height | 1.20 mm |
| Diameter | 1.20 mm |
| Product weight | 784.00 g |
Temperatures & operating conditions
| Ambient temperature range | -15…+45 °C |
| Temperature range in operation | -15…+45 °C |
Lifespan
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
| Number of switching cycles | 15000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Additional product data
| Mounting location | Cove |
Capabilities
| Dimmable | Yes |
| Dimming interface | Zigbee 3.0 |
| Lowest bending radius | 33,0 mm |
| Self-adhesive | Yes |
Certificates & Standards
| Standards | CE |
| Protection class | II |
| Type of protection | IP00 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075671270 | Folding box 1 |
70 mm x 260 mm x 308 mm | 1102.00 g | 5.61 dm³ |
| 4058075671287 | Shipping box 4 |
290 mm x 270 mm x 322 mm | 4716.00 g | 25.21 dm³ |
User instruction / safety instructions
BIOLUX HCL LED STRIP ZB KIT
BIOLUX HCL LED STRIP ZB KIT
User instruction / safety instructions
BIOLUX HCL CONTROL UNIT
BIOLUX HCL CONTROL UNIT
Legal information
LSI BIOLUX HCL LS S
LSI BIOLUX HCL LS S
Legal information
BIOLUX HCL LS S TW ZB
BIOLUX HCL LS S TW ZB
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Declarations of conformity
BIOLUX HCL LS S TW KIT
BIOLUX HCL LS S TW KIT
Product image: white background, diagonal
LS SUP 2000 TW Unprotected
LS SUP 2000 TW Unprotected
Product image: white background, upright
BIOLUX HCL LS S TW KIT
BIOLUX HCL LS S TW KIT
Product line drawing with letters
LS SUP 2000 TW Unprotected
LS SUP 2000 TW Unprotected
Product line drawing with numbers
LS SUP 2000 TW Unprotected
LS SUP 2000 TW Unprotected
Product line drawing, front, no dimensions
LS SUP 2000 TW Unprotected
LS SUP 2000 TW Unprotected
Beauty Shot
Biolux HCL Zigbee_Composing image
Biolux HCL Zigbee_Composing image

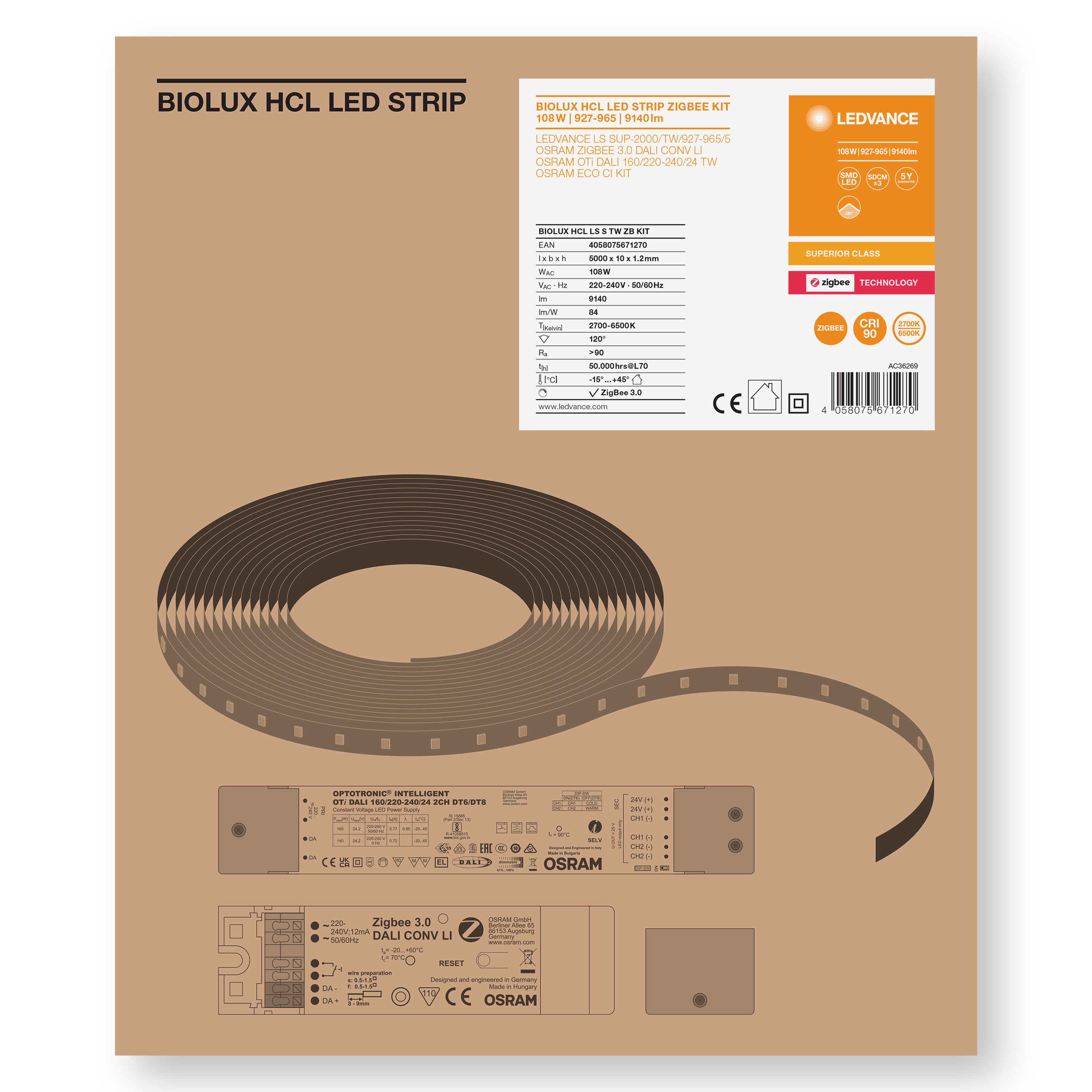

Packaging image, frontal
LEDVANCE BIOLUX HCL LS S TW ZB KIT
LEDVANCE BIOLUX HCL LS S TW ZB KIT

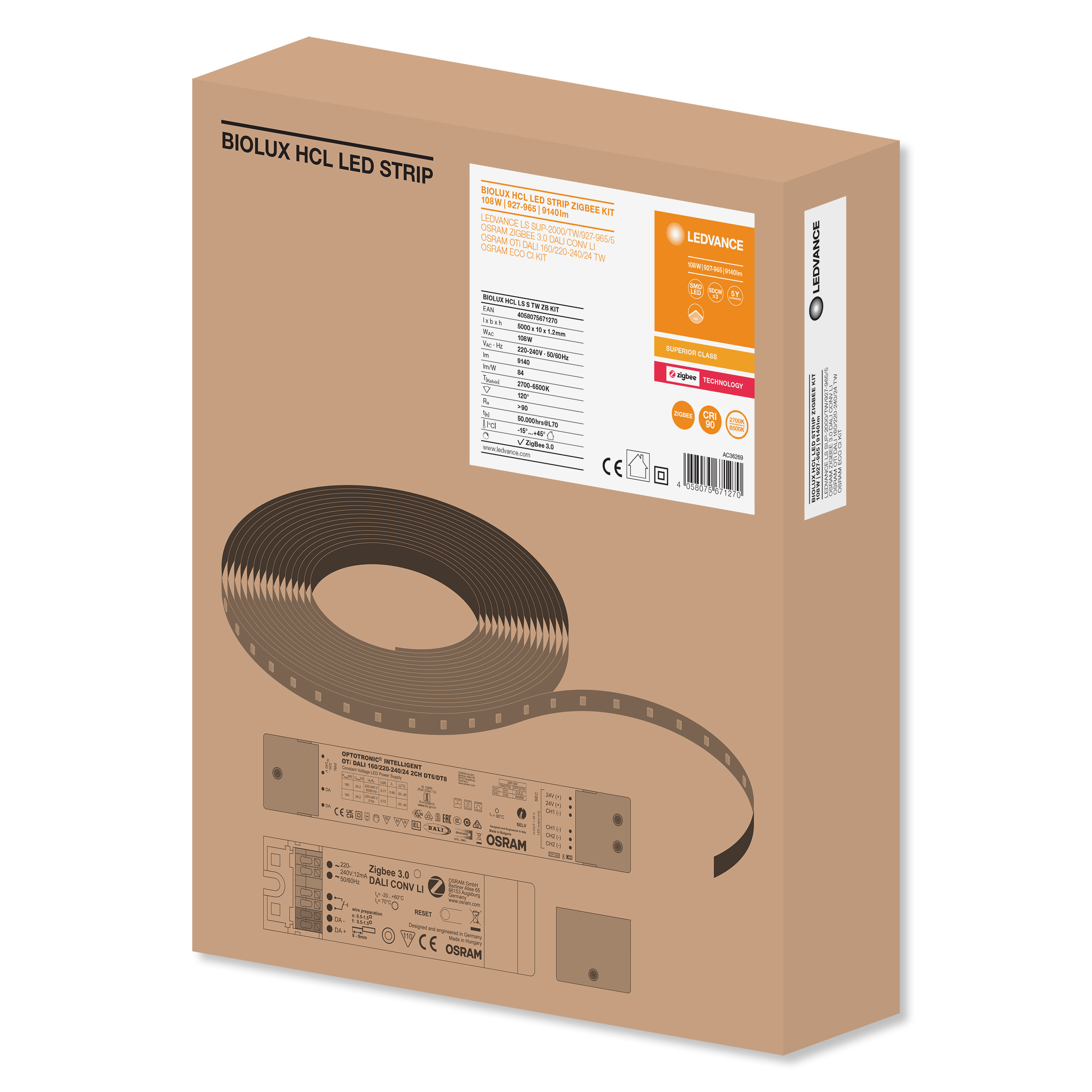

Packaging image, spacial
LEDVANCE BIOLUX HCL LS S TW ZB KIT
LEDVANCE BIOLUX HCL LS S TW ZB KIT
Tender documents
BIOLUX HCL LED STRIP KIT ZB KIT-EN
BIOLUX HCL LED STRIP KIT ZB KIT-EN
Application pictures

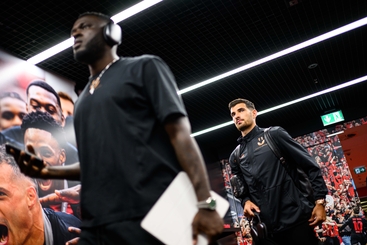

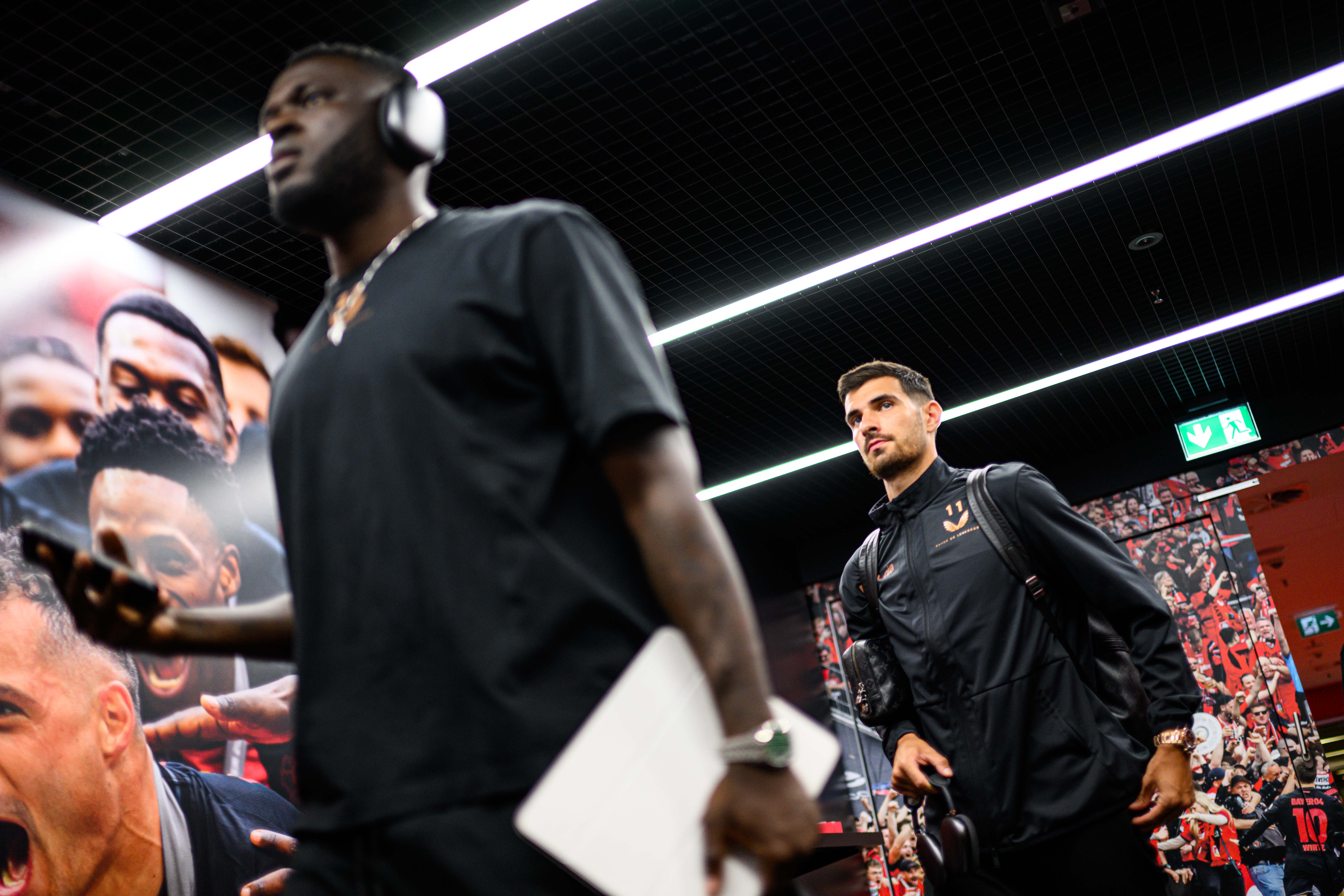

Bayer Leverkusen Player Hallway BIOLUX HCL lighting
