DALI HIGHBAY ADAPTER

DALI HIGHBAY ADAPTER

GTIN: 4008321774132 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Sensor integration in DALI
  • Embedding of HIGH BAY and VISION motion sensors into DALI
  • Extended terminal section enables mains looping
  • Daylight-dependent control with automatic shutdown in aquate daylight
  • DALI based light management system integrable into building management systems
  • Flexible addressing via DALI
Areas of application
  • Industry
  • Production halls
  • Sports halls
  • Logistic centers
  • Areas with high ceilings
  • Connection of light and presence sensors in DALI systems
  • Suitable for indoor installations
  • Production and assembly facilities
  • Open-plan offices, corridors and storage rooms
  • Corridors
  • Strip lighting in factory halls
Product features
  • DALI adapter for HIGH BAY and VISION sensor
  • Direct connection to DALI
  • Connection via screwless push wire terminals
  • Light sensor working range: 20…800 lx (measured at sensor)
  • Integrated light sensor
  • Suitable for through wiring
  • Suitable for daylight-dependent control
  • Light regulation for mounting heights of up to 13 m
  • Power supply for coupler from DALI
  • Integration into BMS systems
Equipment / Accessories
  • Blind cover included
  • Suitable for the DALI Professional light control system
Electrical data
Nominal wattage 0.10 W
Nominal voltage 20 V
Mains frequency 0 Hz
Dimensions & Weight
Length 139.00 mm
Width 118.00 mm
Height 37.00 mm
Product weight 74.00 g
Colors & materials
Product color White
Temperatures & operating conditions
Ambient temperature range 0…+50 °C
Capabilities
Dimmable No
Dimming interface DALI
Maximum installation height 13 m
Type of installation On-top ceiling mounting
Operating range, light sensor 20…800 lx 1)
1) Approximately, measured at the sensor
Certificates & Standards
Approval marks – approval CE
Protection class II
Type of protection IP20
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4008321774132 Folding box
1		 356 mm x 22 mm x 29 mm 266.00 g 0.23 dm³
4008321774149 Shipping box
20		 270 mm x 225 mm x 285 mm 2668.00 g 17.31 dm³
User instruction / safety instructions
344177_Operating and Mounting Instructions_DALI HIGHBAY Adapter
PDF (269.04 KB)
Declarations of conformity
334811_Declaration of conformity – DALI PRO CONT-4 – DALI PRO PB Coupler – DALI PRO Sen
PDF (200.83 KB)
Product image: white background, diagonal
341349_DALI HIGHBAY ADAPTER
TIF (22.12 MB)

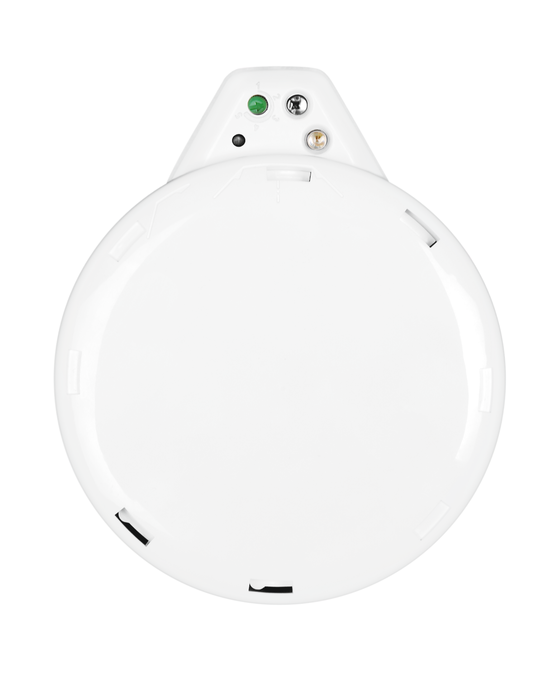

Product image: white background, upright
341350_DALI HIGHBAY ADAPTER
TIF (22.12 MB)
Product line drawing with letters
341353_DALI HIGHBAY ADAPTER
SVG (17.9 KB)
Product line drawing with numbers
491710_5LZ904722 Dali Pro 9047 – Highbayadapter
SVG (12.41 KB)
Product line drawing, front, no dimensions
341352_DALI HIGHBAY ADAPTER
SVG (12.54 KB)
EAN SEG number STK number EFO number ELDAS number
4008321774132 7985089 2612538 4515533 919026400
