DALI PS 100 LI
DALI PS 100 LI
GTIN: 4052899583221
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Suitable for small standalone DALI installations
- Enable dimmable retrofit for drop ceiling applications
- Suitable to power DEXAL sensor and RF modules
- Suitable for applications, where no DEXAL driver is available
- Suitable for DC operation 176…276 V
Product features
- DALI Bus power supply up to 100 mA
- Supply voltage: 220…240 V
- Short-circuit, overload and overtemperature protection
- Push terminals for easy wiring
- Compact size: 108 x 30 x 21 mm
Equipment / Accessories
- Ceiling or independent installation via ECO CI KIT possible
Electrical data
| Nominal wattage | 3.00 W |
| Nominal voltage | 220…240 V |
| Input voltage AC | 198…264 V |
| Input voltage DC | 176…276 V |
| Mains frequency | 50/60 Hz |
| Operating frequency | 0/50/60 Hz |
Dimensions & Weight
| Length | 108.00 mm |
| Width | 30.00 mm |
| Height | 21.00 mm |
| Cable cross-section, input side | 0.5…1.5 mm² 1) |
| Cable cross-section, output side | 0.5…1.5 mm² 1) |
| Wire preparation length, input side | 8.0…9.0 mm |
| Wire preparation length, output side | 8.0…9.0 mm |
| Product weight | 41.00 g |
1) Flexible / Solid leads
Temperatures & operating conditions
| Ambient temperature range | -30…+60 °C |
| Maximum temperature at tc test point | 70 °C |
| Max.housing temperature in case of fault | 100 °C |
Additional product data
| Product remark | This DALI Bus power Supply is not allowed to be connected with other DALI Bus power supplies on the same line. |
Capabilities
| Dimmable | No |
| Dimming interface | DALI 1) |
| Type of installation | Luminaire integration/Independent mounting |
1) Basic Insulation
Certificates & Standards
| Approval marks – approval | CE, DALI-2 |
| Standards | Acc. to IEC 61347-1, Acc. to IEC 61547, Acc. to IEC 55015, Acc. to IEC 61000-3-2, Acc. to IEC 61000-3-3, Acc. to IEC 62386-101:Ed2, Acc. to IEC 61347-2-11 |
| Protection class | II |
| Type of protection | IP20 |
LOGISTICAL DATA
| Temperature range at storage | -25…80 °C |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4052899583221 | Folding box 1 |
160 mm x 35 mm x 40 mm | 67.00 g | 0.22 dm³ |
| 4052899583238 | Shipping box 25 |
223 mm x 197 mm x 179 mm | 1787.00 g | 7.86 dm³ |
User instruction / safety instructions
DALI PS 100 LI
DALI PS 100 LI
Declarations of conformity
EU Declaration of Conformity DALI PS 100 LI-3672418-EN-00
EU Declaration of Conformity DALI PS 100 LI-3672418-EN-00
Product image: white background, diagonal
DALI PS 100 LI
DALI PS 100 LI

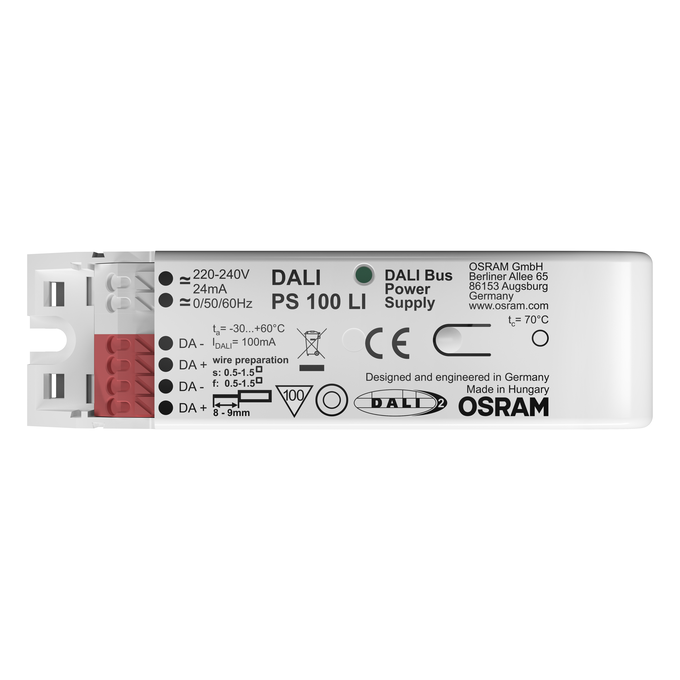

Product image: white background, horizontal
DALI PS 100 LI
DALI PS 100 LI
Product line drawing with letters
DALI PS 100 LI
DALI PS 100 LI
Product line drawing with numbers
DALI PS 100 LI
DALI PS 100 LI
| EAN | ELDAS number |
|---|---|
| 4052899583221 | 919000170 |
