Y-CONNECTOR
Y-CONNECTOR MULTI3
GTIN: 4050300803135
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- For parallel connection of sensors to a MULTIeco, MULTI 3, DALIeco system
- Enables synchronization and connection of multiple EASY system components
Areas of application
- Suitable for all OSRAM components with modular 4p4c connector system
Product features
- Passive distributor
- Connections: 3x modular 4p4c socket
- Type of installation: Adhesive pad mounting on smooth surfaces
Equipment / Accessories
- 2 connecting cables included, modular 4p4c connector on both ends, length 2.1 m
Electrical data
| Nominal wattage | 1.00 W |
| Mains frequency | 0 Hz |
Dimensions & Weight
| Length | 34.00 mm |
| Width | 18.00 mm |
| Height | 16.00 mm |
| Product weight | 80.00 g |
Capabilities
| Dimmable | No |
Certificates & Standards
| Approval marks – approval | CE |
| Protection class | III |
| Type of protection | IP20 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4050300803135 | Folding box 1 |
215 mm x 35 mm x 43 mm | 92.00 g | 0.32 dm³ |
| 4050300803142 | Shipping box 25 |
224 mm x 190 mm x 220 mm | 2465.00 g | 9.36 dm³ |
User instruction / safety instructions
334148_Y-CONNECTOR – branch element
334148_Y-CONNECTOR – branch element
Declarations of conformity
334067_LMS MULTI3 SENSORS
334067_LMS MULTI3 SENSORS

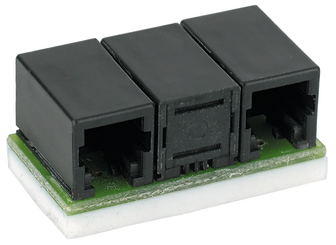

Product image: white background, diagonal
36421_Y-CONNECTOR MULTI 3
36421_Y-CONNECTOR MULTI 3
Product line drawing with letters
326417_Y-CONNECTOR
326417_Y-CONNECTOR
| EAN | SEG number | STK number | EFO number | ELDAS number |
|---|---|---|---|---|
| 4050300803135 | 7980188 | 3511210 | 3322010 | 919000060 |
