Wide Profiles for LED Strips
LS AY -PW02/UW/39X26/14/1
GTIN: 4058075278134
BAG / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Robust aluminum profile
- Quick and simple installation
Areas of application
- General indoor illumination
Dimensions & Weight
| Length | 1000 mm |
| Width | 39.0 mm |
| Height | 26.0 mm |
| Product weight | 260.00 g |
Colors & materials
| Product color | Grey |
Temperatures & operating conditions
| Ambient temperature range | -15…+45 °C |
| Temperature range in operation | -15…+45 °C |
Additional product data
| Product remark | Can be combined with all LEDVANCE LED Strips including connectors and endcap |
LOGISTICAL DATA
| Temperature range at storage | -35…+85 °C |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075278134 | BAG 1 |
1,200 mm x 80 mm x 10 mm | 261.00 g | 0.96 dm³ |
| 4058075278141 | Bundle 10 |
500 mm x 55 mm x 100 mm | 2611.00 g | 2.75 dm³ |
| 4058075278158 | Shipping box 50 |
1,030 mm x 230 mm x 310 mm | 13593.00 g | 73.44 dm³ |
| Product image | Product name | EAN |
|---|---|---|
|
|
LS AY -PW02/EC/H | 4058075277427 |
|
|
LS AY -PW02/EC | 4058075277397 |
|
LS AY -PC/W02/C/1 | 4058075402348 |
|
|
LS AY -PW02/MB | 4058075276659 |
|
LS AY -PC/W02/D/1 | 4058075279421 |
Declarations of conformity
LS AY PM_PF_PW_PC
LS AY PM_PF_PW_PC
Product image: white background, diagonal
LS AY-PW02/UW/39X26/14/1
LS AY-PW02/UW/39X26/14/1
Product line drawing with letters
LS AY-PW02/UW/39X26/14/1
LS AY-PW02/UW/39X26/14/1
Product line drawing, front, no dimensions
LS AY-PW02/UW/39X26/14/1
LS AY-PW02/UW/39X26/14/1

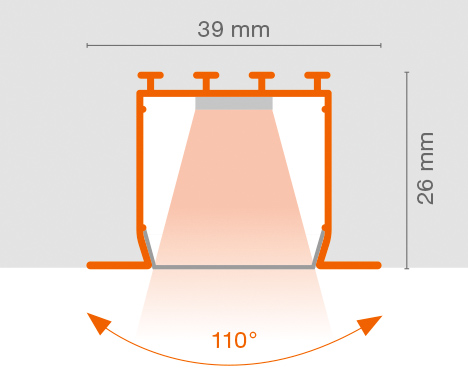

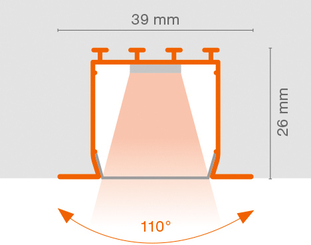

Product graphic: beam angle
Beam angle Wide U-Shape Wing Profile
Beam angle Wide U-Shape Wing Profile
Tender documents
Wide Profiles for LED Strips PW02UW39X26141-EN
Wide Profiles for LED Strips PW02UW39X26141-EN
| EAN | STK number | EFO number | ELDAS number |
|---|---|---|---|
| 4058075278134 | 4246083 | 3254376 | 941901560 |
