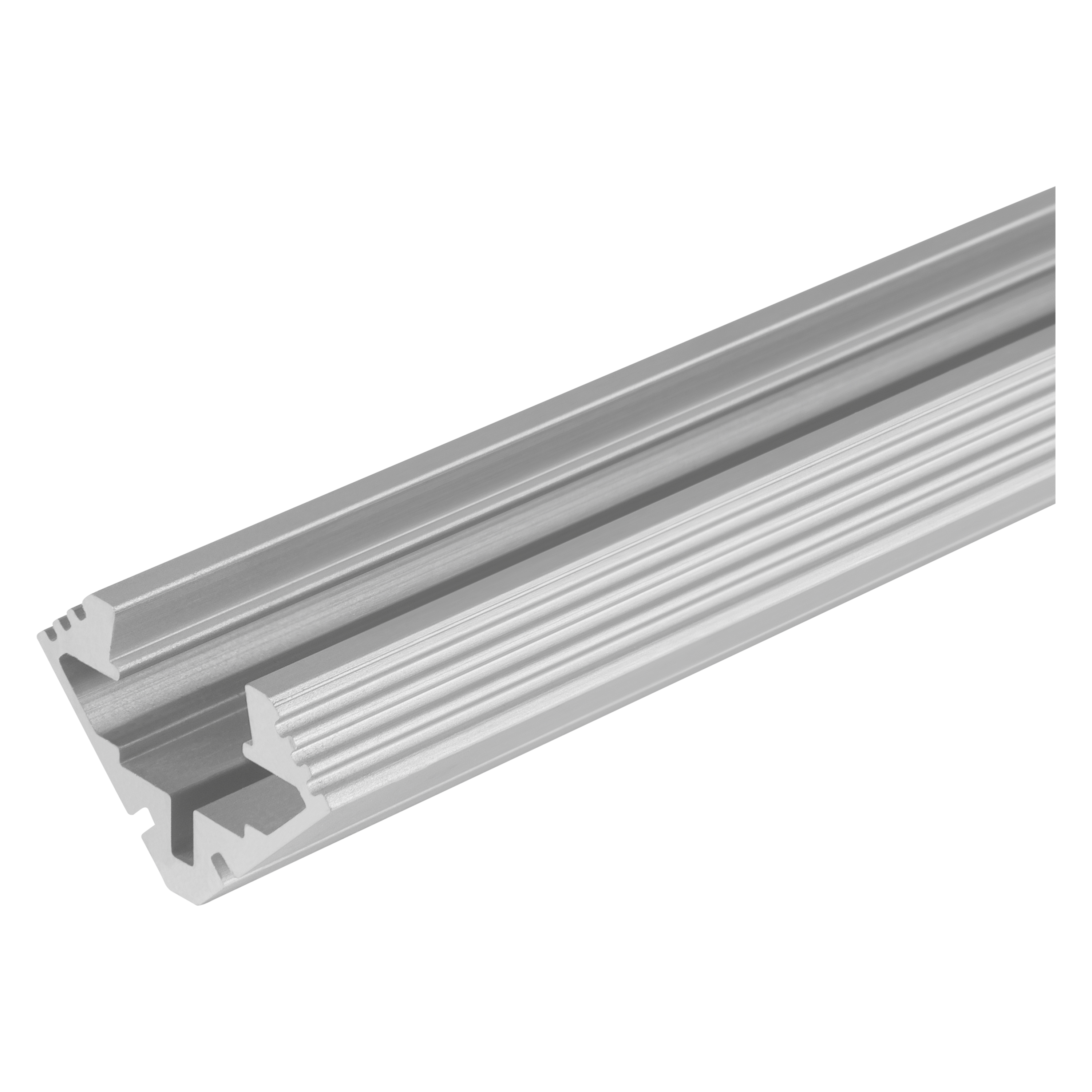

LS AY -PM03/E/19X19/10/1

Medium Profiles for LED Strips

GTIN: 4058075278370 BAG / 1 Show all packages

Download data sheet

Contact sales

Our warranty conditions

PRODUCT DETAILS

Product benefits

Robust aluminum profile
Quick and simple installation

Areas of application

General indoor illumination

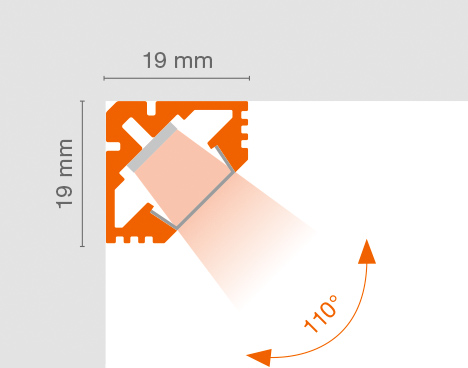

Dimensions & Weight

Length	1000 mm
Width	19.0 mm
Height	19.0 mm
Product weight	290.00 g

Colors & materials

Product color

Grey

Temperatures & operating conditions

Ambient temperature range	-15…+45 °C
Temperature range in operation	-15…+45 °C

Additional product data

Product remark

Can be combined with SUPERIOR UNPROTECTED Strips, Cannot be combined with SUPERIOR PROTECTED Strips, Can be combined with PERFORMANCE UNPROTECTED Strips, Cannot be combined with PERFORMANCE PROTECTED Strips, Can be combined with VALUE UNPROTECTED Strips, Cannot be combined with VALUE PROTECTED Strips

LOGISTICAL DATA

Temperature range at storage

-35…+85 °C

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals	0 mg
Quantity of rare earths	0 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4058075278370	BAG 1	1,200 mm x 50 mm x 5 mm	291.00 g	0.30 dm³
4058075278387	Bundle 10	500 mm x 55 mm x 50 mm	2910.00 g	1.38 dm³
4058075278394	Shipping box 50	1,030 mm x 220 mm x 130 mm	15177.00 g	29.46 dm³
